EH1D2F48SEC0 Huawei
Click to enlarge
EH1D2F48SEC0 Huawei
Home GPON Card HUAWEI GPON Card EH1D2F48SEC0 Huawei Brand New 48-port X interface card
ES5D21G08S00 Huawei
ES5D21G08S00 Huawei Brand New Rear Optical Interface Card
Back to products
EH1D2MCUAC00 Huawei
EH1D2MCUAC00 Huawei Brand New S9703 Main Control Unit A

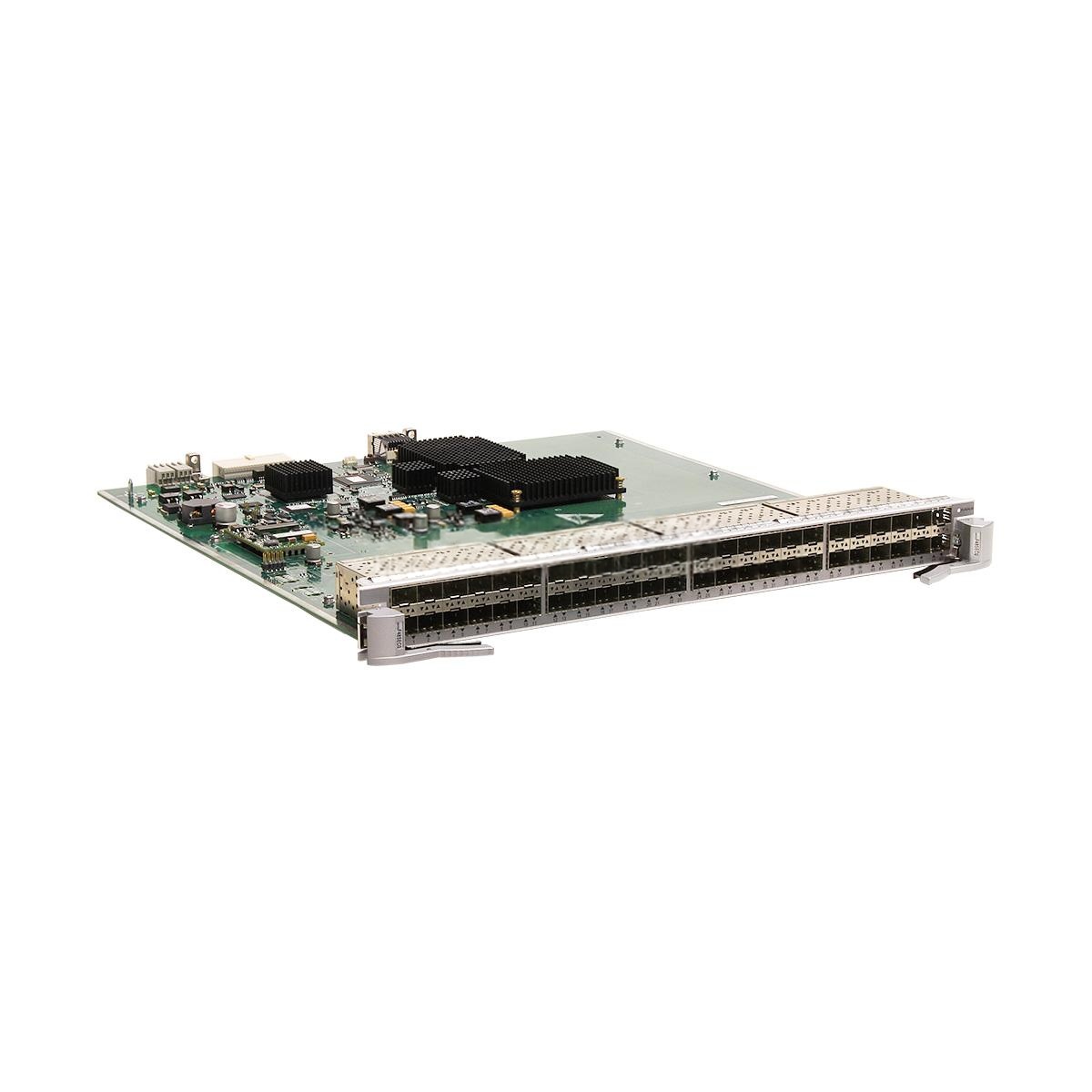

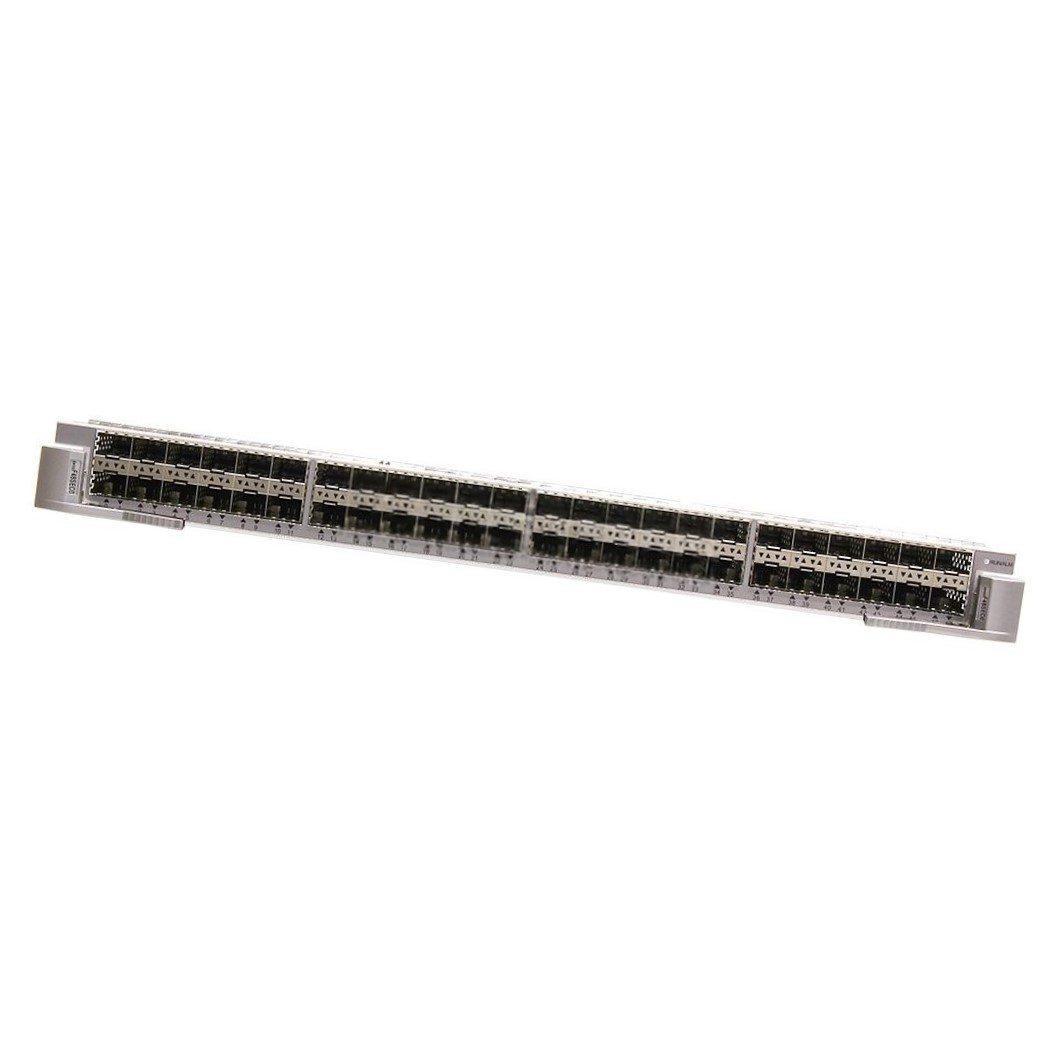

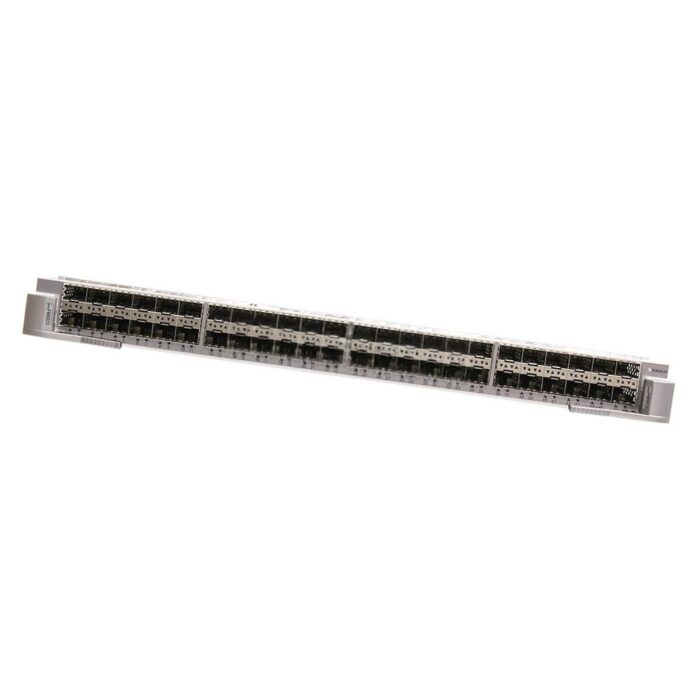

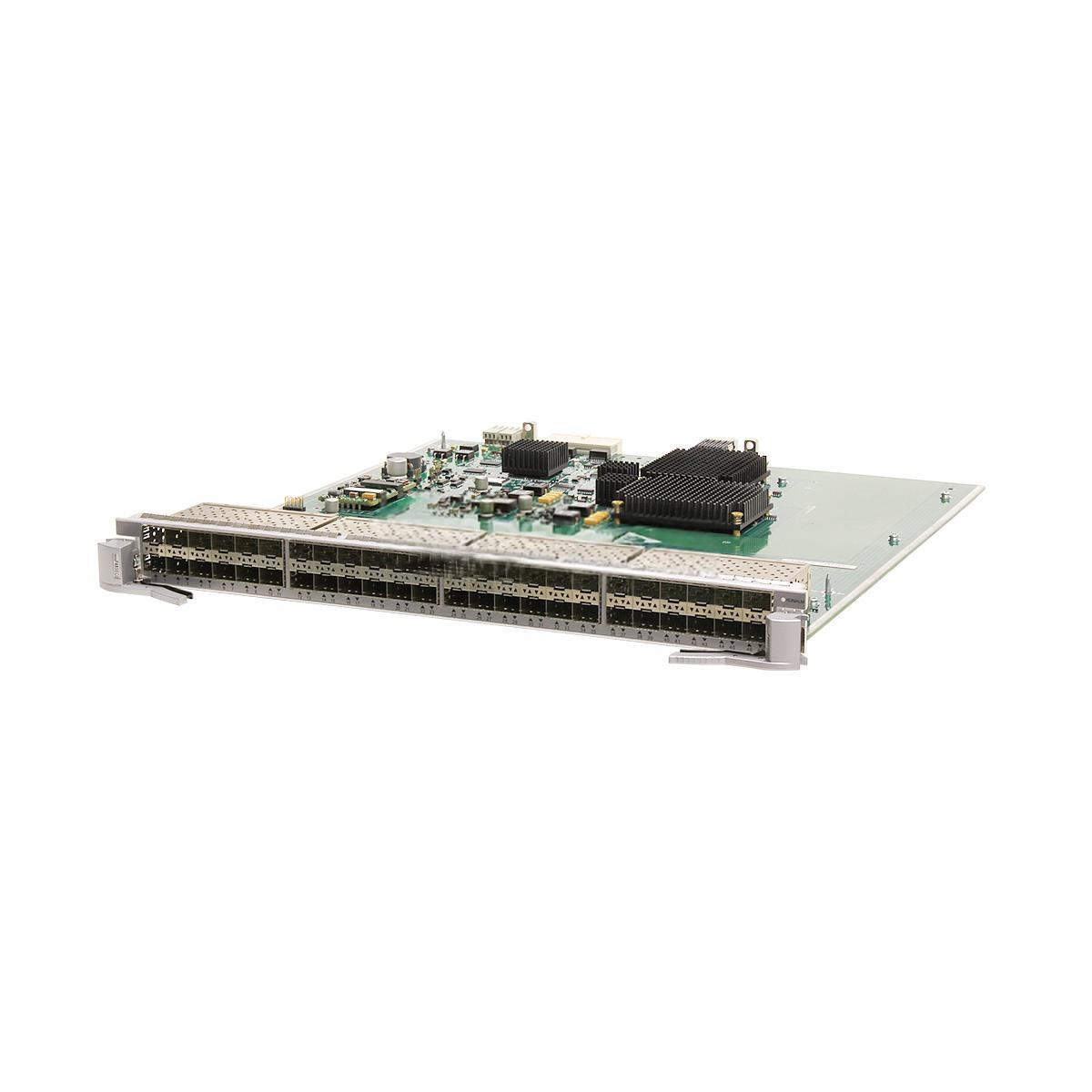

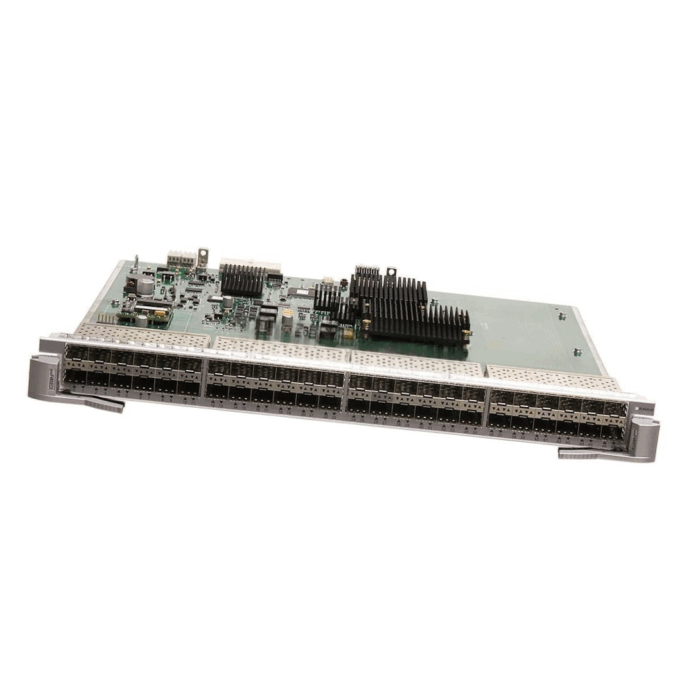

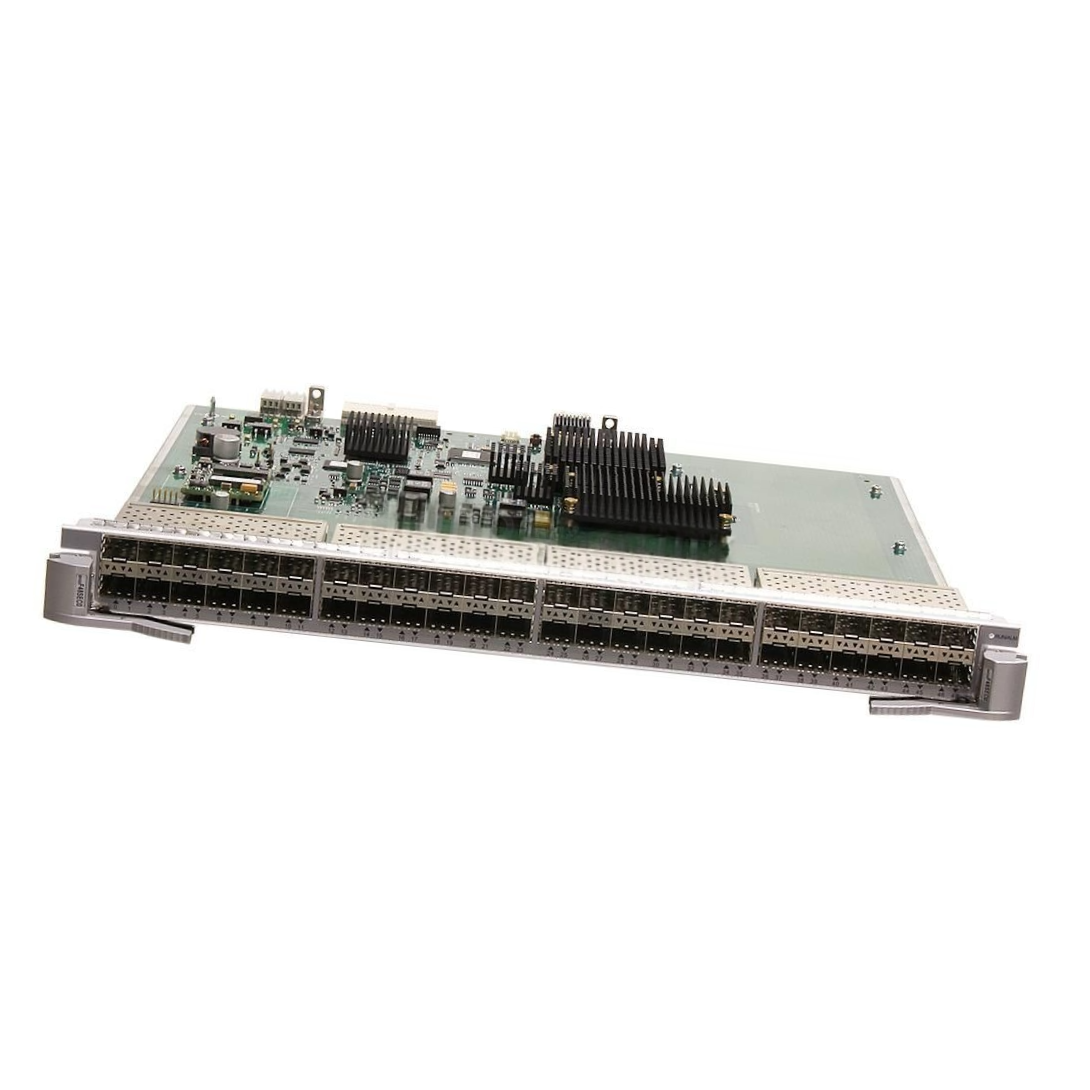

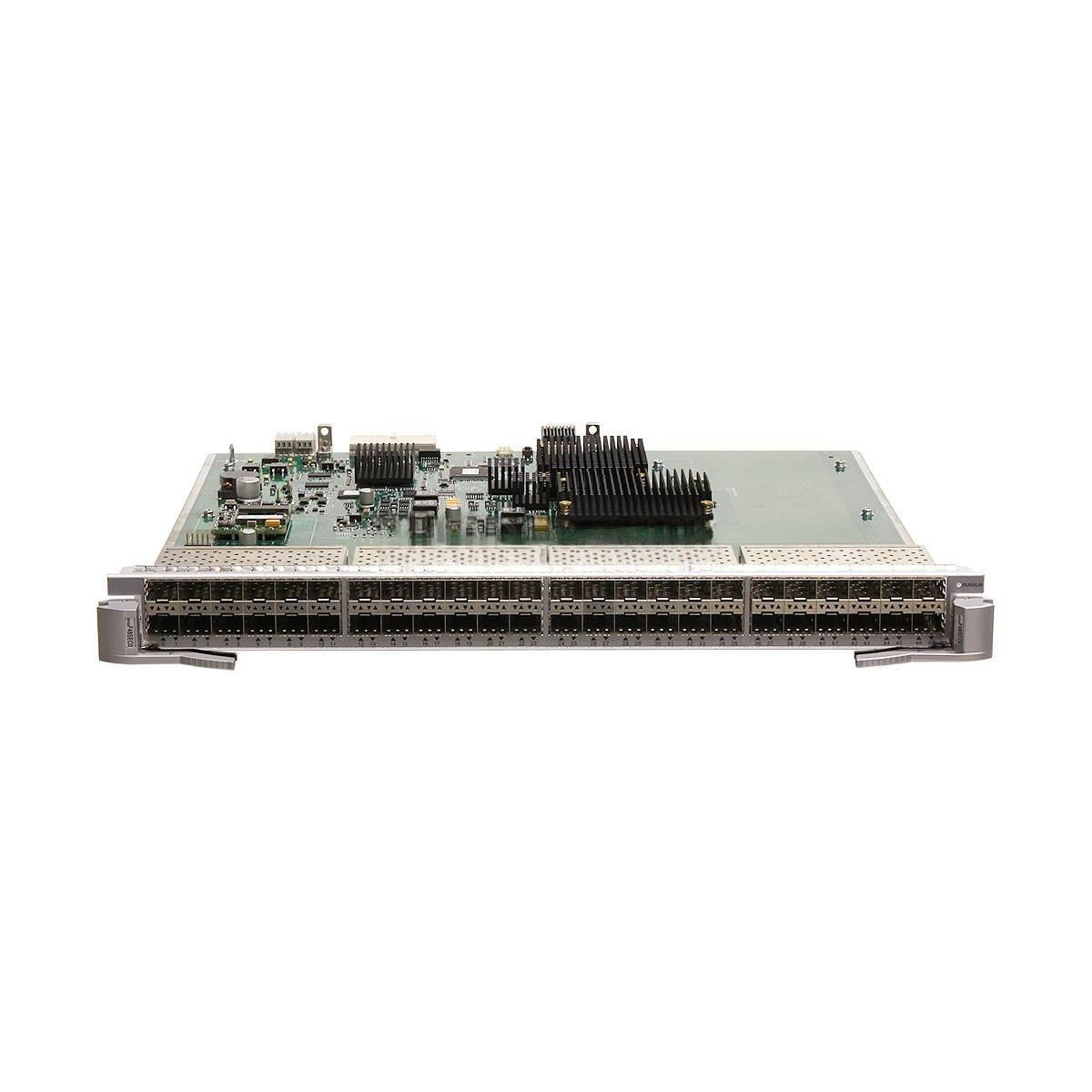

EH1D2F48SEC0 Huawei Brand New 48-port X interface card

The EH1D2F48SEC0 is an original Huawei 48-Port X Interface Card, expertly designed for high-capacity network expansion and exceptional performance in large-scale enterprise, ISP, and telecom environments. With its 48 high-speed X ports, this interface card enables robust, reliable, and scalable connectivity, ensuring your network can handle demanding data workloads and future growth with ease.

Compare
Add to wishlist
Categories: All Products, Fiber optic Accessories, GPON Card, HUAWEI GPON Card Tags: 100BASE-X 48-port card Huawei, 48‑port SFP card Huawei, 48‑port uplink card Huawei, EH1D2F48SEC0 Huawei, EH1D2F48SEC0 module, EH1D2F48SEC0 network card, EH1D2F48SEC0 spare part, Huawei 48‑port X interface card, Huawei blade switch module, Huawei chassis expansion card, Huawei data center interface card, Huawei EH1D2F48SEC0, Huawei enterprise interface module, Huawei Ethernet interface card, Huawei fiber optic interface, Huawei high‑density interface module, Huawei I/O expansion module, Huawei network expansion card, Huawei optical network card, Huawei rear panel interface card, Huawei switch expansion card
Share:
  • Description
Description

EH1D2F48SEC0 Huawei Product Description:

The EH1D2F48SEC0 Huawei is an original Huawei 48-Port X Interface Card, expertly designed for high-capacity network expansion and exceptional performance in large-scale enterprise, ISP, and telecom environments. With its 48 high-speed X ports, this interface card enables robust, reliable, and scalable connectivity, ensuring your network can handle demanding data workloads and future growth with ease.

Built to Huawei’s stringent quality standards, the EH1D2F48SEC0 delivers stable and secure data transmission with low latency, making it an ideal choice for mission-critical applications where network uptime and performance are non-negotiable. The hot-swappable, plug-and-play design makes installation and maintenance straightforward, minimizing downtime and optimizing network operations.


Key Features:

  • Model: EH1D2F48SEC0

  • Brand: Huawei (100% Genuine & Brand New)

  • Port Configuration: 48 high-performance X ports for maximum port density and scalability

  • Performance: Supports high-throughput data transfer with minimal latency and maximum efficiency

  • Compatibility: Fully compatible with Huawei’s modular switches, routers, and network chassis

  • Build Quality: Manufactured with premium components and tested to Huawei’s strict standards for durability and long service life

  • Installation: Hot-swappable and plug-and-play design for easy deployment and upgrades


Tech Specs
Front Panel


1. Forty-eight 100M BASE-X optical ports

Attribute of 100M BASE-X optical port
Connector type SFP
Optical port attributes Depend on the SFP optical module used.
Standards compliance IEEE 802.3u
Frame format Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
Version Mapping
Supported in V200R001C00 and later versions
Physical specification
Dimensions (mm) 394.7 mm x 426.8 mm x 35.1 mm
Weight (kg) 2.66 kg (5.86 lb)
Maximum power consumption 76 W
Environment parameters
Operating temperature 0°C to 45°C (32°F to 113°F)
Operating relative humidity 5% RH to 95% RH (noncondensing)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Storage relative humidity 5% RH to 95% RH (noncondensing)

EH1D2F48SEC0 Huawei Applications:

✅ Large enterprise networks expanding port capacity
✅ Telecom backbone and ISP core networks
✅ Data centers and cloud infrastructure projects
✅ Network modernization and upgrades
✅ System integrators building scalable network solutions


Customization & OEM Services:

To meet your unique project or business needs, we offer flexible customization and OEM services, including:

  • Pre-configuration of port settings and firmware for plug-and-play deployment

  • OEM branding and custom labeling for bulk or reseller orders

  • Customized packaging and documentation to match your project requirements

  • Additional burn-in testing and extended QA for mission-critical applications


EH1D2F48SEC0 Huawei Wholesale & Bulk Orders:

Looking to purchase in volume? We welcome wholesale and bulk orders for system integrators, resellers, ISPs, and telecom operators. Enjoy:
✔️ Competitive factory-direct pricing with attractive bulk discounts
✔️ Reliable global stock and timely delivery
✔️ Secure export packaging to protect sensitive equipment
✔️ Dedicated account managers for smooth, efficient order processing
✔️ Full after-sales technical support and warranty service


Why Choose Us:

  • 100% authentic Huawei hardware, thoroughly tested and certified

  • Flexible customization options for tailored network solutions

  • Competitive pricing and supply chain efficiency for large orders

  • Professional export logistics and secure international shipping

  • Experienced technical support team to assist you every step of the way


Contact Us for a Quote:

Interested in the EH1D2F48SEC0 Huawei 48-Port X Interface Card for your next project or bulk procurement? Contact our team today for custom solutions, detailed specifications, and competitive pricing. We’re here to help you build a reliable, scalable, and future-ready network.
