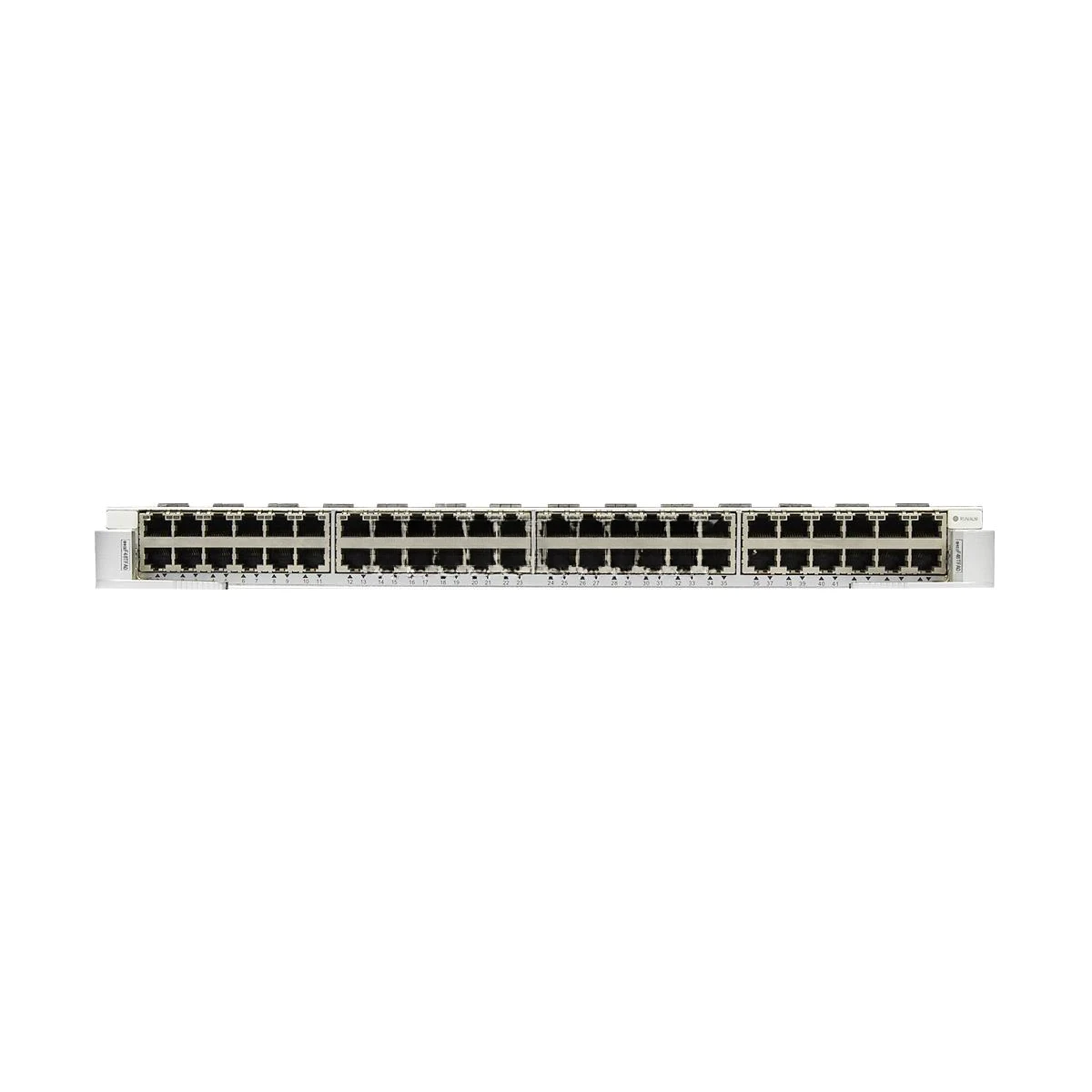

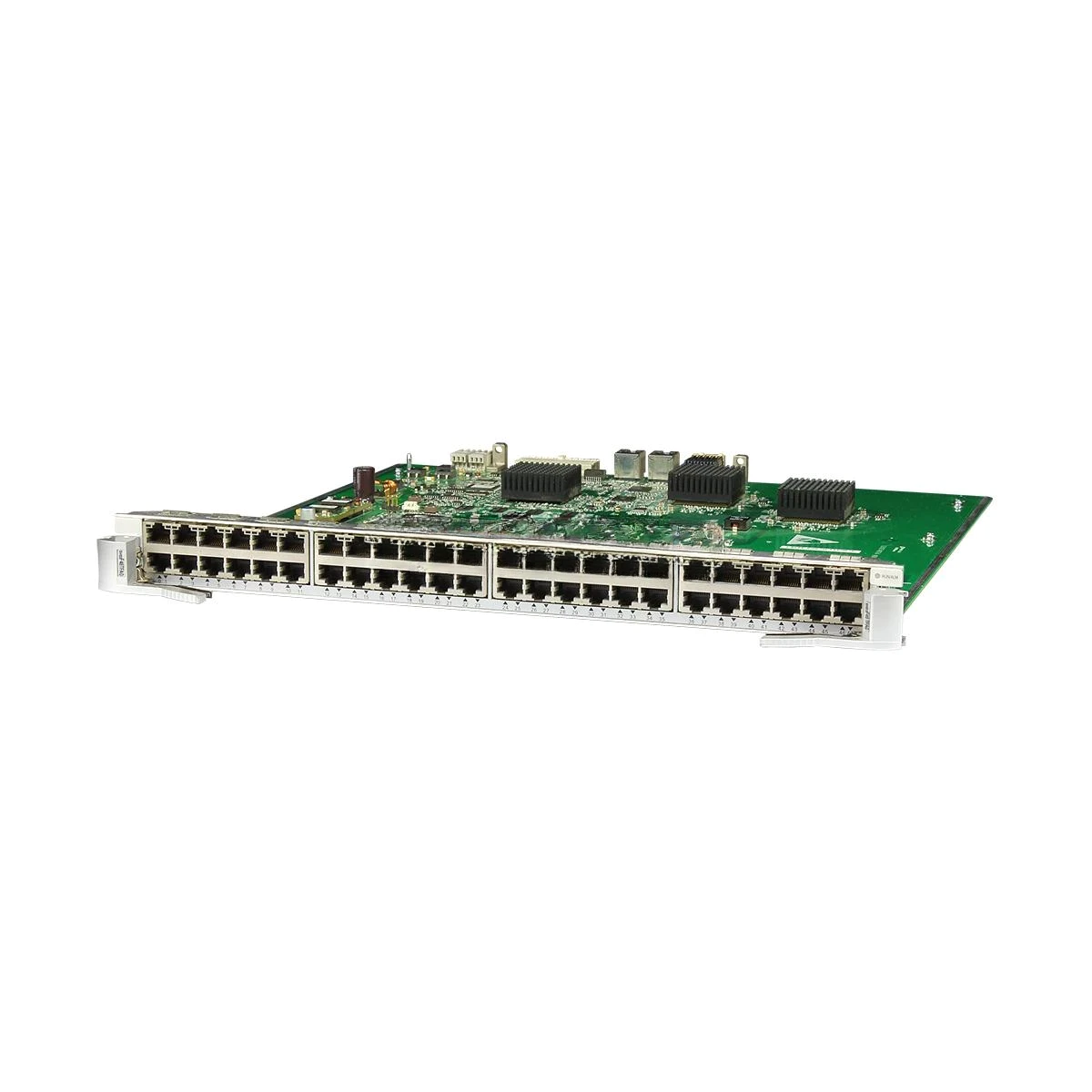

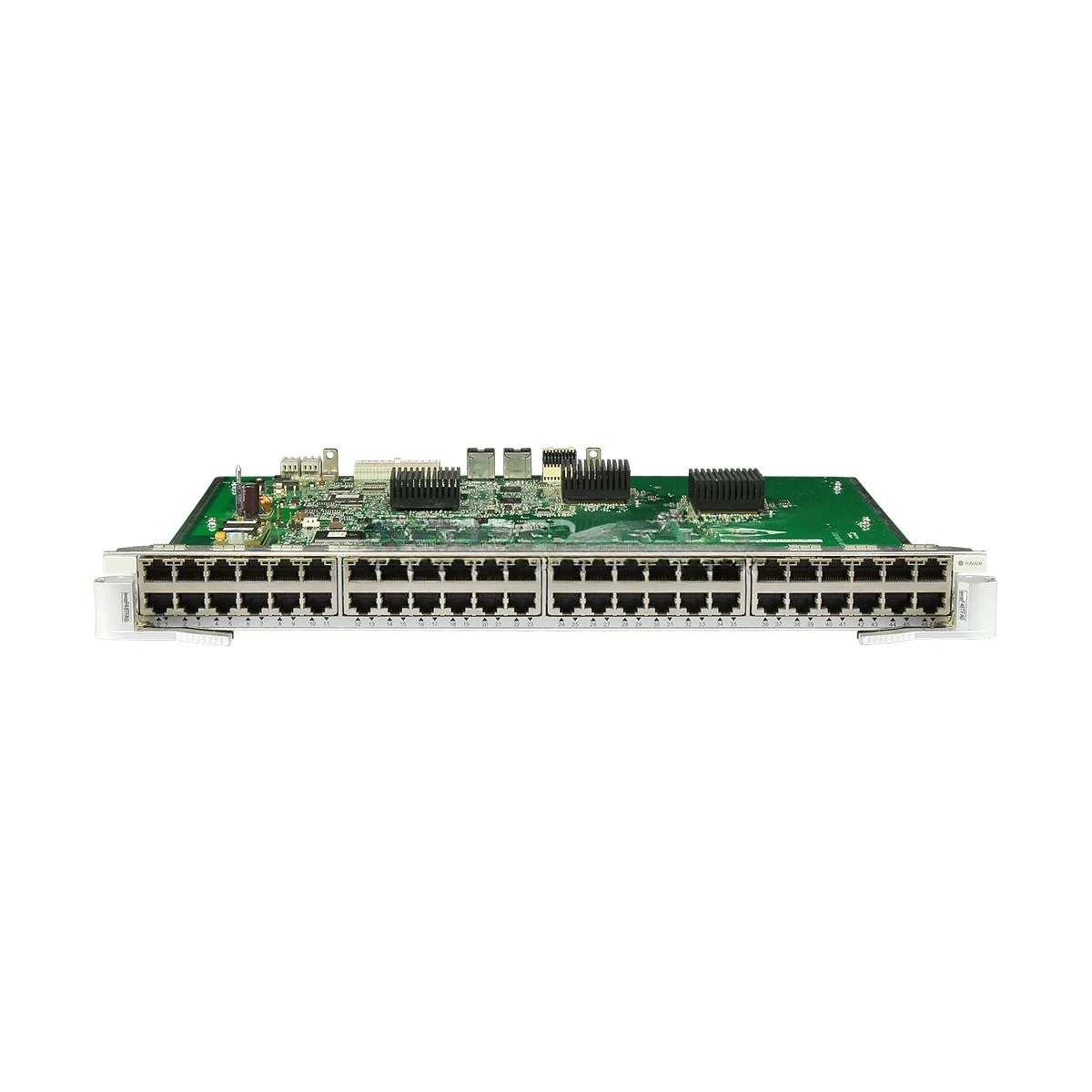

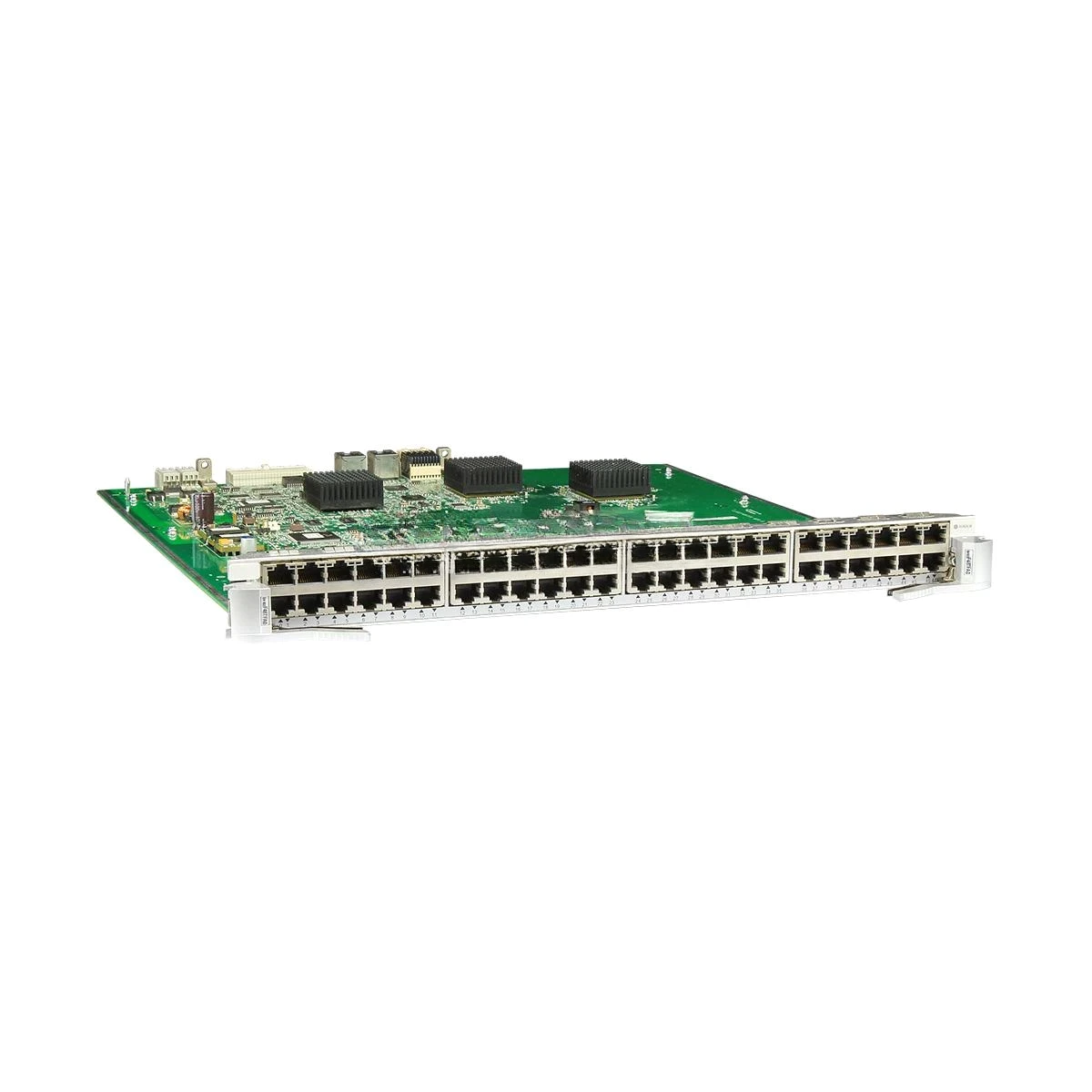

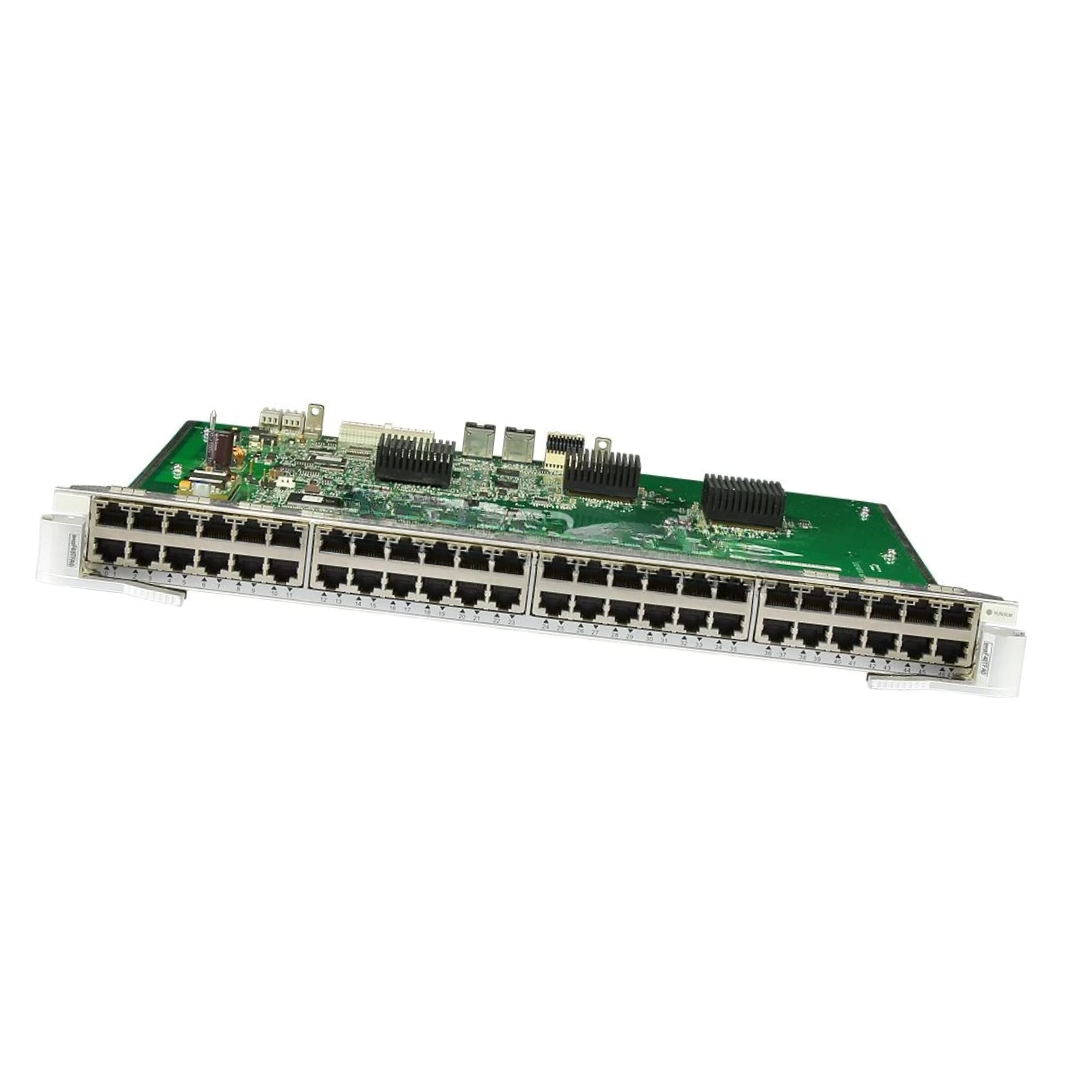

EH1D2F48TFA0 Huawei Description
The EH1D2F48TFA0 Huawei is an original, high-quality 48-Port 10/100BASE-T Interface Card, designed for Huawei’s advanced modular switch and router series. This robust interface card provides 48 high-density Fast Ethernet (FE) electrical ports, making it ideal for enterprise LAN access, campus networks, or carrier-grade metro access deployments that require stable, cost-effective network connectivity.
Built with carrier-grade components, the EH1D2F48TFA0 delivers reliable performance, low latency, and efficient packet forwarding for mission-critical environments. Its hot-swappable design allows for convenient installation, expansion, or maintenance without impacting network operations, ensuring maximum uptime and simplified network management.
Key Features
-
Model: EH1D2F48TFA0
-
Condition: 100% Brand New, Original Huawei
-
Type: 48-Port 10/100BASE-T Electrical Interface Card
-
Function: Provides Fast Ethernet connectivity for high-density access scenarios
-
Performance: Stable, efficient data transmission with minimal packet loss
-
Reliability: Designed for continuous 24/7 operation in demanding network conditions
-
Hot Swappable: Supports live insertion and removal with zero downtime
-
Compatibility: Fully compatible with Huawei modular switch and router chassis that support this interface card
Tech Specs
Attribute of 10M/100M BASE-T Electrical Port
| Attribute | Specification |
|---|---|
| Connector Type | RJ45 |
| Standards Compliance | IEEE 802.3 |
| Working Mode | Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
| Network Protocol | IP |
Version Mapping
-
Supported in: V200R001C00 and later versions
Physical Specifications
| Item | Specification |
|---|---|
| Dimensions (W × D × H) | 394.7 mm × 426.8 mm × 35.1 mm (5.7 in. × 7.3 in. × 0.8 in.) |
| Weight | 2.3 kg (7.28 lb) |
| Maximum Power Consumption | 40 W |
Environment Parameters
| Parameter | Range |
|---|---|
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Operating Relative Humidity | 5% RH to 95% RH (non-condensing) |
| Storage Temperature | –40°C to +70°C (–40°F to +158°F) |
| Storage Relative Humidity | 5% RH to 95% RH (non-condensing) |
EH1D2F48TFA0 Huawei Applications
The EH1D2F48TFA0 Interface Card is ideal for:
• Enterprise LAN and campus network edge or aggregation switches
• Carrier metro access or aggregation nodes
• Access network expansions requiring cost-effective FE ports
• Connecting large numbers of user terminals or legacy FE devices
• Projects needing high-density, reliable Fast Ethernet connectivity
Customization & OEM Services
We provide flexible customization and OEM services for the EH1D2F48TFA0 to support your specific project needs:
• Pre-configuration services for quick, seamless deployment
• OEM branding and private labeling for distributors and resellers
• Custom packaging for bulk shipments or large-scale rollouts
• Enhanced burn-in testing for special high-availability environments
EH1D2F48TFA0 Huawei Wholesale & Bulk Orders
Partner with us for trusted wholesale supply and bulk purchasing:
• Factory-direct pricing with competitive volume discounts
• Global shipping with safe, export-compliant packaging
• Dedicated account managers for large project coordination
• Consistent stock availability and reliable worldwide delivery
• Full technical support and comprehensive after-sales warranty
EH1D2F48TFA0 Huawei Why Choose Us
✅ 100% Original Huawei Hardware — genuine, tested, and fully certified
✅ Tailored Solutions — customized to meet diverse deployment requirements
✅ Competitive Wholesale Pricing — for ISPs, carriers, and large integrators
✅ Secure Packaging & Global Logistics — professional, timely delivery
✅ Expert Support — throughout the entire project lifecycle
Contact Us for a Quote
Upgrade your network access with the EH1D2F48TFA0 Huawei 48-Port 10/100BASE-T Interface Card — the dependable choice for high-density, cost-effective Fast Ethernet connectivity. Contact our team today for technical details, bulk pricing, or customization options. We’re ready to help you build a stable, scalable network with trusted Huawei solutions.
