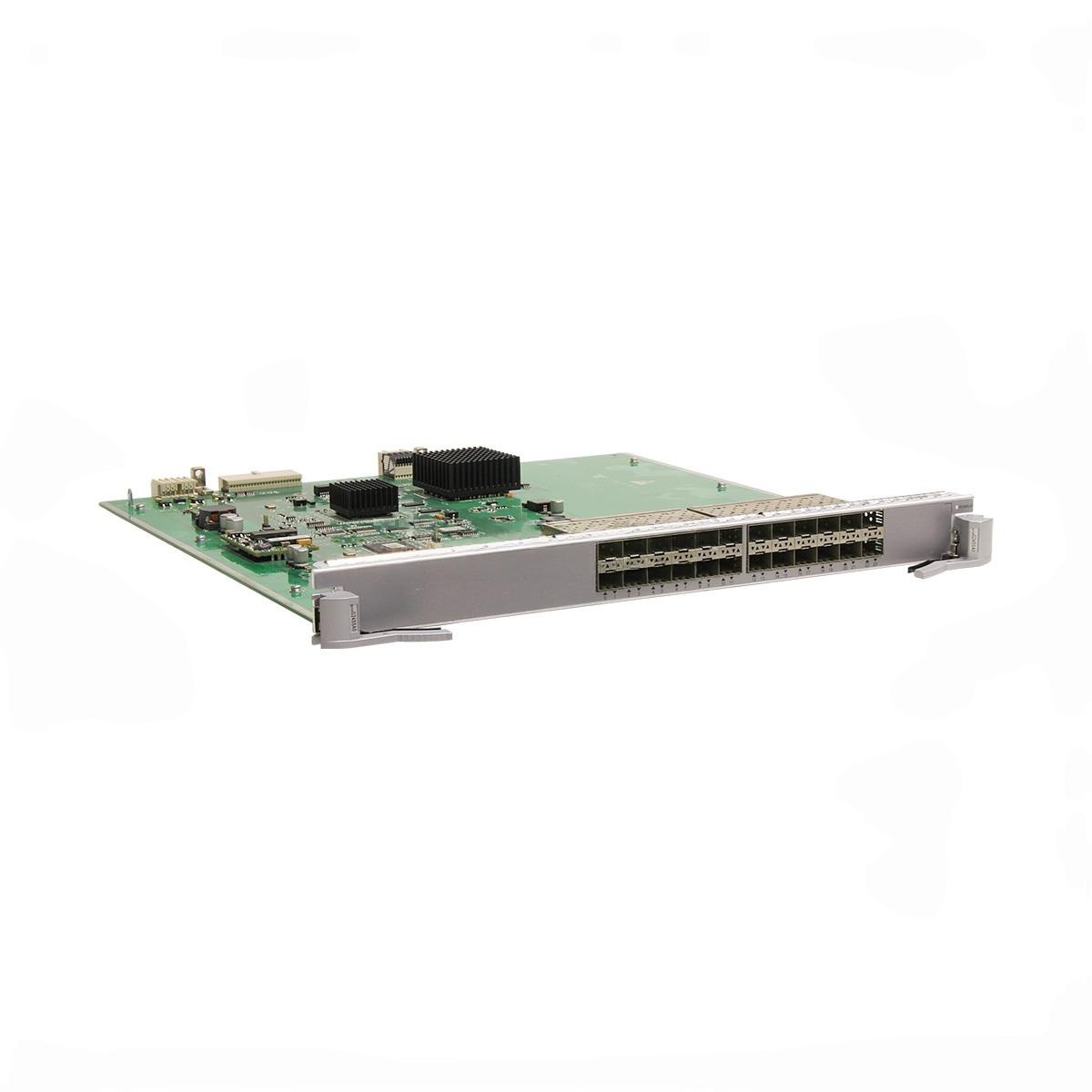

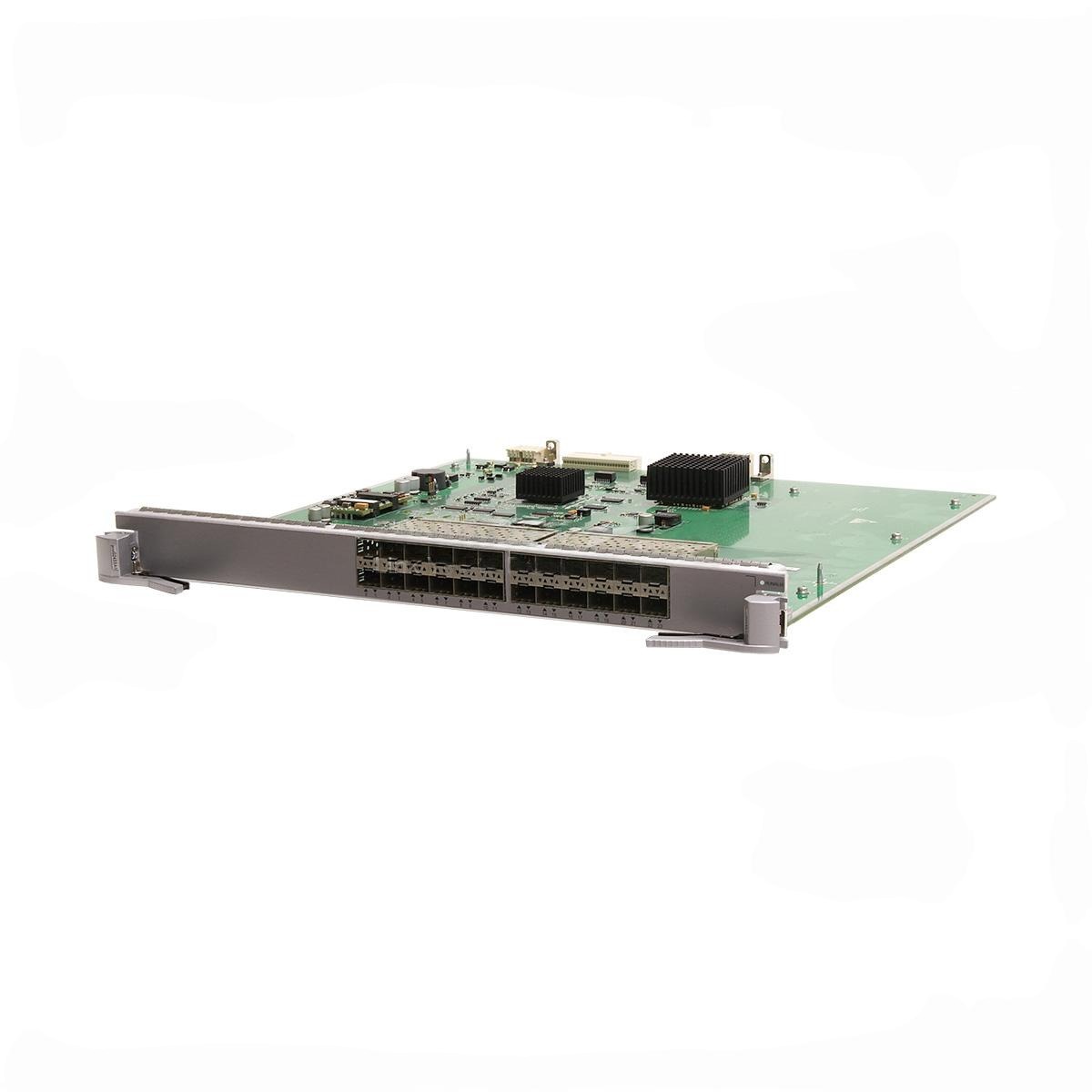

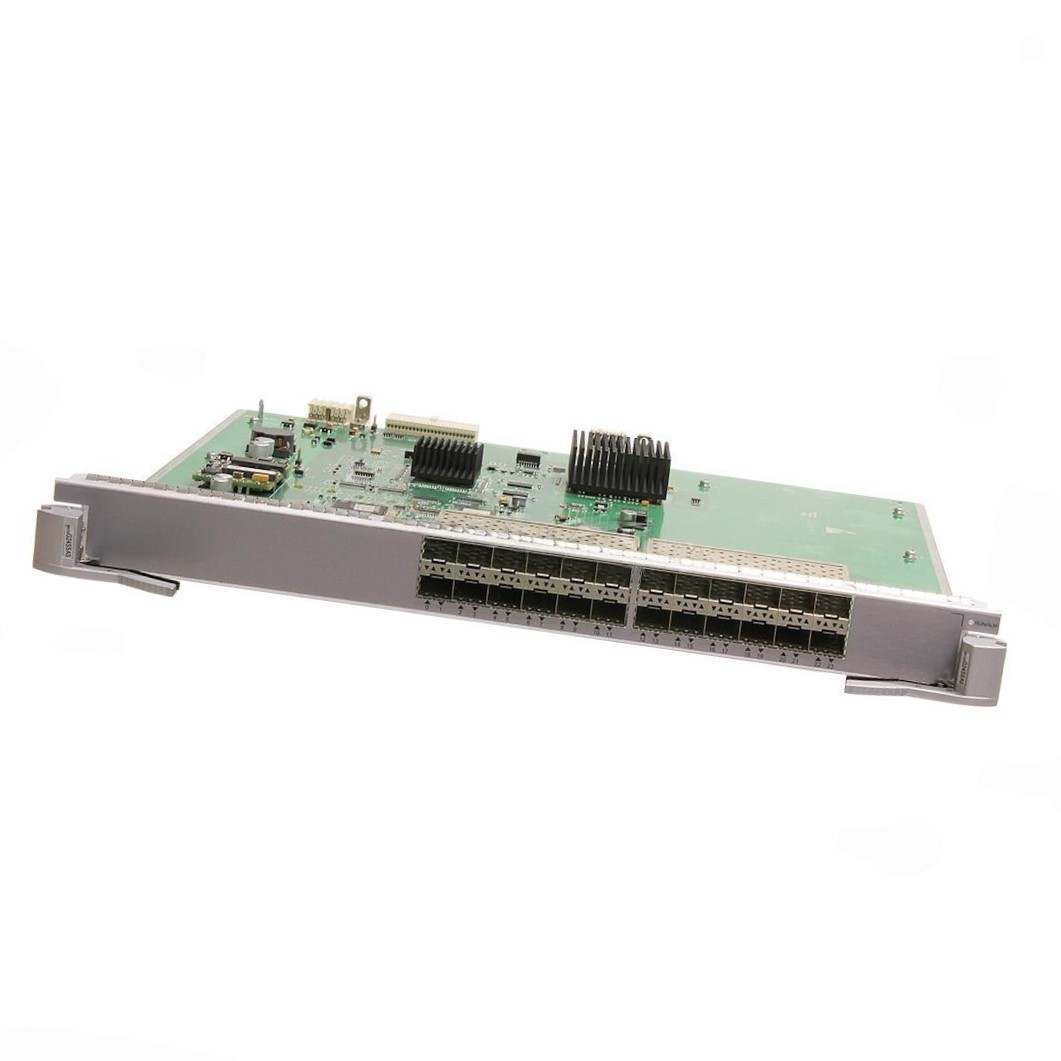

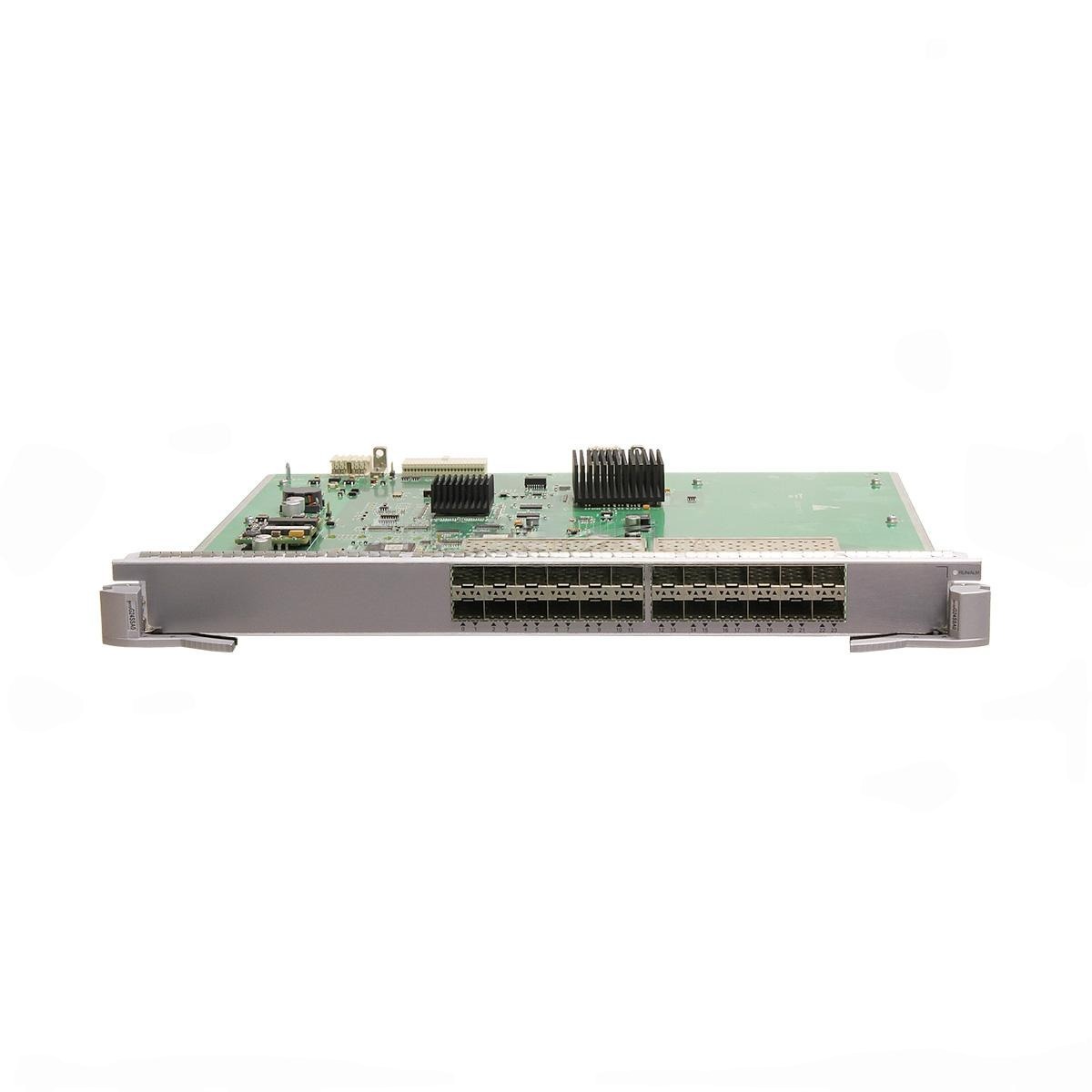

EH1D2G24SSA0 Huawei Description:
The EH1D2G24SSA0 Huawei is a brand new, original Huawei 24-Port-X Interface Card, designed to provide high-density, reliable connectivity for Huawei modular switches in enterprise and service provider networks.
This card delivers 24 Gigabit Ethernet (GE) ports, enabling robust and flexible data transmission for access, aggregation, and core layers. Built to Huawei’s stringent quality standards, the EH1D2G24SSA0 ensures excellent stability, efficient performance, and easy integration into your existing Huawei infrastructure.
It is ideal for modern network upgrades where high port density and dependable GE connections are required to support mission-critical applications, campus networks, or data centers.
Key Features:
-
Model: EH1D2G24SSA0
-
Condition: 100% Brand New, Original Huawei
-
Type: 24-Port-X Interface Card
-
Ports: 24 × GE ports (Gigabit Ethernet)
-
Speed: 1Gbps per port for high-speed LAN or aggregation use
-
Performance: High port density, stable data forwarding, and low latency
-
Compatibility: Fully compatible with supported Huawei modular switches
-
Hot Swappable: Simple replacement or upgrades without network downtime
-
Reliability: Carrier-grade build, tested for continuous 24/7 operations
-
Energy Efficiency: Optimized for energy savings in large-scale deployments
Tech Specs:

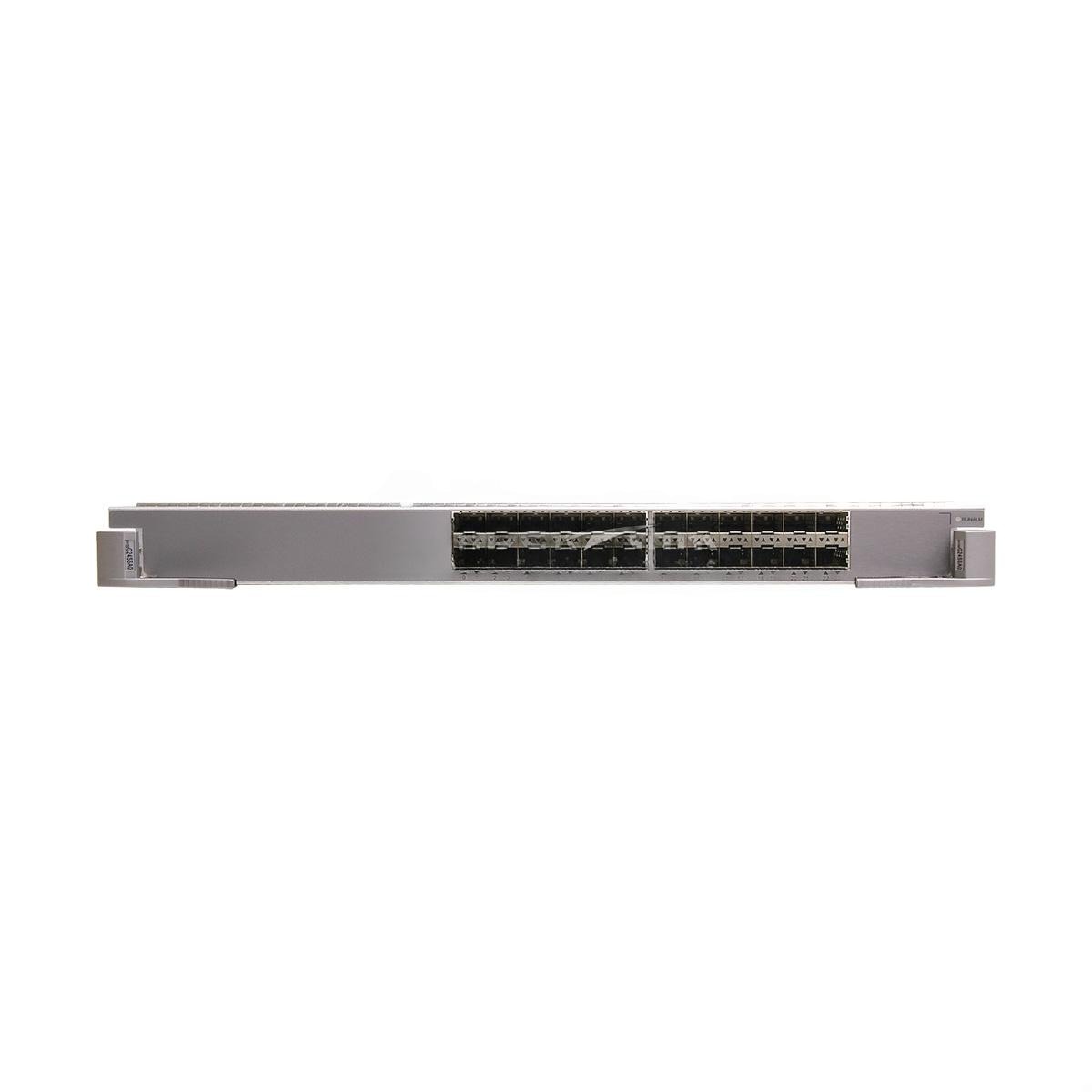

Front Panel
-
24 × 100/1000BASE-X Optical Ports
Port Attributes
100/1000BASE-X Optical Port
| Attribute | Description |
|---|---|
| Connector Type | SFP |
| Optical Port Attributes | Depend on the SFP optical module used |
| Standards Compliance | IEEE 802.3z |
| Frame Format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
| Network Protocol | IP |
Optical Port (Copper Module)
| Attribute | Description |
|---|---|
| Connector Type | SFP |
| Optical Port Attributes | Depend on the SFP copper module used |
| Standards Compliance | IEEE 802.3ab |
| Frame Format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
| Network Protocol | IP |
Version Mapping
-
Supported only in:
-
V200R001C00
-
V200R002C00
-
V200R003C00
-
Physical Specifications
| Attribute | Description |
|---|---|
| Dimensions (W × D × H) | 394.7 mm × 426.8 mm × 35.1 mm |
| Weight | 2.22 kg (4.89 lb) |
| Maximum Power Consumption | 45 W |
Environmental Parameters
| Parameter | Specification |
|---|---|
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Operating Relative Humidity | 5% RH to 95% RH (non-condensing) |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage Relative Humidity | 5% RH to 95% RH (non-condensing) |
EH1D2G24SSA0 Huawei Applications:
The EH1D2G24SSA0 24-Port-X Interface Card is ideal for:
-
Enterprise campus LAN and aggregation layers
-
Large-scale data centers needing high-density GE connectivity
-
ISP and telecom backbone networks
-
Access networks for FTTx and metro Ethernet deployments
-
Network expansions or upgrades with legacy 1G infrastructure
EH1D2G24SSA0 Huawei Customization & OEM Services:
We provide customization and OEM solutions to match your project requirements:
-
Compatibility testing and pre-configuration with your network topology
-
OEM branding and private labeling for resellers and integrators
-
Custom packaging for phased rollouts or multi-location deployments
-
Extended burn-in testing for mission-critical and high-availability networks
EH1D2G24SSA0 Huawei Wholesale & Bulk Orders:
Partner with us for wholesale supply and bulk procurement, trusted by integrators, ISPs, and operators worldwide:
-
Factory-direct pricing and attractive discounts for large orders
-
Reliable stock for stable supply and quick delivery
-
Secure global shipping with export-compliant packaging
-
Dedicated account managers to support your procurement needs
-
Full technical support and warranty coverage for peace of mind
Why Choose Us:
-
100% genuine Huawei hardware, fully tested and certified
-
Flexible supply chain solutions for diverse network environments
-
Competitive pricing for resellers and large projects
-
Professional global logistics for safe, on-time delivery
-
Expert pre-sales and post-sales support
Contact Us for a Quote:
Ready to scale your network with the EH1D2G24SSA0 Huawei Brand New 24-Port-X Interface Card? Reach out today for detailed specifications, compatibility checks, and competitive wholesale pricing.
Our team is ready to help you deploy a high-performance, future-ready network with trusted Huawei hardware.
