• Private Mold:Yes
  • Place of Origin:Zhejiang, China
  • Model Number:EMA-24-HDI
  • Product name:H.264 encoder modulator up to 24 HD-MI sources
  • model:EMA-24-HDI
  • Warranty:1 Year
  • Weight:10kg

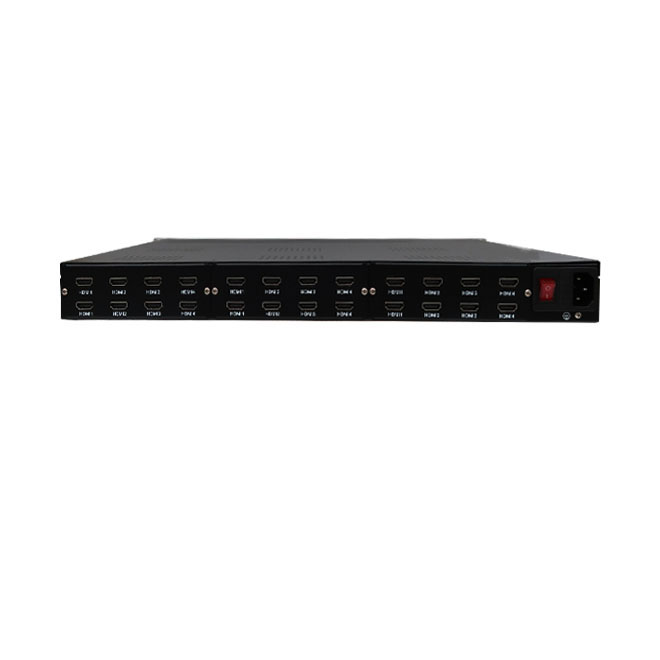

  • Numbers of Boards:4 HD ports per module Up to 6 Modules in Back panel
  • Package:Carton
  • Signal Level:200-800mVp-p
  • Supply Ability
    10000 Piece/Pieces per Month
  • Packaging Details


  • Port


  • Lead time:Quantity(pieces)1 – 5>5Lead time (days)7To be negotiated
Product Description
H.264 encoder modulator up to 24 HD-MI sources from Satellite Receiver, PC, Blue ray, Local Playout, the latest new device which integrate encoding (MPEG-4 AVC/H.264) and option modulation (DVB-C/ DVB-T/ISDB-T/ATSC/DTMB) to convert Video/Audio signals into RF over exist Coax Cable distribution
Products Description
1 Port, F-Type, 75
Output Return Loss
14 dB
RF output level
-30 ~ -10dbm,0.1db step
RF frequency
47-860Mhz, 1KHz step
Details Images


Feature1.Distribute Up to 8/12/16/20/24 channels of HD content over RF (DVB-T/DVB-C/DTMB/ISDB-T/ATSC) to an unlimited number of TVs2.Optional DVB-C(QAM),DVB-T(COFDM),ATSC-TISDB-TDTMB Modulation,4*Carrier RF Out 3.Two separate ASI input for External TS Multiplexing 4.Simulaneously MPTS and SPTS over UDP/RTP IP out 5.Audio gain adjustment supported6.4 separate multiplexing and Up-converter modulating adjacent carrier out 7.Selectable the Value of PCR PID same as Video PID VBR and CBR mode8.LCN(Logical Channel Number) support 9.PSI/SI editing& inserting 10.PID Remapping &Filtering11.Support PCR correct and PCR interval adjusting12.Superior Shoulders and Excellent modulation quality MER13.Low power consumption and high reliability with MTBF(Mean Time Between Failure)≤87600 Hours 14.Easy-to-Use System Management via Web
