ES0D0F48TA00 Huawei Description

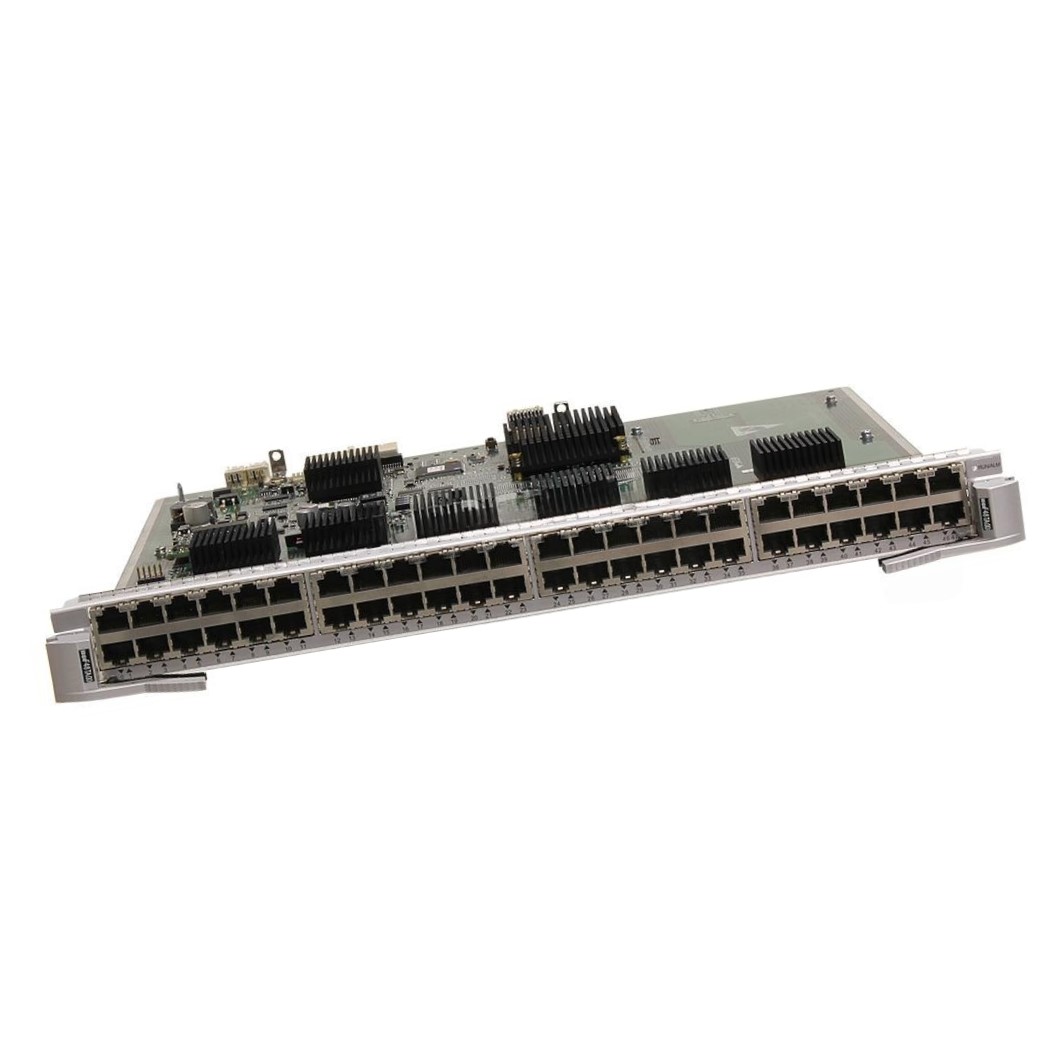

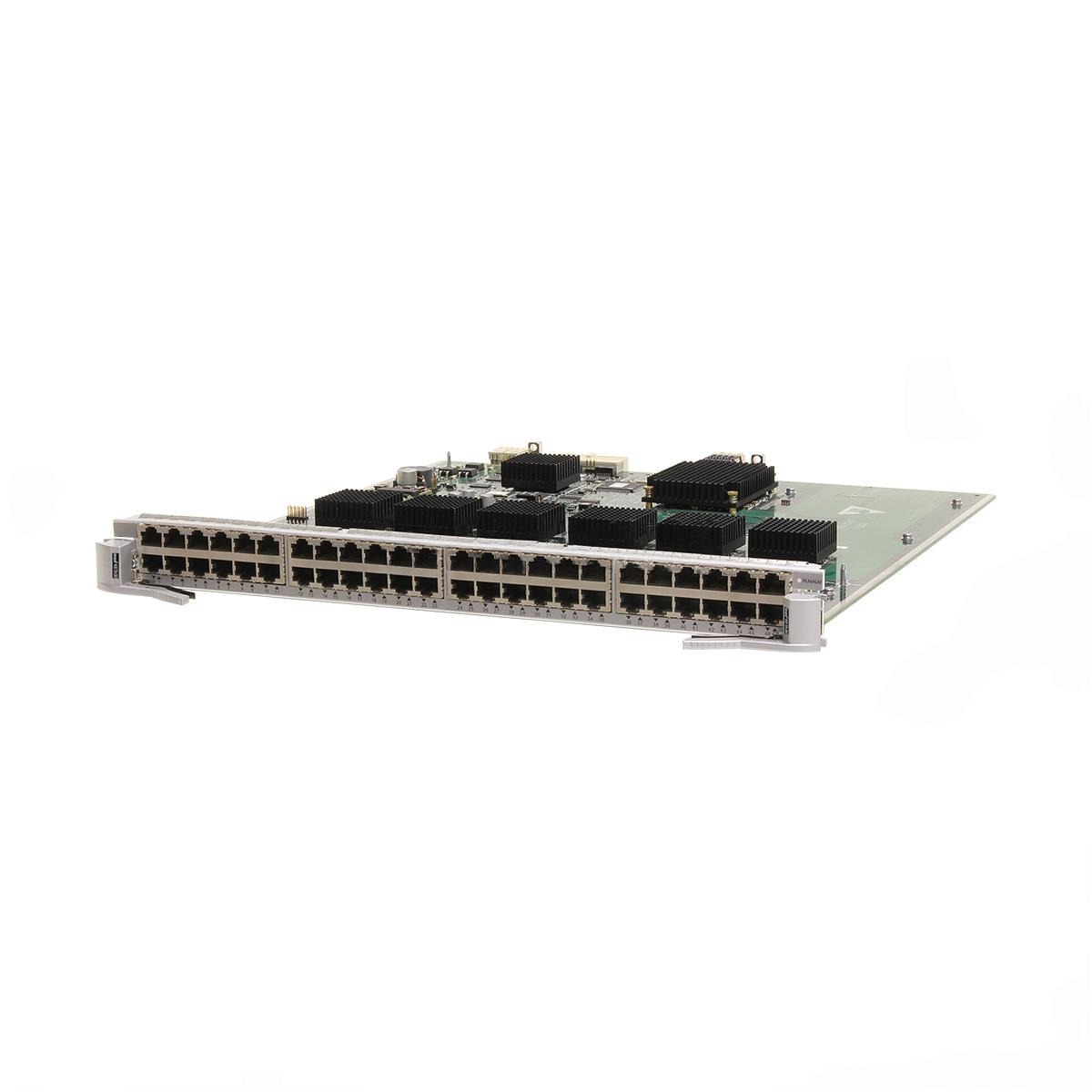

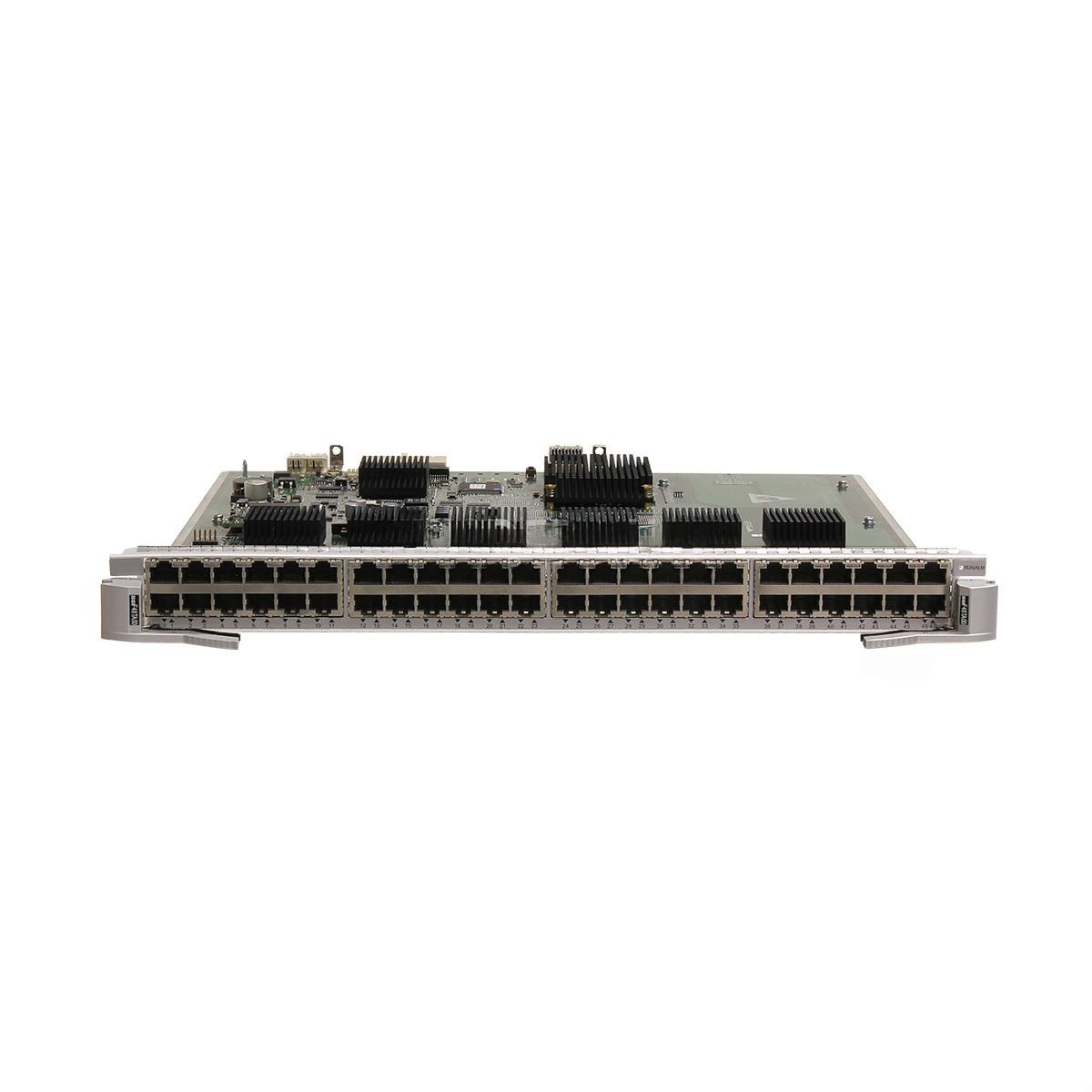

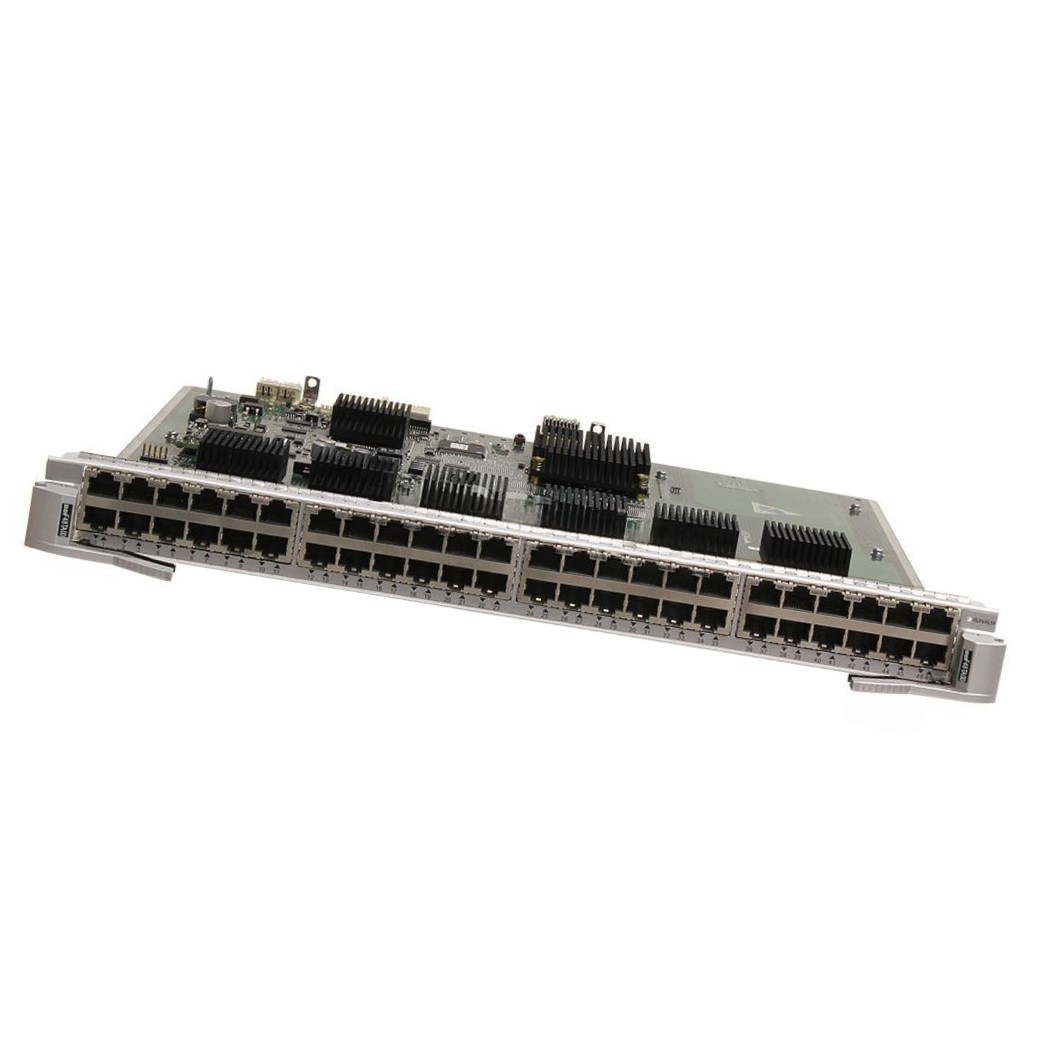

The ES0D0F48TA00 Huawei is a high-quality, original 48-Port T Interface Card, specially designed for Huawei’s modular switches such as the S7700 and S9700 series. This flexible, high-density interface card delivers robust and efficient 10/100BASE-T connectivity across 48 ports, making it ideal for enterprise aggregation layers, metro networks, and access-level expansion.
Engineered for high availability and excellent switching performance, the ES0D0F48TA00 is built with telecom-grade components and is optimized for low latency, low power consumption, and reliable 24/7 operations. Its plug-and-play architecture supports hot-swapping, which allows for smooth upgrades or replacements without interrupting network service.
Key Features
-
Model: ES0D0F48TA00
-
Condition: 100% Brand New, Original Huawei
-
Type: 48-Port 10/100BASE-T Electrical Interface Card
-
Port Count: 48 x RJ45 ports
-
Speed: Supports 10/100 Mbps auto-negotiation
-
Hot Swappable: Yes – enables live maintenance with no downtime
-
Power Efficiency: Optimized for low power consumption and heat output
-
Reliability: Carrier-grade build for continuous enterprise or telecom use
-
Compatibility: Fully compatible with Huawei S7700 and S9700 switch series
Tech Specs
Front Panel
-
1. Forty-eight 10M/100M BASE-T electrical ports
Attributes of a 10M/100M BASE-T Port
| Item | Specification |
|---|---|
| Connector Type | RJ45 |
| Standards Compliance | IEEE 802.3 |
| Frame Format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
| Network Protocol | IP |
Version Mapping
-
Model: ES0D0F48TA00 (48-Port 10/100BASE-T Interface Card)
-
Supported Versions: V100R003C01 and later
Physical Specifications
| Item | Specification |
|---|---|
| Dimensions (W x D x H) | 394.7 mm x 426.8 mm x 35.1 mm |
| Weight | 2.50 kg |
| Maximum Power Consumption | 59 W |
Environment Parameters
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to 45°C |
| Operating Relative Humidity | 5% RH to 95% RH (non-condensing) |
| Storage Temperature | –40°C to +70°C |
| Storage Relative Humidity | 5% RH to 95% RH (non-condensing) |
ES0D0F48TA00 Huawei Applications
This 48-port interface card is suitable for a wide range of high-density Ethernet connectivity scenarios:
• Enterprise and campus aggregation layers
• Telecom and ISP access networks
• Metro-Ethernet expansion and modernization projects
• Data center distribution and edge switching
• Ethernet-based surveillance and control networks
• LAN extension and branch network consolidation
Customization & OEM Services
We offer full customization and OEM support to meet your deployment and branding requirements:
• Private labeling and OEM branding for distributors
• Custom packaging for project or bulk orders
• Pre-deployment configuration and port mapping services
• Burn-in and extended testing for high-reliability applications
ES0D0F48TA00 Huawei Wholesale & Bulk Orders
As your trusted partner in Huawei hardware distribution, we offer:
• Factory-direct pricing with attractive wholesale discounts
• Stable inventory for reliable long-term project supply
• Global delivery with professional, export-compliant packaging
• Flexible order processing for bulk shipments and urgent deployments
• Technical support and post-sale service for all enterprise clients
ES0D0F48TA00 Huawei Why Choose Us
100% Genuine Huawei Products — verified, brand-new, and tested
Carrier-Grade Quality — built for durability, uptime, and long-term performance
Tailored Solutions — from configuration to branding
Affordable Volume Pricing — ideal for integrators, resellers, and telecom operators
Worldwide Logistics — timely, secure shipping
Expert Guidance — backed by professional support before and after your purchase
Contact Us for a Quote
Upgrade your Ethernet network infrastructure with the ES0D0F48TA00 Huawei 48-Port T Interface Card — a reliable, high-density solution for enterprise and telecom switching. Contact our team now for bulk pricing, technical details, or custom configuration support. We’re here to help you deploy powerful, scalable Huawei solutions with confidence.
