ES0D0G24SC00 Huawei Product Description:

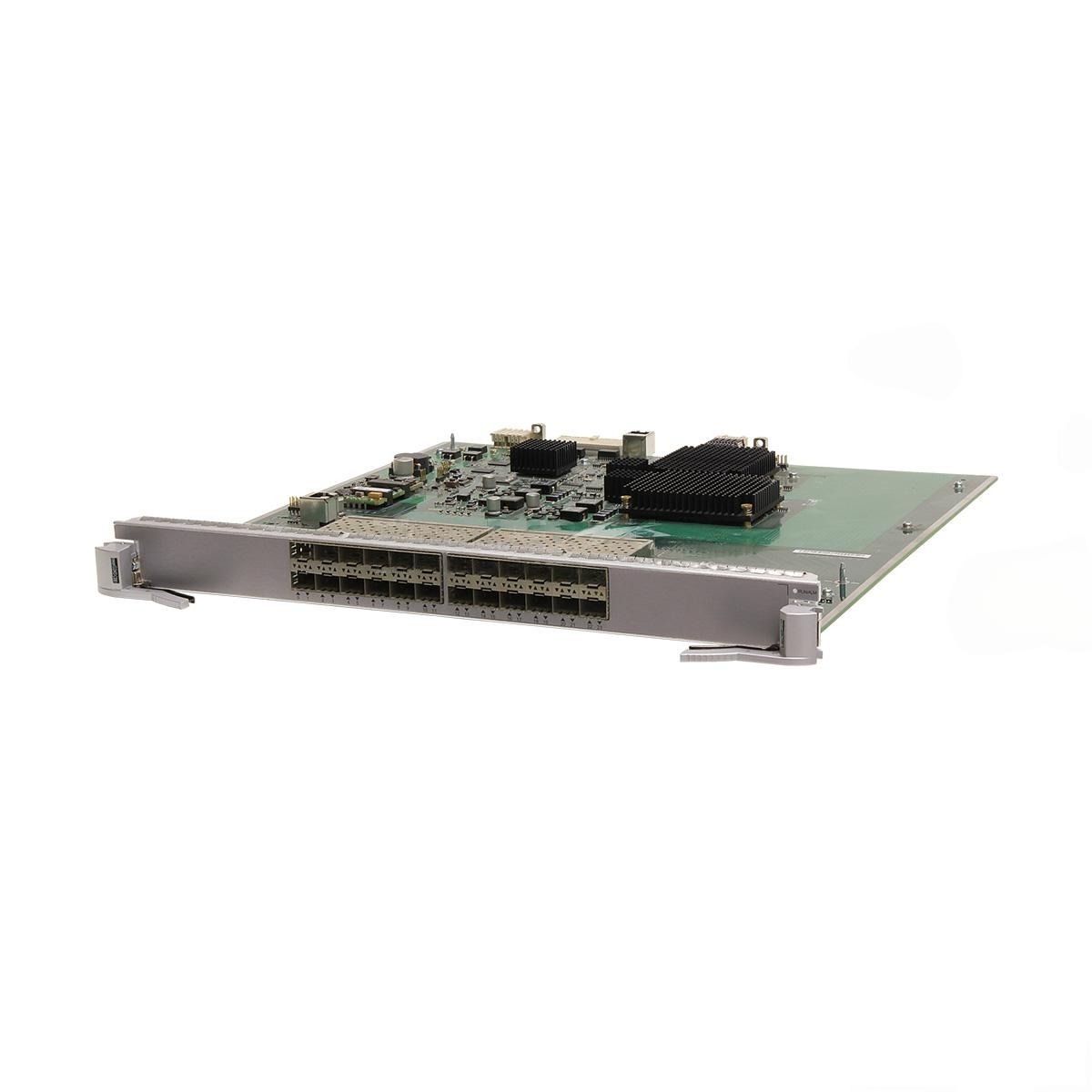

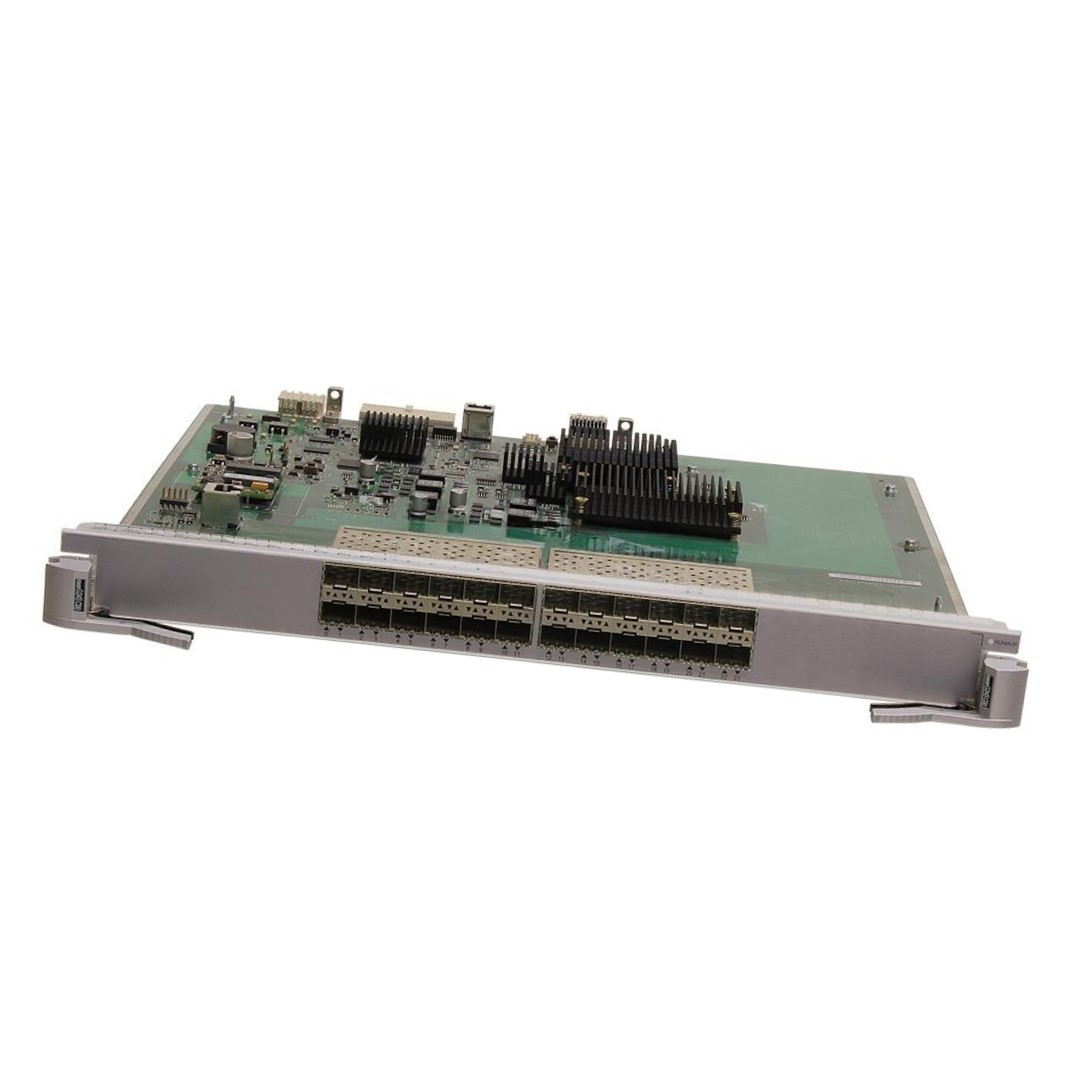

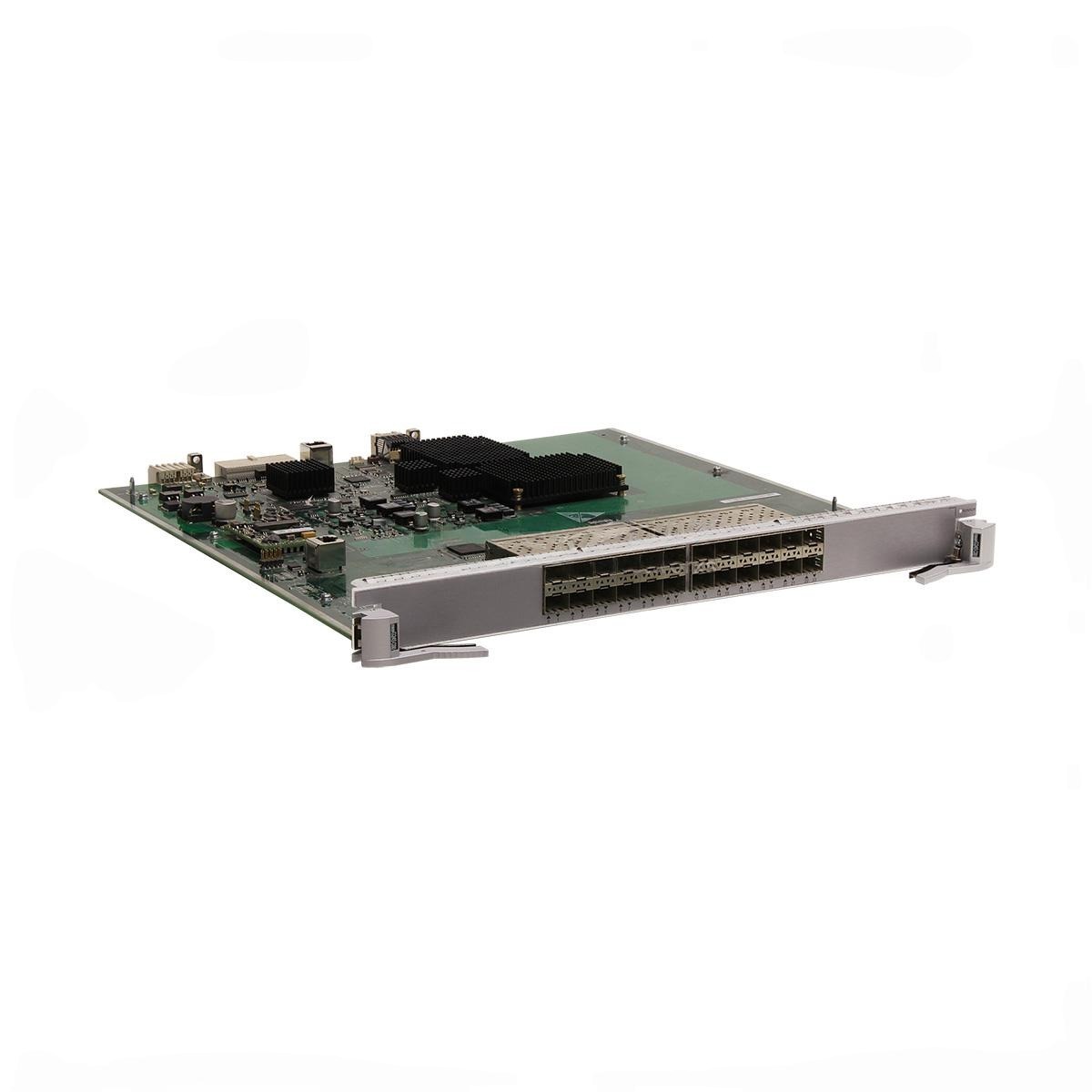

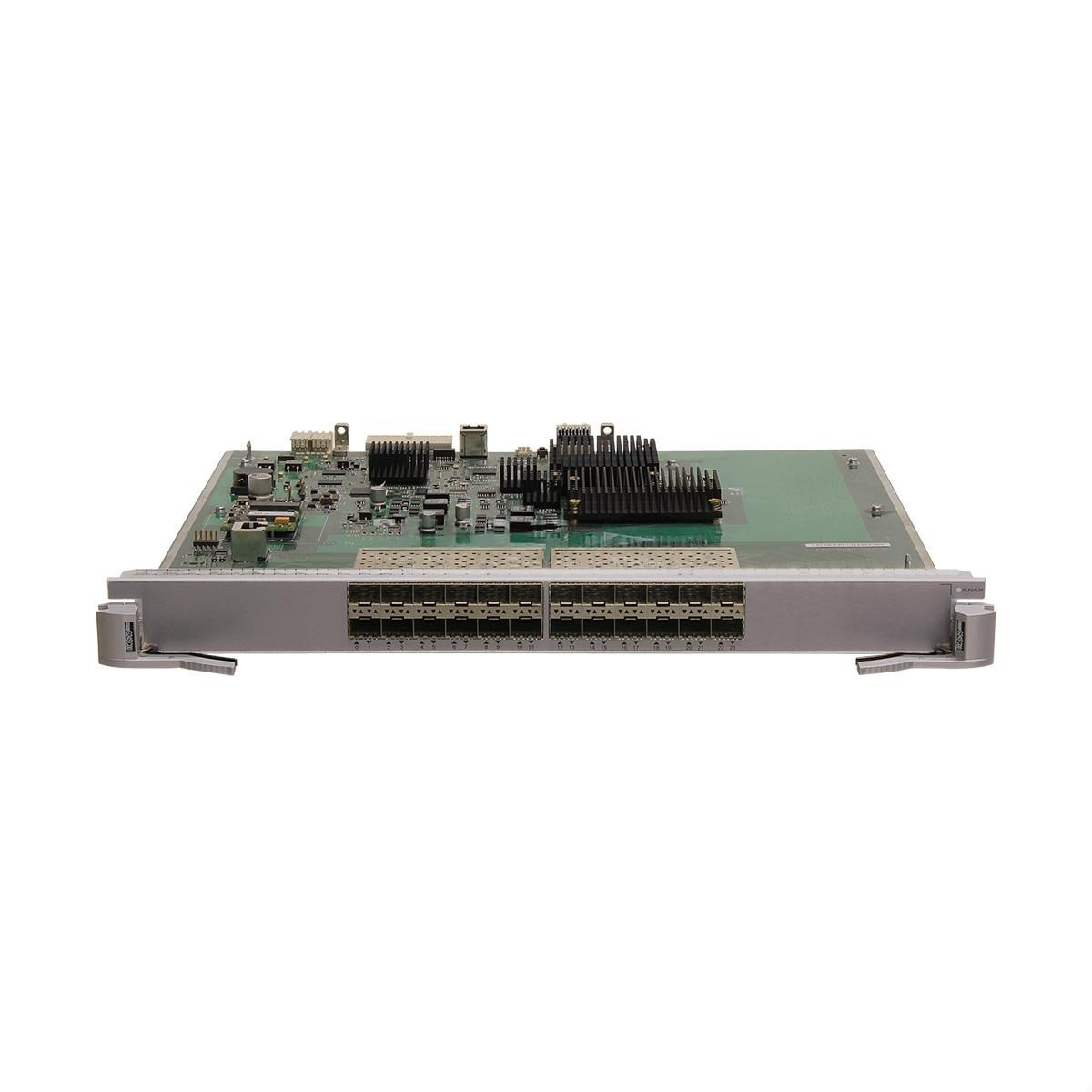

The ES0D0G24SC00 Huawei is an original Huawei 24-Port X Interface Card, engineered for high-performance network expansion and reliable data transmission in demanding enterprise and telecom environments. This interface card provides 24 high-speed X ports, enabling flexible, scalable network architecture to meet growing bandwidth requirements while maintaining superior stability and efficiency.
Each unit is designed and tested according to Huawei’s strict quality standards, ensuring seamless integration with compatible Huawei switches, routers, and modular chassis. The card’s hot-swappable design and robust build make it an ideal choice for large networks that require minimal downtime during upgrades or replacements.
Key Features:
- Model: ES0D0G24SC00
- Brand: Huawei (100% Genuine & Brand New)
- Port Density: 24 high-performance X ports for efficient network expansion
- Performance: High throughput with low latency, ideal for bandwidth-intensive applications
- Compatibility: Fully compatible with Huawei modular network switches and systems
- Reliability: Built with premium components and rigorously tested for long-term, stable operation
- Ease of Installation: Hot-swappable and plug-and-play design for simple deployment and maintenance.
Tech Specs:

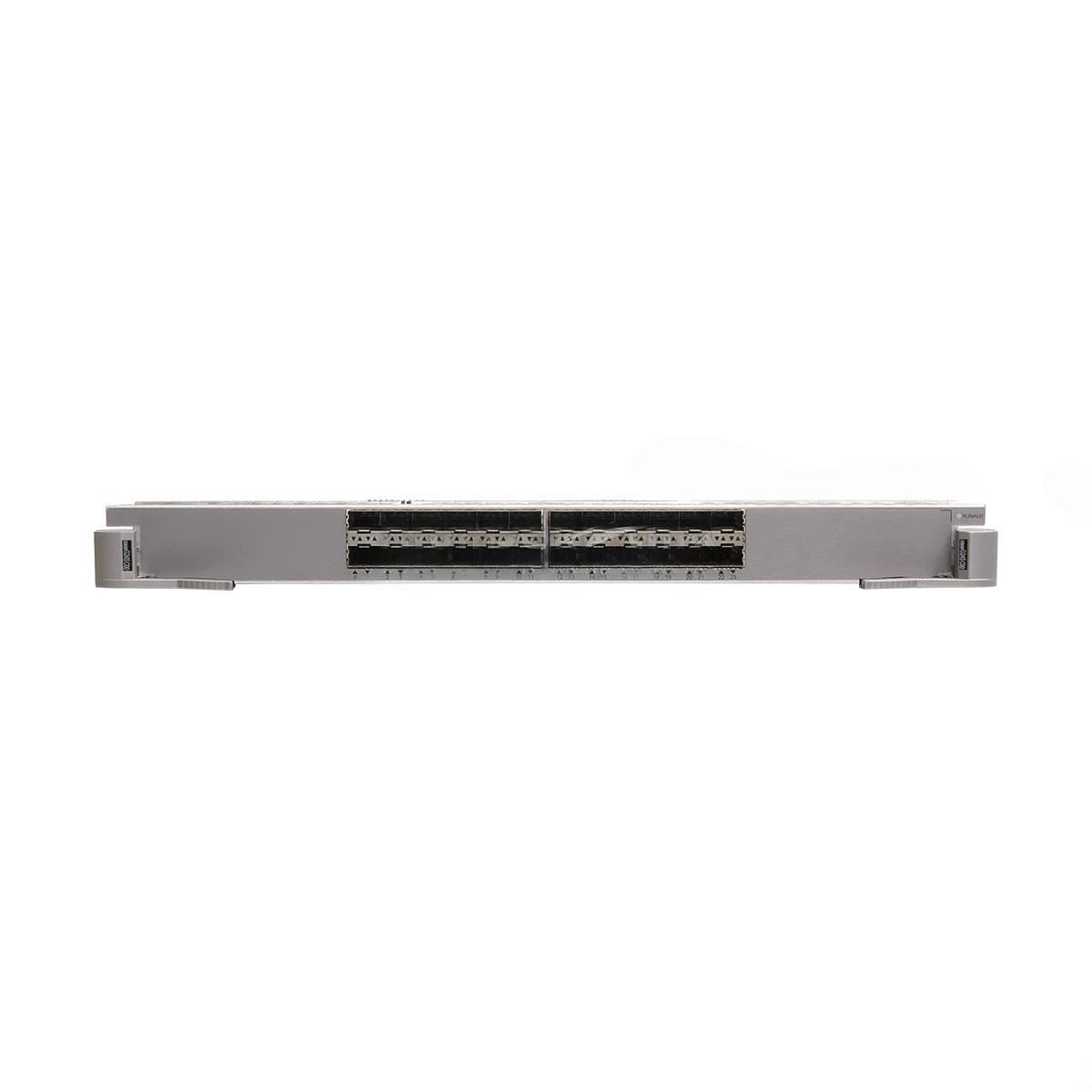

| Front Panel | |||
|
1. Twenty-four 100/1000BASE-X optical ports |
|||
| Version Mapping | |||
| ES0D0G24SC00 is supported in V100R003C01 and later versions | |||
| Optical port attributes | |||
| Connector type | SFP | ||
| Optical port attributes | Depend on the SFP optical module used | ||
| Standards compliance | IEEE 802.3z | ||
| Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP | ||
| Network protocol | IP | ||
| Attributes of FE optical modules | |||
| Operating Temperature | 0°C to 70°C (32°F to 158°F) | ||
| Model | Transmission Distance (km) | Standard | Fiber Type |
| SFP-FE-SX-MM1310 (SFP optical module) |
≤ 2 | 100base-FX | Fiber mode: multimode Core diameter: 50 μm or 62.5 μm Connector type: LC |
| eSFP-FE-LX-SM1310 | ≤ 15 | 100base-LX | Fiber mode: single-mode Connector type: LC |
| S-SFP-FE-LH40-SM1310 | ≤ 40 | ||
| S-SFP-FE-LH80-SM1550 | ≤ 80 | ||
| SFP-FE-LX-SM1310-BIDI (Single-fiber bidirectional) |
≤ 15 | 100base-BX | |
| SFP-FE-LX-SM1550-BIDI (Single-fiber bidirectional) |
|||
| Attributes of GE optical modules | |||
| eSFP-GE-SX-MM850 | ≤ 0.22 | 1000base-SX | Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC |
| ≤ 0.275 | Fiber mode: multimode (OM1) Connector type: LC |
||
| ≤ 0.5 | Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC |
||
| ≤ 0.55 | Fiber mode: multimode (OM2) Connector type: LC |
||
| ≤ 1 | Fiber mode: multimode (OM3) Connector type: LC |
||
| SFP-GE-LX-SM1310 | ≤ 10 | 1000base-LX/LH | Fiber mode: single-mode Connector type: LC |
| S-SFP-GE-LH40-SM1310 | ≤ 40 | ||
| S-SFP-GE-LH40-SM1550 | |||
| S-SFP-GE-LH80-SM1550 | ≤ 80 | 1000base-ZX | |
| eSFP-GE-ZX100-SM1550 | ≤ 100 | ||
| SFP-GE-LX-SM1310-BIDI (Single-fiber bidirectional) |
≤ 10 | 1000base-BX | |
| SFP-GE-LX-SM1490-BIDI (Single-fiber bidirectional) |
|||
| LE2MGSC40DE0 (Single-fiber bidirectional) |
≤ 40 | ||
| LE2MGSC40ED0 (Single-fiber bidirectional) |
|||
| SFP-GE-ZBXD1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version. |
≤ 80 | 1000base-BX | |
| SFP-GE-ZBXU1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version. |
|||
| SFP-GE-BXU1-SC (Single-fiber bidirectional) |
≤ 10 | 1000base-BX | Fiber mode: single-mode Connector type: SC |
| Attributes of eSFP CWDM optical modules | |||
| Center Wavelength (nm), Model | |||
| 1471, CWDM-SFPGE-1471 | 1491, CWDM-SFPGE-1491 | 1511, CWDM-SFPGE-1511 | 1531, CWDM-SFPGE-1531 |
| 1551, CWDM-SFPGE-1551 | 1571, CWDM-SFPGE-1571 | 1591, CWDM-SFPGE-1591 | 1611, CWDM-SFPGE-1611 |
| Specifications | Encapsulation type: eSFP | ||
| Transmission distance: ≤ 80 km | |||
| Fiber type: single-mode, LC | |||
| Standard: CWDM | |||
| Operating temperature: 0°C to 70°C (32°F to 158°F) | |||
| Transmit power: 0 dBm to 5.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.5 dB |
|||
| Attributes of eSFP DWDM optical modules | |||
| Center Wavelength (nm), Model | |||
| 1529.55, DWDM-SFPGE-1529-55 | 1530.33, DWDM-SFPGE-1530-33 | 1531.12, DWDM-SFPGE-1531-12 | 1531.90, DWDM-SFPGE-1531-90 |
| 1532.68, DWDM-SFPGE-1532-68 | 1533.47, DWDM-SFPGE-1533-47 | 1534.25, DWDM-SFPGE-1534-25 | 1535.04, DWDM-SFPGE-1535-04 |
| 1535.82, DWDM-SFPGE-1535-82 | 1536.61, DWDM-SFPGE-1536-61 | 1537.40, DWDM-SFPGE-1537-40 | 1538.19, DWDM-SFPGE-1538-19 |
| 1538.98, DWDM-SFPGE-1538-98 | 1539.77, DWDM-SFPGE-1539-77 | 1540.56, DWDM-SFPGE-1540-56 | 1541.35, DWDM-SFPGE-1541-35 |
| 1542.14, DWDM-SFPGE-1542-14 | 1542.94, DWDM-SFPGE-1542-94 | 1543.73, DWDM-SFPGE-1543-73 | 1544.53, DWDM-SFPGE-1544-53 |
| 1545.32, DWDM-SFPGE-1545-32 | 1546.12, DWDM-SFPGE-1546-12 | 1546.92, DWDM-SFPGE-1546-92 | 1547.72, DWDM-SFPGE-1547-72 |
| 1548.51, DWDM-SFPGE-1548-51 | 1549.32, DWDM-SFPGE-1549-32 | 1550.12, DWDM-SFPGE-1550-12 | 1550.92, DWDM-SFPGE-1550-92 |
| 1551.72, DWDM-SFPGE-1551-72 | 1552.52, DWDM-SFPGE-1552-52 | 1553.33, DWDM-SFPGE-1553-33 | 1554.13, DWDM-SFPGE-1554-13 |
| 1554.94, DWDM-SFPGE-1554-94 | 1555.75, DWDM-SFPGE-1555-75 | 1556.55, DWDM-SFPGE-1556-55 | 1557.36, DWDM-SFPGE-1557-36 |
| 1558.17, DWDM-SFPGE-1558-17 | 1558.98, DWDM-SFPGE-1558-98 | 1559.79, DWDM-SFPGE-1559-79 | 1560.61, DWDM-SFPGE-1560-61 |
| Specifications | Encapsulation type: eSFP | ||
| Transmission distance: ≤ 120 km | |||
| Fiber type: single-mode, LC | |||
| Standard: DWDM | |||
| Operating temperature: 0°C to 45°C (32°F to 113°F) | |||
| Transmit power: 0 dBm to 4.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -8.0 dBm Extinction ratio: ≥ 8.2 dB |
|||
| Physical specifications | |||
| Dimensions(W x D x H): | 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.) | ||
| Weight: | 2.66 kg (5.86 lb) | ||
| Maximum power consumption: | 63 W | ||
| Environment parameters | |||
| Operating temperature | 0°C to 45°C (32°F to 113°F) | ||
| Operating relative humidity | 5% RH to 95% RH (noncondensing) | ||
| Storage temperature | -40°C to +70°C (-40°F to +158°F) | ||
| Storage relative humidity | 5% RH to 95% RH (noncondensing) | ||
ES0D0G24SC00 Huawei Applications:
✅ Large enterprise networks needing port expansion
✅ Data center networking upgrades
✅ Telecom service providers and backbone networks
✅ ISP infrastructure growth
✅ Network modernization and system integration projects
ES0D0G24SC00 Huawei Customization & OEM Services:
To help you build tailored solutions for your clients or projects, we provide customization and OEM services, including:
- Custom firmware and configuration based on your network design
- OEM branding and private labeling for bulk purchases
- Custom packaging to match your project’s logistics requirements
- Additional burn-in testing and quality assurance for mission-critical deployments
Wholesale & Bulk Orders:
We welcome wholesale and bulk orders for system integrators, resellers, and telecom operators. Partner with us and benefit from:
✔️ Competitive factory-direct pricing and bulk discounts
✔️ Reliable global inventory and fast delivery options
✔️ Secure export packaging for safe transit
✔️ Dedicated account managers to handle large orders efficiently
✔️ Full after-sales support and warranty coverage
Why Choose Us:
- Guaranteed 100% genuine Huawei products
- Strict quality control and pre-shipment testing
- Flexible customization for diverse projects
- Professional supply chain and global logistics support
- Experienced technical support team to assist you at every step
Contact Us for a Quote:
Interested in upgrading your network with the ES0D0G24SC00 Huawei 24-Port X Interface Card? Contact us today to discuss your project requirements, customization needs, or bulk pricing options. Our expert team is ready to deliver reliable networking solutions to help your business grow.
