ES1D2VS04000 Huawei Description:
The ES1D2VS04000 Huawei is a genuine Huawei 4-Port 10G Cluster System Unit, purpose-built to support high-performance, scalable clustering between Huawei modular switches or routers. This advanced unit provides four 10 Gigabit Ethernet ports, delivering the high-bandwidth, low-latency connections needed for clustering multiple devices into a single logical system.
With carrier-grade reliability and Huawei’s strict quality standards, the ES1D2VS04000 enables seamless horizontal expansion, high availability, and load balancing — ensuring that your network core or data center infrastructure can grow efficiently while maintaining stable, resilient performance.
Key Features:
-
Model: ES1D2VS04000
-
Condition: 100% Brand New, Original Huawei
-
Type: 4-Port 10G Cluster System Unit
-
Ports: 4 × 10 Gigabit Ethernet ports for inter-device clustering
-
Performance: Provides high-throughput, low-latency clustering links for multi-chassis deployments
-
Reliability: Carrier-grade design ensures stable operation and high availability
-
Scalability: Supports distributed networking, horizontal expansion, and load sharing
-
Installation: Hot-swappable, easy to insert and remove without service interruption
-
Compatibility: Fully compatible with supported Huawei switches, routers, and clustering frameworks
Tech Specs:

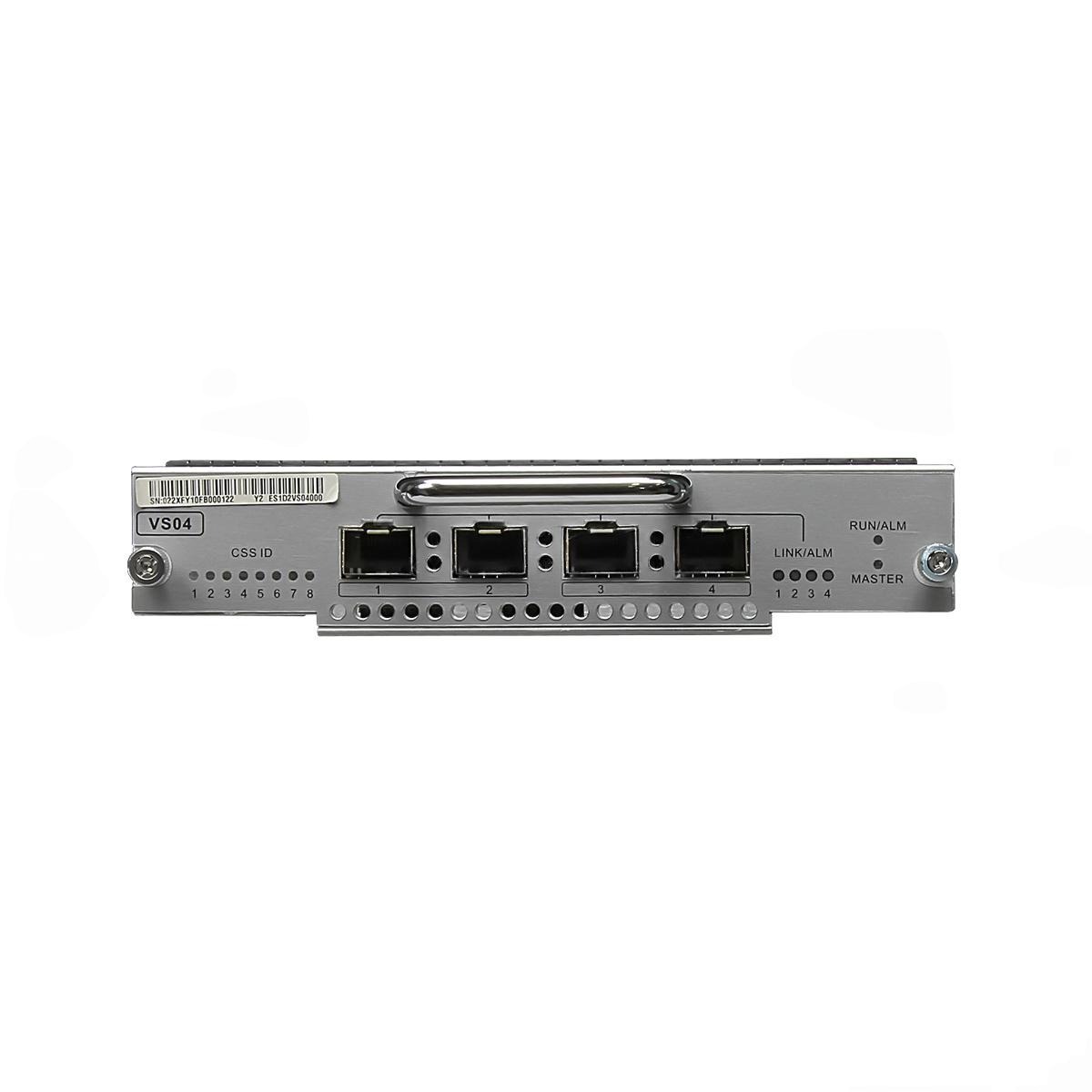

| Front Panel | ||||
|
1.Four 10GBASE SFP+ ports |
||||
| Version Mapping | ||||
| ES1D2VS04000 is supported in V200R009C00 and later versions | ||||
| Attributes of 10GE optical modules | ||||
| Operating Temperature | 0°C to 70°C (32°F to 158°F) | |||
| Model | Standard | Fiber Type | Transmission Distance (km) |
Interface Optical Parameters |
| SFP-10G-USR | 10Gbase-USR | Fiber mode: multimode (OM3) Connector type: LC |
≤ 0.1 | Center wavelength: 850 nm Transmit power: -7.3 to -1 dBm Receiver sensitivity: ≤ -10.7 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.0 dB |
| OMXD30000 | 10Gbase-SR | Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC |
≤ 0.026 | Center wavelength: 850 nm Transmit power: -7.3 to -1.0 dBm Receiver sensitivity: ≤ -11.1 dBm Overload optical power: -1.0 dBm Extinction ratio: ≥ 3.0 dB |
| Fiber mode: multimode (OM1) Connector type: LC |
≤ 0.033 | |||
| Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC |
≤ 0.066 | |||
| Fiber mode: multimode (OM2) Connector type: LC |
≤ 0.082 | |||
| Fiber mode: multimode (OM3) Connector type: LC |
≤ 0.3 | |||
| Fiber mode: multimode (OM4) Connector type: LC |
≤ 0.4 | |||
| OSX010000 | 10Gbase-LR | Fiber mode: single-mode Connector type: LC |
≤ 10 | Center wavelength: 1310 nm Transmit power: -8.2 to 0.5 dBm Receiver sensitivity: ≤ -12.6 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.5 dB |
| SFP-10G-iLR | 10GBASE-iLR | Fiber mode: single-mode Connector type: LC |
≤ 1.4 | Center wavelength: 1310 nm Transmit power: -8.2 to 0.5 dBm Receiver sensitivity: ≤ -14.4 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.5 dB |
| OSXD22N00 (linear) |
10Gbase-LRM | Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC |
≤ 0.1 | Center wavelength: 1310 nm Transmit power: -6.5 to 0.5 dBm Receiver sensitivity: ≤ -6.5 dBm Overload optical power: 1.5 dBm Extinction ratio: ≥ 3.5 dB |
| Fiber mode: multimode Modal Bandwidth: 500 MHz*km Core diameter: 62.5 μm Connector type: LC |
≤ 0.22 | |||
| Fiber mode: multimode (OM1, OM2, OM3) Connector type: LC |
||||
| OSX040N01 | 10Gbase-ER | Fiber mode: single-mode Connector type: LC |
≤ 40 | Center wavelength: 1550 nm Transmit power: -4.7 to 4.0 dBm Receiver sensitivity: ≤ -14.1 dBm Overload optical power: -1.0 dBm Extinction ratio: ≥ 3 dB |
| SFP-10G-ZR(limiting) | 10Gbase-ZR | ≤ 80 | Center wavelength: 1550 nm Transmit power: 0 dBm to 4.0 dBm Receiver sensitivity: ≤ -24.0 dBm Overload optical power: -7.0 dBm Extinction ratio: ≥ 9 dB |
|
| SFP-10G-ZDWT | DWDM | ≤ 80 | Center wavelength: 1529.16 to 1560.61 nm Transmit power: -1 to 3 dBm Receiver sensitivity: ≤ -24 dBm Overload optical power: -1 dBm Extinction ratio: ≥ 8.2 dB |
|
| LE2MXSC80FF0 (linear) |
10Gbase-ZR | Fiber mode: single-mode Connector type: LC |
≤ 80 | Center wavelength: 1550 nm Transmit power: 0 to 4.0 dBm Receiver sensitivity: ≤ -24.0 dBm Overload optical power: -7.0 dBm Extinction ratio: ≥ 9 dB |
| Attributes of 10GE bidirectional optical modules | ||||
| Operating Temperature | -40~+85°C (-40~ 185°F) | |||
| SFP-10G-BXU1(Single-fiber bidirectional optical module) | 10Gbase-BX | Fiber mode: single-mode Connector type: LC |
≤ 10 | Center wavelength: Tx1270/Rx1330 nm Transmit power: -8.2 dBm to 0.5 dBm Receiver sensitivity: ≤ -14.4 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.5 dB |
| SFP-10G-BXD1(Single-fiber bidirectional optical module) | Center wavelength: Tx1330/Rx1270 nm Transmit power: -8.2 dBm to 0.5 dBm Receiver sensitivity: ≤ -14.4 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.5 dB |
|||
| SFP-10G-ER-SM1330-BIDI (single-fiber bidirectional | 10Gbase-BX | ≤ 40 | Center wavelength: Tx1330/Rx1270 nm Transmit power: 0 dBm to 5 dBm Receiver sensitivity: ≤ -18 dBm Overload optical power: -9 dBm Extinction ratio: ≥ 3.5 dB |
|
| SFP-10G-ER-SM1270-BIDI (single-fiber bidirectional | Center wavelength: Tx1270/Rx1330 nm Transmit power: 0 dBm to 5 dBm Receiver sensitivity: ≤ -18 dBm Overload optical power: -9 dBm Extinction ratio: ≥ 3.5 dB |
|||
| Physical specifications | ||||
| Dimensions(W x D x H): | 213.0 mm x 151.8 mm x 35.1 mm (8.39 in. x 5.98 in. x 1.38 in.) | |||
| Weight: | 0.34 kg (0.75 lb) | |||
| Maximum power consumption: | 12 W | |||
| Environment parameters | ||||
| Dimensions (W x D x H): | 0°C to 45°C (32°F to 113°F) | |||
| Operating relative humidity: | 5% RH to 95% RH (noncondensing) | |||
| Storage temperature: | -40°C to +70°C (-40°F to +158°F) | |||
| Storage relative humidity: | 5% RH to 95% RH (noncondensing) | |||
ES1D2VS04000 Huawei Applications:
The ES1D2VS04000 4-Port 10G Cluster System Unit is ideal for:
-
Multi-chassis clustering in enterprise and telecom networks
-
Building highly available core or aggregation layers
-
Distributed data center networks needing unified logical systems
-
ISP and carrier-grade network expansions
-
System integrators deploying large-scale, redundant switching architectures
