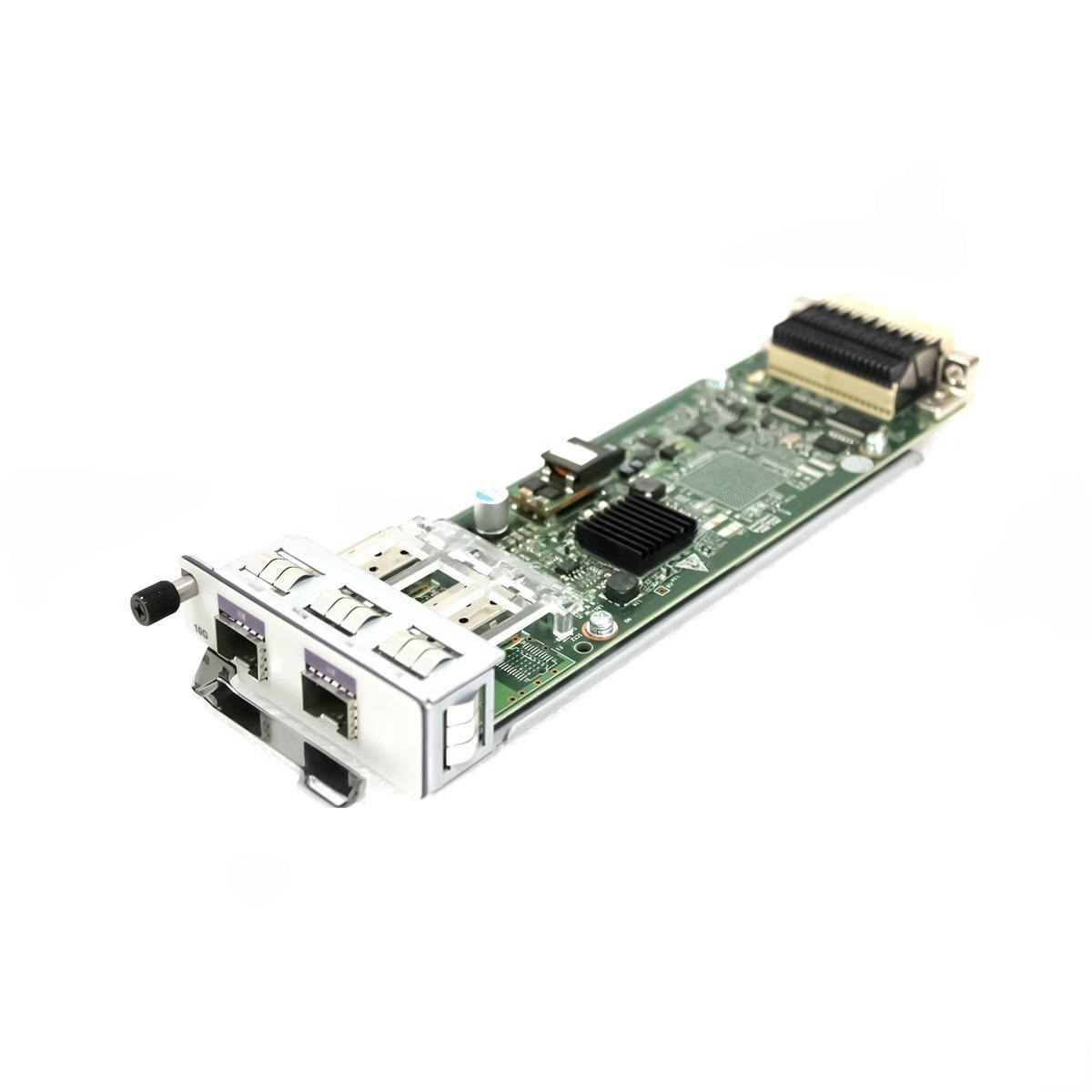

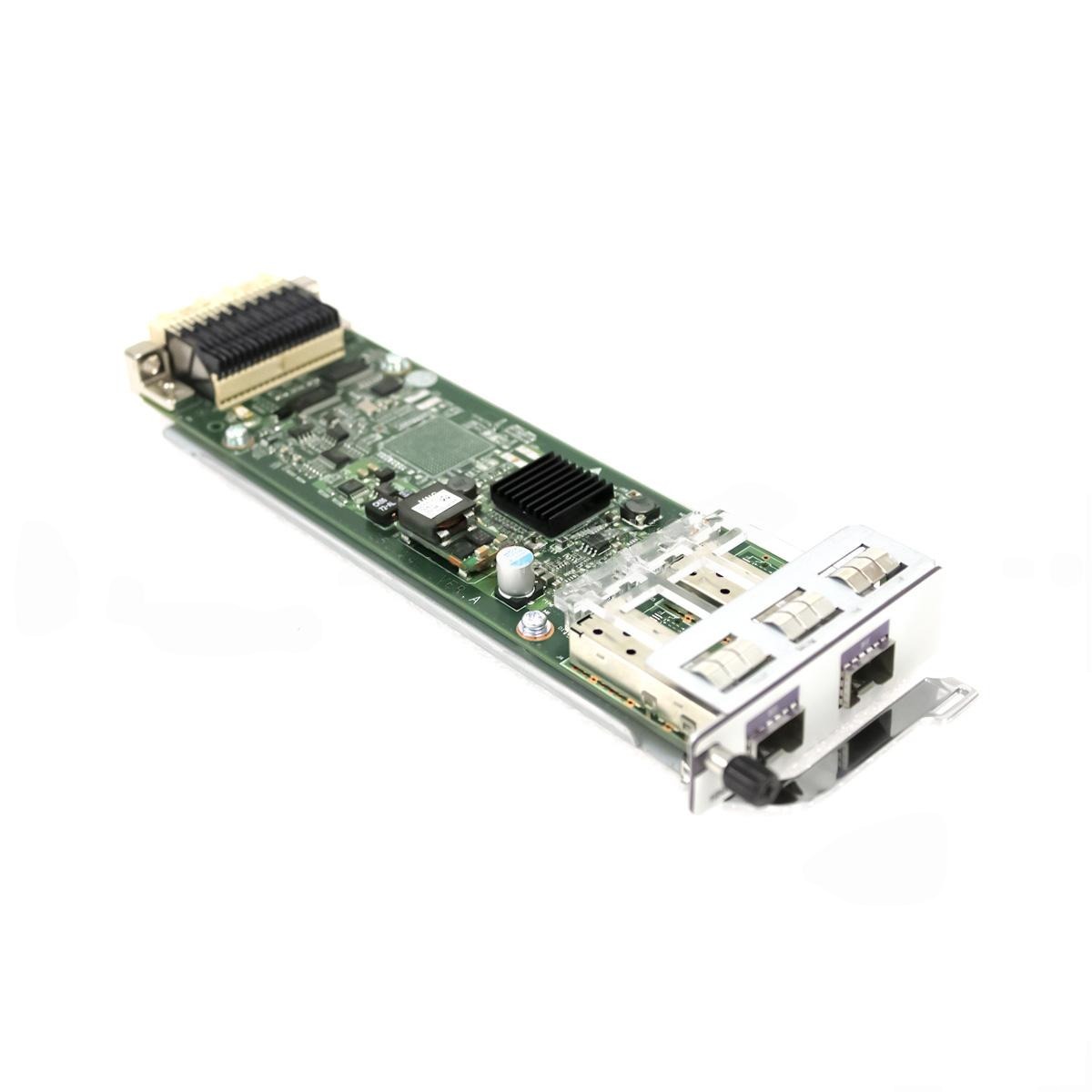

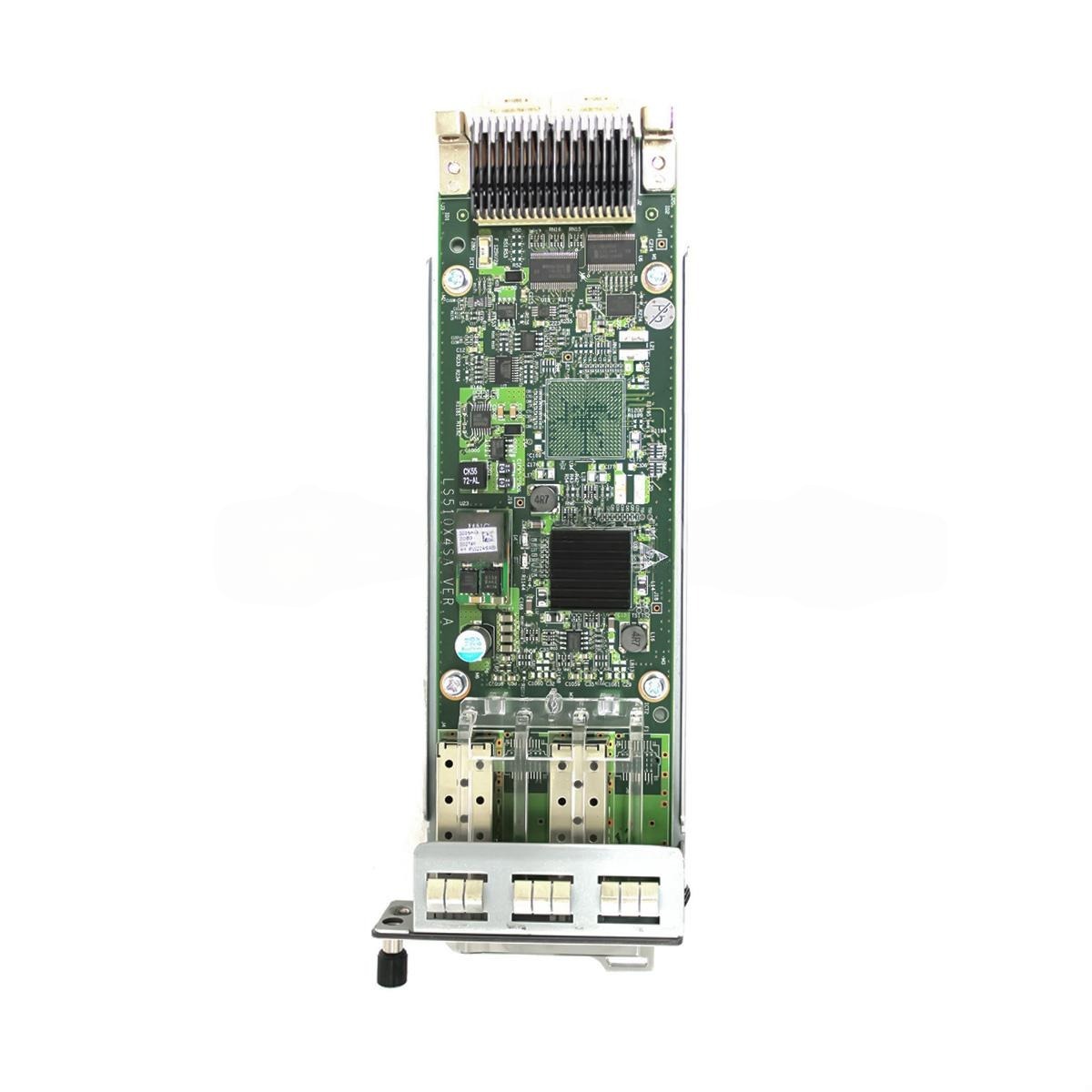

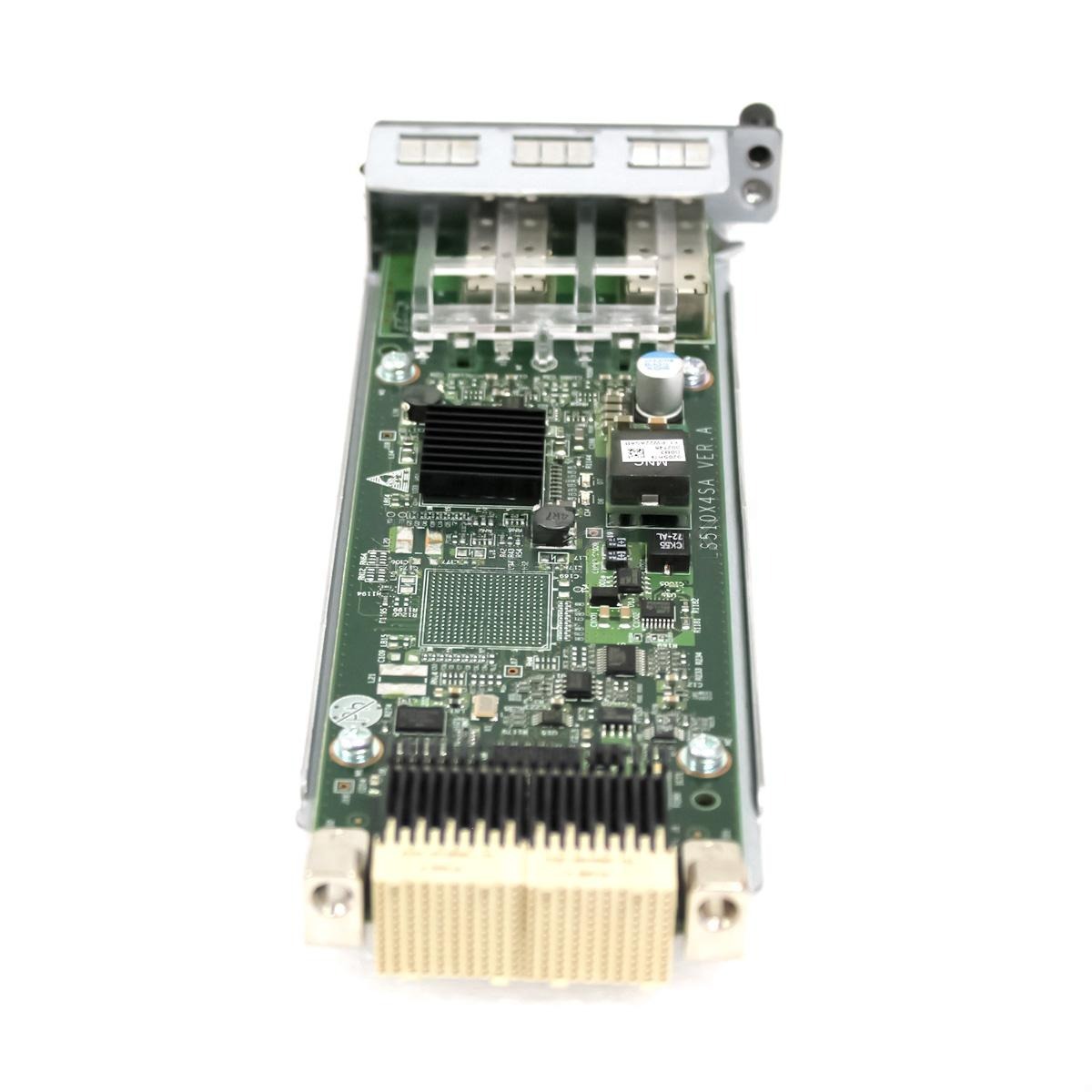

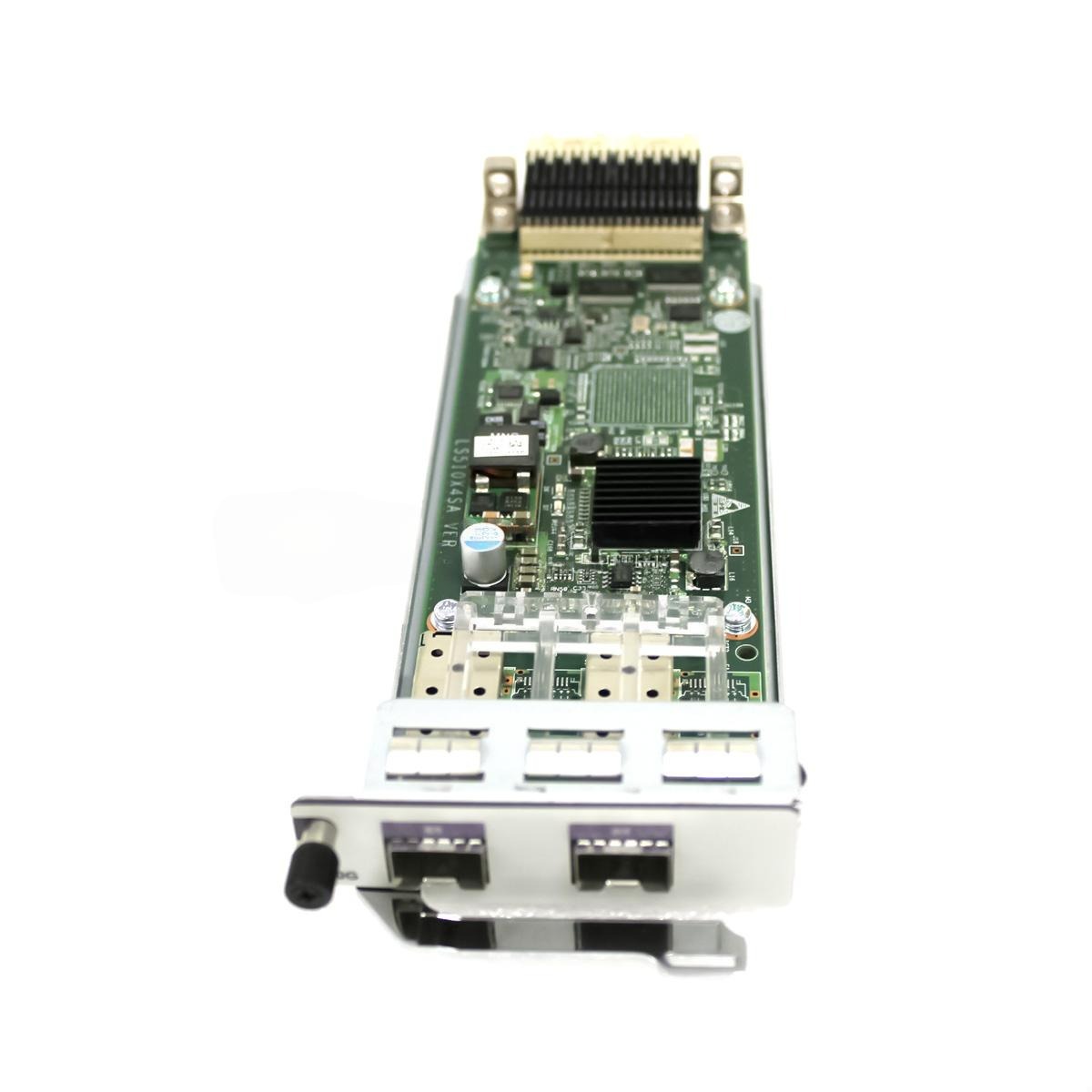

ES5D00X2SA00 Huawei Product Description:
The ES5D00X2SA00 Huawei is an original Huawei 2-Port Front Interface Card, designed to provide reliable, high-speed connectivity for Huawei modular switch series. With two high-performance ports, this interface card enables stable data transmission and flexible expansion for networks that demand dependable performance and scalability.
Built to Huawei’s rigorous quality standards, the ES5D00X2SA00 delivers robust throughput and low latency, making it ideal for enterprise campus networks, data centers, and telecom environments that require consistent uptime and smooth network operation.
Key Features:
-
Model: ES5D00X2SA00
-
Condition: 100% Brand New, Original Huawei
-
Type: 2-Port Front Interface Card
-
Ports: 2 high-speed interfaces for flexible connectivity options
-
Mounting: Front insertion for easy installation and maintenance
-
Performance: Supports stable, high-bandwidth transmission with low packet loss
-
Hot Swappable: Can be inserted or replaced online without disrupting network services
-
Reliability: Carrier-grade design, thoroughly tested for continuous, 24/7 operation
-
Compatibility: Fully compatible with supported Huawei switch chassis and modules
Tech Specs:
| Front Panel | |||||
|
|||||
| Attributes of an SFP+ optical port | |||||
| Connector type | LC/PC | ||||
| Standards compliance | IEEE 802.3ae | ||||
| Version Mapping | |||||
| ES5D00X2SA00(2-Port GE SFP/10GE SFP+ Front Optical Interface Card) is supported in V100R006C01 to V200R005C02 | |||||
| Attributes of GE optical modules | |||||
| Model | Transmission Distance (km) | Standard | Fiber Type | ||
| eSFP-GE-SX-MM850 | ≤ 0.22 | 1000base-SX |
|
||
| ≤ 0.275 | 1000base-SX |
|
|||
| ≤ 0.5 | 1000base-SX |
|
|||
| ≤ 0.55 | 1000base-SX |
|
|||
| ≤ 1 | 1000base-SX |
|
|||
| SFP-GE-LX-SM1310 | ≤ 10 | 1000base-LX/LH |
|
||
| S-SFP-GE-LH40-SM1310 | ≤ 40 | 1000base-LX/LH | |||
| S-SFP-GE-LH40-SM1550 | ≤ 40 | 1000base-LX/LH | |||
| S-SFP-GE-LH80-SM1550 | ≤ 80 | 1000base-ZX | |||
| eSFP-GE-ZX100-SM1550 | ≤ 100 | 1000base-ZX | |||
| SFP-GE-LX-SM1310-BIDI
(Single-fiber single-fiber bidirectional optical module) |
≤ 10 | 1000base-BX | |||
| SFP-GE-LX-SM1490-BIDI
(Single-fiber single-fiber bidirectional optical module) |
≤ 10 | 1000base-BX | |||
| LE2MGSC40DE0
(Single-fiber single-fiber bidirectional optical module) |
≤ 40 | 1000base-BX | |||
| LE2MGSC40ED0
(Single-fiber single-fiber bidirectional optical module) |
≤ 40 | 1000base-BX | |||
| SFP-GE-ZBXD1
(Single-fiber single-fiber bidirectional optical module) |
≤ 80 | 1000base-BX | |||
| SFP-GE-ZBXU1
(Single-fiber single-fiber bidirectional optical module) |
≤ 80 | 1000base-BX | |||
| SFP-GE-BXU1-SC
(Single-fiber single-fiber bidirectional optical module) |
≤ 10 | 1000base-BX |
|
||
| Optical parameters of GE optical modules | |||||
| Model | Center Wavelength (nm) | Transmit Power (dBm) | Receiver Sensitivity (dBm) | Overload Optical Power (dBm) | Extinction Ratio (dB) |
| eSFP-GE-SX-MM850 | 850 | -9.5 to -2.5 | ≤ -17 | 0 | ≥ 9 |
| SFP-GE-LX-SM1310 | 1310 | -9.0 to -3.0 | ≤ -20 | -3.0 | ≥ 9 |
| S-SFP-GE-LH40-SM1310 | 1310 | -5.0 to 0 | ≤ -23 | -3.0 | ≥ 9 |
| S-SFP-GE-LH40-SM1550 | 1550 | -5.0 to 0 | ≤ -22 | -3.0 | ≥ 8.5 |
| S-SFP-GE-LH80-SM1550 | 1550 | -2.0 to +5.0 | ≤ -23 | -3.0 | ≥ 9 |
| eSFP-GE-ZX100-SM1550 | 1550 | 0 to 5 | ≤ -30 | -9.0 | ≥ 9 |
| SFP-GE-LX-SM1310-BIDI
(Single-fiber single-fiber bidirectional optical module) |
RX1490/TX1310 | -9.0 to -3.0 | ≤ -19.5 | -3.0 | ≥ 6 |
| SFP-GE-LX-SM1490-BIDI
(Single-fiber single-fiber bidirectional optical module) |
RX1310/TX1490 | -9.0 to -3.0 | ≤ -19.5 | -3.0 | ≥ 6 |
| LE2MGSC40DE0
(Single-fiber single-fiber bidirectional optical module) |
RX1490/TX1310 | -2.0 to +3.0 | ≤ -23 | -3.0 | ≥ 9 |
| LE2MGSC40ED0
(Single-fiber single-fiber bidirectional optical module) |
RX1310/TX1490 | -2.0 to +3.0 | ≤ -23 | -3.0 | ≥ 9 |
| SFP-GE-BXU1-SC
(Single-fiber single-fiber bidirectional optical module) |
RX1310/TX1490 | -9.0 to -3.0 | ≤ -19.5 | -3.0 | ≥ 9 |
| SFP-GE-ZBXD1
(Single-fiber single-fiber bidirectional optical module) |
RX1490/TX1570 | -2.0 to +4.0 | ≤ -26 | -3.0 | ≥ 9 |
| SFP-GE-ZBXU1
(Single-fiber single-fiber bidirectional optical module) |
RX1570/TX1490 | -2.0 to +4.0 | ≤ -26 | -3.0 | ≥ 9 |
| Attributes of 10GE SFP+ optical modules | |||||
| Model | Transmission Distance (km) | Standard | Fiber Type | ||
| SFP-10G-USR | ≤ 0.1 | 10Gbase-USR |
|
||
| OSXD22N00 | ≤ 0.1 | 10Gbase-LRM |
|
||
| ≤ 0.22 | 10Gbase-LRM |
|
|||
| ≤ 0.22 | 10Gbase-LRM |
|
|||
| OMXD30000 | ≤ 0.026 | 10Gbase-SR |
|
||
| ≤ 0.033 | 10Gbase-SR |
|
|||
| ≤ 0.066 | 10Gbase-SR |
|
|||
| ≤ 0.082 | 10Gbase-SR |
|
|||
| ≤ 0.3 | 10Gbase-SR |
|
|||
| ≤ 0.4 | 10Gbase-SR |
|
|||
| OSX010000 | ≤ 10 | 10Gbase-LR |
|
||
| OSX040N01 | ≤ 40 | 10Gbase-ER | |||
| SFP-10G-BXU1 (bidirectional single-mode fiber) | ≤ 10 | 10GBase-BX | |||
| SFP-10G-BXD1 (bidirectional single-mode fiber) | ≤ 10 | 10GBase-BX | |||
| SFP-10G-ZR
Limiting |
≤ 80 | 10Gbase-ZR | |||
| SFP-10G-iLR | ≤ 1.4 | 10GBASE-iLR | |||
| SFP-10G-ER-SM1330-BIDI
(Single-fiber bidirectional optical module) |
≤ 40 | 10GBase-BX | |||
| SFP-10G-ER-SM1270-BIDI
(Single-fiber bidirectional optical module) |
|||||
| SFP-10G-ZDWT | ≤ 80 | DWDM | |||
| Optical parameters of 10GE SFP+ optical modules | |||||
| Model | Center Wavelength (nm) | Transmit Power (dBm) | Receiver Sensitivity (dBm) | Overload Optical Power (dBm) | Extinction Ratio (dB) |
| SFP-10G-USR | 850 | -7.3 to -1.0 | ≤ -10.7 | 0.5 | ≥ 3.0 |
| OSXD22N00 | 1310 | -6.5 to 0.5 | ≤ -6.5 | 1.5 | ≥ 3.5 |
| OMXD30000 | 850 | -7.3 to -1.0 | ≤ -11.1 | -1.0 | ≥ 3.0 |
| OSX010000 | 1310 | -8.2 to 0.5 | ≤ -12.6 | 0.5 | ≥ 3.5 |
| OSX040N01 | 1550 | -4.7 to 4.0 | ≤ -14.1 | -1.0 | ≥ 3 |
| SFP-10G-BXU1 (bidirectional single-mode fiber) | RX1330/TX1270 | -8.2 to 0.5 | ≤ -14.4 | 0.5 | ≥ 3.5 |
| SFP-10G-BXD1 (bidirectional single-mode fiber) | RX1270/TX1330 | -8.2 to 0.5 | ≤ -14.4 | 0.5 | ≥ 3.5 |
| SFP-10G-ZR
Limiting |
1550 | 0 to 4.0 | ≤ -24.0 | -7.0 | ≥ 9 |
| SFP-10G-iLR | 1310 | -8.2 to 0.5 | ≤ -14.4 | 0.5 | ≥ 3.5 |
| SFP-10G-ER-SM1330-BIDI
(Single-fiber bidirectional optical module) |
Tx1330/Rx1270 | 0 to 5 | ≤ -18 | -9 | ≥ 3.5 |
| SFP-10G-ER-SM1270-BIDI
(Single-fiber bidirectional optical module) |
Tx1270/Rx1330 | 0 to 5 | ≤ -18 | -9 | ≥ 3.5 |
| SFP-10G-ZDWT | 1529.16 to 1560.61 | -1 to 3 | ≤ -24 | -1 | ≥ 8.2 |
| Physical specifications | |||||
| Dimensions (mm) | 77 (W)x 207 (D) x 23 (H) | ||||
| Weight (kg) | 0.5 | ||||
| Maximum power consumption (W) | 7 | ||||
| Environment parameters | |||||
| Operating temperature | -5°C to 55°C | ||||
| Relative humidity | 5% RH to 95% RH | ||||
| Storage temperature | -40°C to +70°C | ||||
ES5D00X2SA00 Huawei Applications:
The ES5D00X2SA00 2-Port Front Interface Card is suitable for:
-
Enterprise LAN expansion and upgrades
-
Data center core and aggregation layers
-
Telecom and ISP backbone networks
-
Campus network distribution or access layers
-
System integration projects and phased deployments
Customization & OEM Services:
We provide flexible customization and OEM solutions to meet diverse project requirements:
-
Pre-configuration to align with your network design
-
OEM branding and private labeling for system integrators and resellers
-
Custom packaging and handling for bulk rollouts
-
Extended burn-in testing for mission-critical applications
ES5D00X2SA00 Huawei Wholesale & Bulk Orders:
We support wholesale and bulk procurement for service providers, large enterprises, and system integrators:
-
Factory-direct pricing with attractive discounts for large quantities
-
Consistent inventory to support ongoing projects
-
Fast, secure worldwide shipping with export-compliant packaging
-
Dedicated account managers to ensure smooth order handling
-
Full after-sales technical support and warranty coverage
Why Choose Us:
-
100% genuine Huawei hardware, factory sealed and fully quality-tested
-
Flexible solutions to fit your unique network and business requirements
-
Competitive pricing and favorable terms for resellers and partners
-
Professional global logistics with secure, on-time delivery
-
Reliable technical support throughout your project lifecycle
Contact Us for a Quote:
Ready to enhance your network with the ES5D00X2SA00 Huawei 2-Port Front Interface Card? Contact us today for full technical specifications, customization options, and competitive wholesale pricing.
Our experienced team is here to help you build a resilient, high-performance network with trusted Huawei solutions and dependable service.
