Product Description

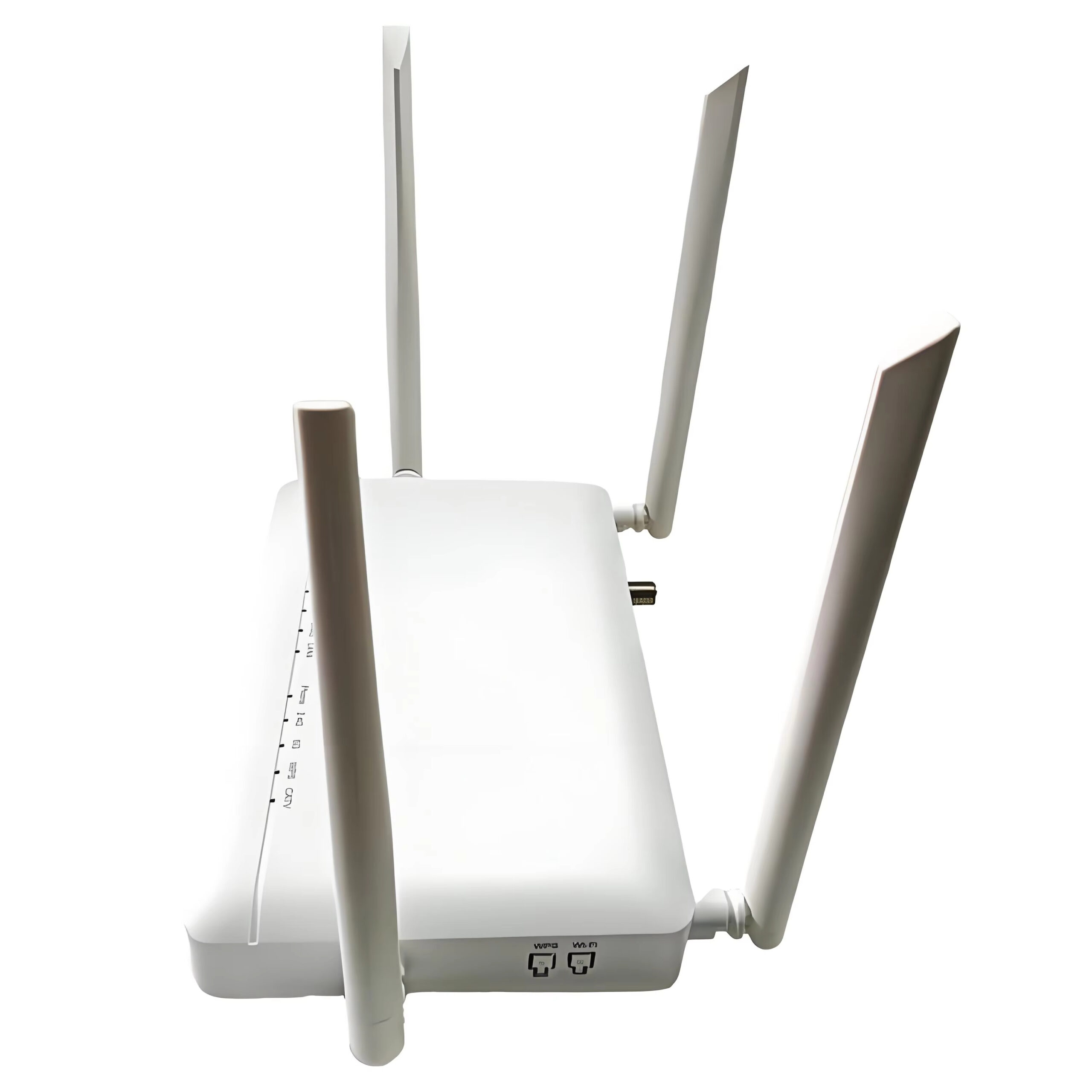

The ZTE F6600R is a high-speed GPON ONT (Optical Network Terminal) integrated with AX3000 WiFi6 wireless technology, CATV RF output, and multi-gigabit interfaces. It supports dual-band 2.4GHz and 5GHz WiFi, offering up to 3000 Mbps wireless performance for high-throughput home and business broadband.
It features one SC/APC GPON fiber port, four gigabit LAN ports, one F-Type CATV port for analog TV, and one POTS port for VoIP. With MU-MIMO, OFDMA, and WPA3 security, the F6600R is ideal for fiber-to-the-home (FTTH) triple-play deployments requiring high-speed internet, IPTV, and voice.
Key Features:ZTE F6600R
-
GPON-compliant terminal based on ITU-T G.984.x standards
-
Dual-band WiFi6 ZTE F6600R (802.11ax) with combined AX3000 speed
-
1 × SC/APC fiber input, 4 × Gigabit LAN ports
-
1 × RF CATV port for analog television
-
1 × POTS port for VoIP telephony
-
2.4 GHz + 5 GHz concurrent wireless
-
OFDMA and MU-MIMO supported
-
WPA3 encryption and full IPv6 support
-
TR-069 and OMCI remote management
-
Ideal for residential triple-play FTTH applications
General Specifications:ZTE F6600R
| Feature | Specification |
|---|---|
| Model | ZTE F6600R |
| Device Type | GPON ONT with WiFi6 and CATV |
| Fiber Interface | 1 × SC/APC (GPON) |
| Ethernet Ports | 4 × Gigabit LAN |
| Voice Interface | 1 × RJ11 POTS |
| CATV Interface | 1 × F-Type RF Output |
| WiFi Standard | IEEE 802.11ax (WiFi6) |
| Bands | 2.4 GHz + 5 GHz |
| Total WiFi Speed | Up to 3000 Mbps |
| MIMO | 2×2 (both bands) |
| Antennas | 4 × Internal Omni |
| Management | TR-069, OMCI, Web UI |
| Application | FTTH, Triple-Play Access Networks |
Technical Specifications
| Parameter | 2.4 GHz Band | 5 GHz Band |
|---|---|---|
| Frequency Range | 2.400 – 2.4835 GHz | 5.150 – 5.825 GHz |
| Max Data Rate | Up to 574 Mbps | Up to 2402 Mbps |
| Modulation | BPSK to 1024-QAM | BPSK to 1024-QAM |
| Channel Bandwidth | 20/40 MHz | 20/40/80 MHz |
| Transmit Power | Up to 20 dBm | Up to 23 dBm |
Electrical Characteristics
-
Power Supply: 12V DC / 1.5A
-
Max Power Consumption: < 15W
-
Surge Protection: Up to 4kV on all ports
-
Energy Saving: Sleep mode and low idle power
-
Power Adapter: Included with unit
Performance and Compliance
-
GPON compliance with ITU-T G.984.2, G.984.3, G.984.4
-
WiFi6 ZTE F6600R certification (802.11ax standard)
-
IPTV ready with IGMP Snooping and Proxy
-
VLAN, NAT, QoS, and port forwarding features
-
Secure firewall with MAC, IP, and URL filtering
-
Compatible with ZTE and other GPON OLT platforms
-
Supports IPv4/IPv6 dual stack
-
Remote management via TR-069, OMCI, SNMP
Environmental Specifications:ZTE F6600R
| Parameter | Minimum | Maximum | Unit |
|---|---|---|---|
| Operating Temperature | 0 | 40 | °C |
| Storage Temperature | -40 | 70 | °C |
| Relative Humidity | 5 | 95 | % RH |
| Cooling Method | Passive, fanless |
Physical Characteristics
-
Dimensions: 210 mm × 140 mm × 35 mm
-
Weight: Less than 700 grams
-
Housing: High-strength ABS plastic
-
Color: White
-
Mounting: Desktop or wall-mountable
-
LED Indicators: Power, LOS, PON, Internet, LAN, WiFi, Phone, CATV
Certifications and Safety
-
CE – European Conformity
-
FCC – United States EMI/EMC compliance
-
RoHS – Restriction of hazardous substances
-
WiFi Certified – IEEE 802.11ax
-
IEC 60825-1 – Class 1 laser safety for fiber port
