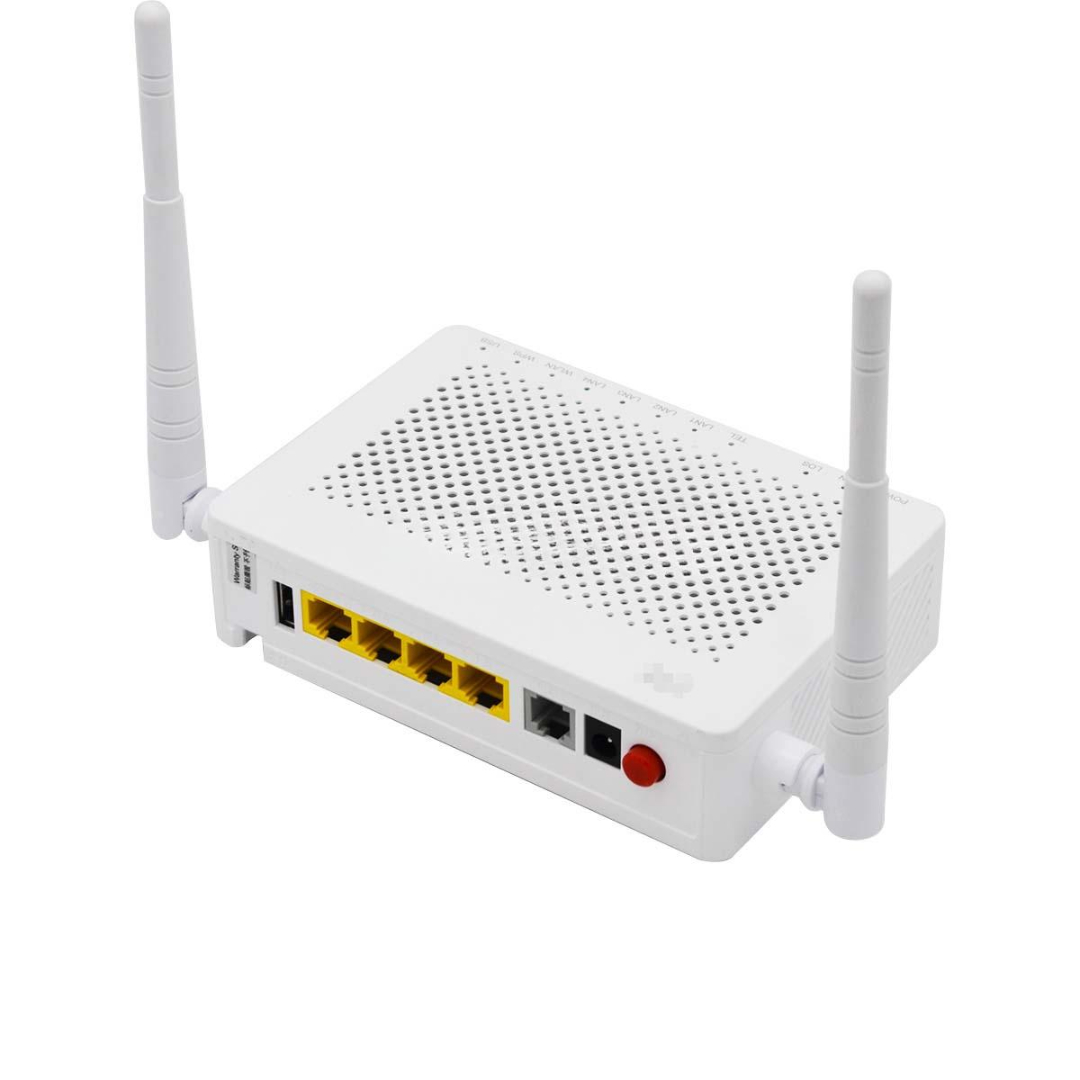

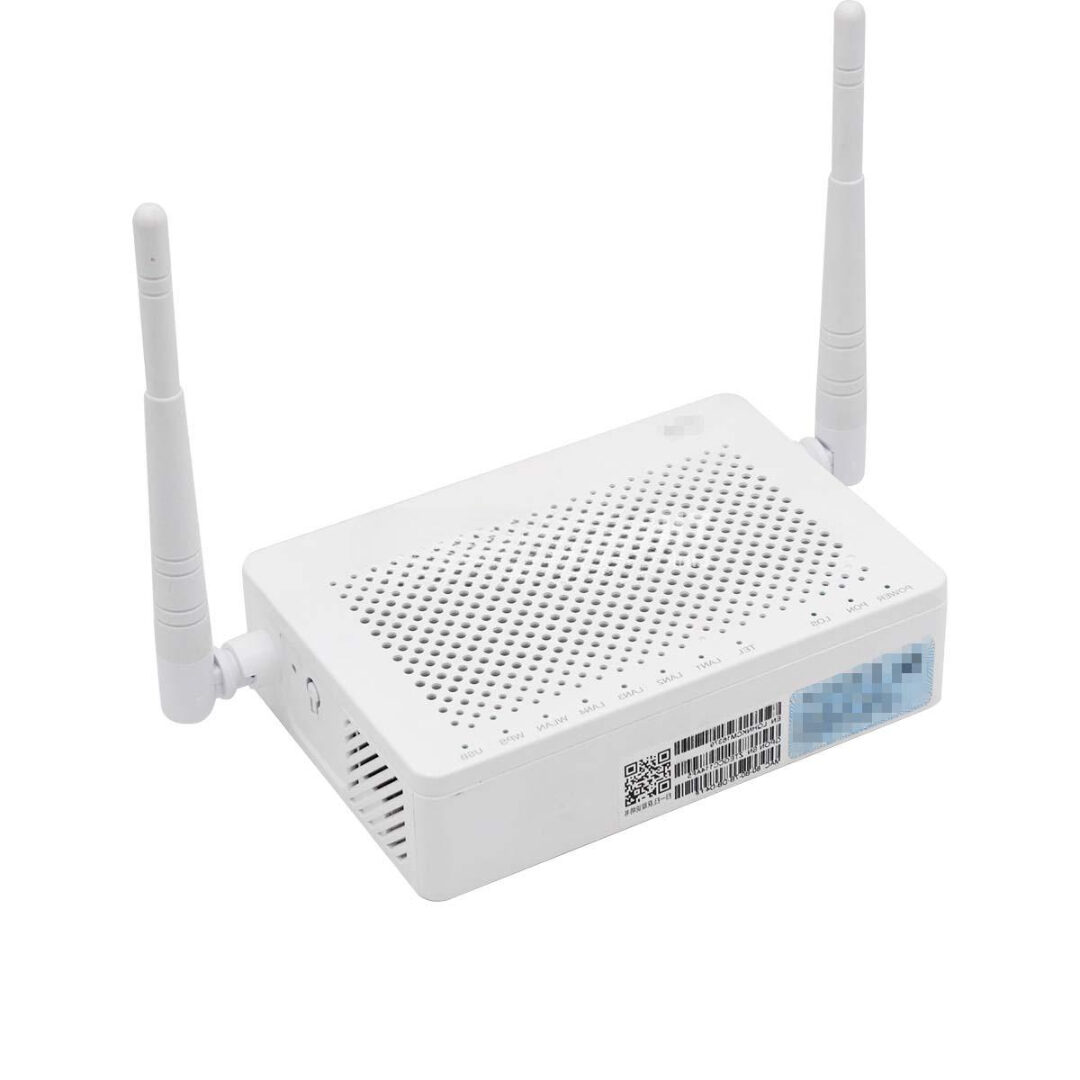

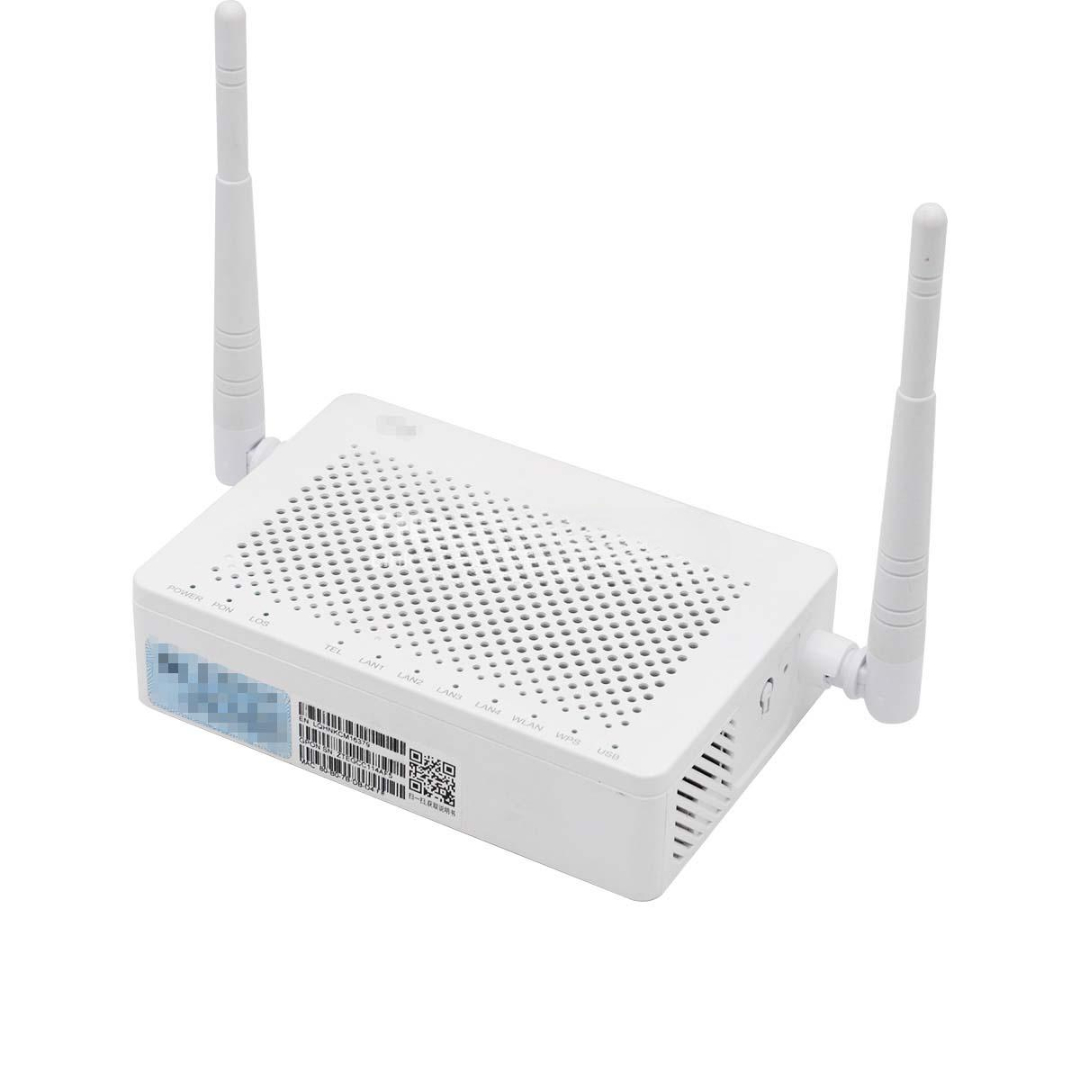

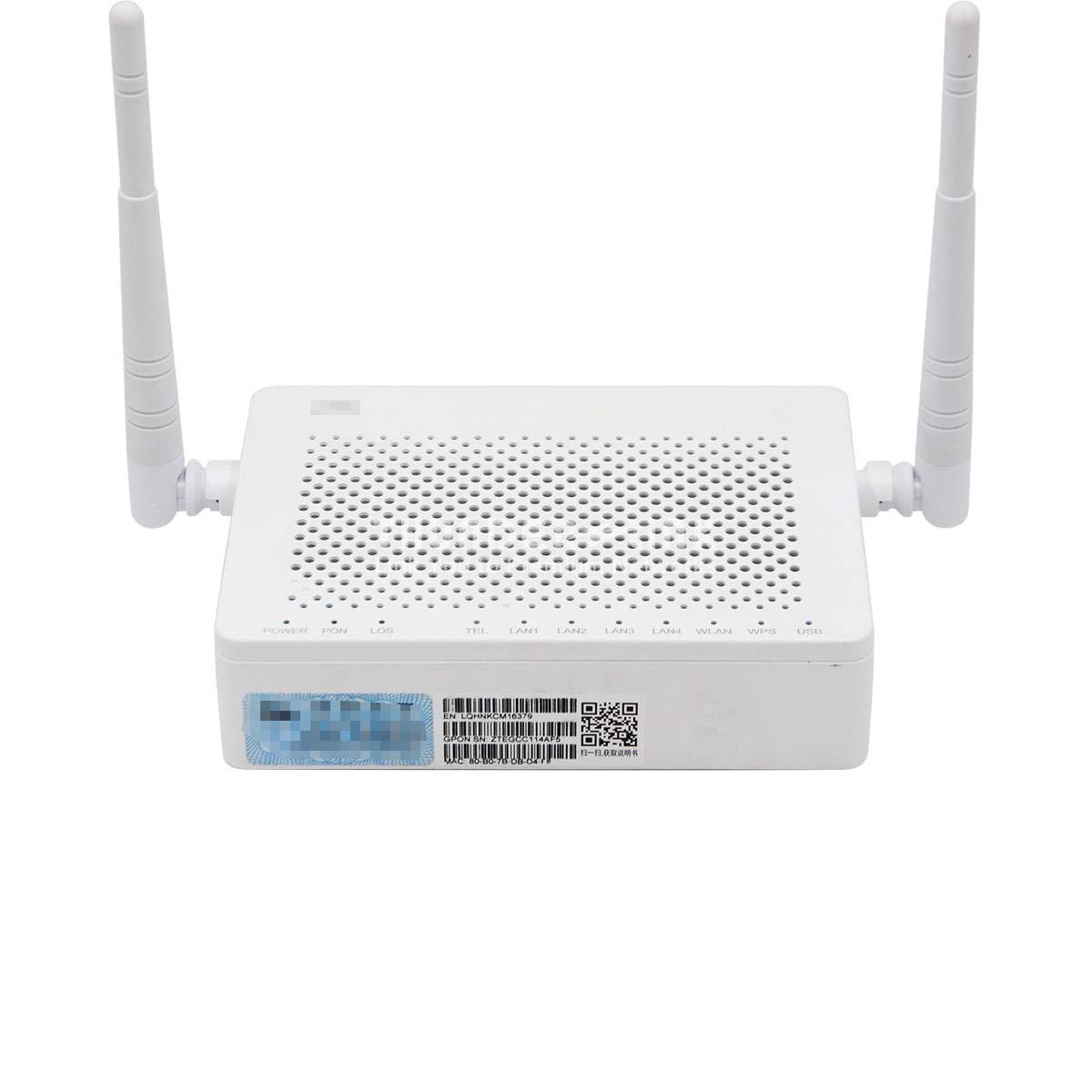

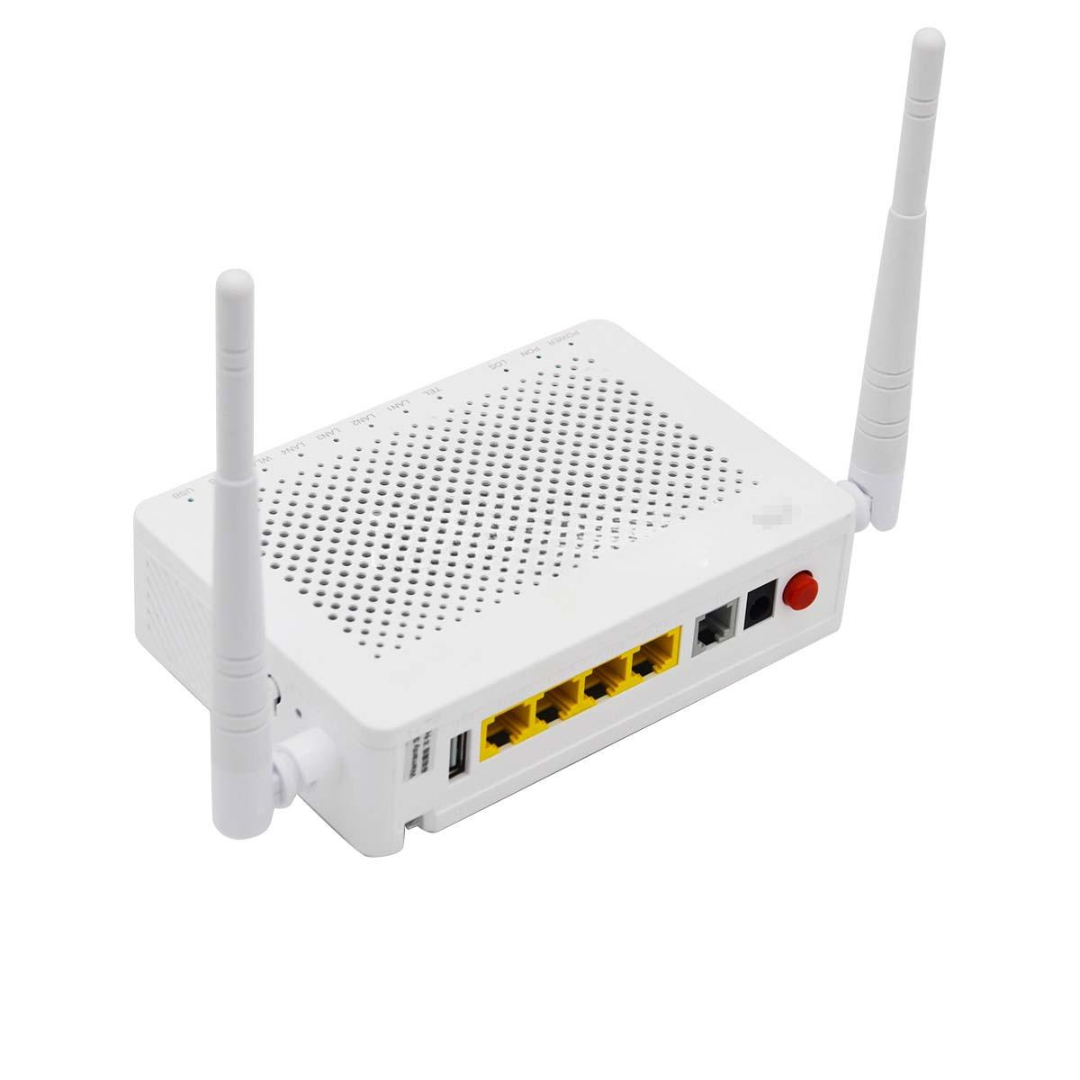

F663NV3a XPON ONT Terminal Brand New 1GE + 3FE + 1*USB + WIFI
The F663NV3a XPON ONT Terminal is a high-performance optical network terminal designed for FTTH (Fiber-to-the-Home) scenarios. Supporting both GPON and EPON technologies (XPON), it offers seamless compatibility with multiple network infrastructures. Equipped with 1 Gigabit Ethernet port, 3 Fast Ethernet ports, 1 USB port, and integrated WiFi, this brand new ONT delivers high-speed, reliable internet and value-added services for home and small business users.
Key Features
- Model: F663NV3a
- Condition: 100% Brand New, Factory Sealed
- Technology Support: Dual-mode XPON (GPON & EPON auto-adapt)
- Ethernet Ports: 1 × GE + 3 × FE LAN ports
- USB Port: 1 × USB 2.0 for file sharing or printer access
- WiFi Support: 2.4GHz IEEE 802.11 b/g/n
- Antenna: Built-in high-performance WiFi antenna
- Firmware: TR-069 remote management protocol supported
- User Interface: Web-based configuration and management
- Plug-and-Play: Easy deployment with minimal setup
Technical Specifications
| Specification | Details |
|---|---|
| Model | F663NV3a |
| PON Interface | 1 × XPON SC/APC (GPON/EPON auto-adapt) |
| Downlink | 1 × GE + 3 × FE RJ45 Ports |
| USB Port | 1 × USB 2.0 |
| WiFi Standard | IEEE 802.11b/g/n (2.4GHz) |
| Antenna Type | Internal high-gain antenna |
| Power Supply | 12V DC, 1A |
| Power Consumption | ≤6W |
| Operating Temperature | 0°C to +40°C |
| Storage Temperature | -30°C to +60°C |
| Humidity | 10% – 90% (non-condensing) |
| Installation Mode | Desktop or wall-mounted |
| Management | TR-069, Web UI, CLI |
F663NV3a XPON Applications
- Home Broadband Access — High-speed triple-play services including internet, voice, and video
- SMB Networking — Reliable fiber-optic WAN access for small business setups
- Fiber ISPs — Compatible with multiple OLT platforms, ensuring rapid provisioning
- WiFi Sharing in Apartments — Centralized router with multi-device support
- Smart Home Enablement — Stable fiber connection for IoT, streaming, and VoIP
Customization & OEM Options
- Logo Printing — Custom branding with your company name or logo
- Pre-Configured Firmware — Set SSID, passwords, and admin credentials before shipment
- Color & Casing Options — Available for bulk OEM orders
- Dual-Band WiFi Model Upgrade — Optional 5GHz WiFi variant available on request
- Software Customization — TR-069 parameters, UI language, and management portal settings
F663NV3a XPON ONT Wholesale & Global Supply
- Bulk Availability — In-stock units ready for mass deployment projects
- OEM Factory Source — Competitive pricing directly from certified manufacturers
- Packaging — OEM anti-static bag, foam-cushioned, and labeled retail box
- Shipping — International shipping with customs-friendly documentation
- Support — Dedicated tech support for firmware, remote management, and diagnostics
Why Choose the F663NV3a XPON ONT Terminal
XPON Dual Mode — Flexible GPON & EPON support with auto-detection
Multiple Ports — 1 GE + 3 FE + USB for diverse wired & media access
WiFi Enabled — Reliable 2.4GHz WiFi for everyday connectivity
Plug-and-Play — Quick setup and provisioning
Ideal for ISPs & Integrators — Customizable and scalable for large deployments
Contact Us for Pricing & OEM Orders
Reach out today for competitive pricing, datasheets, and bulk shipment schedules.
Ready stock for ISPs, telecom providers, and network equipment resellers.
