Product Description
Title goes here.

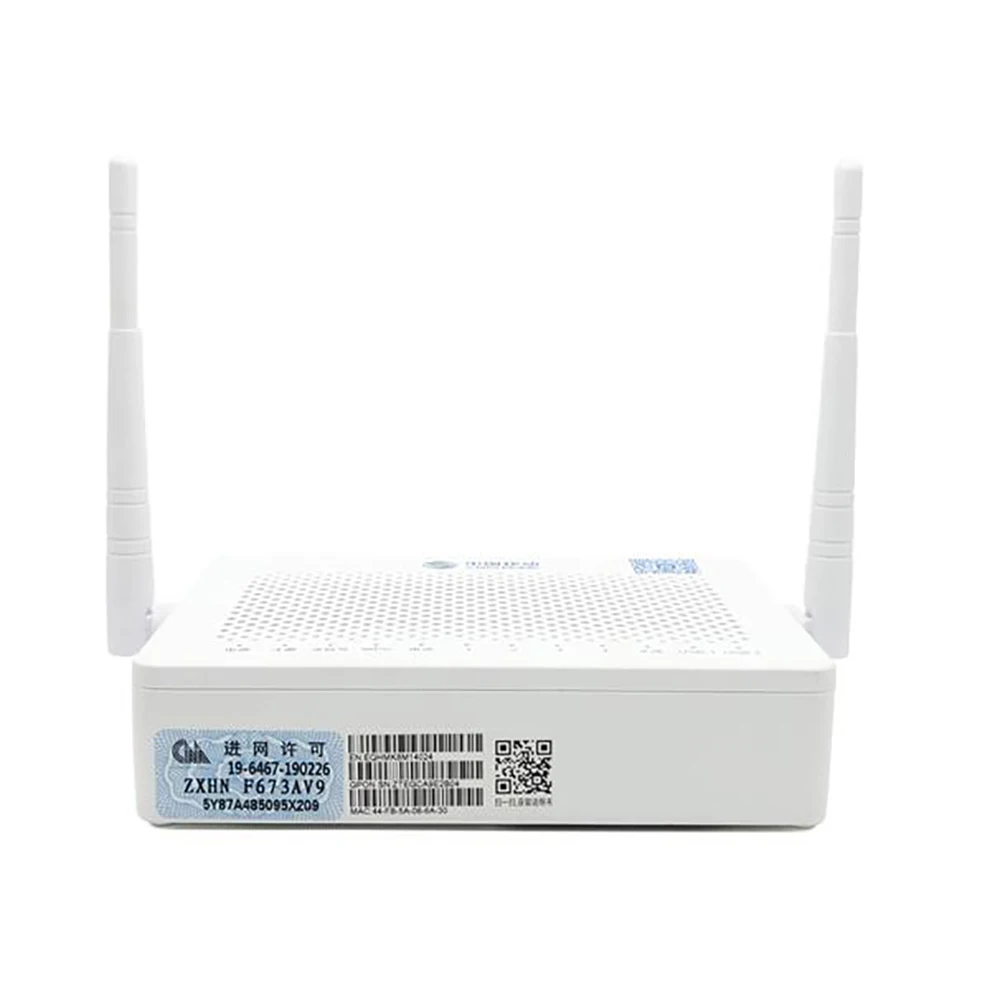

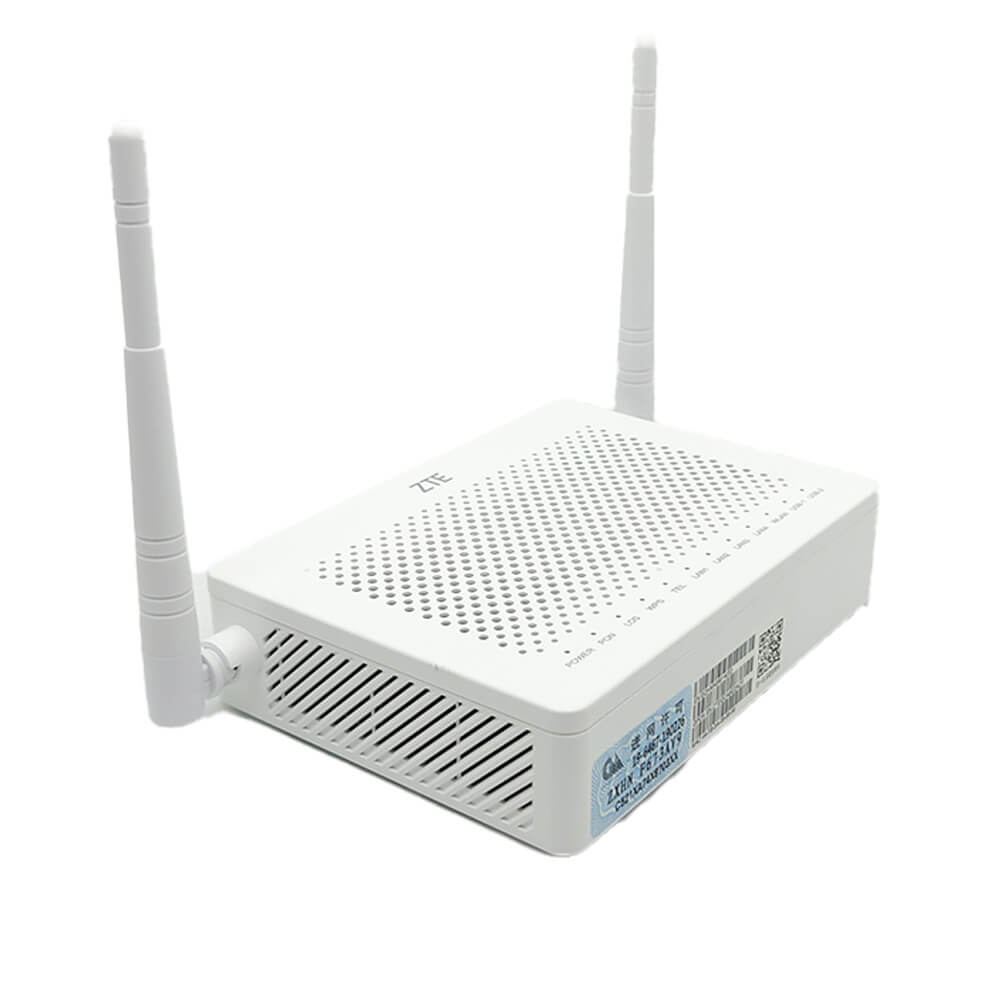

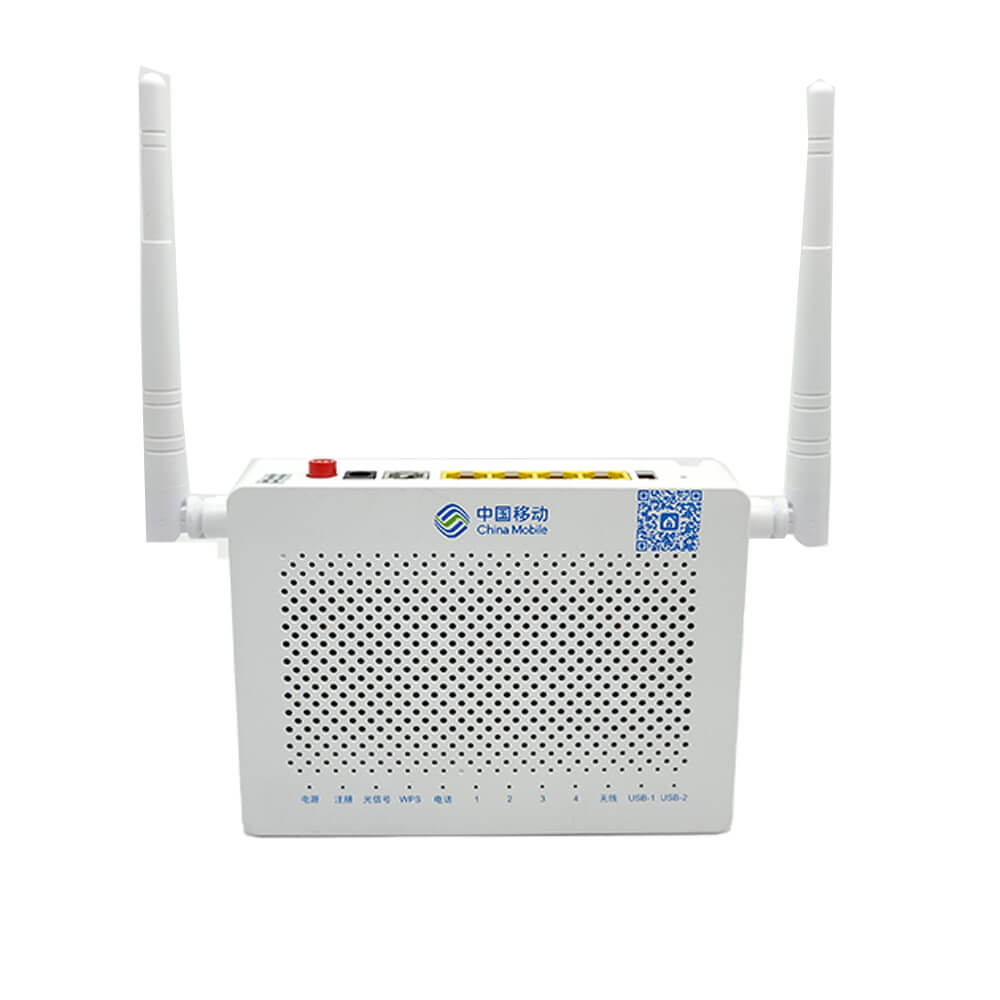

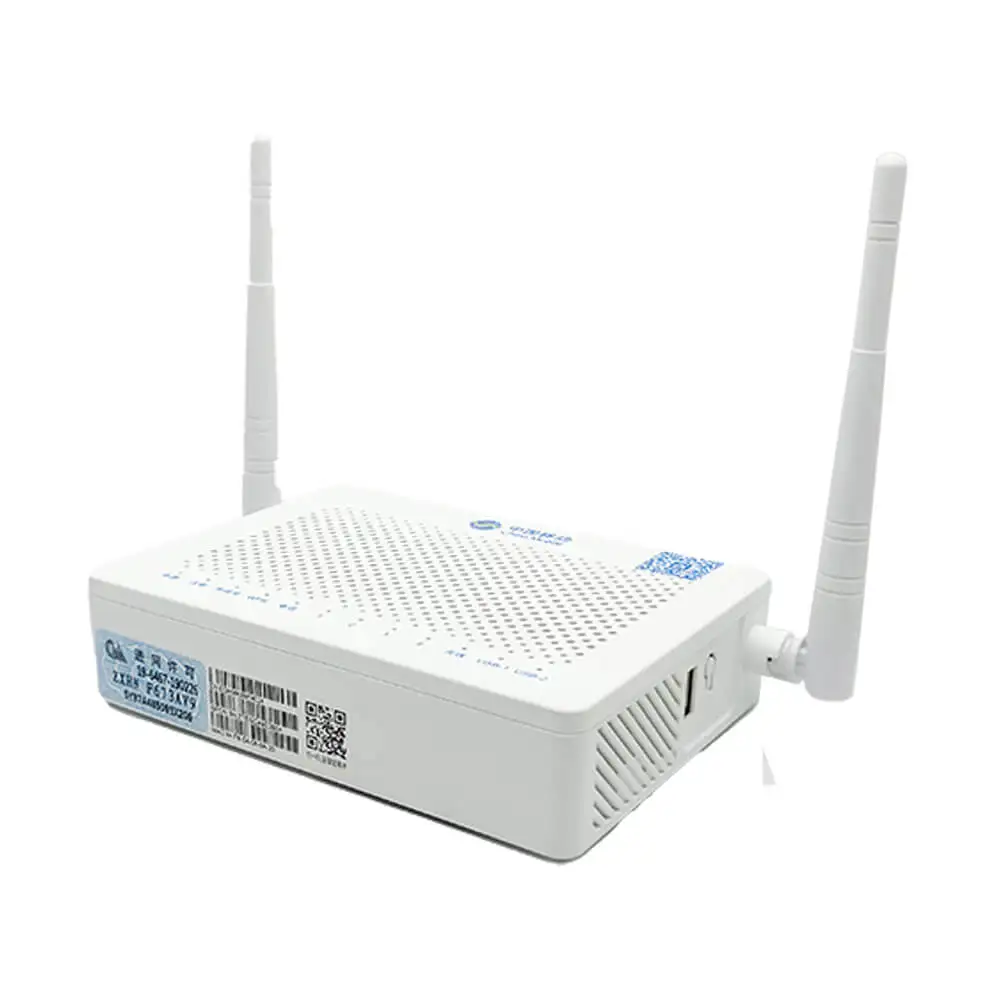

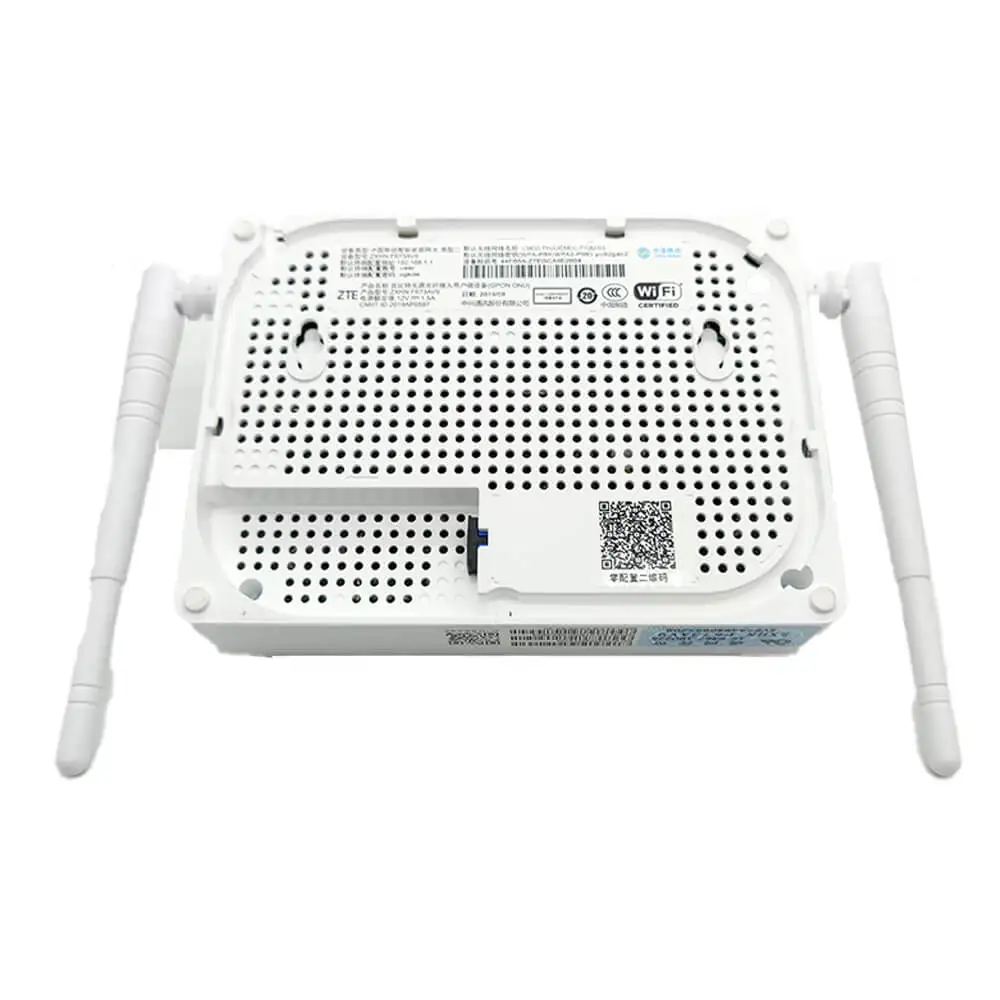

F673AV9, an optical network terminal (ONT), is a high-end home fiber optic in FTTH solution. By using the GEPON technology,ultra-broadband access is provided for home and SOHO users.
The F673 provides 1* POTS ports, 4* GE Ethernet ports, and 2.4G Wi-Fi. The F673 features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services.
Firmware version:
Specification
|
Model
|
F673AV9 English Firmware
|
|
Dimensions (H x W x D)
|
200×136 x 30mm
|
|
Weight
|
255g / 420g (Include Package)
|
|
Operating Temperature
|
0°C to 40°C
|
|
Operating Humidity
|
5% RH to 95% RH (non-condensing)
|
|
Power Adapter Input
|
100 V to 240 V AC, 50 Hz/60 Hz
|
|
System Power Supply
|
11 V to 14 V DC, 1.5A
|
|

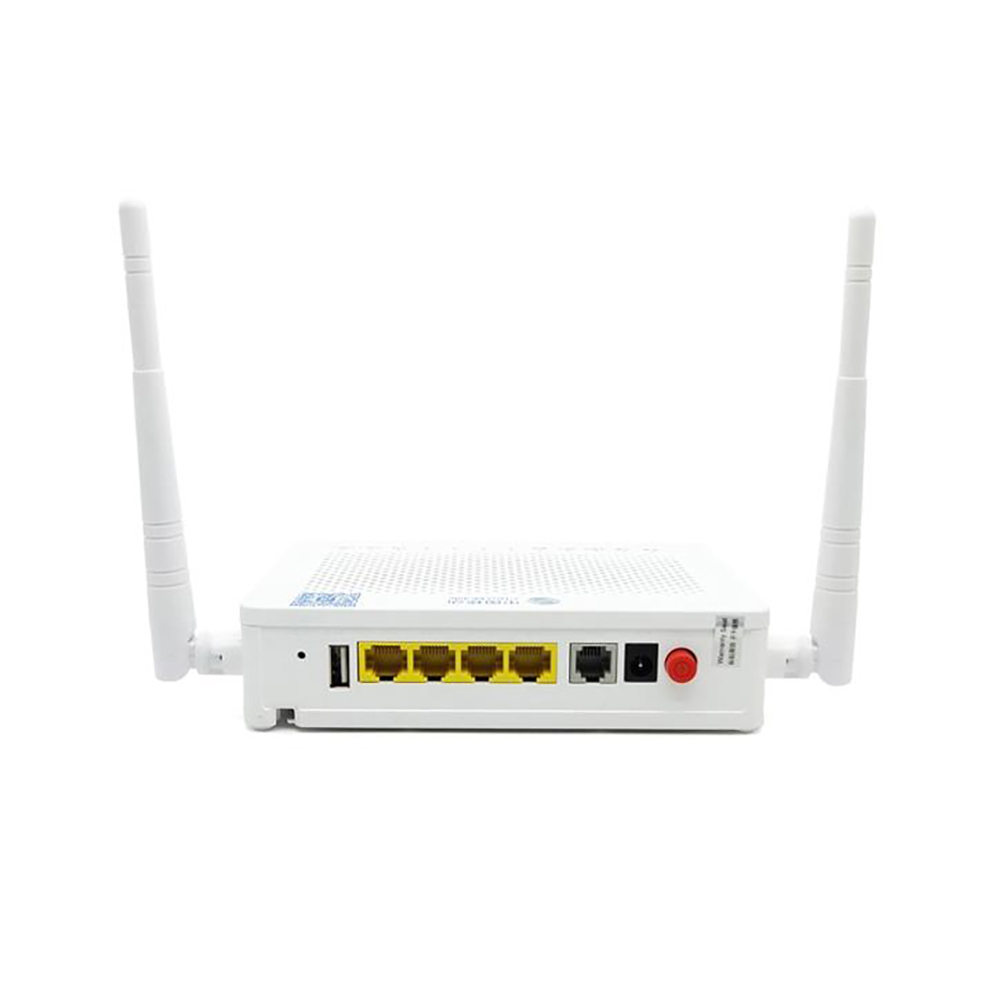

Ports
|
4GE+1TEL+2USB+Dual Band Wi-Fi
|
|

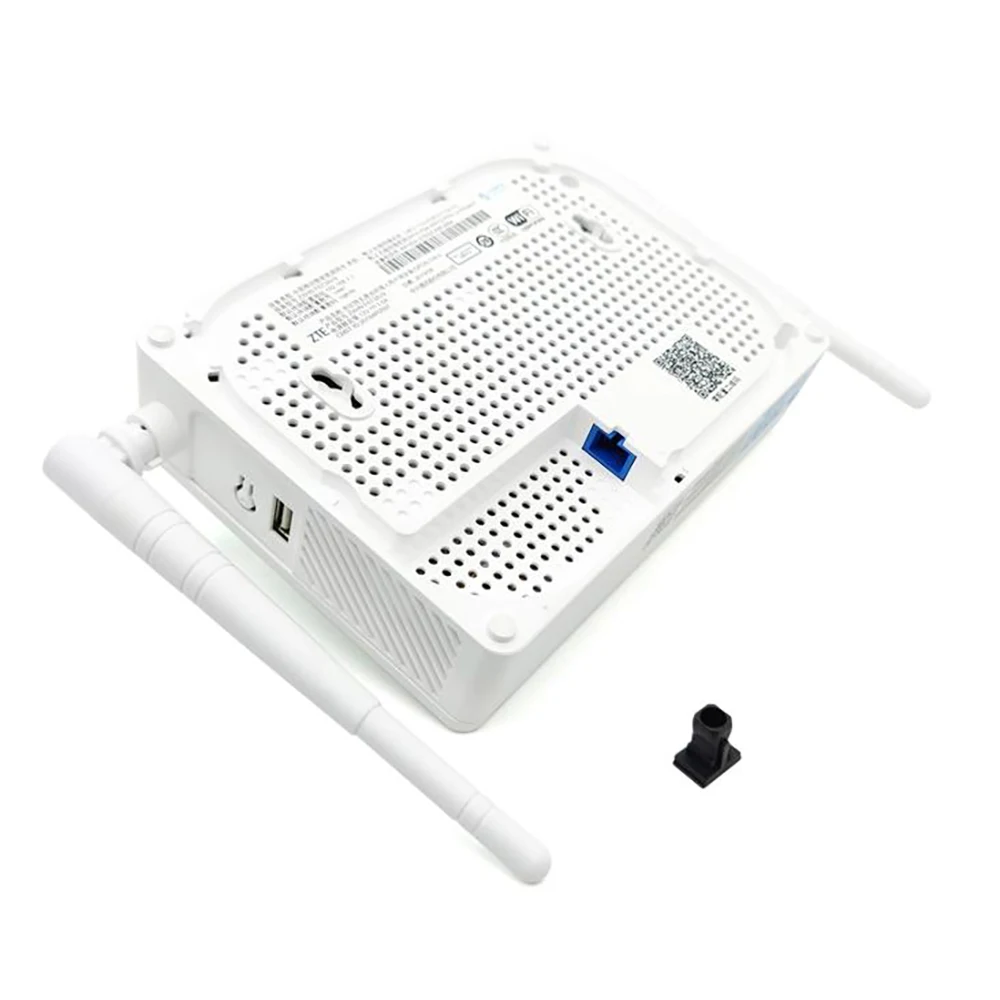

Optical Connector
|
SC / UPC
|
|
Indicators
|
Power/PON/LOS/internet/wifi/LAN/USB
|
|
NNI
|
GPON
|
|
Optical interface
|
SC/UPC interface
Class B+ |
|
UNI
|
1POTS+4GE+2USB+2.4G&5G Wi-Fi
|
|
WiFi standard
|
2.4GHz: 2 x 2 MIMO 802.11b/g/n
5GHz: 2 x 2 MIMO 802.11a/n/ac |
|
Antenna gain
|
3dBi
|
|
Dimensions(Width×Depth×Height)
|
30mm x 173mm x 120mm
|
|
Power supply
|
Power supply: 11-14V DC, 1.5A
Input power: 100-240V AC, 50/60Hz |
|
Operating temperature and operating humidity
|
0ºC to 40ºC
5% to 95%, non-condensing |
|
Cooling
|
Passive cooling
|
|
Maximum number of MAC addresses learned
|
1024
|
|
L2 forwarding capability
|
Forwarding packets of any length at wire speed
|
|
IPv4 L3 forwarding capability
|
2Gbit/s with any length packets in downstream direction
1Gbit/s with any length packets in upstream direction |
|
IPv6 L3 forwarding capability
|
2Gbit/s with any length packets in downstream direction
1Gbit/s with any length packets in upstream direction |
|

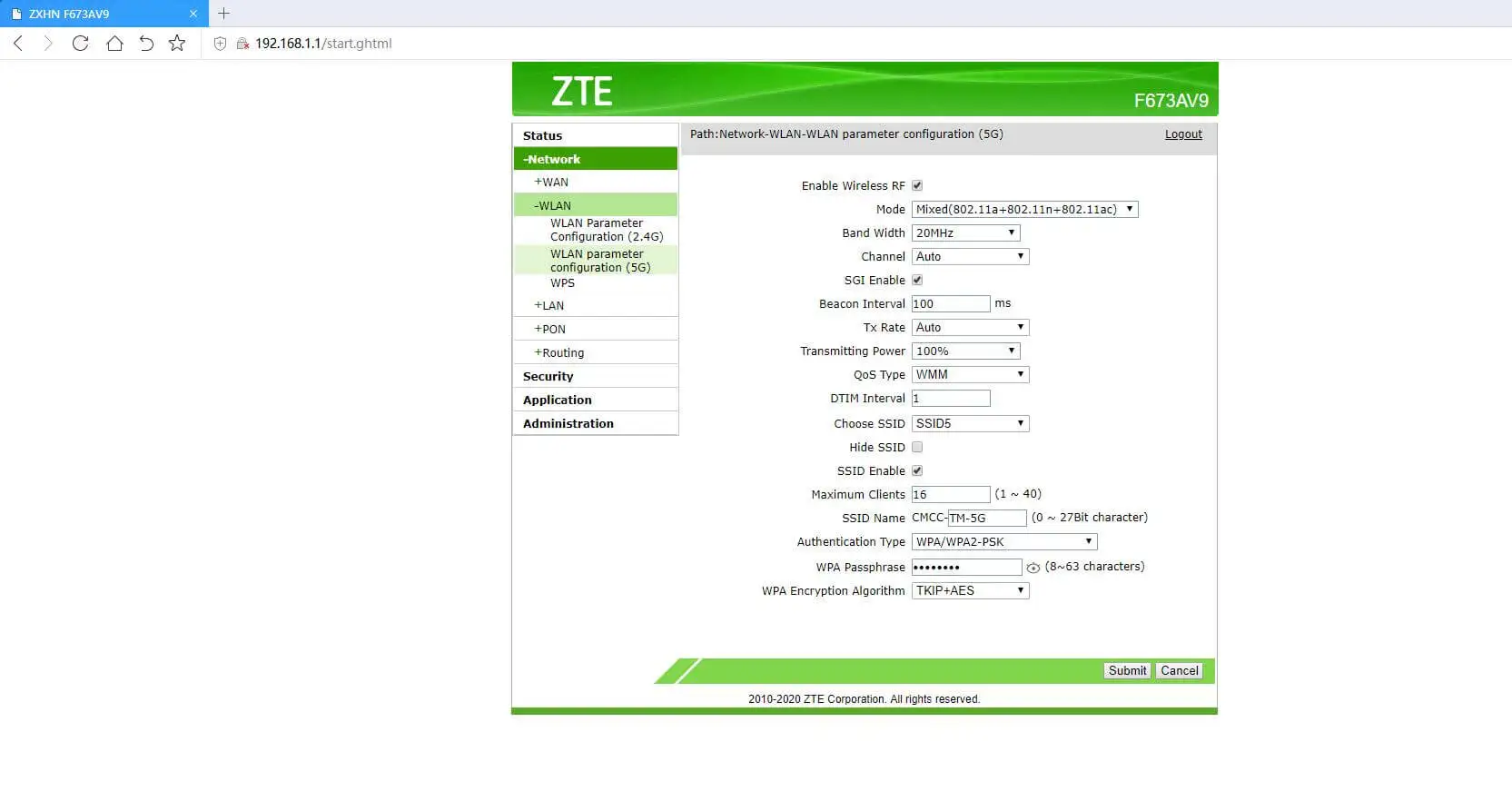

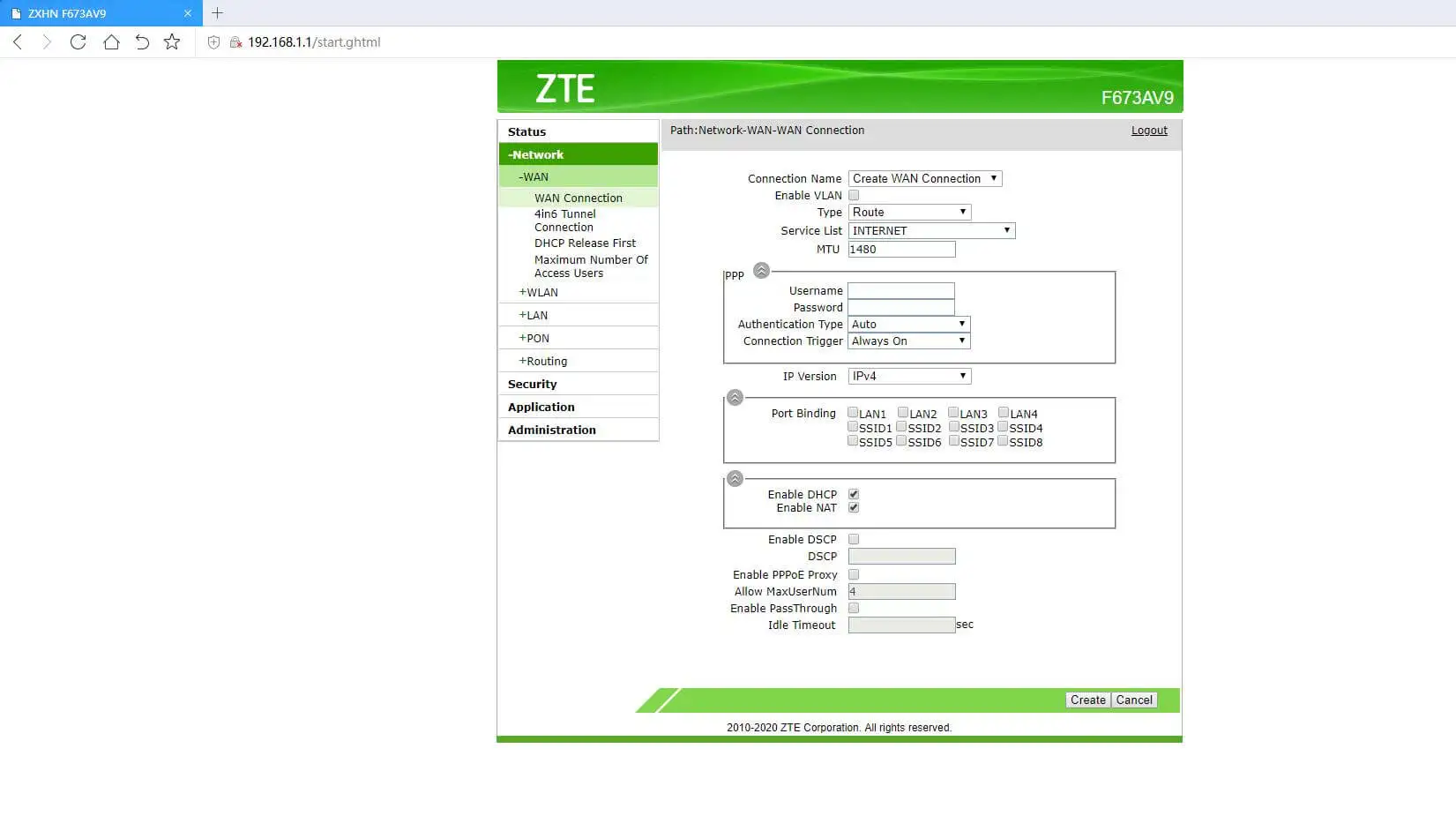

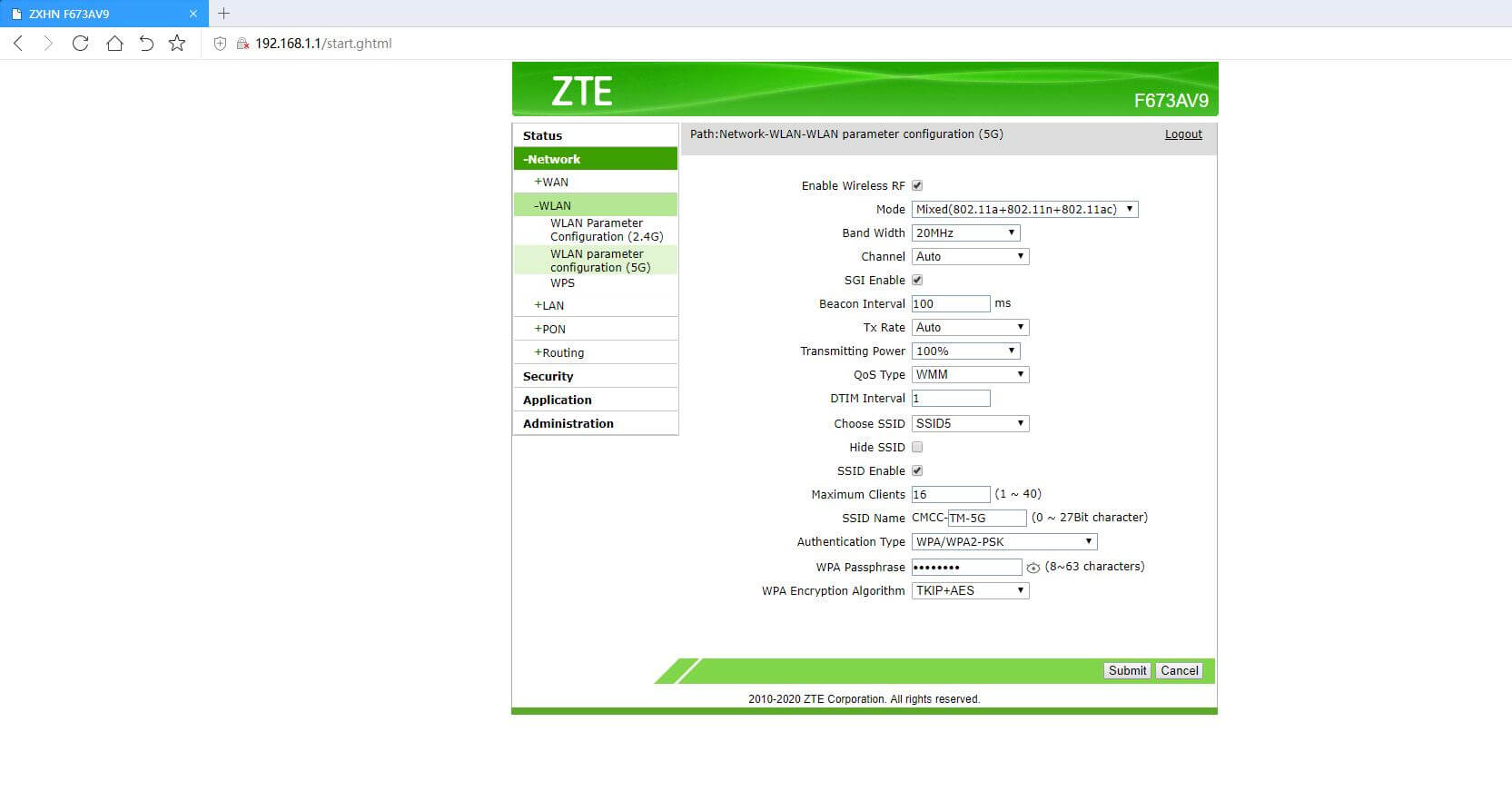

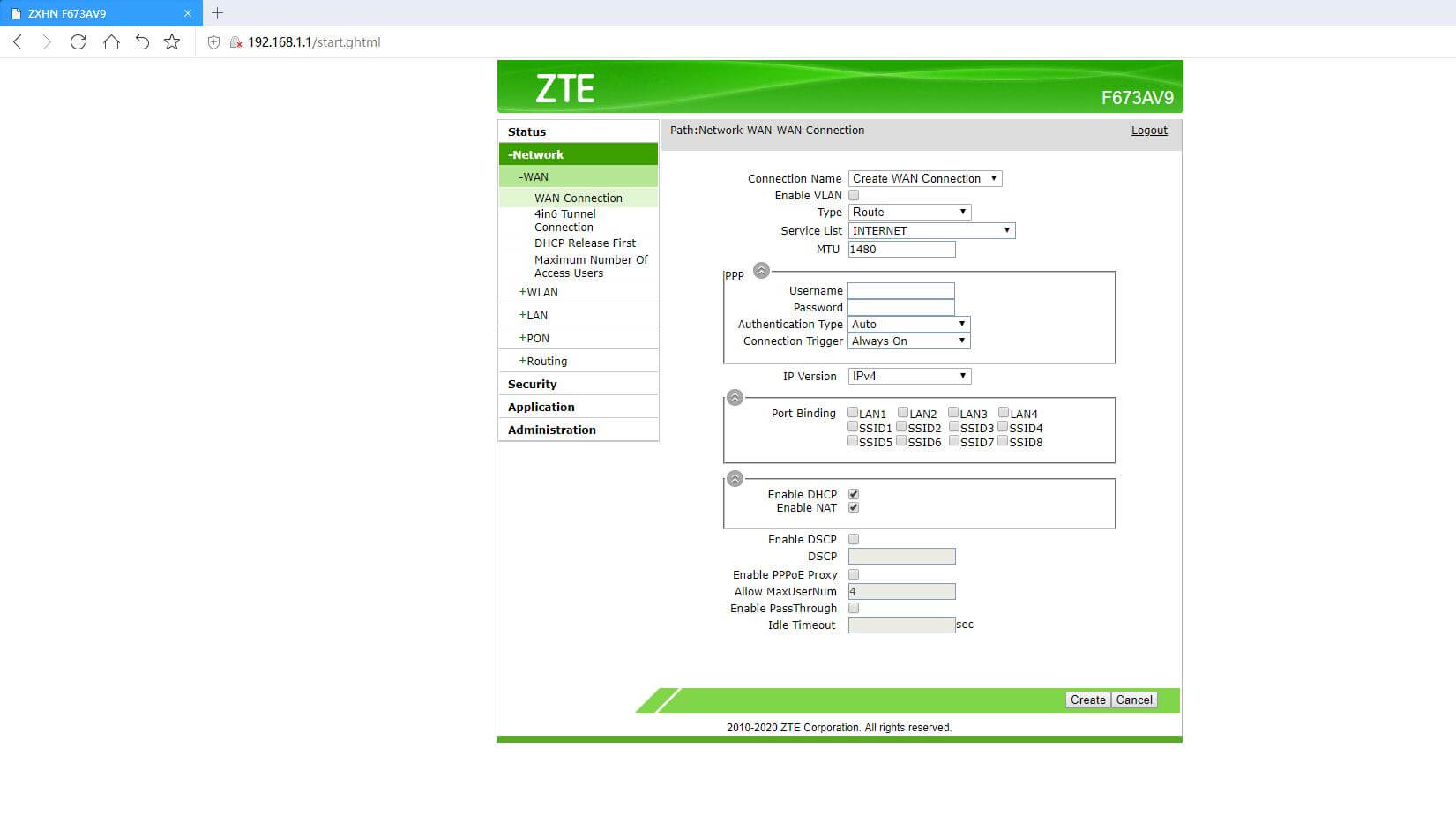

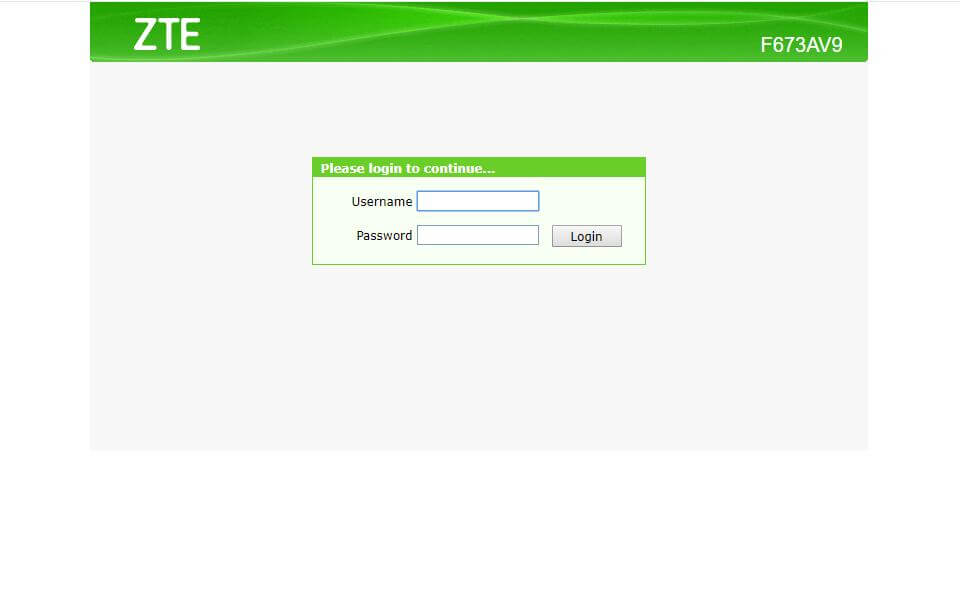

Configuration method
|
NMS, Web, or TR069
|
|
Voice protocol
|
SIP and H.248
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
