- Model Number:HG260P XPON
- Type:ONU ONT
- Place of Origin:Guangdong, China
- Brand Name:HG130Z
- Use:FTTH Solutions
- Warranty Time:1 Year
- Network:Wireless Lan
- Model:HG260P XPON
- Dimensions:176*138*28MM
- Weight:200g
- Operating Temperature:0°C to +40°C
- Operating Humidity:5% RH to 95% RH (non-condensing)
- Power Adapter Input:100 V to 240 V AC, 50 Hz/60 Hz
- System Power Supply:11 V to 14 V DC, 1.5 A
- Configuration:XPON ONU 1GE+3FE 1TEL + 2.4g/5g AC wifi
- Selling Units:Single item
- Single package size: 15X13X7 cm
- Single gross weight:1.000 kg
- Package Type:CARTON BOX PACKING

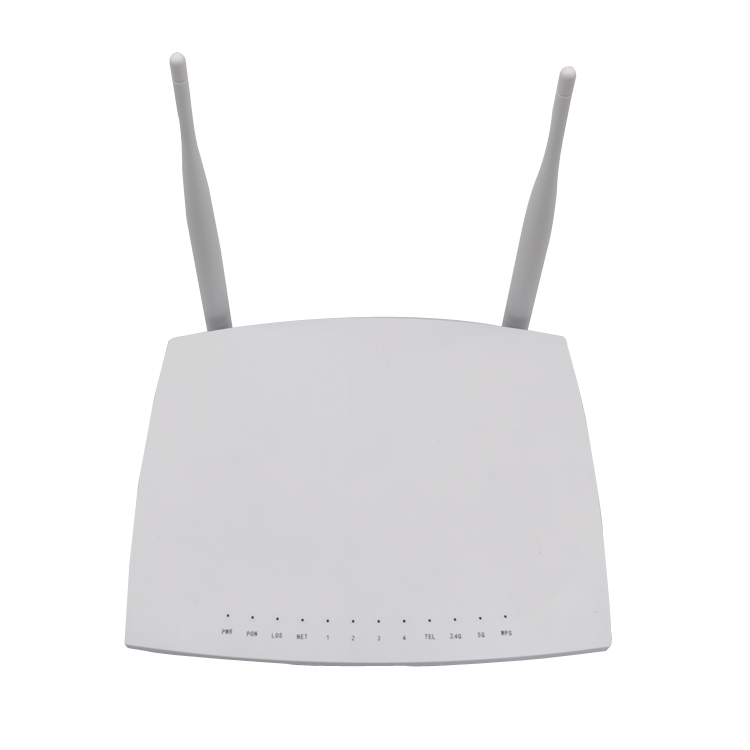

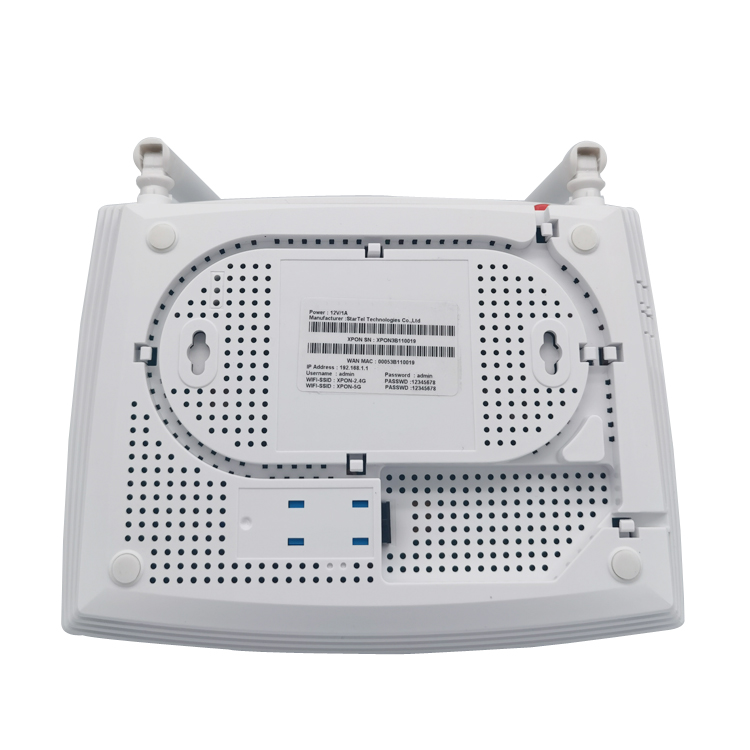

- Picture Example:
- Lead time:Quantity(pieces)1 – 2000>2000Lead time (days)11To be negotiated
Factory Direct OEM HG260P Cheap Price ZTE CHIP SET XPON ONU 1GE+3FE 1TEL + 2.4g/5g AC wifi
|
Type
|
Optic Fiber
|
|
Color
|
White
|
|
Weight
|
200g
|
|
Power Adapter Input
|
150V ～ 264V AC，50Hz ～ 60Hz
|
|
Power plug
|
EU,AU,AM,UK etc
|
|
Power Interface Size
|
metal inner diameter: φ2.1±0.1mmouter diameter : φ5.5±0.1mm; length: 9.0±0.1mm
|
|
WLAN Module
|
External dual antenna, antenna gain 5db, antenna power 16~21dbm
|
|
Support 2.4GHz, 300M transmission rate
|
|
|
Operating Environment
|
Temperature: -10°C ~ 55°C
|
|
Humidity: 5% ~ 95% (no condensation)
|
Products Description
Product Paramenters
Product Features:
1.Plug-and-play (PnP): Internet, IPTV and VoIP services can be deployed by one click on the NMS and on-site configuration is not required.
2.Remote diagnosis: Remote fault locating is implemented by the loop-line test of POTS ports, call emulation and PPPoE dialup emulation initiated by the NMS.
3.Link monitoring: E2E link detection is achieved using 802.1ag Ethernet OAM.
4.High speed forwarding: GE line rate forwarding in the bridging scenario and 900 Mbit/s forwarding in the NAT scenario.
5.Green energy-saving: 25% power consumption is saved with highly integrated system on chipset (SOC) solution, in which, a single
chip integrates with PON, voice, gateway and LSW modules.
Application
Typical Solution：FTTH(Fiber To The Home)
Typical Business：INTERNET、IPTV、WIFI 、VOIP etc
