- Model Number:EG8120L G8120C
- Type:ONU ONT
- Place of Origin:Guangdong, China
- Brand Name:EG8120L G8120C
- Use:FTTH Solutions
- Warranty Time:1 Year
- Network:Wireless Lan, POE, wifi
- Model:EG8120L/G8120C
- Dimension:250*185*35mm
- Weight:700g (Include Package)
- Operating Temperature:0°C to +40°C
- Operating Humidity:5% RH to 95% RH (non-condensing)
- Power Adapter Input:100 V to 240 V AC, 50 Hz/60 Hz
- System Power Supply:11 V to 14 V DC, 1.5 A
- Configuration:XPON 1ge 1fe 1tel
- other option:HG8120C
- Selling Units:Single item
- Single package size: 15X13X7 cm
- Single gross weight:1.000 kg

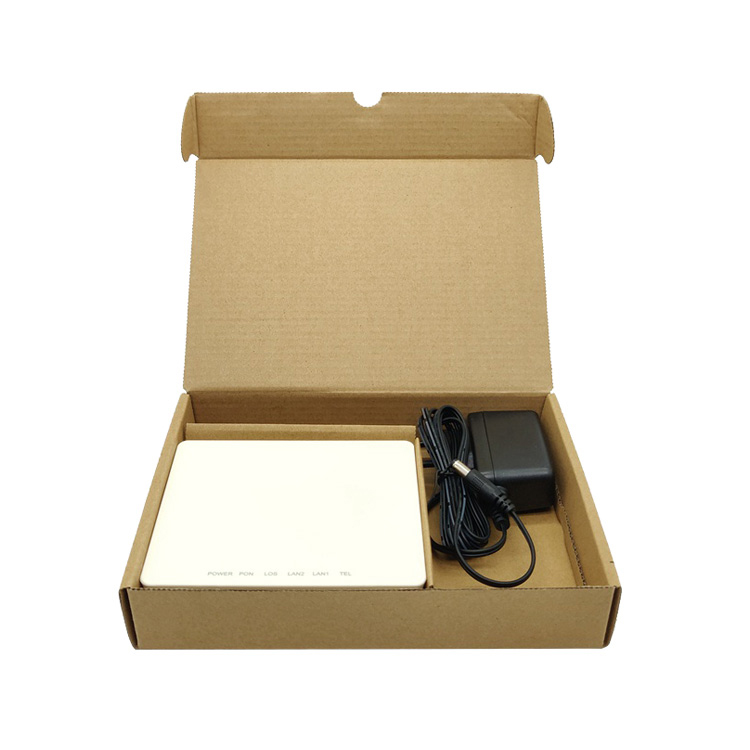

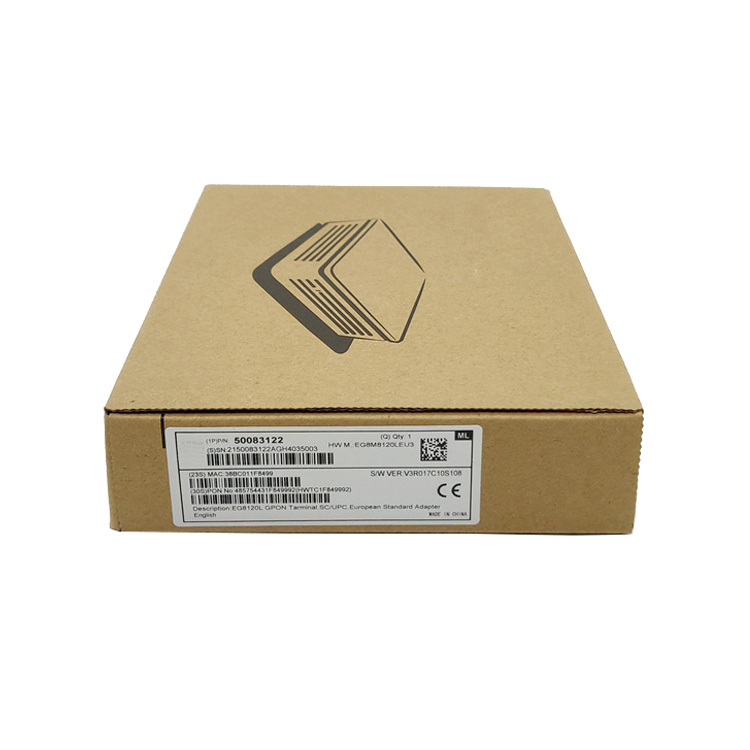

- Package Type:CARTON BOX PACKING
- Picture Example:
- Lead time:Quantity(pieces)1 – 2000>2000Lead time (days)15To be negotiated
Factory Direct sale Low Price echolife EG8120L XPON Terminal 1GE+ 1FE+ 1TEL Port same HG8120C

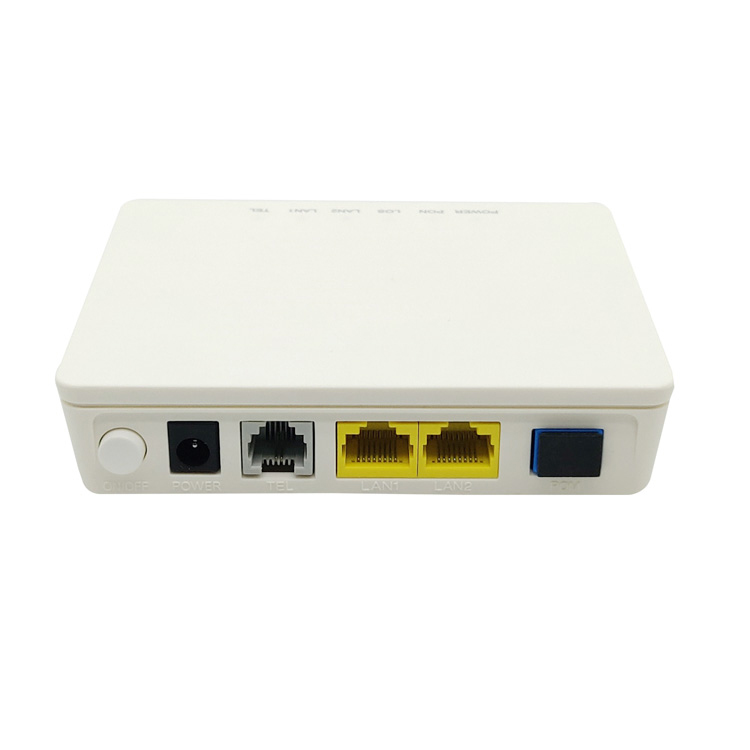

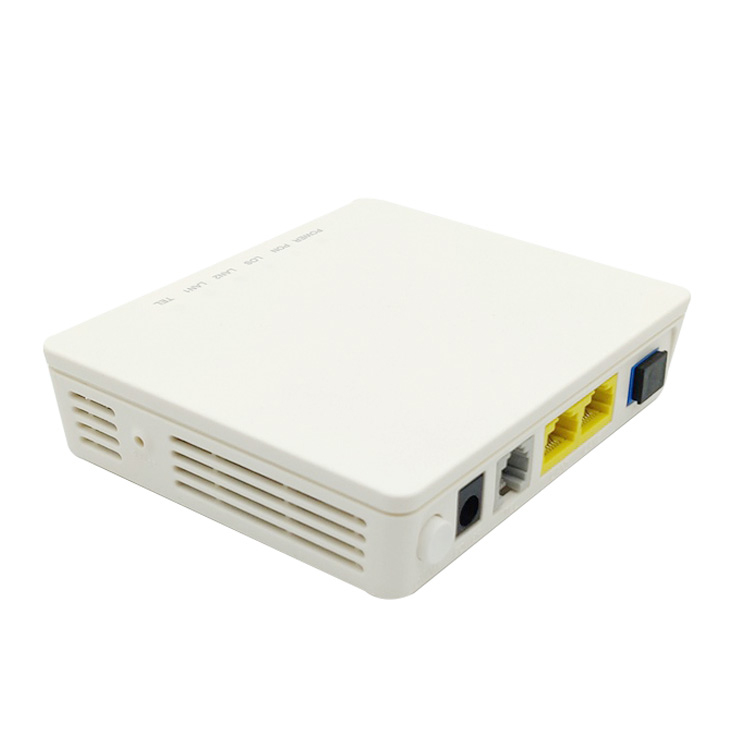

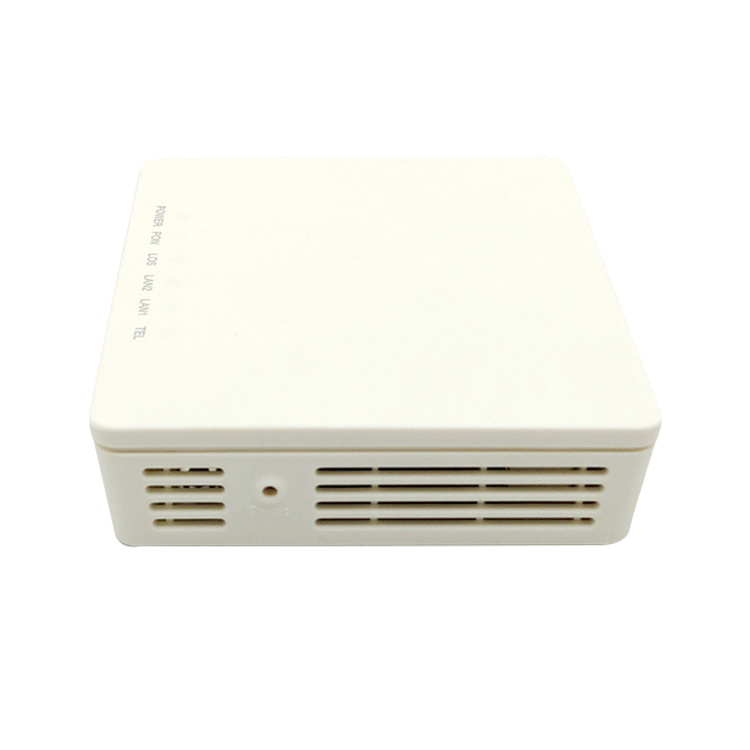

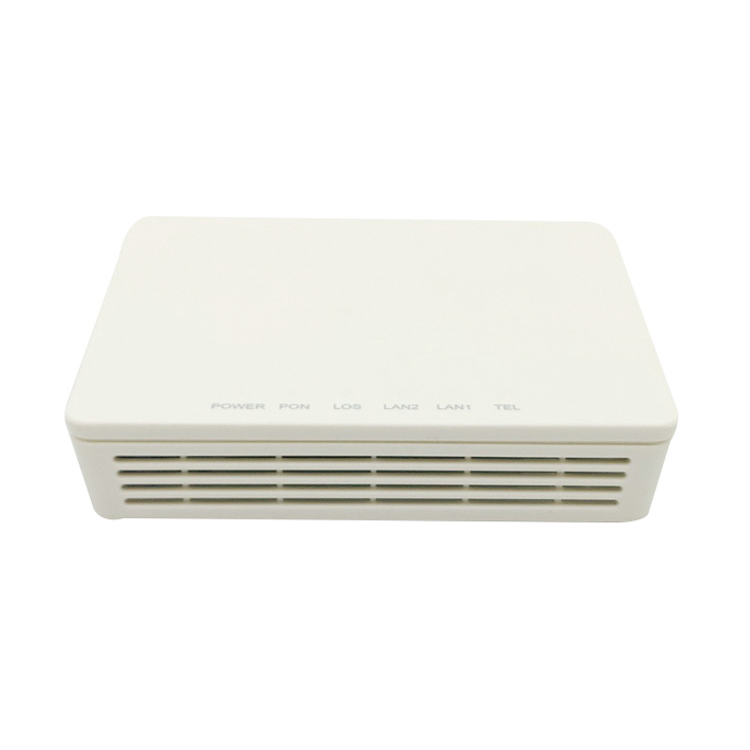

Huawei EG8120L FTTH is an intelligent routing-type ONT with one GE port, one POTS port, and one FE port.
EG8120L gives high-performance service forwarding capabilities to ensure excellent experiences with VoIP, Internet, and HD video services. This provides a perfect terminal solution and future-oriented service-supporting capabilities for networks.
EG8120L FTTH is an intelligent routing-type ONT with one GE port, one POTS port, and one FE port.
EG8120L gives high-performance service forwarding capabilities to ensure excellent experiences with VoIP, Internet, and HD video services. This provides a perfect terminal solution and future-oriented service-supporting capabilities for networks.
With the high-performance forwarding ability to effectively guarantee the service experience of data and high-definition video, to provide FTTH deployment Ideal terminal solutions and future-oriented service support capabilities.
|
Model
|
EG8120L
|
|
Dimensions (H x W x D)
|
30 mm x 115 mm x 94 mm
|
|
Weight
|
200g
|
|
Operating Temperature
|
0°C to 40°C
|
|
Operating Humidity
|
5% RH to 95% RH (non-condensing)
|
|
Power Adapter Input
|
100 V to 240 V AC, 50 Hz/60 Hz
|
|
System Power Supply
|
11 V to 14 V DC, 0.5 A
|
|
Ports
|
1ge 1fe 1tel
|
|
Optical Connector
|
SC/UPC, CLASS B+
|
|
PON Interface
|
1 GPON interface,Downstream rate 2.5Gbps,Upstream rate 1.25Gbps
|
|
LAN Interface
|
1 x 10/100/1000Mbps(GE) and 1x 10/100Mbps(FE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
|
|
WLAN Module
|
External dual antenna, antenna gain 5db, antenna power 16~21dbm ;Support 2.4GHz, 300M transmission rate
|
|
Capability
|
Support NAT/PPPOE/DHCP/Static IP/Bridge WAN
|
|
Wavelength
|
TX: 1310nm, RX: 1490nm
|
Products Description
Product Paramenters
Product Feature:
* Plug-and-play: Configurations are automatically delivered by the Network Management System so on-site commissioning is not required
* Remote diagnosis: POTS ports support loop line tests and call simulation tests, implementing remote fault detection; remote batch upgrades of up to 2,000 devices each hour
* Link monitoring: IEEE 802.1ag-based Ethernet OAM implements End-to-End (E2E) link detection and network isolation
* Energy wise: SOC chips integrate PON, voice, gateway, and LSW modules, with up to 25% power savings
* Local management using Web and remote management using TR069 and OMCI
* Optical power monitoring
* 1ag Ethernet OAM
* Loop-line test of POTS ports, call emulation and PPPoE dialup emulation
* Reactive and proactive intelligent rogue ONT isolation
* Remote upgrad and smart protection
* Dynamic power consumption adjustment
* With a backup battery, the guaranteed services can be selected flexibly
* Remote diagnosis: POTS ports support loop line tests and call simulation tests, implementing remote fault detection; remote batch upgrades of up to 2,000 devices each hour
* Link monitoring: IEEE 802.1ag-based Ethernet OAM implements End-to-End (E2E) link detection and network isolation
* Energy wise: SOC chips integrate PON, voice, gateway, and LSW modules, with up to 25% power savings
* Local management using Web and remote management using TR069 and OMCI
* Optical power monitoring
* 1ag Ethernet OAM
* Loop-line test of POTS ports, call emulation and PPPoE dialup emulation
* Reactive and proactive intelligent rogue ONT isolation
* Remote upgrad and smart protection
* Dynamic power consumption adjustment
* With a backup battery, the guaranteed services can be selected flexibly
Application
Typical Solution：FTTH(Fiber To The Home)
Typical Business：INTERNET、IPTV、WIFI 、VOIP etc
