FTTH GEPON EPON GPON ONU Modem Box for Fiber Optic Network Router, OEM CATV WIFI ONU Device with price
Key Features:
1)Conform to IEEE802.3ah standard
2)Support Ethernet service layer 2 switching and wire-speed forwarding of uplink and downlink services
3)Support frame filtering and suppression
4)Support standard 802.1Q Vlan function, support VLAN conversion
5)Support 4094 VLANs (802.1Q)
6)Support Dynamic Bandwidth Allocation (DBA) function
7)Support QoS, including traffic flow classification, priority marking, queue and dispatch, traffic shaping and traffic control, etc.
8)Single ONU supports up to 8 LLID
9)Support IGMP Snooping
10)Support Ethernet port ratelimit loop detection
11)Support power failure alarm
Specification:
Product Name | GEPON EPON GPON ONU |
PON Type | G/EPON ONU or GPON ONT |
Fuction optional | FE/GE Lan port ,WIFI/ FXS/POTS/,CATV/RF..Ect.. |
Lan PORT | 10/100/1000base-tx; Interface: RJ45 |
PORTs | PON: SC/PC |
ETHERNET | •10/100/1000M auto-negotiation
•Full/half duplex mode
•RJ45 connector
•Auto MDI/MDI-X
•100m distance
|
Business | •Layer 2 wire speed switching
•Support VLAN TAG/UNTAG,VLAN conversion
•Support Port-based speed limitation
•Support Priority classification
•Support storm control of broadcast
•Support RSTP
|
Network Management |
•Support IEEE802.3 QAM, ONU can be remotely managed by OLT
•Support Remote management through SNMP and Telnet
•Support Be Remote updated by OLT
|
Physical | Dimension: 130mm X 100mm X 37mm |
Weight: 250g | |
Temperature: 0~60°C; Relative Humidity: 10~90% | |
Power Adapter | Input: AC 110V~ AC 265V; Output: DC12V/0.5A |
Consumption | <5W |

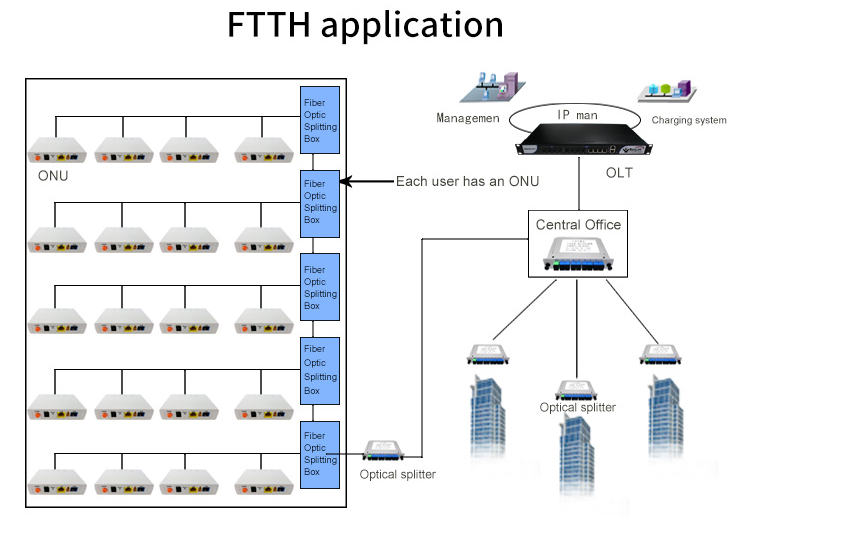

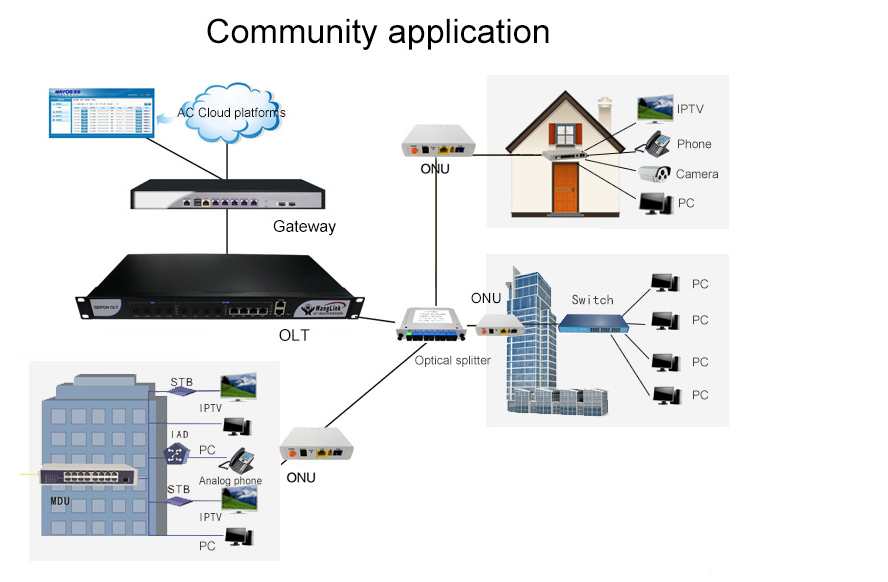

Product Application:
1).Lead time
With more than 200 employees in my company,at least 10,000 connectors can be produced.
2).Research Department
With our separate research team,so we are albe to have products made according to your requirements.
3).Qulity assurance
Every product will be tested to be of good quality.Meanwhile free samples can be supplied for your test.
