- Use:FTTX
- Warranty Time:5 YEAR
- No. of Fiber:2.
- Product Name:ST PC-ST PC Duplex Multimode Fiber Optic Patch Cord
- Fiber Type:Single mode
- Connector Type:SC FC ST LC UPC APC
- Material:PVC, LSZH
- Wavelength:1310/1550nm
- Insertion loss:IL<0.3db
- Return Loss:50dB
- Length:0.5m/1m/2m/5m/customized
- Certification:ISO9001:2018
-
- Supply Ability
- 100000 Piece/Pieces per Month
-
- Packaging Details
Plastic/ Carton/Customized for FTTH FTTB FTTX Network 50/125um Fiber Optic Patch Cord ST PC-ST PC Duplex Multimode PVC/LSZH
-
- Port
Wuhan/Shanghai/Shenzhen
- Picture Example:
- Lead time:Quantity(pieces)1 – 1500>1500Lead time (days)7To be negotiated
Product Description
| Parameter | Unit | Value | |||
| Connector Type | FC/UPC,FC/APC,SC/UPC,LC/UPC,LC/APC,ST/PC,MPO | ||||
| Fiber Type | Multi-Mode | Single Mode | |||
| Insertion Loss | dB | Max.≤0.2 | Max.≤0.3 | ||
| Return Loss(Typ.) | dB | ≥36(no APC connector) | /PC | /UPC | /APC |
| ≥45 | ≥50 | ≥60 | |||
|
Test Wavelength |
nm | 850/1310nm | 1310/1550nm | ||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| Connection Durability | times | ≥1000 | |||
| Operating/Storage Temperature | ℃ | -40~+80 |
|
Cable description
|
Features
|

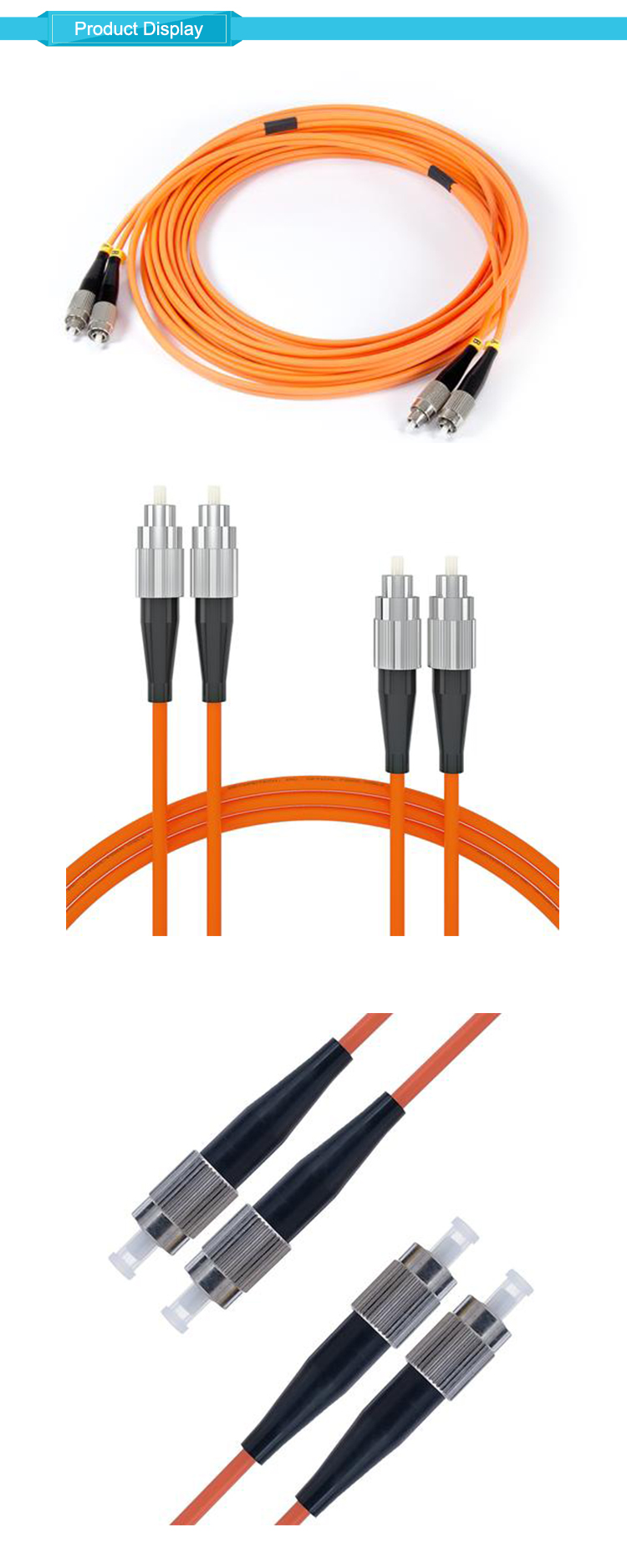

Product Display
