Product Description
This XPON ONT supports both GPON AX3000 and EPON technologies, providing high-speed fiber access for FTTH networks. Integrated with WiFi6 (802.11ax) and AX3000 dual-band wireless, it delivers speeds up to 3000 Mbps over both 2.4GHz and 5GHz frequencies.

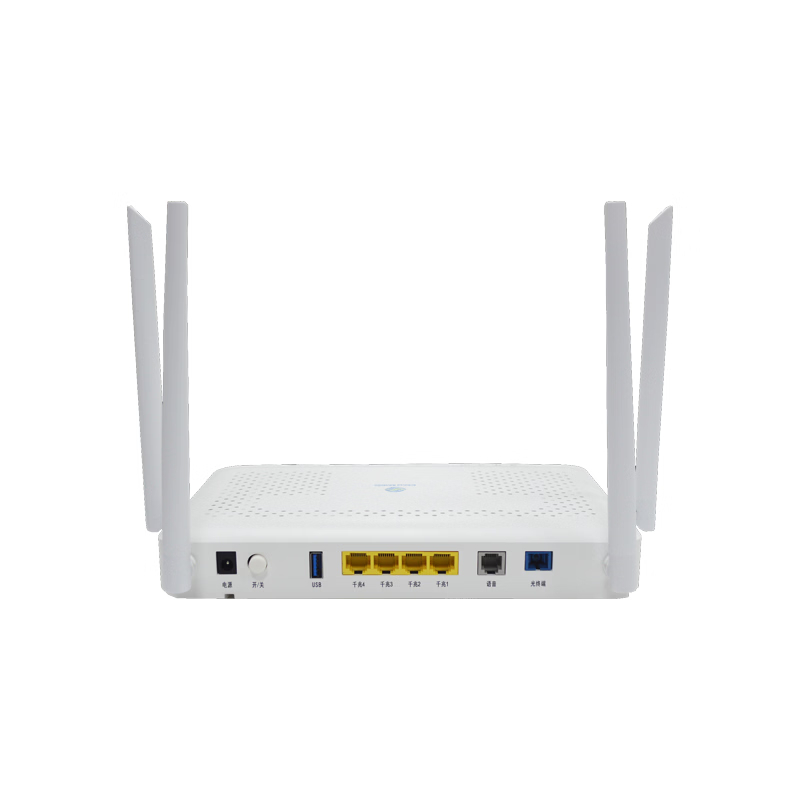

Equipped with 4 Gigabit Ethernet ports and 4 high-gain external antennas, this unit ensures wide wireless coverage, strong signal penetration, and high-performance networking. It supports multiple simultaneous users, making it ideal for smart homes, HD streaming, online gaming, and IoT environments.
Key Features
-
XPON dual-mode (GPON & EPON auto-adaptive)
-
AX3000 WiFi6 (2.4GHz up to 574 Mbps, 5GHz up to 2402 Mbps)
-
4 × GE LAN ports for high-speed wired access
-
4 × 5dBi high-gain external antennas
-
MU-MIMO, OFDMA, Beamforming support
-
WPA3 wireless security and IPv6 support
-
TR-069, Web UI, and OMCI remote management
-
IPTV support with IGMP Snooping/Proxy
-
Full compatibility with Huawei, ZTE, FiberHome OLTs
-
Ideal for FTTH broadband, IPTV, VoIP (optional)
General Specifications: GPON AX3000
| Feature | Description |
|---|---|
| Device Type | XPON ONT (GPON/EPON Compatible) |
| Uplink Interface | 1 × SC/APC (single-mode fiber) |
| Ethernet Ports | 4 × 10/100/1000 Mbps RJ45 LAN |
| Wireless Standard | IEEE 802.11ax (WiFi6) |
| Wireless Bands | Dual-band 2.4GHz + 5GHz |
| Total WiFi Speed | Up to 3000 Mbps (AX3000) |
| XPON Mode | GPON / EPON Auto-sensing |
| Antennas | 4 × External High-Gain (2.4GHz & 5GHz) |
| Fiber Standards | ITU-T G.984.x / IEEE 802.3ah |
| Management | Web GUI, TR-069, OMCI |
| Compatibility | Multi-vendor OLT support (XPON) |
Technical Specifications
| Parameter | 2.4GHz Band | 5GHz Band |
|---|---|---|
| Frequency Range | 2.400–2.4835 GHz | 5.150–5.825 GHz |
| Max Speed | Up to 574 Mbps | Up to 2402 Mbps |
| MIMO Configuration | 2×2 | 2×2 |
| Modulation | BPSK to 1024-QAM | BPSK to 1024-QAM |
| Channel Bandwidth | 20/40 MHz | 20/40/80 MHz |
| Antenna Gain | 5dBi per antenna | 5dBi per antenna |
Electrical Characteristics: GPON AX3000
-
Power Supply: 12V DC / 1.5A
-
Power Consumption: < 18W
-
Surge Protection: 4kV on data and power ports
-
Power Adapter: Included
Performance and Compliance
-
GPON: ITU-T G.984.2, G.984.3, G.984.4
-
EPON: IEEE 802.3ah
-
Compatible with standard XPON OLTs
-
TR-069, SNMP, Web UI, OMCI remote control
-
IPTV ready with IGMP Snooping and Proxy
-
NAT, VLAN, QoS, Firewall, VPN passthrough
-
Supports IPv4 and IPv6 Dual Stack
-
WPA3/WPA2 encryption, MAC filtering, DoS protection
Environmental Specifications
| Parameter | Min | Max | Unit |
|---|---|---|---|
| Operating Temp | 0 | 40 | °C |
| Storage Temp | -40 | 70 | °C |
| Humidity (non-cond.) | 5 | 95 | % RH |
| Cooling System | Passive (fanless) |
Physical Characteristics: GPON AX3000
-
Dimensions: 215 × 140 × 35 mm
-
Weight: < 600 grams
-
Housing: High-strength ABS Plastic
-
Color: White
-
Mounting: Desktop or Wall-mount
-
LED Indicators: Power, LOS, PON, Internet, LAN, WiFi
Certifications and Safety
-
CE – Conformité Européenne
-
FCC – US Radio Frequency Compliance
-
RoHS – Restriction of Hazardous Substances
-
WiFi Certified – IEEE 802.11ax
-
IEC 60825-1 – Laser Safety (Class 1)
