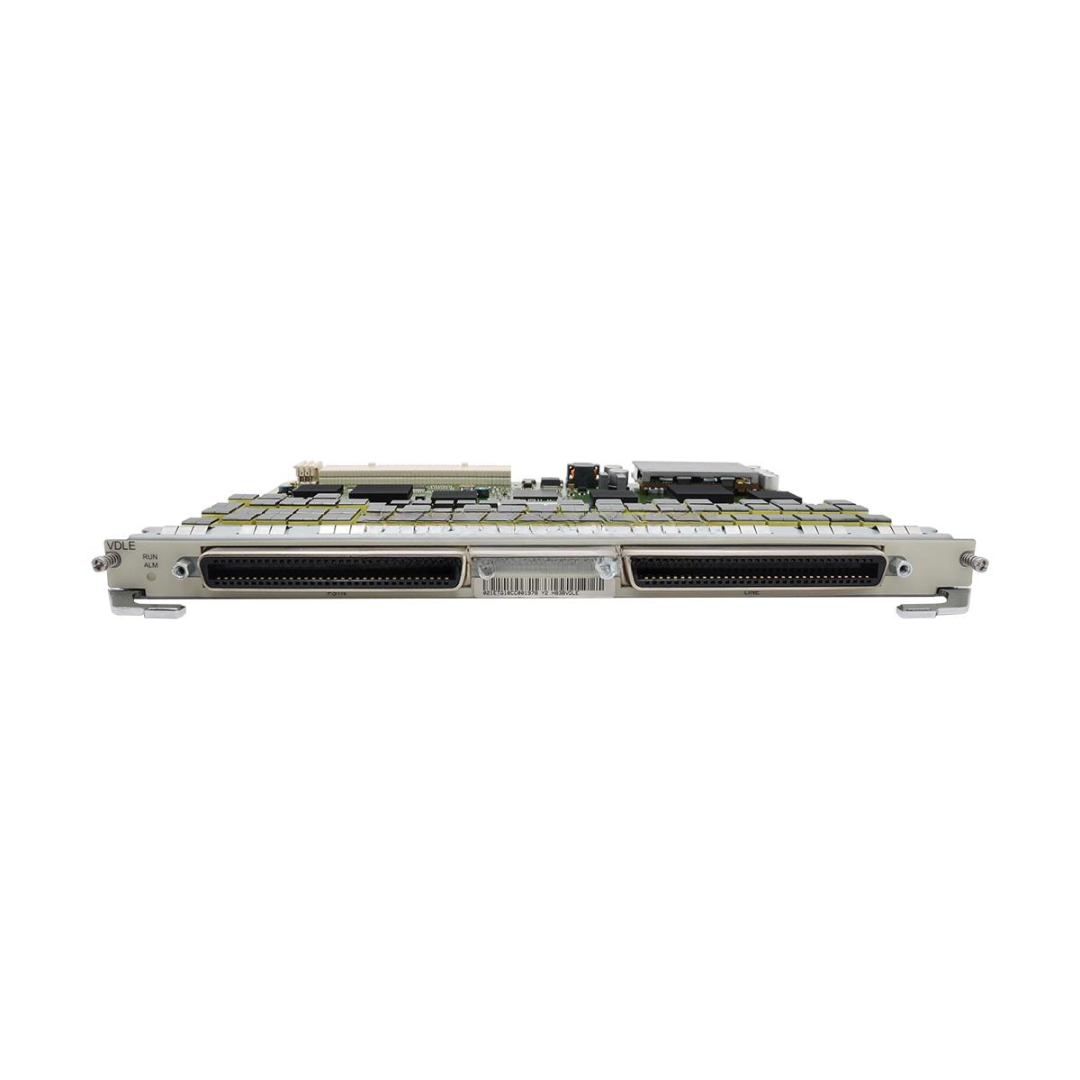

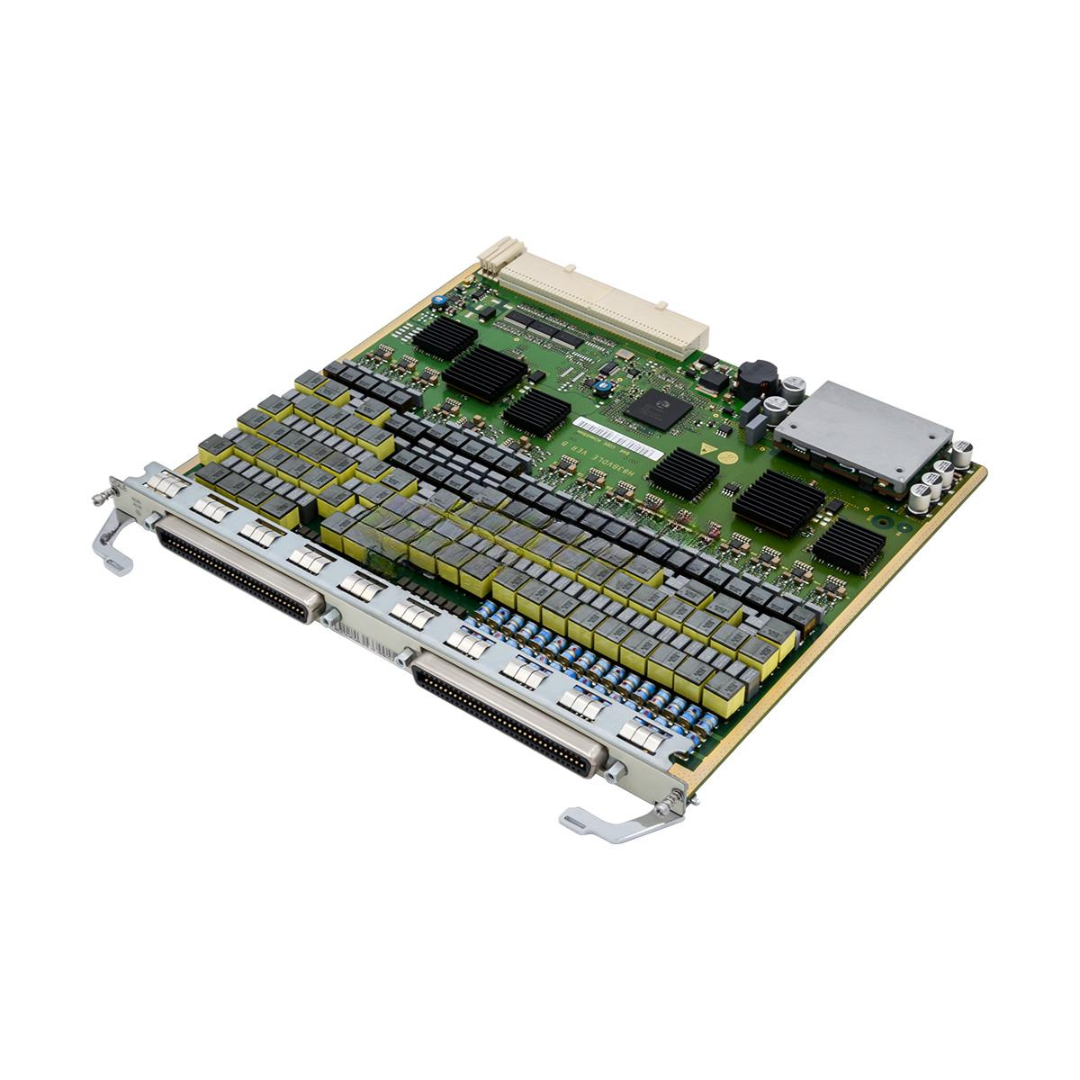

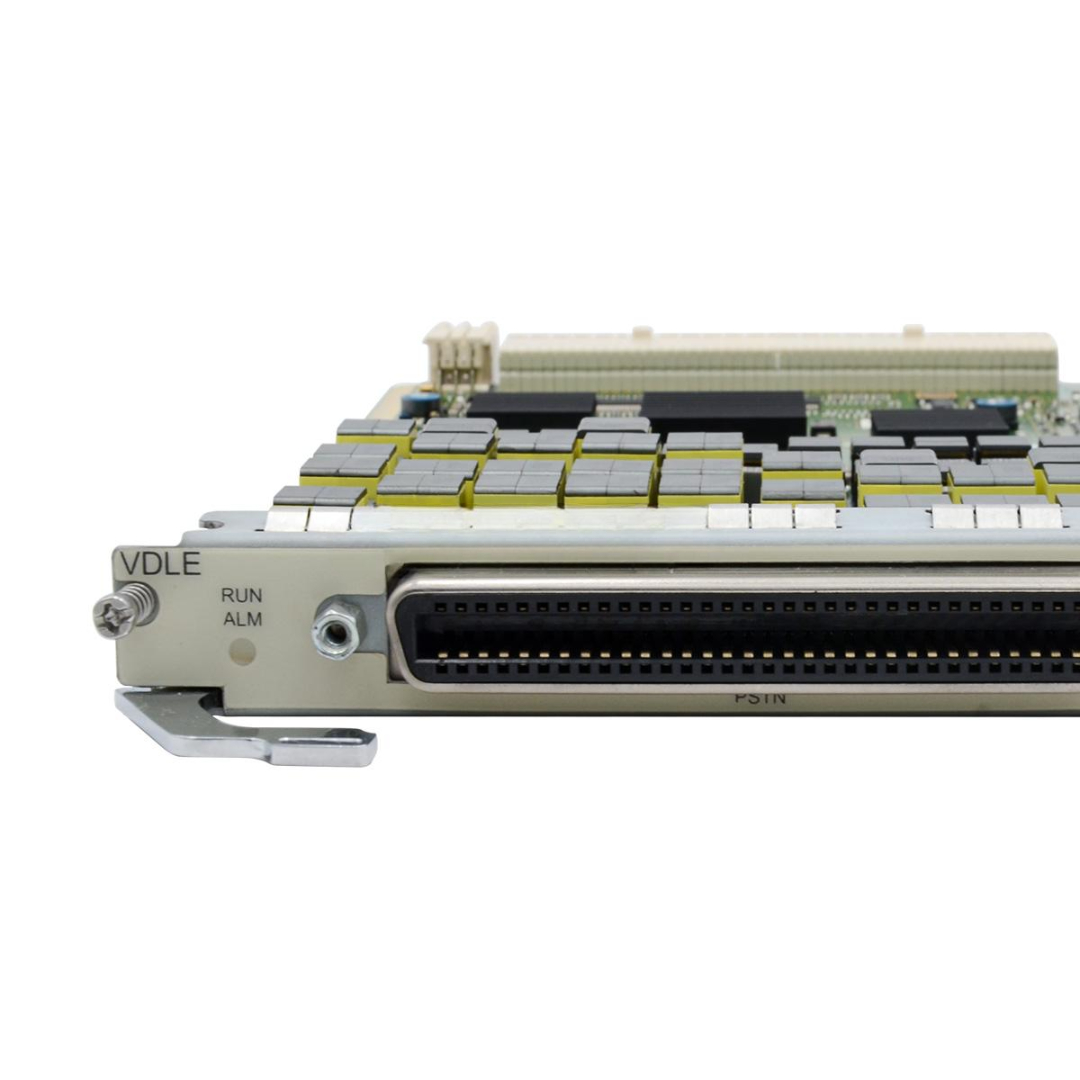

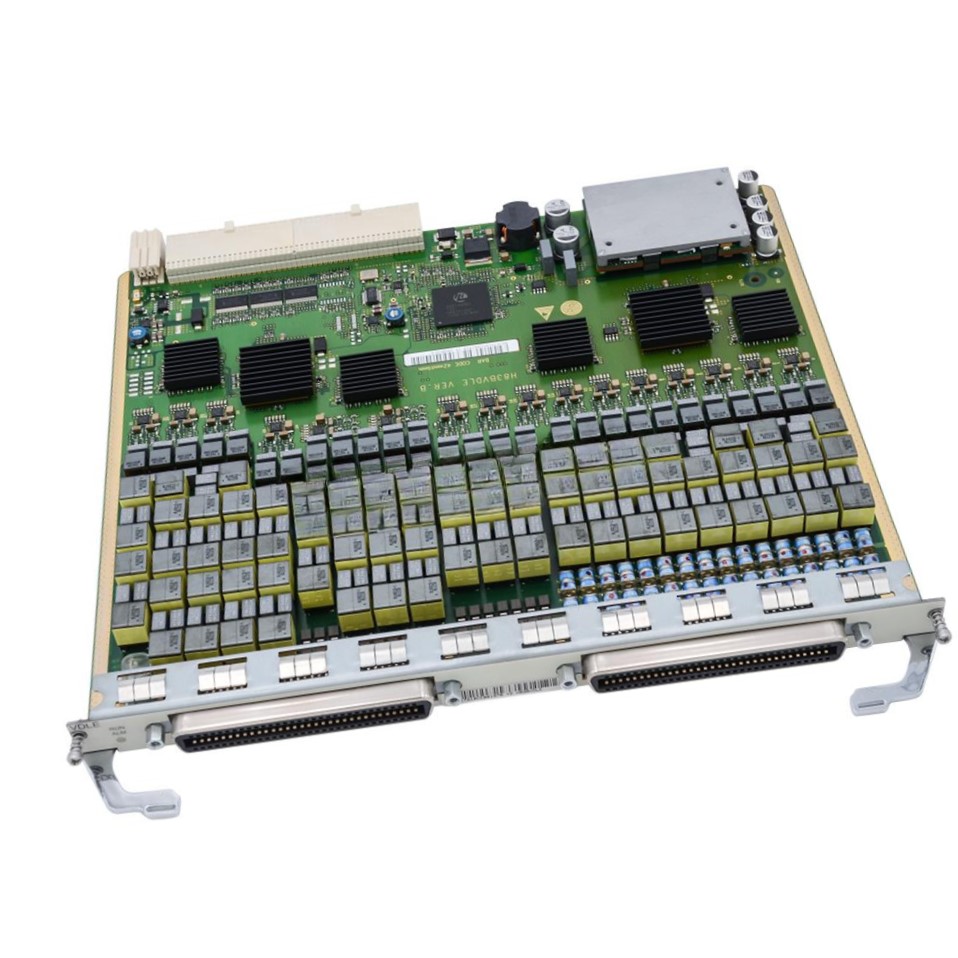

H83BVDLE Huawei Brand New 48-Channel VDSL2 & POTS Service Board
The H83BVDLE Huawei is a brand new, original Huawei service board designed for the MA5800 series OLT platforms, including MA5800-X2, X7, X15, and X17. This board integrates VDSL2 and POTS functionalities, enabling simultaneous delivery of high-speed internet and voice services over existing copper infrastructure. It is an ideal solution for legacy copper-based networks transitioning toward full-fiber deployments, offering broadband, voice, and triple-play services.
Key Features
-
Model: H83BVDLE
-
Condition: 100% Brand New, Original Huawei
-
Service Ports: 48 VDSL2 + 48 POTS (RJ21 interface)
-
VDSL2 Support: ITU-T G.993.2 (Annex A/B)
-
POTS Features: Supports analog voice with caller ID, DTMF, hook detection
-
Multi-Service Access: Internet + Voice on a single copper pair
-
Backward Compatibility: Works with ADSL2/2+ and legacy copper loops
-
Hot-Swappable: Supports live insertion and removal
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | H83BVDLE |
| Port Type | 48 x VDSL2/ADSL2+ + 48 x POTS (RJ21) |
| DSL Standards Supported | VDSL2 (G.993.2), ADSL2/2+ (G.992.3/.5), fallback capability |
| POTS Standards | G.711 voice, CID, FSK/DTMF, polarity reversal |
| Downstream Rate | Up to 100 Mbps (VDSL2, short loop) |
| Upstream Rate | Up to 50 Mbps (VDSL2) |
| Service Modes | Triple Play (Voice, Data, IPTV) |
| Splitter Support | Integrated or external splitters |
| Power Consumption | ≤ 80W |
| Line Protection | Built-in surge and over-voltage protection |
| Temperature Range | -25°C to +65°C |
| Humidity | 5% to 95% RH, non-condensing |
| Chassis Compatibility | Huawei MA5800-X2, X7, X15, X17 |
| Hot-Swappable | Yes |
| Warranty | 1–3 Years Manufacturer Warranty |
H83BVDLE Huawei Applications
-
MDU/MTU Broadband Access – VDSL2+POTS over copper in multi-tenant buildings
-
Enterprise Voice & Data – Combined telephony and broadband from a single board
-
Legacy Network Upgrade – Cost-effective migration path from copper to fiber
-
Triple-Play Services – Internet, voice, and IPTV over a unified platform
-
Rural and Urban Deployments – Extend broadband to copper-rich regions
Customization & OEM Services
-
Label Customization – Branding and part number labeling per project
-
Port Configuration – Custom default settings and channel profiles
-
Extended Testing – VDSL interoperability and high-temperature test options
-
Kits Available – Includes splitters, jumper cables, and accessories
Wholesale & Supply Chain Services
-
Huawei Original Equipment – With official serialization and quality seal
-
Bulk Supply Ready – Ideal for ISPs, telcos, system integrators
-
Fast Global Logistics – Export-ready packaging with full documentation
-
Integration Support – Configuration assistance and technical consultation
Why Choose the H83BVDLE Huawei
-
All-in-One Copper Access – Voice + Data delivery on a single port
-
High-Speed VDSL2 – Delivers up to 100 Mbps over existing lines
-
Reliable Voice Service – Full POTS functionality with high availability
-
Future-Compatible – Smooth upgrade path to fiber or hybrid deployments
-
Compact & Modular – Saves space in high-density chassis environments
Contact Us Today
Upgrade your copper network with the Huawei H83BVDLE VDSL2+POTS Service Board — a high-performance, multi-service board delivering voice and broadband with carrier-class reliability and efficiency.
