- Model Number:HD4109A
- Type:Testers &Tools
- Place of Origin:Zhejiang, China
- Use:engineering
- Warranty Time:1 year
- Network:None

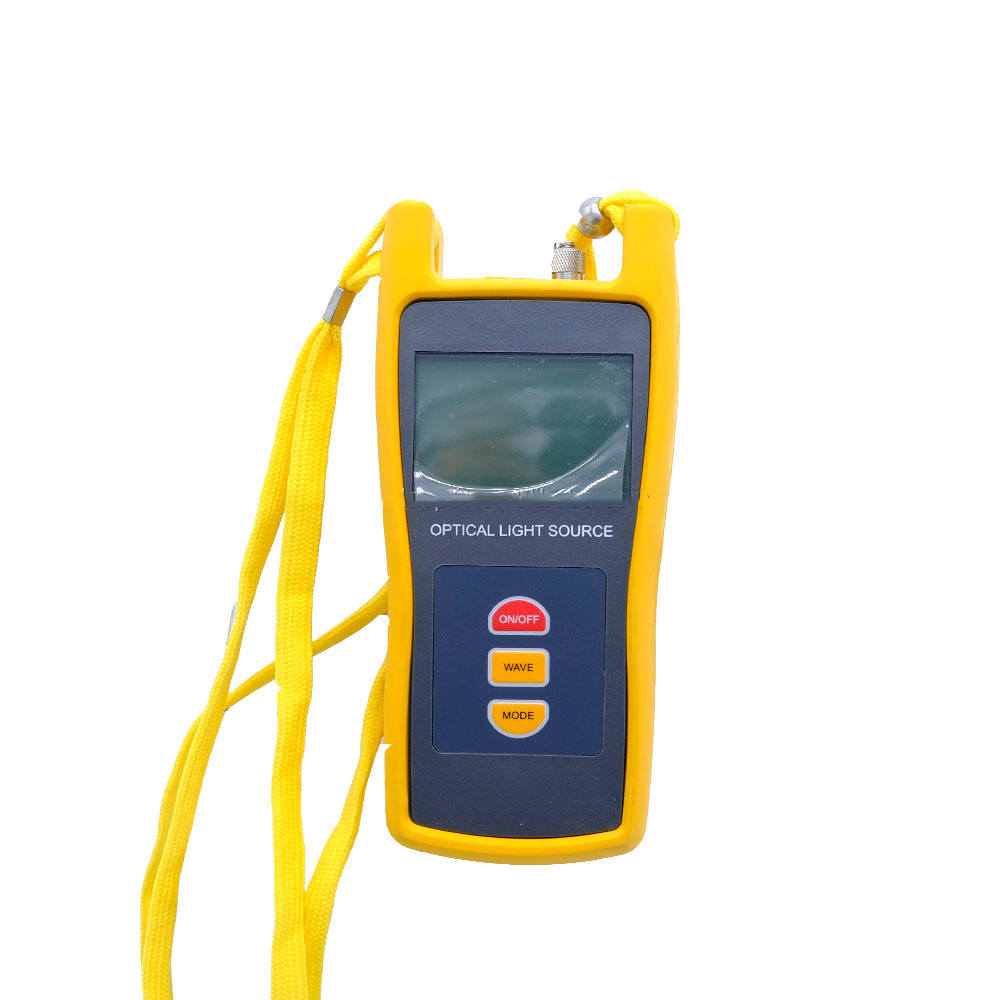

- Product name:HD4109A mini Optical Ligth source
- model:HD4109A
- Weight:1kg
- Application:FTTX CATV
- Warranty:12 Months / 1 Year
- Wavelength Range(nm):800~1700
- Detector:InGaAs
- Power Measurement Range(dBm):-70~+6 -50~+26
- Uncertainty:±5%
- Calibrated Wavelength:850,980,13,0,1310,1490,1550
-
- Supply Ability
- 10000 Piece/Pieces per Month
-
- Packaging Details
box
-
- Port
Shanghai/Ningbo
- Lead time:Quantity(pieces)1 – 1>1Lead time (days)7To be negotiated
Product Description

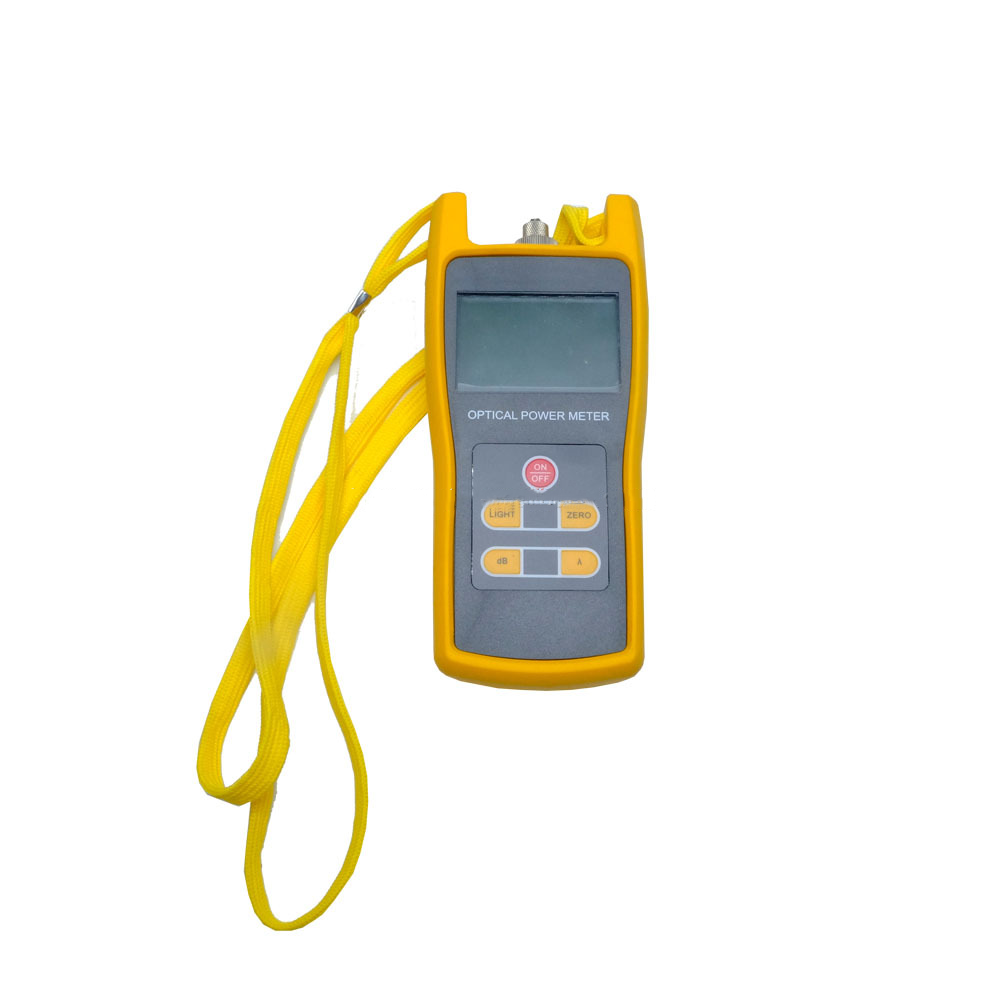

HD4109A handheld optical power meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It features ingenious appearance, wide range of power measurement, high accuracy and user self-calibration function with high performance-to-price ratio.
Products Description
|
Product name
|
HD4109A mini Optical Ligth source
|
|
|
Model
|
HD4109A
|
|
|
Wavelength Range(nm)
|
800~1700
|
|
|
Detector
|
InGaAs
|
|
|
Power Measurement Range(dBm)
|
-70~+6 -50~+26
|
|
|
Uncertainty
|
±5%
|
|
|
Calibrated Wavelength
|
850,980,13,0,1310,1490,1550
|
|
|
Optic Connector
|
FC(interchangeable SC.ST)/as well as 2.5mm universal
|
|
|
Operation Temperature
|
(℃)) -10~+60
|
|
|
Storage Temperature
|
(℃)) -25~+70
|
|
|
Power supply
|
Alkaline Battery(3AA1.5V)
|
|
|
Weight(g)
|
310
|
|
|
Dimension(nm)
|
175*82*33
|
Details Images
Features：
1.User self calibration function
2.Comfortable LCD display and optional backlight LCD display supports night operation
3.Power measurements in dBm or mw and insertion loss in dB
4.Low battery consumption, more than 240 hours continual operation time for three 1.5V alkaline batteries
5.10 minutes Auto-off function can be activated or deactivated.
