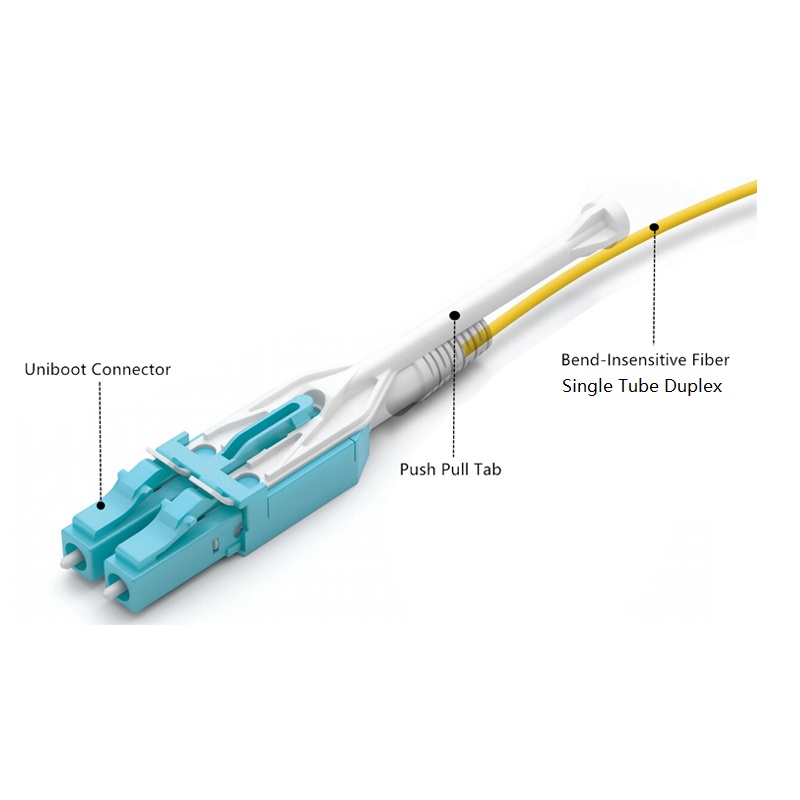

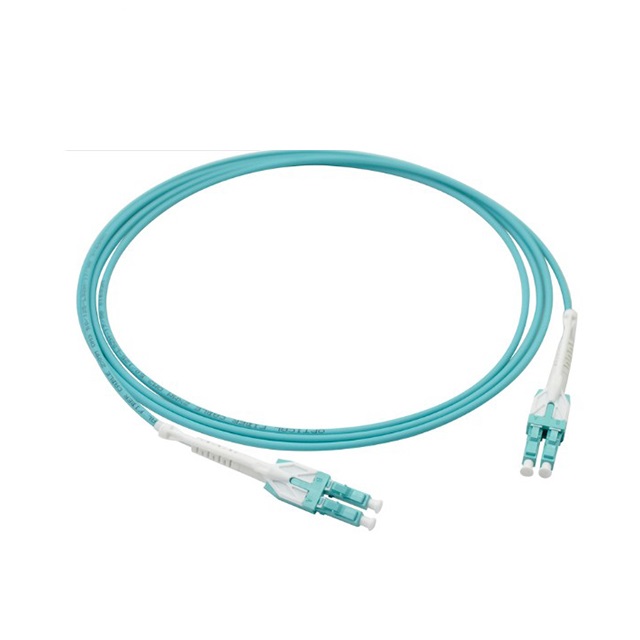

hot selling muitl mode fiber optic cable lc uniboot duplex fiber patch cord
Product Description
FEATURES
1.Low insertion loss and back reflection loss

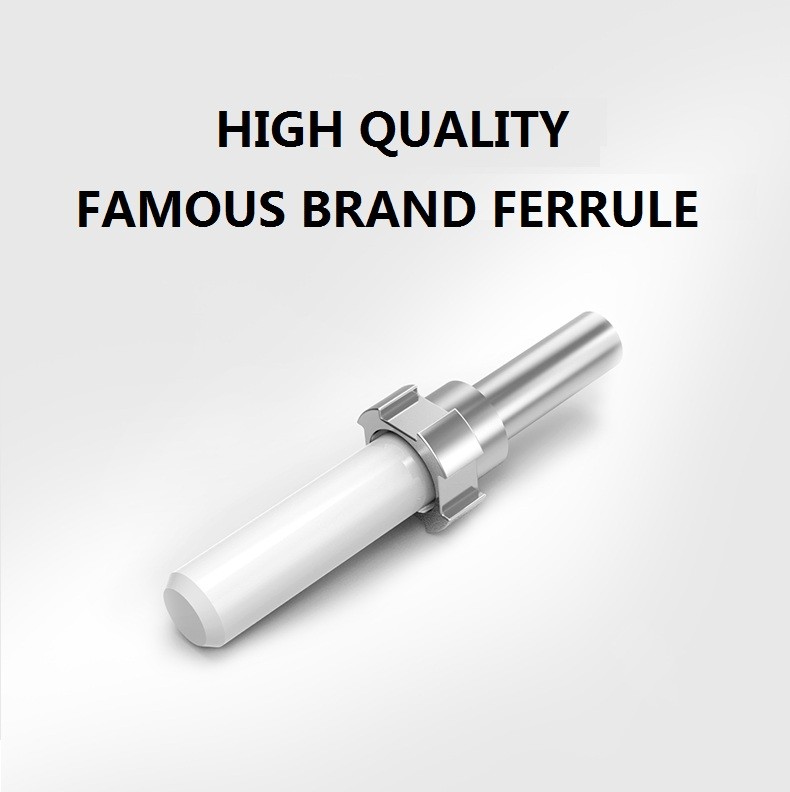

2.Ferrule end surface pre-domed
3.Excellent mechanical endurance
4.Good in repeatability
5.Good in exchange
6.Green Production, CE, RoHS Standard
APPLICATION
1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical
CABLE PARAMETERS
fiber brand: YOFC, FIBERHOME
Cord type: Duplex
Cable jacket:PVC, OFNR, LSZH, OFNP
Cable diameter:2.0mm,3.0mm
length:3m or customized
SPECIFICATION:
|
,Model
|
Single Mode (G652D,G657A1,G657A2,G657B3)
|
Multi Mode (OM1,OM2,OM3,OM4)
|
|
|
Polish
|
UPC
|
APC
|
PC
|
|
Insertion Loss
|
≤0.30dB
|
≤0.20dB
|
≤0.20dB
|
|
Return Loss
|
≥50dB
|
≥60dB
|
≥45dB
|
|
Test Wavelength
|
1310/1550nm
|
850/1310nm
|
|
|
Durability(500 Matings)
|
≤0.2dB
|
||
|
Operating Temperature
|
-45℃~+80℃
|
Product details:

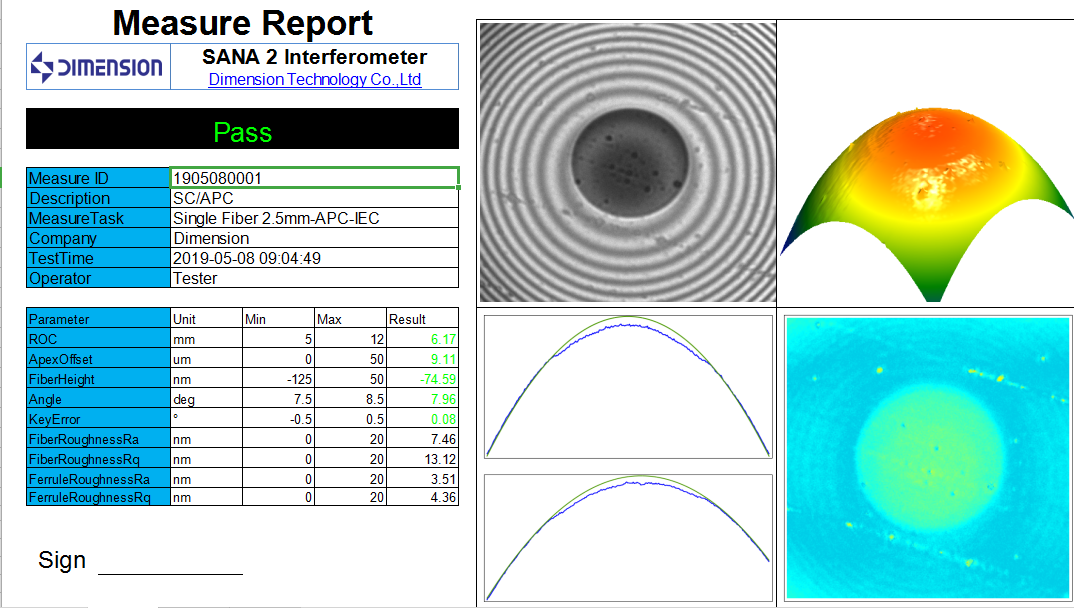

Test Report
