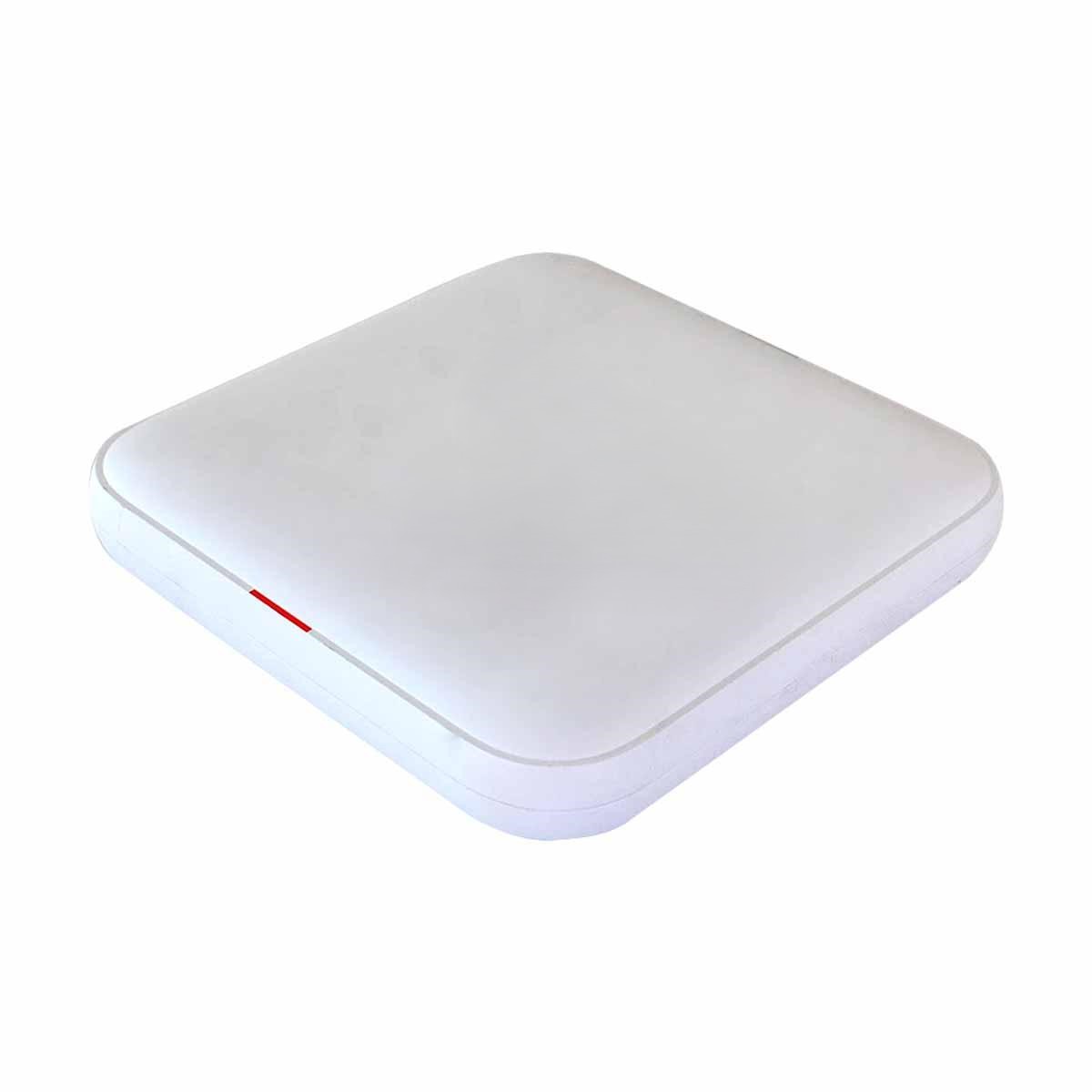

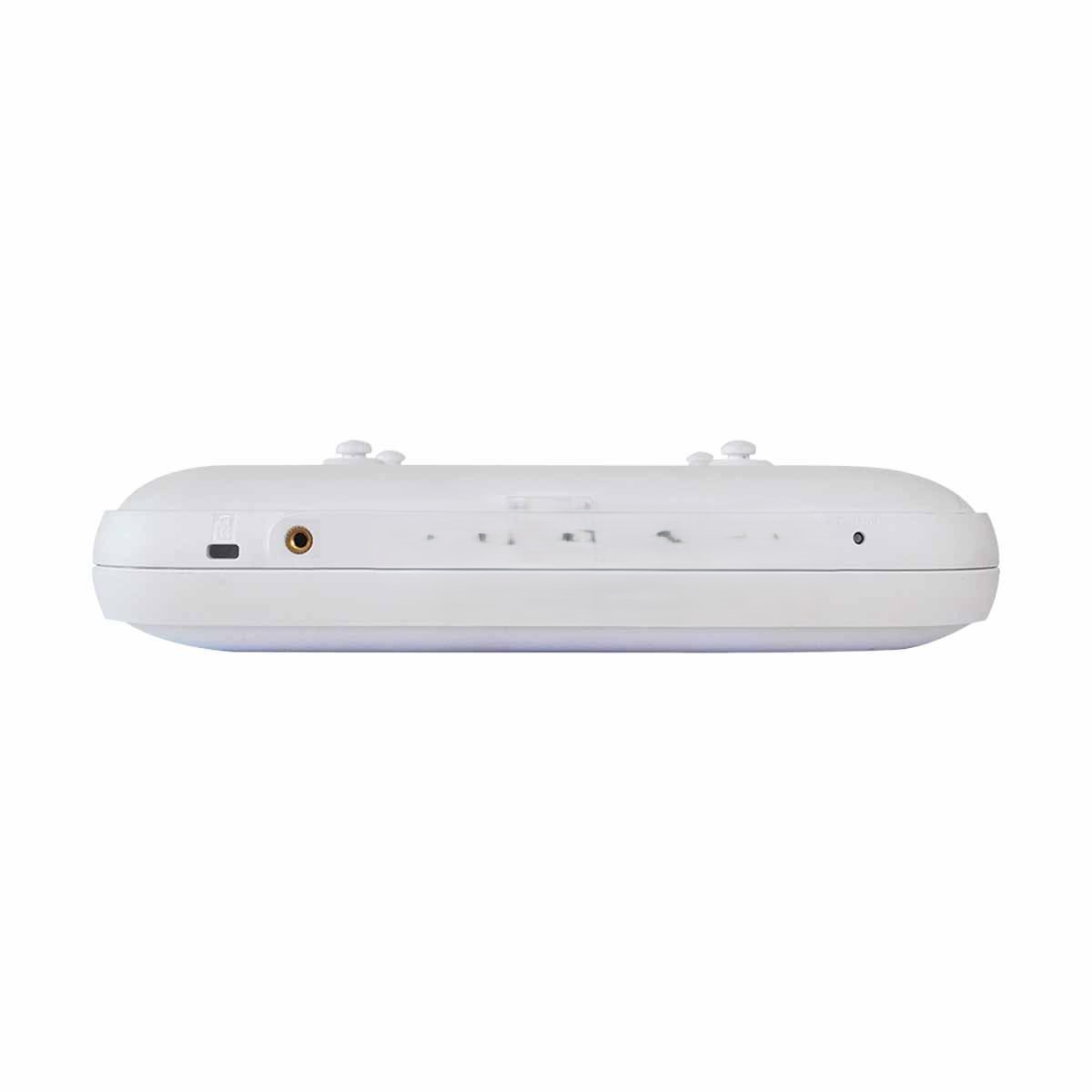

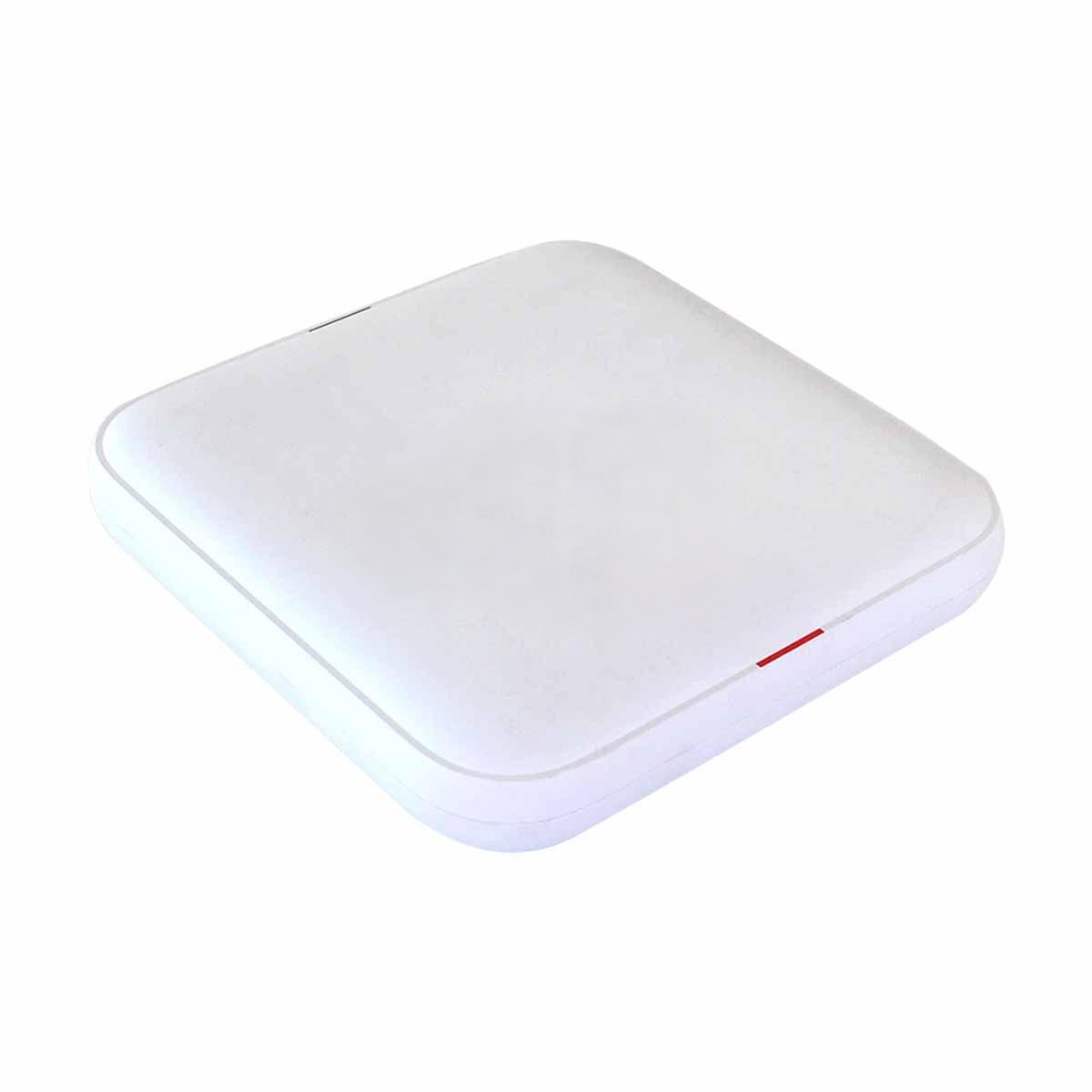

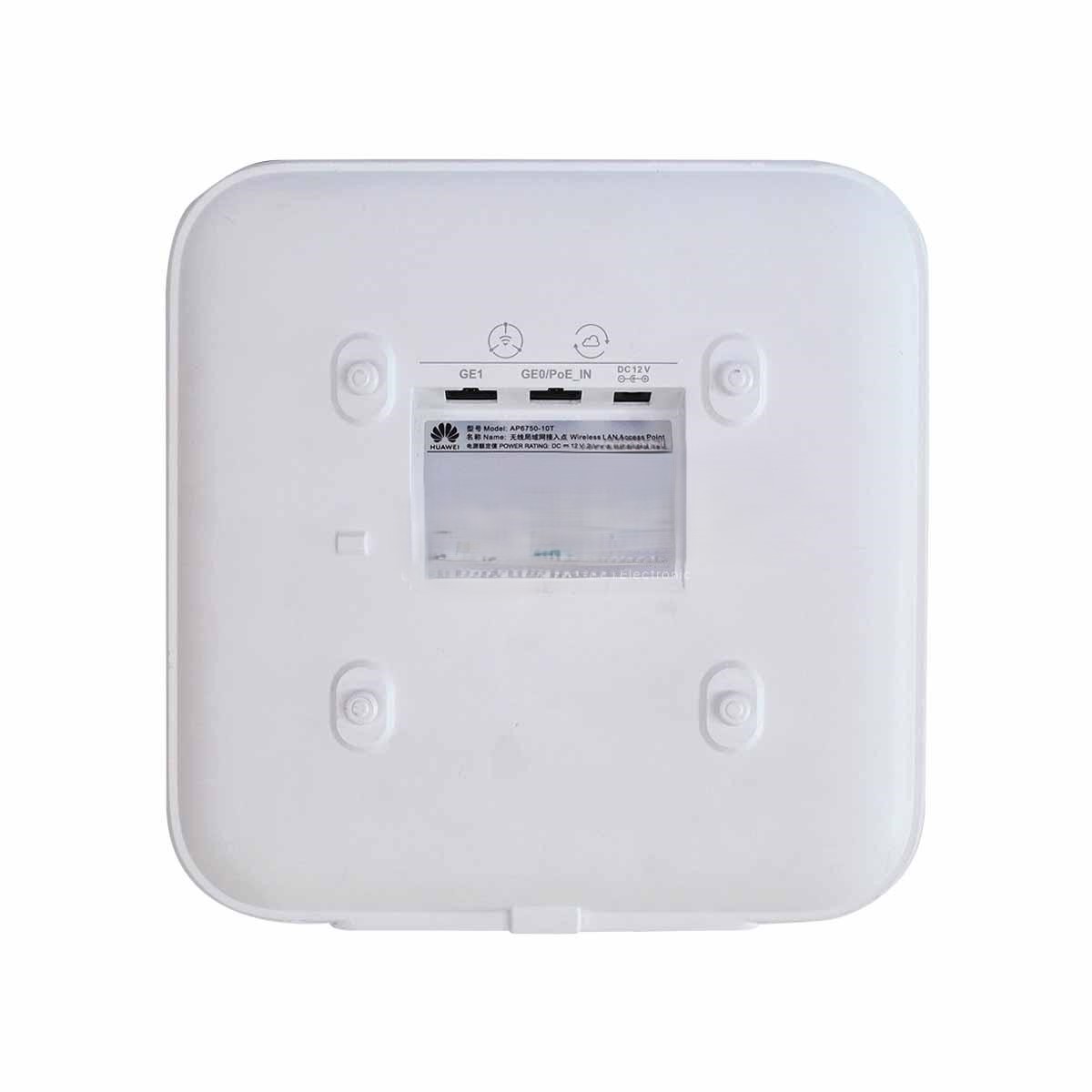

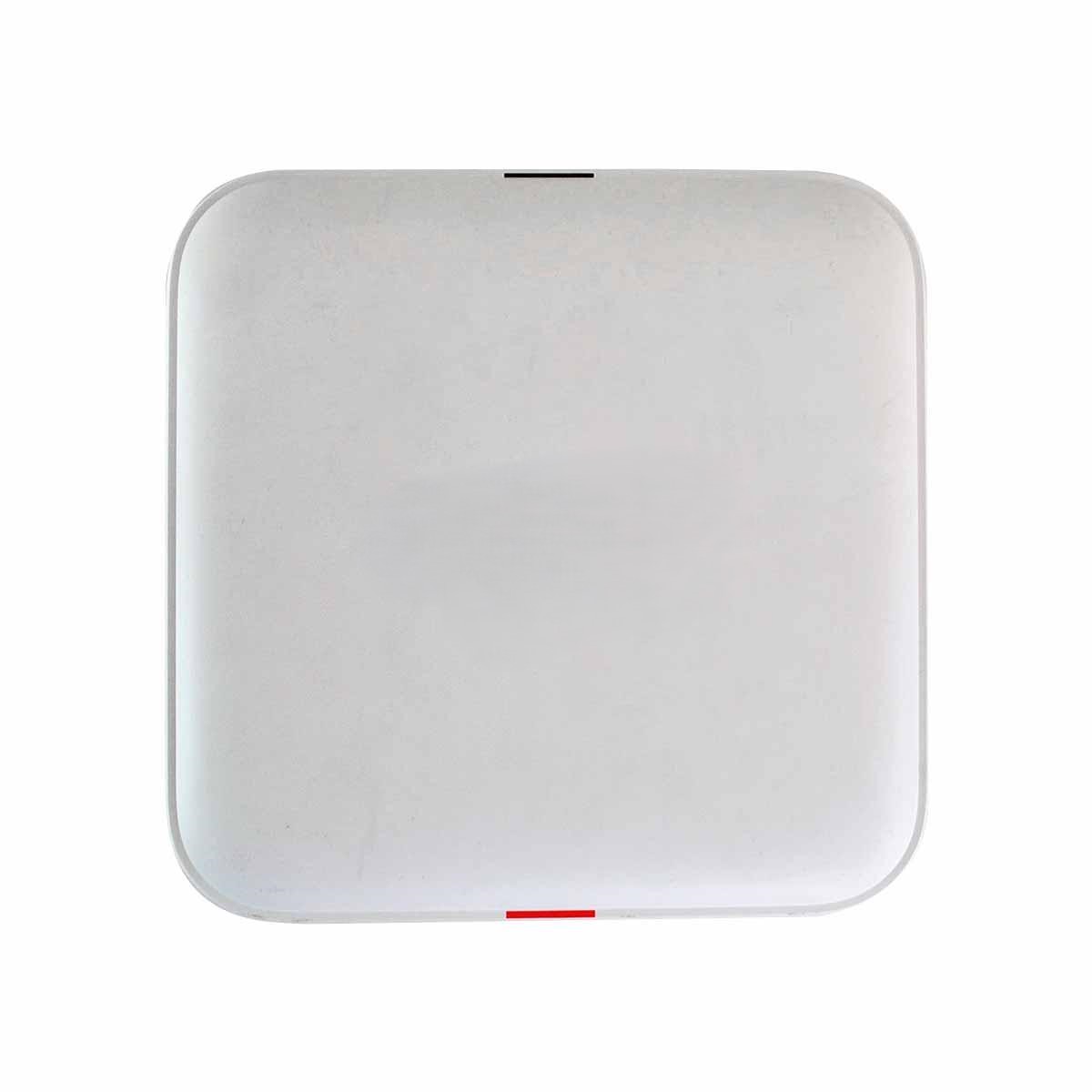

Huawei AP6750-10T Indoor
The Huawei AP6750-10T is a premium-grade, next-generation Wi-Fi 6 (802.11ax) indoor access point designed for ultra-high-density enterprise environments. Offering 2×GE uplink ports, it delivers exceptional wireless speeds, low latency, and greater capacity — perfect for offices, campuses, retail stores, and large public venues demanding seamless and stable wireless experiences.
Built with Huawei’s cutting-edge innovations in wireless networking, the AP6750-10T supports dual-band operation, MU-MIMO, OFDMA, and intelligent load balancing. This ensures optimal performance even under heavy user loads and in RF-challenged environments.
Key Features:
-
Ultra-Fast Wireless Speeds: Supports Wi-Fi 6 (802.11ax) for significantly higher speeds, reaching up to 5.95 Gbps aggregate throughput.
-
2×GE Uplink Ports: Dual gigabit Ethernet ports for flexible deployment, high-speed wired uplink, and link aggregation support.
-
High User Density: Ideal for environments with high concurrent users, supporting up to hundreds of connections with stable performance.
-
Advanced RF Capabilities: Intelligent radio calibration, dynamic channel adjustment, and interference mitigation for consistent wireless quality.
-
Seamless Roaming: Ensures smooth handoff between APs with zero service interruption — critical for voice and video applications.
-
Intelligent Load Balancing: Distributes clients evenly across radios and channels to avoid congestion and maximize performance.
-
Enhanced Security: Supports WPA3 encryption, secure authentication, and integrated wireless intrusion prevention (WIDS/WIPS).
-
Flexible Power Supply: Supports PoE+ (Power over Ethernet) for simplified installation without needing separate power cables.
-
Cloud and On-Premises Management: Manage through Huawei CloudCampus or Agile Controller platforms for simplified deployment and operations.
Ideal Scenarios: Huawei AP6750-10T
-
Office and Enterprise Wireless Networks
-
Higher Education Campuses
-
Shopping Malls and Exhibition Centers
-
Airports, Stadiums, and Transport Hubs
The Huawei AP6750-10T ensures future-ready, highly reliable Wi-Fi 6 performance with the scalability and security enterprises need in today’s increasingly connected world.
| Item | Description | |
| Physical specifications | Dimensions (H x W x D) | 47 mm x 220 mm x 220 mm (1.85 in. x 8.66 in. x 8.66 in.) |
| Weight | 1.2 kg | |
| System memory | 512 MB DDR3L 16-bit SDRAM | |
| Flash | 4 MB NOR FLASH + 128 MB Nand Flash | |
| Power specifications | Power input | DC: 12 V ± 10% |
| PoE power supply: in compliance with IEEE 802.3at | ||
| Maximum power consumption | 19.3 W (excluding the output power of the USB port or IoT card port) | |
| NOTE: | ||
| The actual maximum power consumption depends on local laws and regulations. | ||
| Environment specifications | Operating temperature and altitude | -60 m to +1800 m: -10°C to +50°C |
| 1800 m to 5000 m: Temperature decreases by 1°C every time the altitude increases 300 m. | ||
| Storage temperature | -40°C to +70°C | |
| Operating humidity | 5% to 95% (non-condensing) | |
| IP rating | IP41 | |
| Atmospheric pressure | 53 kPa to 106 kPa | |
Application Scenarios:
-
Enterprise Campus Network Aggregation/Core
-
Acts as a high-speed aggregation or core switch for medium to large enterprises.
-
Supports seamless connection between access and core layers.
-
-
Data Center Top-of-Rack (ToR) Switch
-
Serves as a high-density ToR switch with advanced virtualization and cloud integration capabilities.
-
Supports VXLAN to meet modern data center deployment needs.
-
-
High-Density 10GE Access Scenarios
-
Provides high-bandwidth access for departments with demanding workloads such as video conferencing, cloud services, and large file transfers.
-
-
Intelligent Service Awareness and Automation
-
Enables AI-based operations and telemetry for automatic fault identification and network performance optimization.
-
