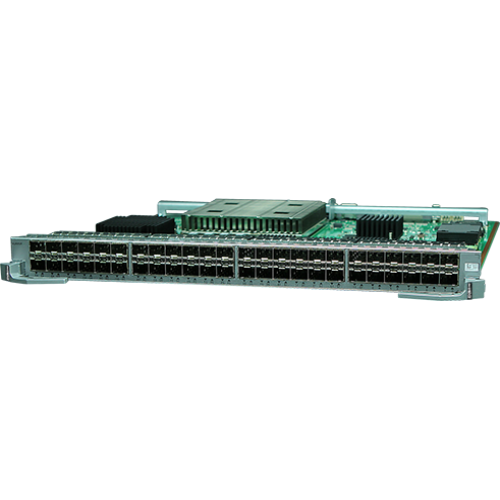

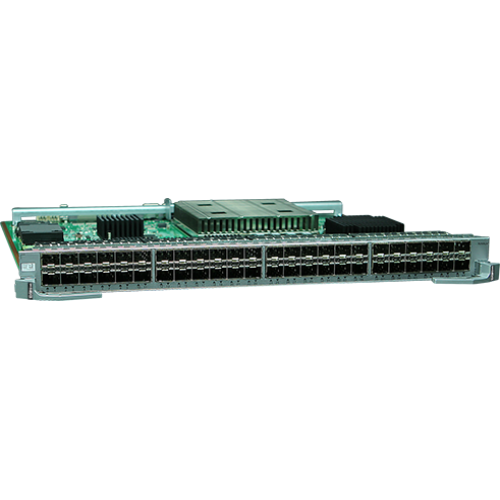

Huawei ES1D2X48SX2S – 48-Port 10GBASE-X (SFP+) Interface Card
The Huawei ES1D2X48SX2S is a high-density 48-port 10GBASE-X SFP+ interface card designed for Huawei S7700 series switches, including models S7703, S7706, and S7712. It delivers robust 10 Gigabit Ethernet connectivity, making it ideal for enterprise core networks, data centers, and high-performance computing environments.
- Huawei ES1D2X48SX2S card
- 48-port 10GBASE-X interface card (X2S, SFP+)
- Apply to S7700 Switch
- Hot Swap supported
- MAC Address Table Size: 128K
- Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm
- Weight: 3.4 kg
Key Features
-
Port Configuration: 48 × 10G SFP+ ports
-
Connector Type: SFP+ (supports various optical and copper modules)
-
Standards Compliance: IEEE 802.3ae
-
Frame Formats: Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Attributes of a 1000BASE-X port |
||||
| Connector type | SFP | |||
| Optical port attributes | Depend on the SFP optical module used | |||
| Standards compliance | IEEE 802.3ab | |||
| Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP | |||
| Network protocol | IP | |||
| Model | Transmission Distance (km) | Standard | Fiber Type | |
| eSFP-GE-SX-MM850 | ≤ 0.22 | 1000base-SX | Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC |
|
| ≤ 0.275 | Fiber mode: multimode (OM1) Connector type: LC |
|||
| ≤ 0.5 | Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC |
|||
| ≤ 0.55 | Fiber mode: multimode (OM2) Connector type: LC |
|||
| ≤ 1 | Fiber mode: multimode (OM3) Connector type: LC |
|||
| SFP-GE-LX-SM1310 | ≤ 10 | 1000base-LX/LH | Fiber mode: single-mode Connector type: LC |
|
| S-SFP-GE-LH40-SM1310 | ≤ 40 | |||
| S-SFP-GE-LH40-SM1550 | ||||
| S-SFP-GE-LH80-SM1550 | ≤ 80 | 1000base-ZX | ||
| eSFP-GE-ZX100-SM1550 | ≤ 100 | |||
| SFP-GE-LX-SM1310-BIDI (Single-fiber bidirectional) |
≤ 10 | 1000base-BX | ||
| SFP-GE-LX-SM1490-BIDI (Single-fiber bidirectional) |
||||
| LE2MGSC40DE0 (Single-fiber bidirectional) |
≤ 40 | |||
| LE2MGSC40ED0 (Single-fiber bidirectional) |
||||
| SFP-GE-ZBXD1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version. |
≤ 80 | 1000base-BX | ||
| SFP-GE-ZBXU1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version. |
||||
| SFP-GE-BXU1-SC (Single-fiber bidirectional) |
≤ 10 | 1000base-BX | Fiber mode: single-mode Connector type: SC |
|
Attributes of eSFP CWDM optical modules |
||||
| Center Wavelength (nm), Model | ||||
| 1471, CWDM-SFPGE-1471 | 1491, CWDM-SFPGE-1491 | 1511, CWDM-SFPGE-1511 | 1531, CWDM-SFPGE-1531 | |
| 1551, CWDM-SFPGE-1551 | 1571, CWDM-SFPGE-1571 | 1591, CWDM-SFPGE-1591 | 1611, CWDM-SFPGE-1611 | |
| Specifications | Encapsulation type: eSFP | |||
| Transmission distance: ≤ 80 km | ||||
| Fiber type: single-mode, LC | ||||
| Standard: CWDM | ||||
| Operating temperature: 0°C to 70°C (32°F to 158°F) | ||||
| Transmit power: 0 dBm to 5.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -9.0 dBm |
||||
