- Model Number:hg8310m
- Type:ONU
- Place of Origin:Zhejiang, China
- Brand Name:Huawei
- Use:FTTH Network
- Warranty Time:1 year
- Network:wifi, 4g
- Product name:Huawei hg8310m ftth fiber optic 1 ge gpon xpon onu ont
- Application:FTTN
- Warranty:12 Months / 1 Year
- Weight:<500g
- Power adapter input:100V~240V AC, 50Hz~60Hz
- Operating temperature:0’C~+40’C
- Operating humidity:5% RH to 95% RH (non-condensing)
-
- Supply Ability
- 10000 Piece/Pieces per Day
-

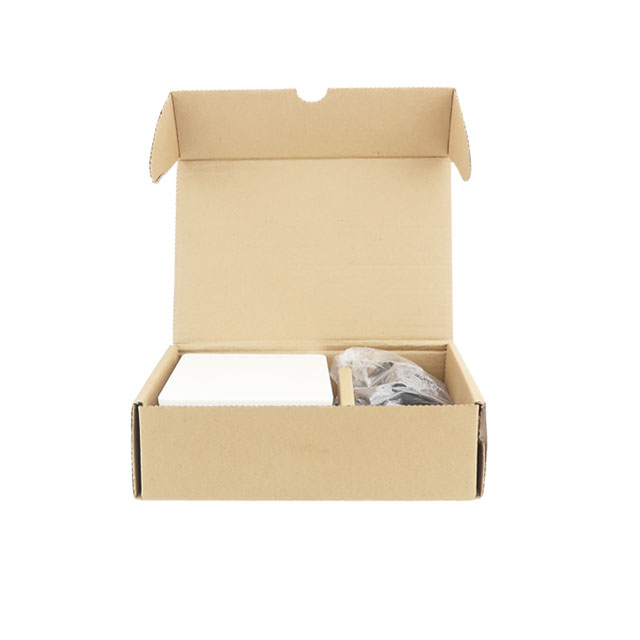

- Packaging Details
Carton
-
- Port
NING BO/SHANG HAI
- Picture Example:
- Lead time:Quantity(pieces)1 – 5>5Lead time (days)7To be negotiated

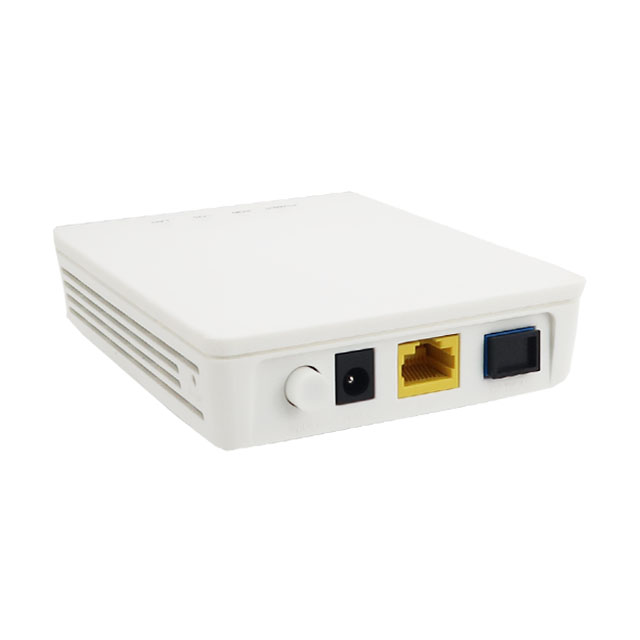

Huawei hg8310m ftth fiber optic 1 ge gpon xpon onu ont 100% original huawei brand
Product Description
Hg8310m
GPON Port● Class B+● Receiver sensitivity: -27dBm● Wavelengths: US 1310nm, DS 1490nm● Wavelength blocking filter (WBF)● Flexible mapping between GEM Port and TCONT● GPON: consistent with the SN or password authentication defined in G.984.3● Bi-directional FEC● SR-DBA and NSR-DBA
Specification
|
Operating temperature
|
0’C~+40’C
|
|
Operating humidit
|
5% RH to 95% RH (non-condensing)
|
|
Power adapter input
|
100V~240V AC, 50Hz~60Hz
|
|
Max power consumption
|
3.5W (V300R015C00)
|
|
|
2.5W (V300R015C10)
|
