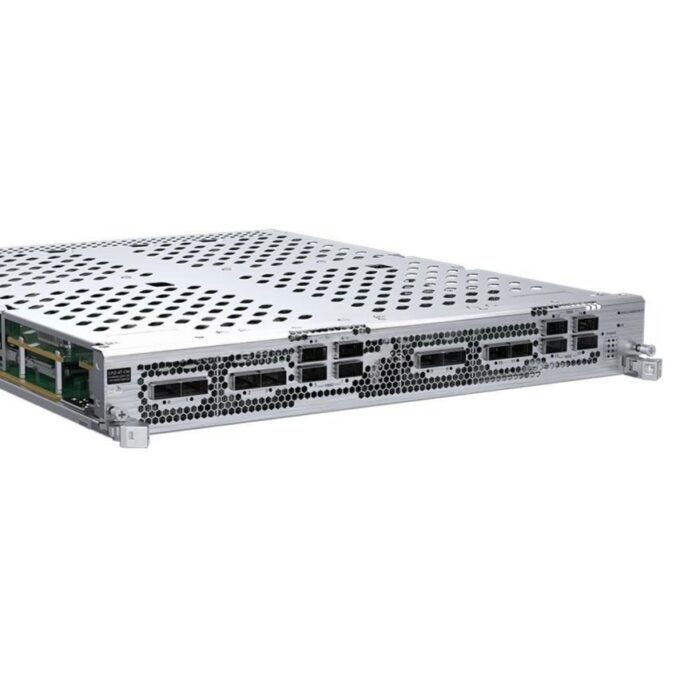

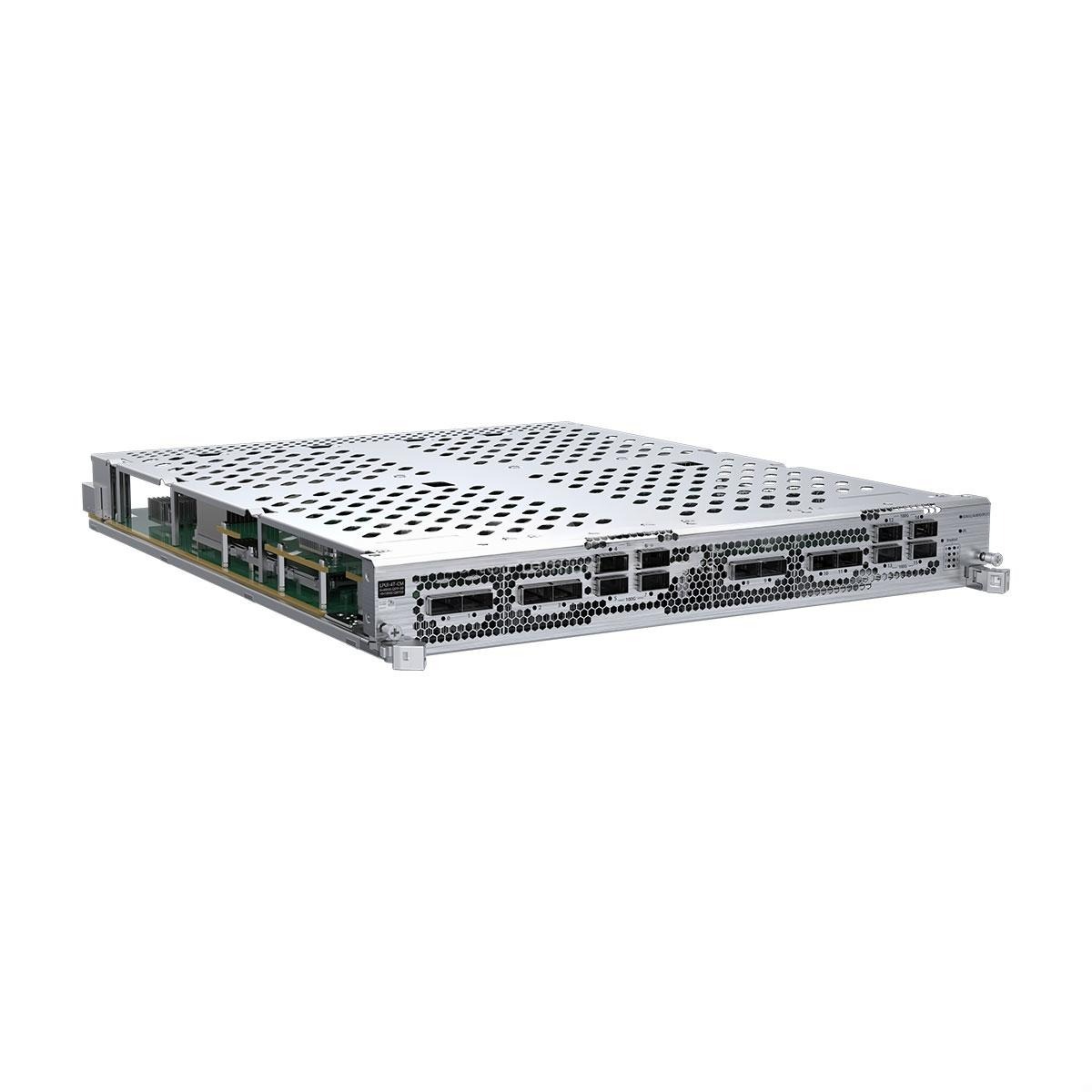

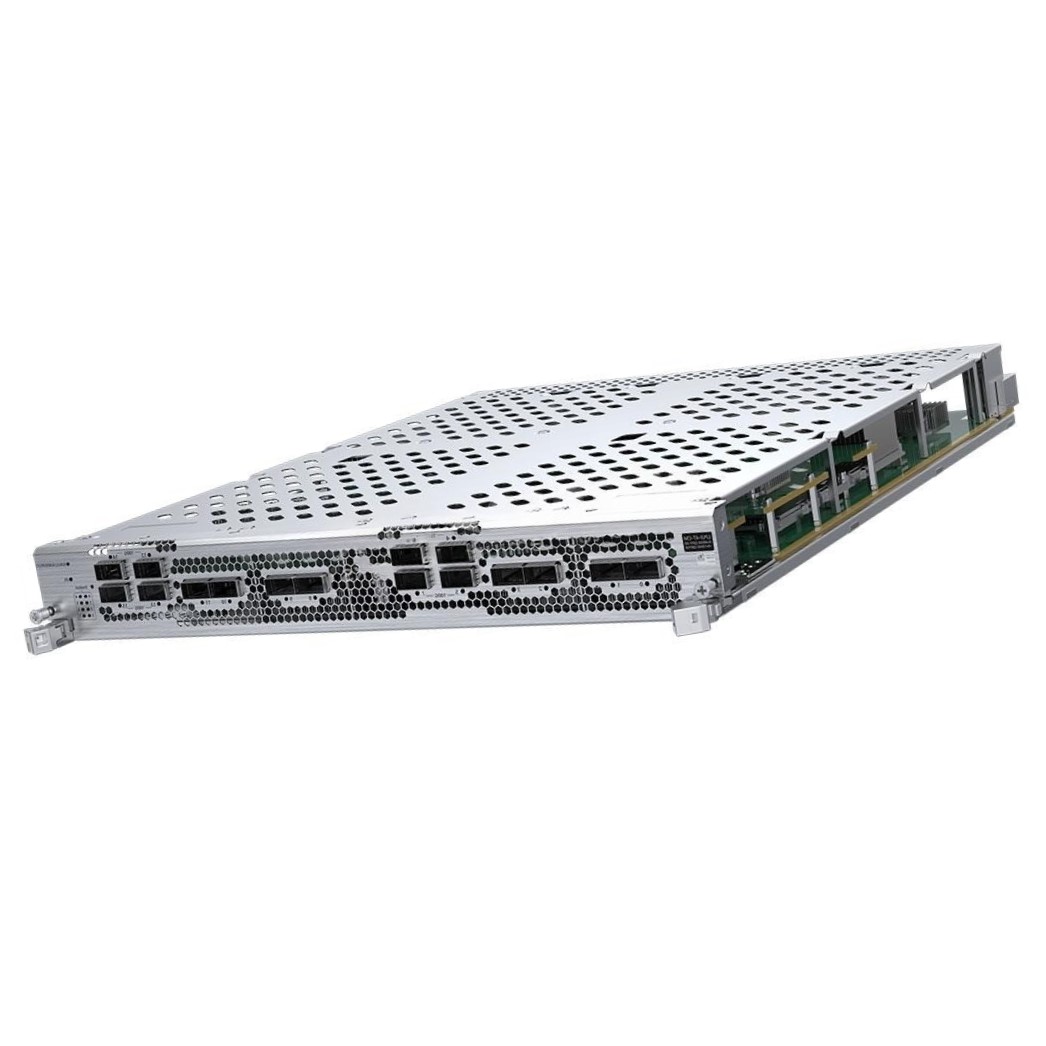

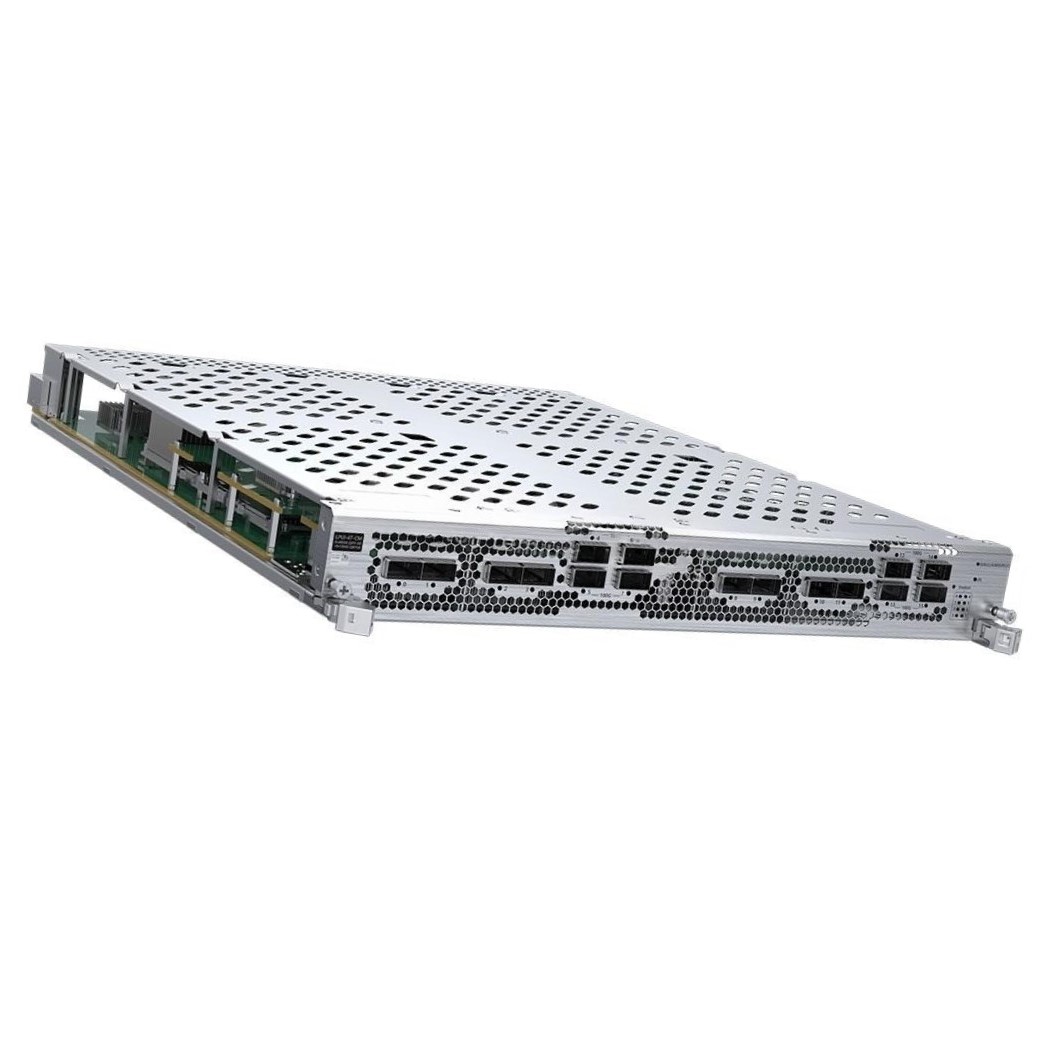

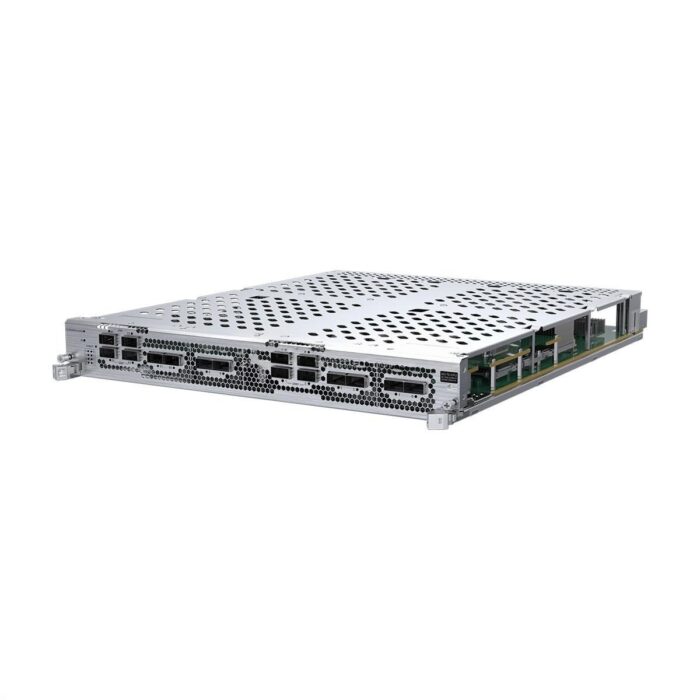

Huawei Net Engine 8000 8-Port 400GBase Processing Unit – High-Capacity Service Line Card | Brand New & Scalable Core Routing Module
Product Overview
The Huawei Net Engine 8000 8-Port 400GBase Processing Unit is a next-generation high-throughput service card designed for the Net Engine 8000 series core routers. Featuring 8 × 400GE QSFP-DD interfaces, this flexible module supports ultra-high-speed data transmission, intelligent routing, and dynamic traffic engineering—making it ideal for cloud-scale networks, metro aggregation, and backbone core routing infrastructure.
Engineered to meet the explosive bandwidth demands of 5G transport, cloud computing, and IPv6 evolution, this board provides advanced protocol support including Segment Routing (SRv6), EVPN, MPLS, and FlexE, along with carrier-grade reliability and service scalability.
Key Features of Huawei Net Engine 8000 Unit
-
8 × 400G QSFP-DD high-speed optical ports
-
Supports Ethernet, FlexE, and OTN-compatible transport
-
Line-rate performance with low latency and deep buffer architecture
-
Advanced protocol support: IPv4/IPv6, SR/SRv6, MPLS, EVPN, BGP
-
Compatible with Huawei NE8000 series chassis (M8, M14, M16, etc.)
-
Designed for hyperscale, carrier, and multi-service core networks
-
Energy-efficient design with Huawei’s intelligent power-saving algorithms
Huawei Net Engine 8000 Unit Technical Specifications
| Specification | Details |
|---|---|
| Card Type | 8-Port 400GBase Processing Unit |
| Port Speed | 400Gbps per port (Total: 3.2 Tbps per card) |
| Interface Type | QSFP-DD (Supports 400G LR8, FR4, ZR, DR4, and breakout modes) |
| Forwarding Performance | Line-rate hardware forwarding on all ports |
| Supported Protocols | IPv4, IPv6, BGP, OSPF, IS-IS, MPLS, EVPN, SRv6, FlexE |
| Service Capabilities | L2/L3 VPN, TE, Multicast, Hierarchical QoS |
| Chassis Compatibility | Huawei NetEngine 8000 series (slot-based modular architecture) |
| Power Consumption | Approx. 350W–500W (depending on optical module configuration) |
| Operating Temperature | 0°C to 45°C |
| Hot-Swappable | Yes |
| Compliance | CE, RoHS, ITU-T, IEC, ISO9001 |
Huawei Net Engine 8000 Unit Application Scenarios
-
National and regional IP backbone routing nodes
-
5G transport core and metro aggregation networks
-
Large-scale data center interconnect (DCI) networks
-
IPv6/IPv4 dual-stack carrier-grade networks
-
Multi-cloud and hybrid cloud WAN gateways
Huawei NetEngine 8000 LPU – 8×400GE + 8×100GE Port Line Processing Unit
Specifications Overview
| Category | Details |
|---|---|
| Basic Function | – 8 × 400GE QSFP-DD ports – 8 × 100GE QSFP28 ports |
| Port Speeds | – QSFP-DD: 400GE (default), 100GE (from V800R013C00) – QSFP28: 100GE (default), supports 100GE/50GE/40GE/4×25GE/4×10GE |
| Hot Swappable | Yes |
| Breakout Support | Supported via port split command:• 400GE → 1x100GE, 2x100GE (V800R22C00+), 4x100GE (V800R23C00+) • 100GE → 4x25GE, 1x50GE, 1x40GE, 4x10GE |
| FlexE Support | Supported (from V800R013C00+) • Ports 4–7 and 12–15 do not support FlexE |
| FlexE Client Limits | Max 30 clients per supported port (Ports: 0–3, 8–11) |
| Interface Rate Auto-Sensing | Not Supported |
Operating Conditions
| Feature | Details |
|---|---|
| Short-term Operating Temp (with 400G ZR+) | –5°C to +40°C |
| Power Consumption | 1078 W (typical) |
| Cooling | Front-to-rear airflow |
Physical Specifications
| Specification | Value |
|---|---|
| Dimensions (H × W × D) | 285 mm × 650 mm × 860 mm |
| Weight | 18.8 kg |
Wholesale & Customization Options
-
Available in bulk for carriers, integrators, and government projects
-
OEM and private label branding options for regional partners
-
Factory configuration available for plug-and-play deployments
-
Supplied with test reports, CE/RoHS certification, and manufacturer’s warranty
-
Fast logistics and global distribution support available
Why Choose the Huawei Net Engine 8000 Unit?
-
Delivers massive throughput in a compact, scalable line card
-
Enables smooth evolution to 400G/800G IP transport infrastructure
-
Supports a wide range of service scenarios with protocol-rich architecture
-
Carrier-grade performance with low latency, high availability, and advanced QoS
-
Backed by Huawei’s innovation in routing and switching ecosystems
Request a Quote
Invest in the Huawei NE8000 8-Port 400GBase Processing Unit to build a future-ready, high-capacity, and intelligent IP transport network.
