- Model Number:ETGH
- Type:OLT
- Place of Origin:Zhejiang, China
- Brand Name:ZTE
- Use:FTTH
- Warranty Time:1 year
- Network:Wireless Lan, wifi, 4g
- model:ETGH
- brand name:ZTE
- fiber port:16-EPON Port
- Split Ratio:1:64
- Encapsulation Type:PX 20 PX 20+ PX 20++
- Reach:20km
- Operating Wavelength:Tx: 1490 nm, Rx: 1310 nm
- Weight:1.5kg
- Dimensions:22.86 mm * 237.00 mm *395.40 mm
-
- Supply Ability
- 100 Piece/Pieces per Month
-
- Packaging Details
1pcs/ctn
-
- Port
Shanghai/Ningbo
- Picture Example:
- Lead time:Quantity(pieces)1 – 1>1Lead time (days)7To be negotiated
Product Description

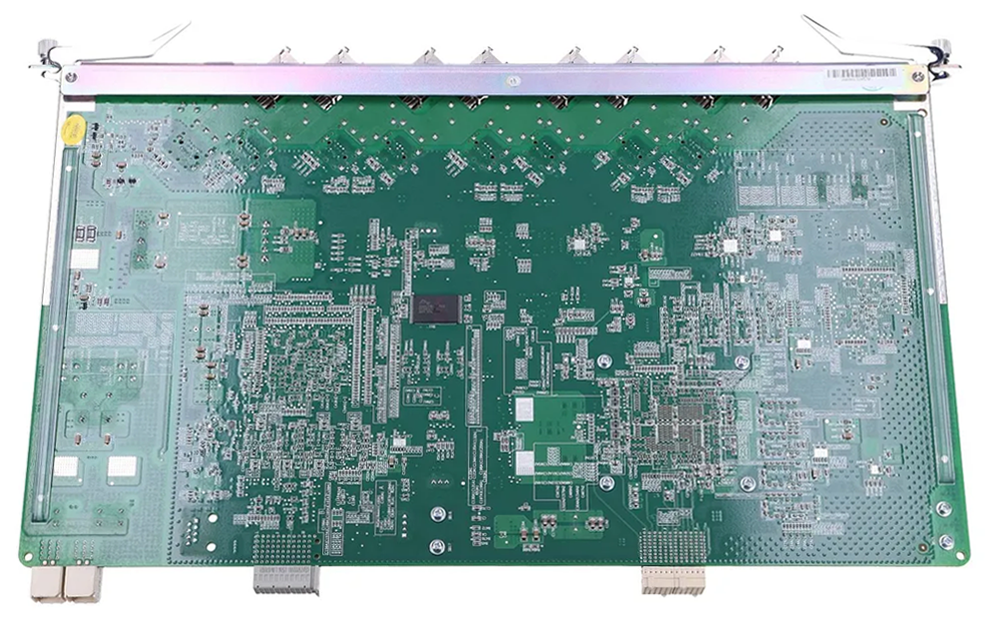

ZTE ETGH Service Board contains 16 optical ports for connecting subscriber devices via the EPON interface (GEPON). In each port,we can install an optical transceiver (transceiver) SFP GEPON OLT PX20 (28dB) or SFP GEPON OLT PX20 + (33dB),transmitting/receiving data with the asymmetric speed of up to 1.25 Gbit / s over a distance of 20 km. The modules use lasers with wavelengths of 1490 nm (transmission) and 1310 nm (reception). The division ratio of each port is 1:64. PON MAC Module
Product Paramenters
|
Model
|
ZTE ETGH
|
|
MAX Split ratio
|
1:64
|
|
GPON Port
|
16-EPON Port
|
|
Operating Wavelength
|
Tx: 1490 nm, Rx: 1310 nm
|
|
Encapsulation Type
|
PX 20 PX 20+ PX 20++
|
|
Dimensions
|
22.86 mm x 237.00 mm x 395.40 mm
|
|
Port Rate
|
Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
|
|
Optical Fiber Type
|
Single-mode
|
|
Reach
|
20km
|
|
Weight
|
1.5kg
|
