- Model Number:ETGO
- Type:OLT
- Place of Origin:Zhejiang, China
- Brand Name:ZTE, ZTE
- Use:FTTH Network
- Warranty Time:FTTH Network
- Network:wifi, 4g
- Product name:Zte 8 pon ports ETGO service board high quality with 8 pcs sfp PX20+++
- Transmit Speed:1.244Gbit/s
- Optical Fiber Type:SC/PC
- Keywords:8 Port Epon Board
- Encapsulation Type:SFP
- SFP modules types:PX20+++
- Split ration:1:64
- Supply Ability10000 Piece/Pieces per Day
- Packaging DetailsCarton
- PortNING BO/ SHANG HAI
- Picture Example:
- Lead time:Quantity(pieces)1 – 5>5Lead time (days)7To be negotiated

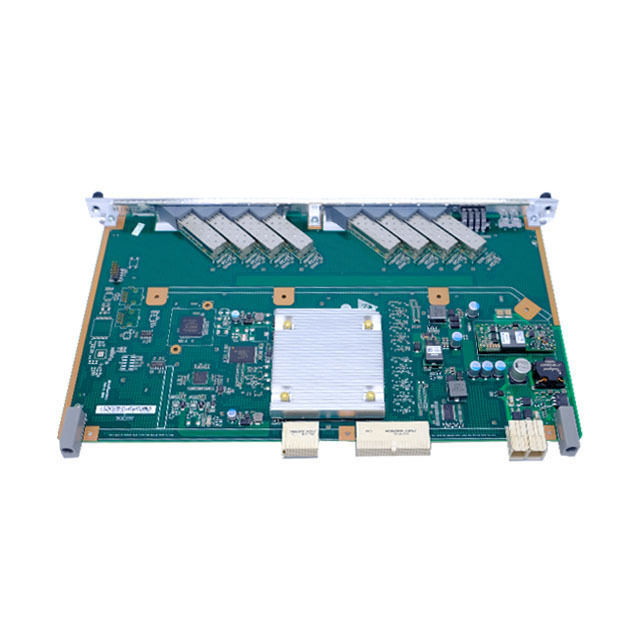

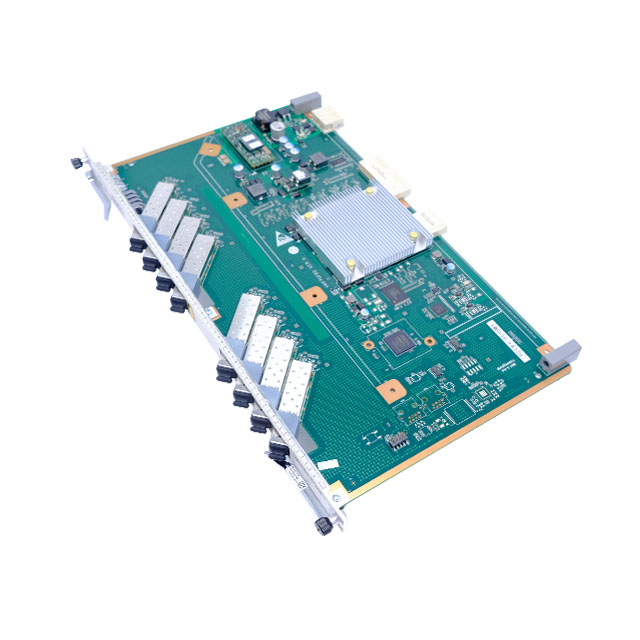

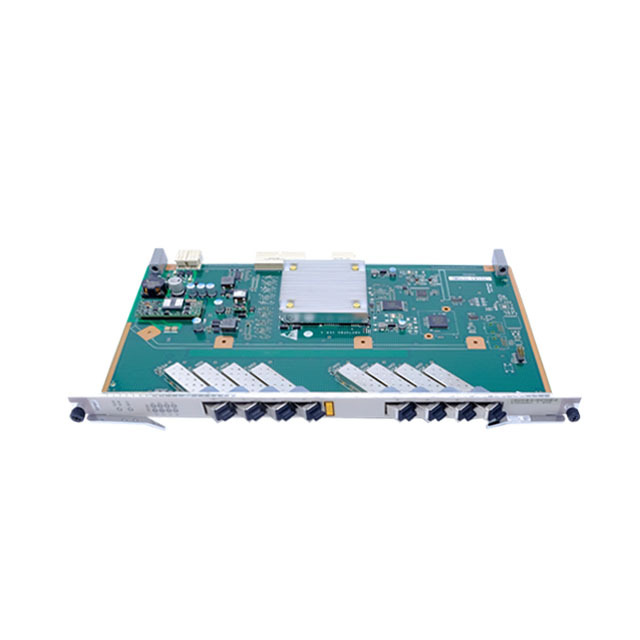

Zte 8 pon ports ETGO service board high quality with 8 pcs sfp PX20+++ module support 512 users
Product Description
ETGO single board is a 8-port EPON OLT interface board,which cooperates with ONU to realize EPON access service.
High Density,energy Saving,low power consumption,support 512 access users
Manual shutdown of idle PON port to avoid power waste
Supporting the maximum distance difference between two ONUs and PON ports under the same PON port 20 km,simplified network planning
High Density,energy Saving,low power consumption,support 512 access users
Manual shutdown of idle PON port to avoid power waste
Supporting the maximum distance difference between two ONUs and PON ports under the same PON port 20 km,simplified network planning
Specification
|
Port quantity
|
8
|
|
MAX Split ratio
|
1: 64
|
|
Forwarding Rate
|
20Gbit/s
|
|
Maximum Number of Service Flows Supported by the Board
|
8000
|
|
Maximum frame length
|
1996 bytes
|
|
Maximum Number of MAC
|
16384
|
|
Maximum differential fibre distance (km)
|
20
|
|
Working temperature
|
-40℃~+65℃
|
|
Maximum Power waste
|
28w
|
|
Dimensions (W x D x H)
|
490 mm x 325mm x 75mm
|
