- Model Number:GTGH
- Type:OLT
- Place of Origin:Zhejiang, China
- Brand Name:ZTE, ZTE
- Use:FTTH Network
- Warranty Time:FTTH Network
- Network:wifi, 4g
- Product name:GTGH C+ G21 service Board 16-port pon card SFP board with 16pcs SFP C+
- Operating Wavelength:Tx: 1490 nm, Rx: 1310 nm
- Optical Fiber Type:SC/PC
- Keywords:16 Port Gpon Board
- Encapsulation Type:SFP
- Dimensions:22.86 mm x 237.00 mm x 395.40 mm
- Port Rate:Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
- Supply Ability10000 Piece/Pieces per Day
- Packaging DetailsCarton
- PortNING BO/ SHANG HAI
- Picture Example:
- Lead time:Quantity(pieces)1 – 5>5Lead time (days)7To be negotiated

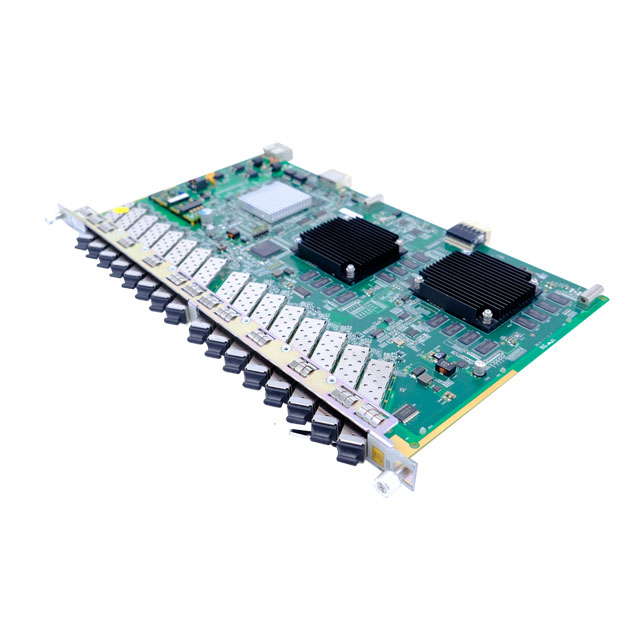

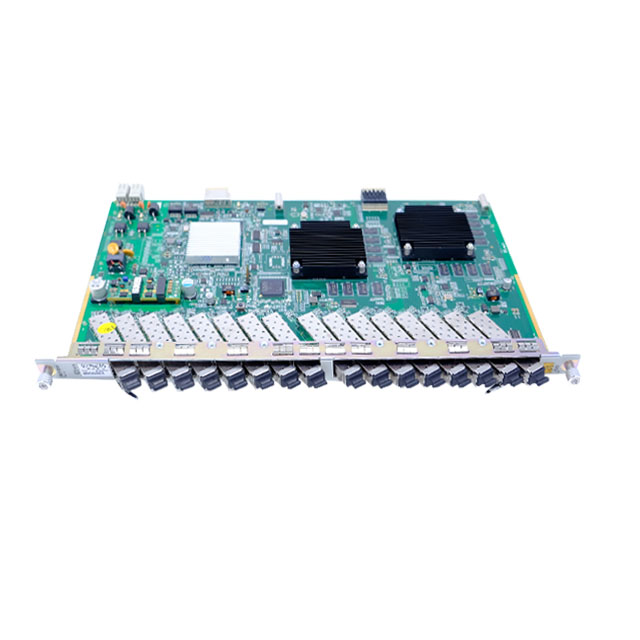

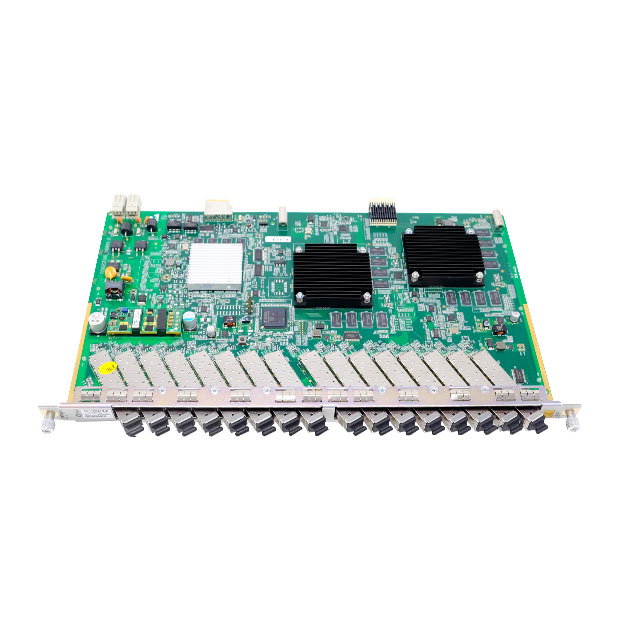

GTGH C+ G21 service Board 16-port pon card SFP board with 16pcs SFP C+ class 100% original from zte
Product Description
• High Density:
– 16 GPON ports per card, up to 1:128 split ratio
• GPON Function:
– Support ONU power saving management defined in G.987.3
– 1024 T-CONTs per PON port, 4096 GEM ports per PON port
• High TM Performance:
– Support H-QOS
– 1024 queues and 356 schedulers per PON port
– Support color-sensitive RED and WRED discard algorithm
– 16 GPON ports per card, up to 1:128 split ratio
• GPON Function:
– Support ONU power saving management defined in G.987.3
– 1024 T-CONTs per PON port, 4096 GEM ports per PON port
• High TM Performance:
– Support H-QOS
– 1024 queues and 356 schedulers per PON port
– Support color-sensitive RED and WRED discard algorithm
Specification
|
Brand
|
ZTE
|
|
Model
|
GTGH
|
|
GPON Port
|
16-GPON Port
|
|
Operating Wavelength
|
Tx: 1490 nm, Rx: 1310 nm
|
|
Encapsulation Type
|
SFP
|
|
Port Rate
|
Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
|
|
Optical Connector Type
|
SC/PC
|
|
Optical Fiber Type
|
Single-mode
|
|
Reach
|
20.00 km
|
|
Weight
|
1kg
|
|
Dimensions (W x D x H)
|
22.86 mm x 237.00 mm x 395.40 mm
|
