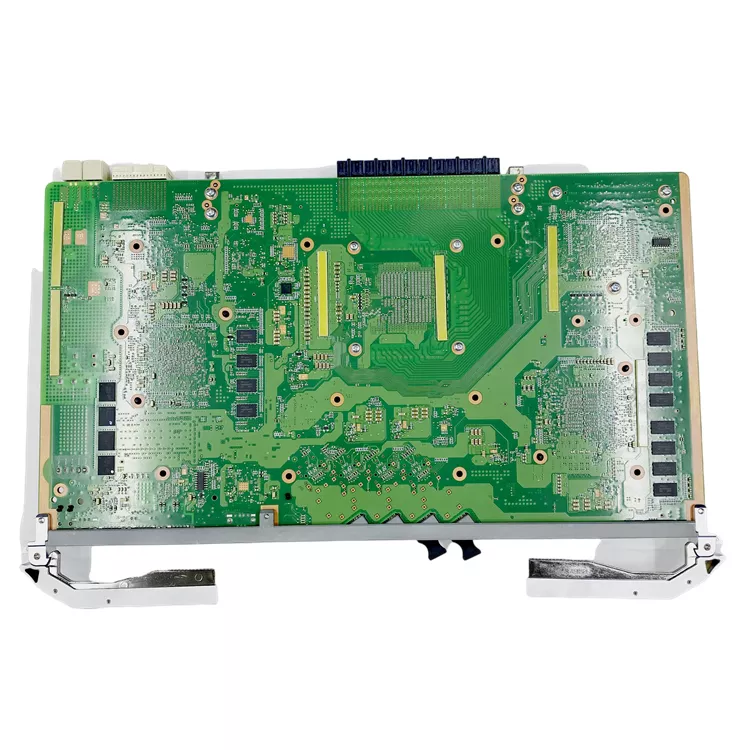

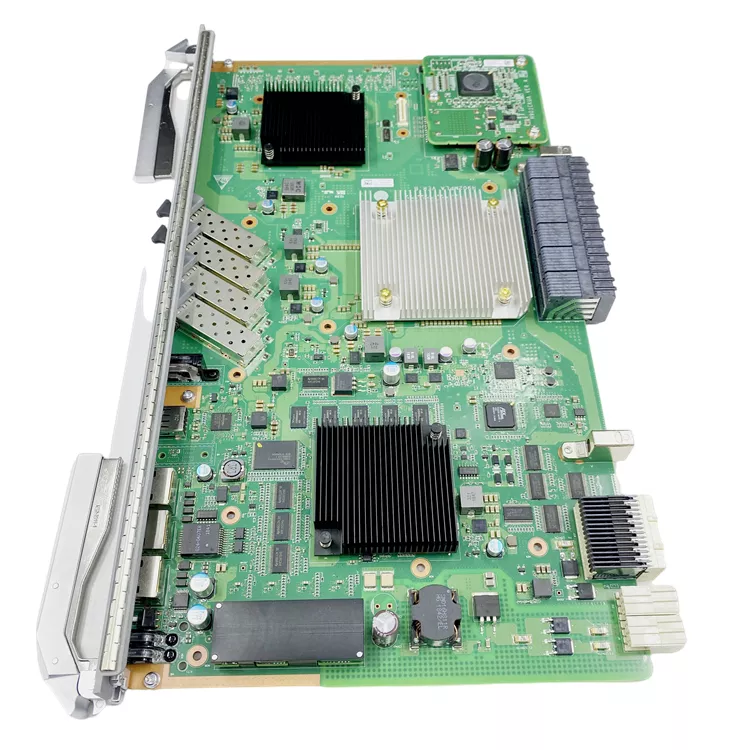

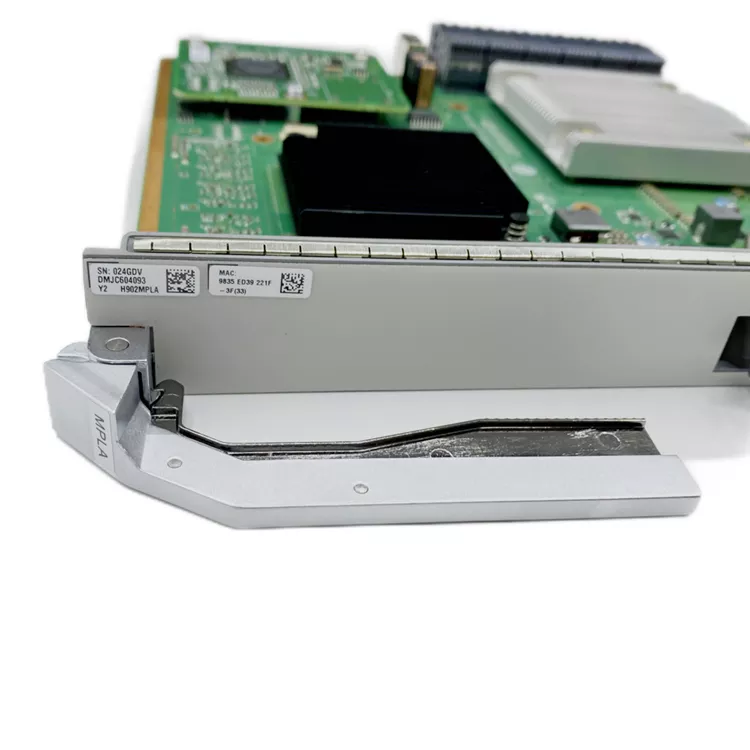

Huawei MA5800 X7 OLT control board 4*10G ports MPLA cards

Model Number:MPLA
Type:OLT card, OLT card
Place of Origin:Guangdong, China
Brand Name:huawei
Product name:MPLA
Brand:Huawei Original
Warranty:1 Year / 12 Months
Power supply:110~240VAC 12V/0.5A DC
Package:Carton Box
Color:Green
Ports:4*10G
MOQ:1 Pcs
Feature:Safety
Supply Ability

10 Piece/Pieces per Week
Port

Shenzhen
Lead time:Quantity(pieces)1 – 20>20Lead time (days)15To be negotiated

Product Description

Brand	Huawei
Model	MPLA
Bandwidth per slot	100Gbit/s (load sharing mode)
MAC address table	262144
Access ONT	17408
Multicast user	17408
Configurable multicast channel	4096
Concurrent multicast channel	4000
IPv4 routing table	65536
IPv6 routing table	16384
Service port	262144
ARP table	65536
ACL rule	1042
Maximum Frame Size	2052 bytes. After the jumbo frame function is enabled,
	a maximum of 9216 bytes can be supported.
Operating temperature	-40°C to +65°C
Power consumption	Static: 62W
	Maximum: 117 W
Dimensions(mm)	31 (W)x 258.9 (D) x 399.1 (H)
Weight(kg)	2.2

Huawei MPLA Board is the main control unit board, the core of system control and service exchange convergence, and can also be used as the management and control core of the unified network management. H902 MPLA transmits key management and control information through the master-slave serial port, the in-band GE / 10GE channel and the service board, completes the configuration, management and control of the entire product, and at the same time implements simple routing protocols and other
functions.
The MA5800 multi-service access equipment is the industry’s first distributed architecture intelligent aggregation OLT platform,positioned as the next-generation OLT for NG-PON
