SKU 1600565372693 Categories ,
  • Model Number:GPHF
  • Type:OLT board, cards
  • Place of Origin:China
  • Brand Name:huawei
  • Product name:GPHF
  • Ports:16-GPON Port
  • Wavelength:Tx: 1490 nm, Rx: 1310 nm
  • Warranty:1 Year / 12 Months
  • Connector Type:SC/PC
  • Brand:Huawei Original
  • Package:Carton
  • MOQ:1 Pcs
  • Working temperature:-40°C to +65°C
  • Supply Ability
    1000 Piece/Pieces per Week
  • Packaging Details


  • Port


  • Lead time:Quantity(pieces)1 – 2000>2000Lead time (days)15To be negotiated
Product Description
16-GPON Port

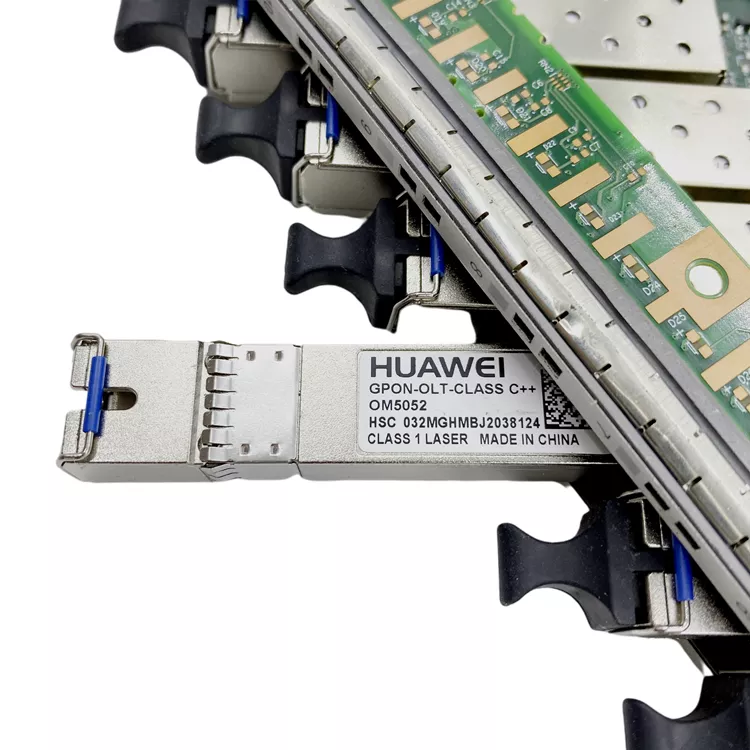

C+ Module : One-fiber bi-directional optical module, class C+
Operating Wavelength
Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type
Port Rate
Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s
Minimun Output Optical Power
C+ Module : 3.00 dBm
Maximum Output Optical Power
C+ Module : 7.00 dBm
Maximum Receiver Sensitivity
C+ Module : -32.00 dBm
Optical Connector Type
Optical Fiber Type
20.00 km
Overload Optical Power
C+ Module : -12.0 dBm
Extinction Ratio
8.2 dB
Dimensions (W x D x H)
23.30 mm * 257.90 mm * 399.20 mm
Power Consumption and Maximum Frame Size
Power Consumption
Static: 25W; Maximum:50W
Maximum Frame Size
2004 bytes
9216 bytes (jumbo frame enabled)
Operating temperature
-40°C to +65°C

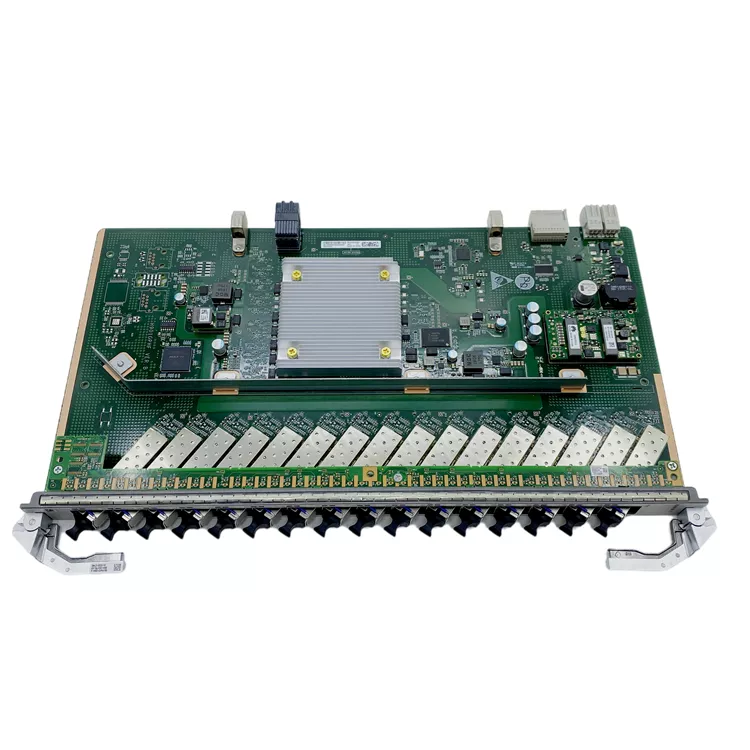

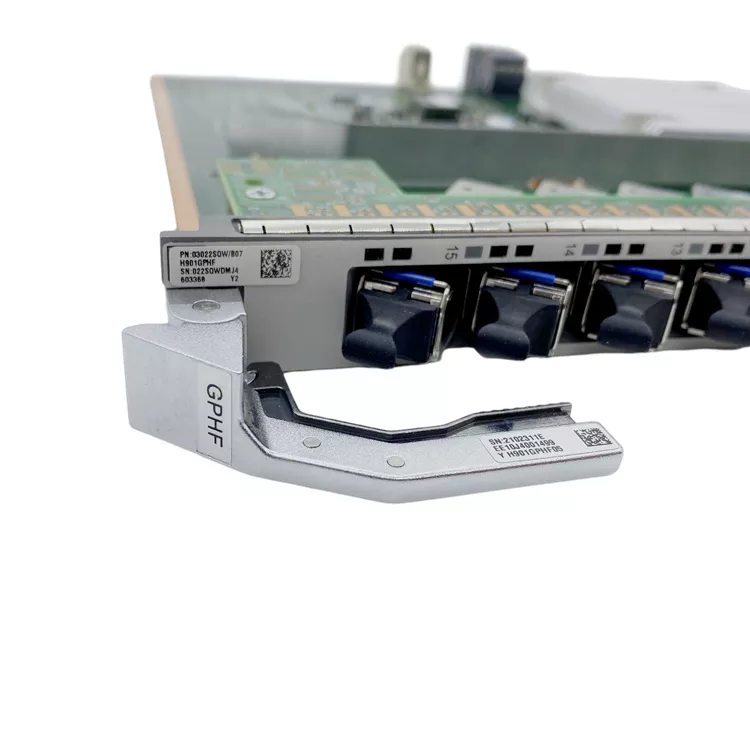

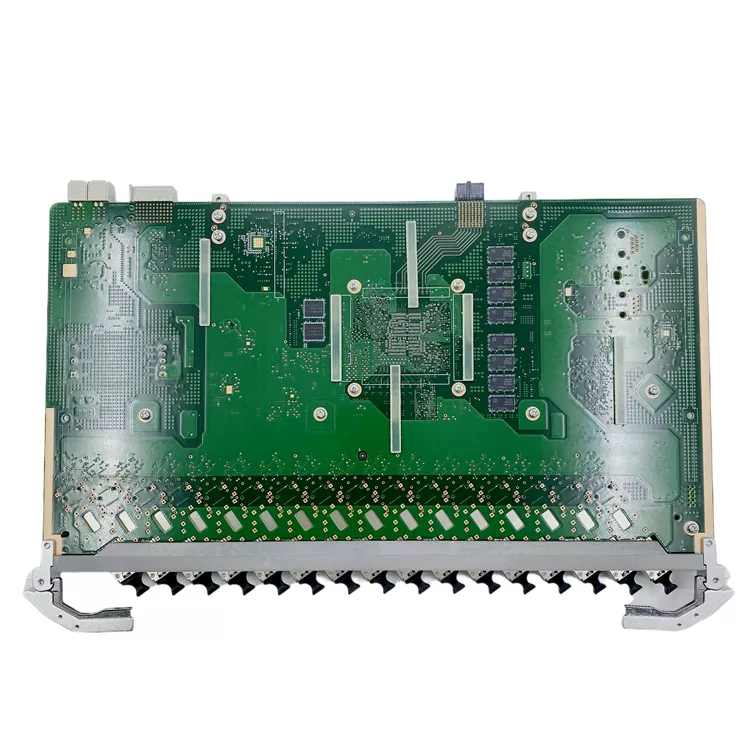

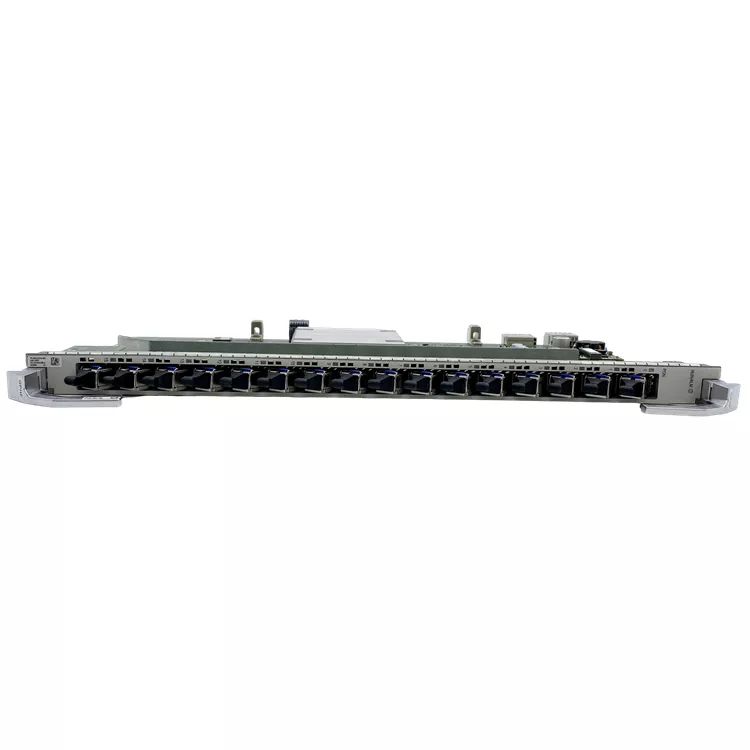

Huawei GPHF Service Board is 16-port GPON OLT interface board with C+ SFP module MA5800 series
Huawei GPHF Service Board is a 16-port GPON interface board that works with ONU (Optical Network Unit) devices to implement GPON service access.
The MA5800 multi-service access device is a 4K/8K/VR Ready OLT in the Gigabit Ultra-wide era. It adopts a distributed architecture and supports PON/10G PON/GE/10GE common platform. The MA5800 supports multi-media Gigabit aggregation, optimal 4K/8K/VR video experience, multi-service virtualization common platform, and smooth evolution of 50G PON.
MA5800 series frame products include three sizes: MA5800-X17, MA5800-X7 and MA5800-X2, supporting various networking applications such as FTTB/FTTC/FTTD/FTTH/D-CCAP. The 1U box OLT product MA5801 supports all-optical access coverage in low-density areas.
