- Model Number:ADLE
- Type:board, board
- Place of Origin:China
- Brand Name:Huawei
- Product name:ADLE
- Warranty:1 Year / 12 Months
- Package:Carton Box
- Ports:- PSTN – LINE
- Application:FTTH FTTB FTTC
- MOQ:1 Pcs
- Brand:Huawei Original
- Operating temperature:0~70
- Keywords:ADSL
-
- Supply Ability
- 1000 Piece/Pieces per Week
-
- Packaging Details
cartons
-
- Port
Shenzhen
- Picture Example:
- Lead time:Quantity(pieces)1 – 2000>2000Lead time (days)15To be negotiated
Product Description
|
Specifications
|

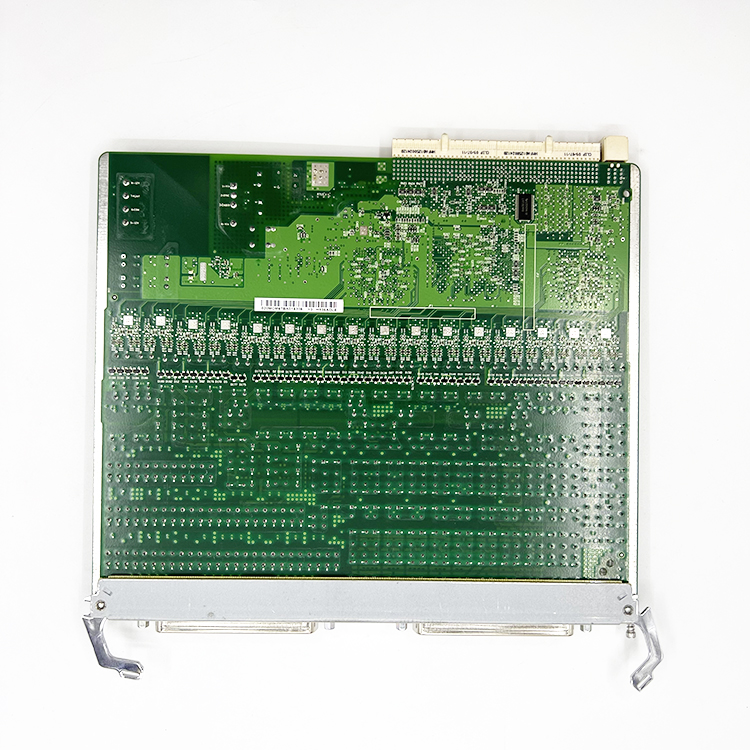

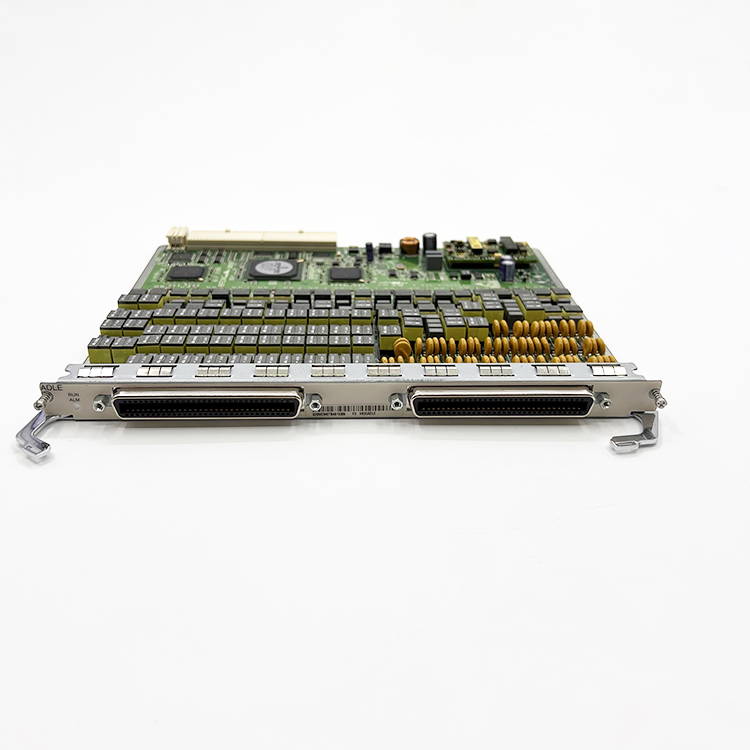

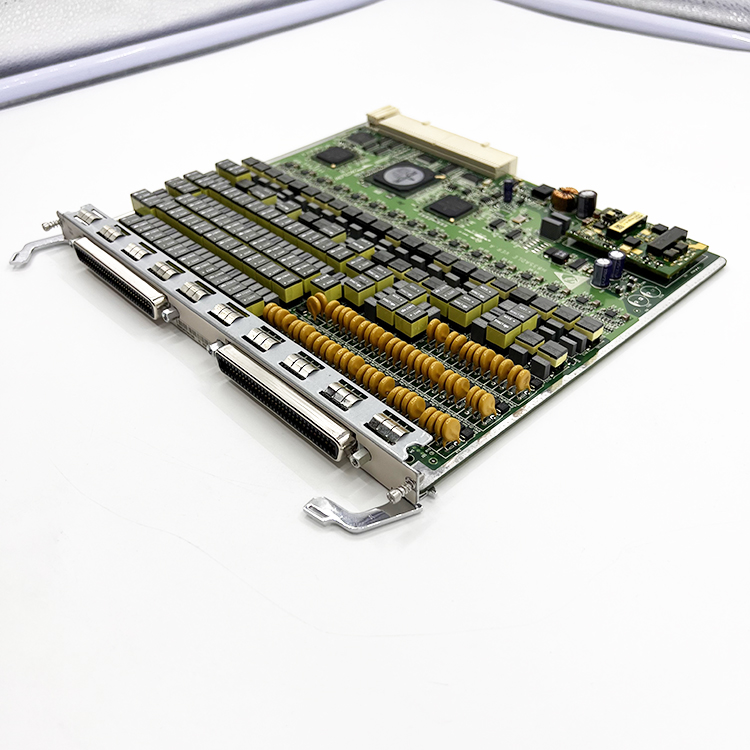

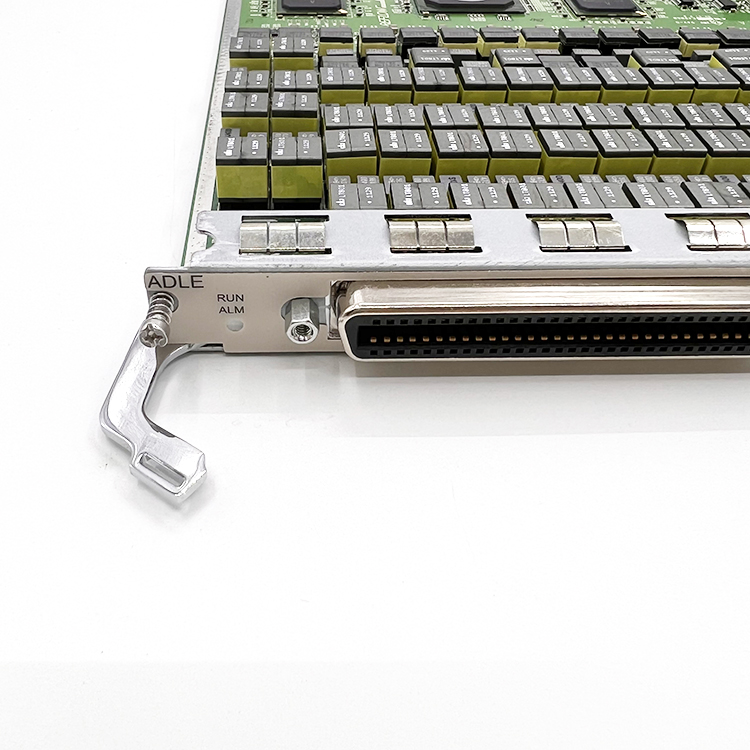

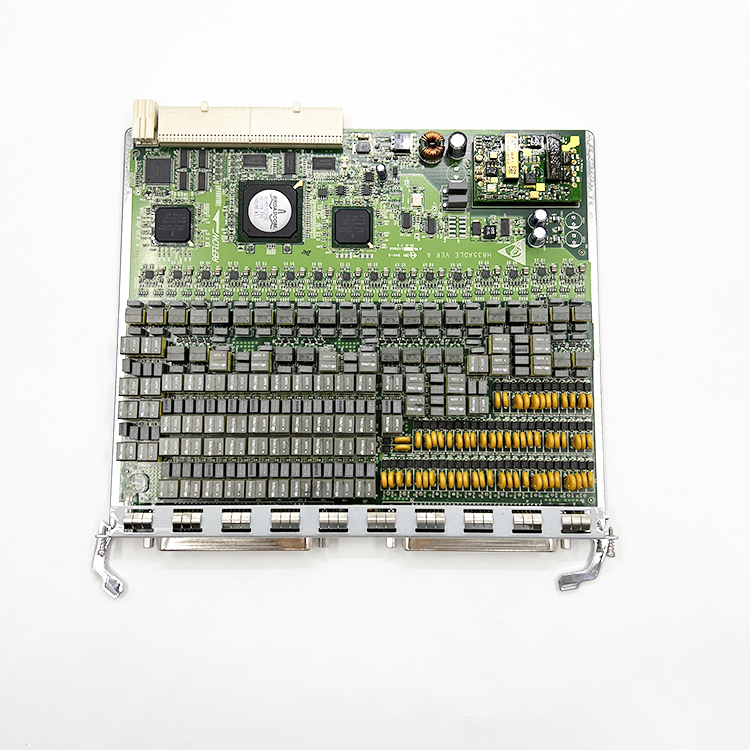

H835ADLE
|
|
Applicable line
|
32-channel ADSL2+ over POTS
|
|
Port
|
– PSTN
– LINE |
|
G.INP
|
Supported
|
|
INM
|
Supported
|
|
SELT
|
Supported
|
|
MELT
|
Not supported
|
|
Annex type
|
– G.992.1 Annex A
– G.992.3 Annex A, L, or M (EU32-EU64) – G.992.5 Annex A or M (EU32-EU64) |
|
Configuration mode
|
Supports RFC 2662, RFC 4706, and TR165/TR252. (Users can switch a mode. To do so, log
in to the MA5616 as a super user and run the switch ADSL mode to command in diagnose mode. The default configuration mode is RFC 2662. Considering the development trend, TR165 is recommended because it is more flexible than others.) |
|
Connector
|
Champ 64-pin
|
|
Embedded splitter
|
Supported (600-ohm impedance splitter)
|
|
Temperature query
and high temperature alarm |
Supported
|
|
Automatic power
shutdown in the event of a high temperature |
Supported
|
32 channels user ports
ADSL2+ over POTS access services
Board power-off for energy conservation
Support ADLS/VDSL/SHDSL/ISDN service
Support CCUB CCUC CCUD CCUE control board
ADSL2+ over POTS access services
Board power-off for energy conservation
Support ADLS/VDSL/SHDSL/ISDN service
Support CCUB CCUC CCUD CCUE control board

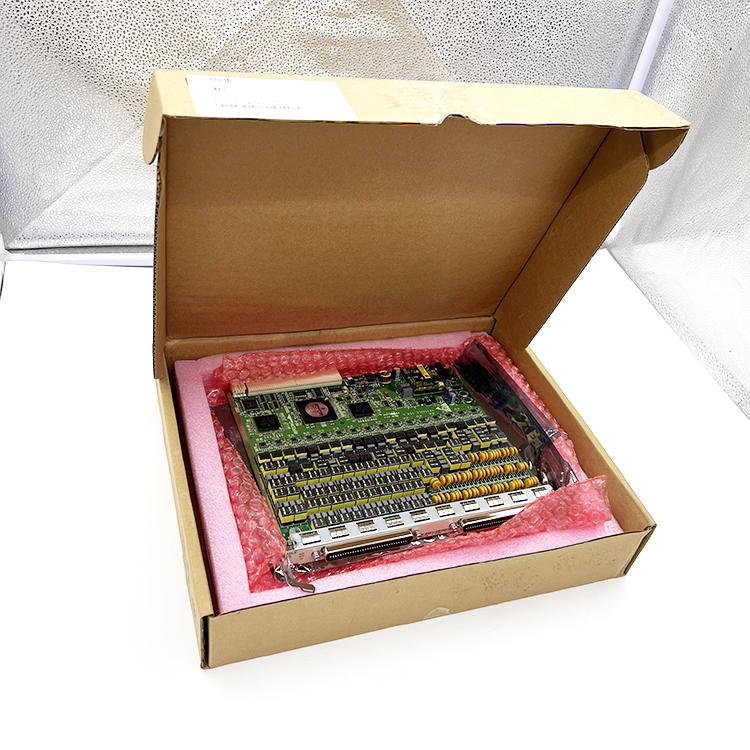

Packing&Shipping
