GPBD 8 gpon ports service board with SFP board with 8pcs SFP C+ C++ class 100% original from Huawei

Model Number:GPBD
Type:OLT, 8port olt pon card
Place of Origin:Zhejiang, China
Brand Name:HUAWEI
Use:FTTH Network
Warranty Time:FTTH Network
Network:wifi, 4g
Product name:GPBD 8 gpon ports service board with SFP board with 8pcs
Specification:GPBD
module:C+,C++
Encapsulation Type:SFP
Single package size:49X32.5X7.5 cm
Package Type:1 piece/carton
Supply Ability10000 Piece/Pieces per Day
Packaging DetailsCarton
PortNING BO/ SHANG HAI
Picture Example:
Lead time:Quantity(pieces)1 – 5>5Lead time (days)7To be negotiated

GPBD 8 gpon ports service board with SFP board with 8pcs SFP C+ C++ class 100% original from Huawei

Product Description

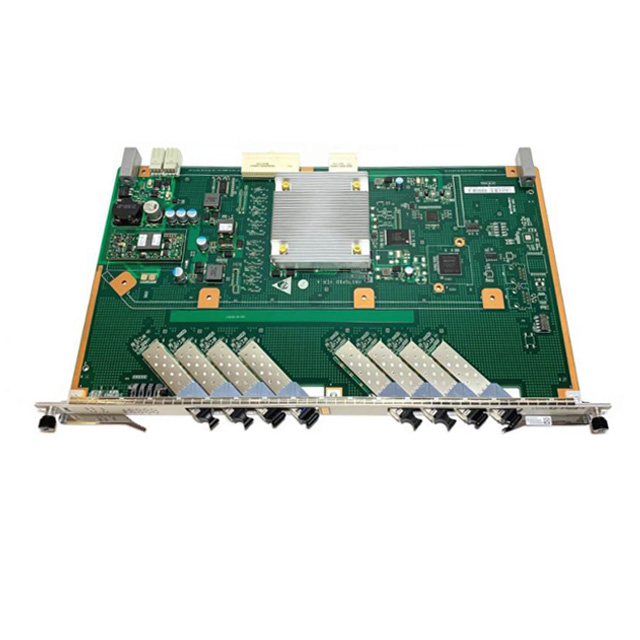

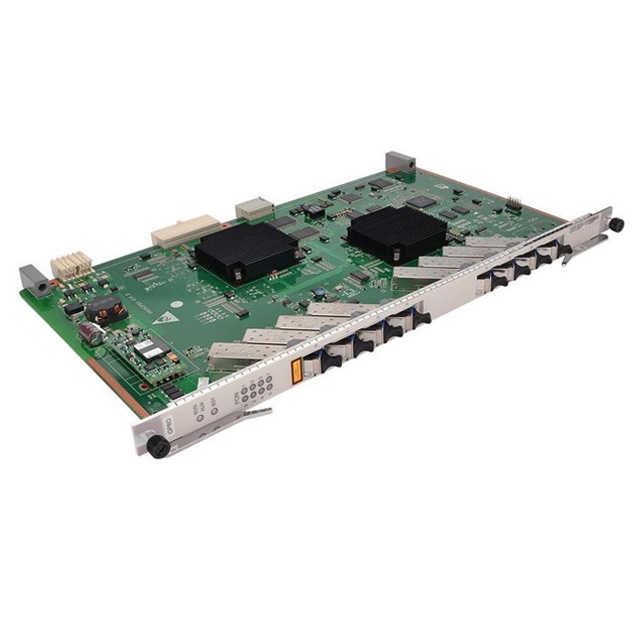

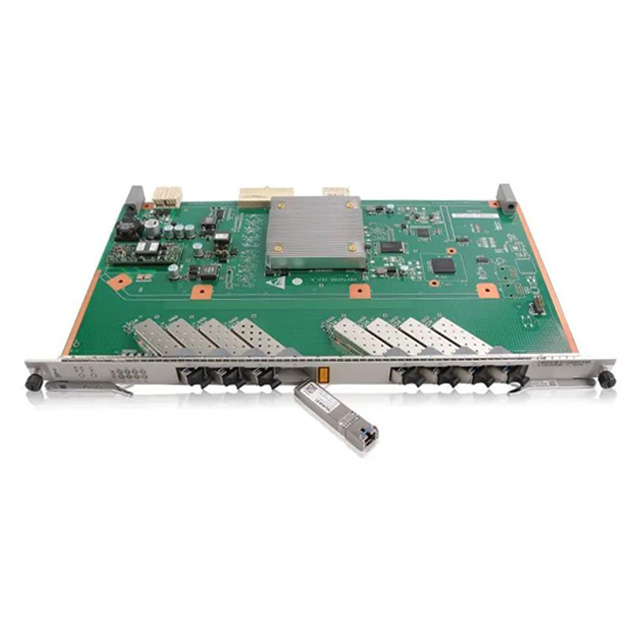

GPON card GPBD / GPFD GPON board for HUAWEI OLT MA5680T MA5683T MA5608T

GPBD is a GPON interface card of Huawei OLT.8-port GPON OLT Interface Board GPFD works with the optical network terminal (ONT) to provide GPON access services, each GPBD can maximumly connect 8*128 GPON subscribers. GPBD has different version like H80D00GPBD01, H80D00GPBD02 etc, but basically they are H802GPBD, H803GPBD, H805GPBD with B+ or C+ SFP module.

Specification

GPON Service board	4ports: H801GPBC 8ports: H802GPBD, H805GPBD, H806GPBD, H807GPBD, H806GPBH, H807GPBH 16ports: H801GPFD , H802GPFD , H803GPFD, H805GPFD
Module of GPON Service board	B+ Class c+ Class c++
10GE Uplink board	H801X1CA H801X2CA H801X2CS
10GE EPON Service board	8ports: H802 XEBD, H801XEBD
10GE GPON Service board	8ports: H801 XGBD
Port Rate	Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
Optical Connector Type	SC/PC
Optical Fiber Type	Single-mode
Reach	20.00 km
Weight	1kg
Dimensions (W x D x H)	22.86 mm x 237.00 mm x 395.40 mm
