- Model Number:GPSF
- Type:Board, Service board
- Place of Origin:China
- Brand Name:Huawei
- Product name:GPSF
- Brand:Huawei Original
- Warranty:1 Year / 12 Months
- Ports:16 Ports
- Data Rate:Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s
- Keywords:GPON OLT Card
- MOQ:1
- Working temperature:-40°C to +65°C
- Usage:Common Usage
-
- Supply Ability
- 1000 Piece/Pieces per Week
-
- Packaging Details
cartons
-
- Port
Shenzhen
- Picture Example:
- Lead time:Quantity(pieces)1 – 2000>2000Lead time (days)15To be negotiated
Product Description
|
Brand
|
Huawei
|
|
Model
|
GPSF
|
|
GPON Port
|
16-GPON Port
|
|
Type
|

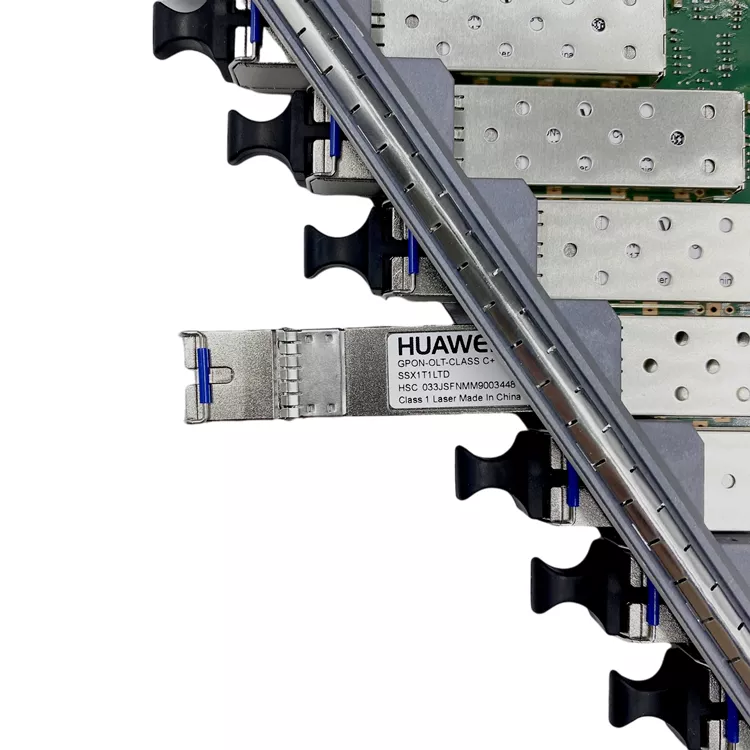

C+ Module : One-fiber bi-directional optical module, class C+
|
|
Operating Wavelength
|
Tx: 1490 nm, Rx: 1310 nm
|
|
Encapsulation Type
|
SFP
|
|
Port Rate
|
Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s
|
|
Minimum Output Optical Power
|
C+ Module : 3.00 dBm
|
|
Maximum Output Optical Power
|
C+ Module : 7.00 dBm
|
|
Maximum Receiver Sensitivity
|
C+ Module : -32.00 dBm
|
|
Optical Connector Type
|
SC/PC
|
|
Optical Fiber Type
|
Single-mode
|
|
Reach
|
20.00 km
|
|
Overload Optical Power
|
C+ Module : -12.0 dBm
|
|
Extinction Ratio
|
8.2 dB
|
|
Dimensions (W x D x H)
|
23.30 mm * 257.90 mm * 399.20 mm
|
|
Power Consumption
|
Static: 25W; Maximum:50W
|
|
Maximum Frame Size
|
2004 bytes
|
|
9216 bytes (jumbo frame enabled)
|
|
|
Operating temperature
|
-40°C to +65°C
|

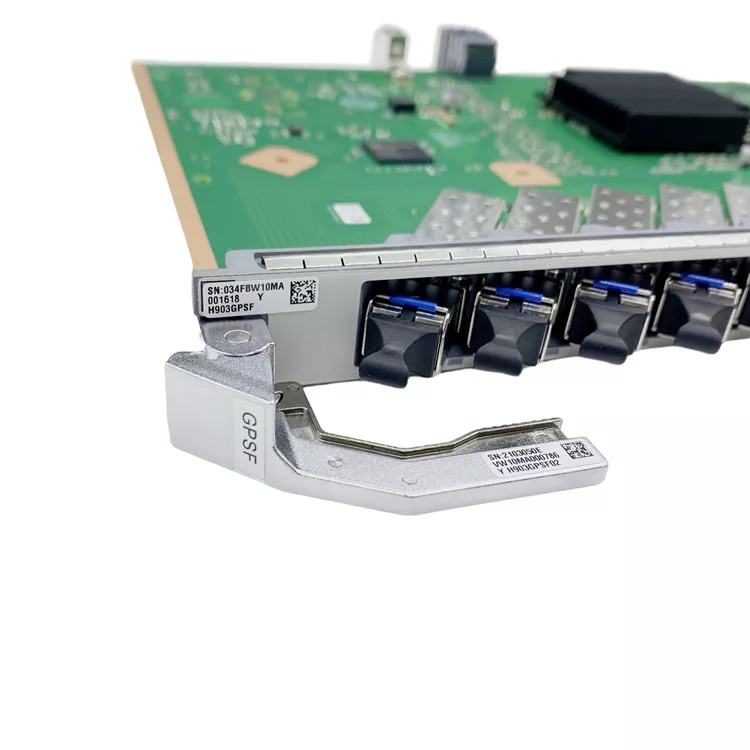

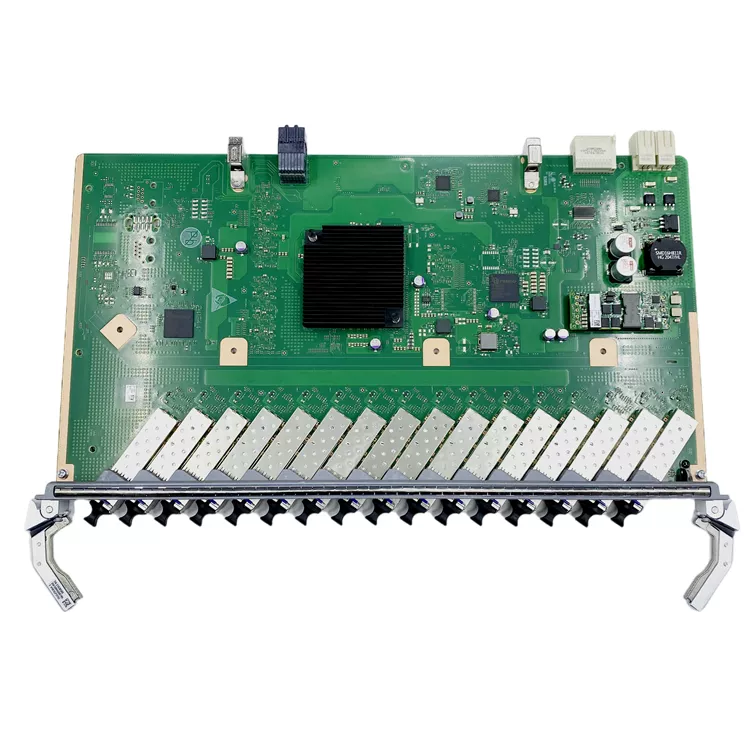

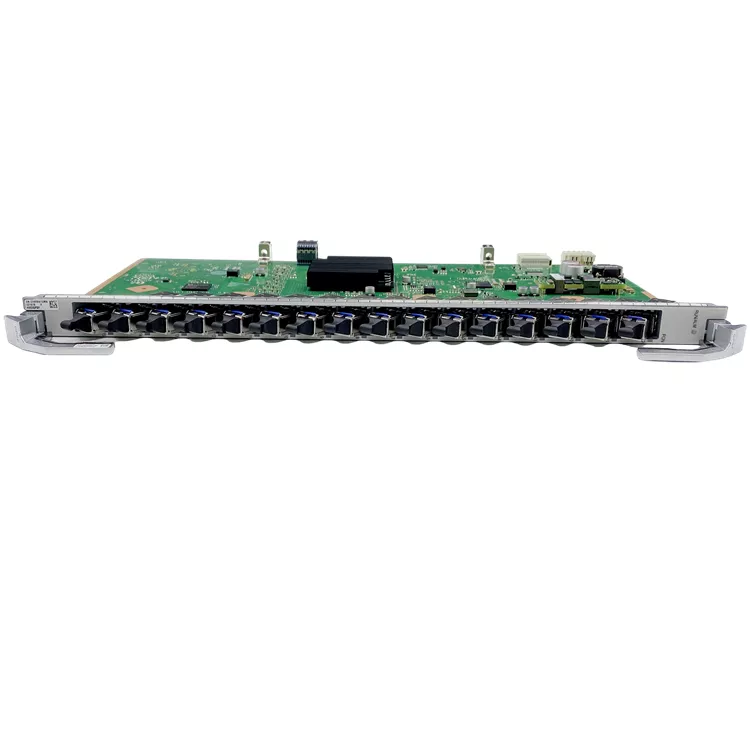

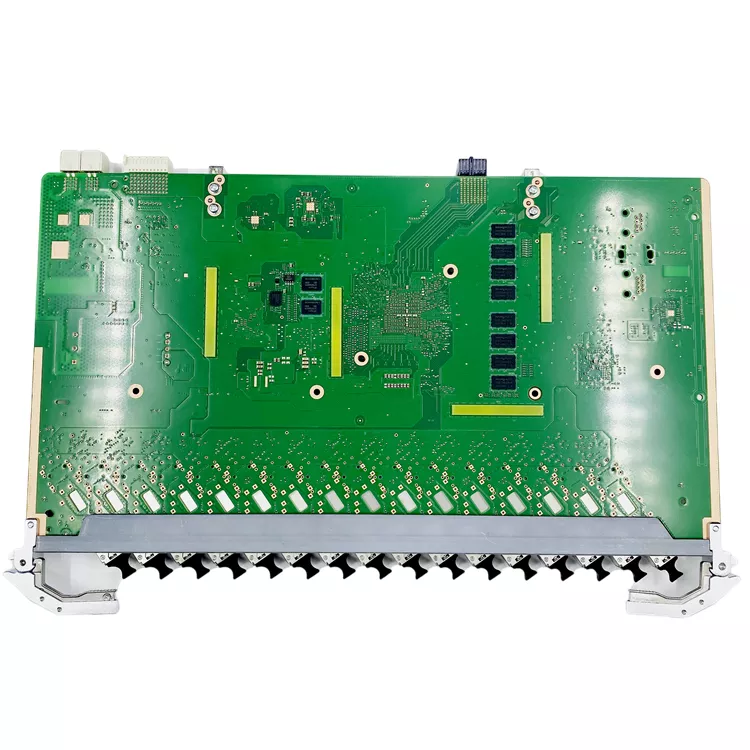

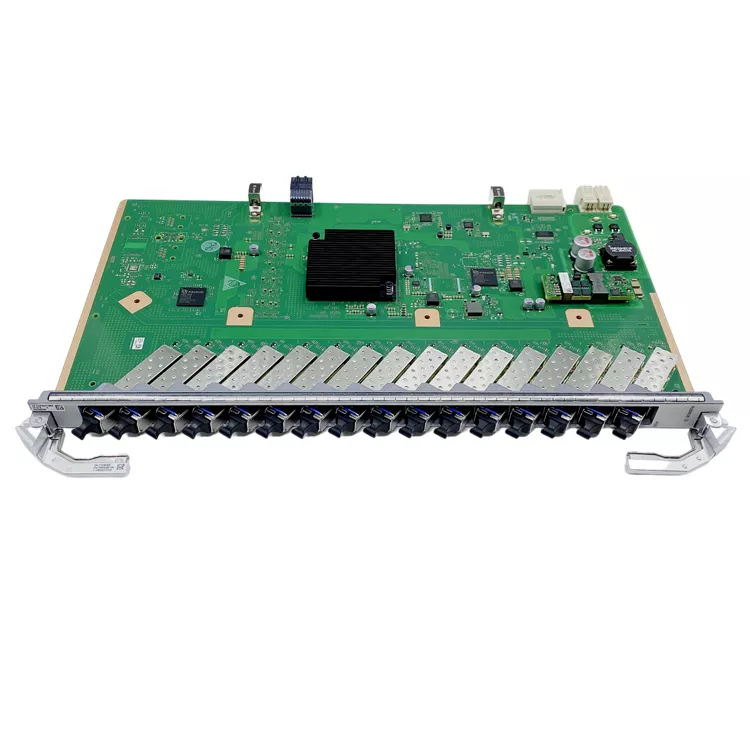

Huawei GPSF Service Board is 16-port GPON OLT interface board with C+ SFP module for Huawei MA5800 series. It works together with the optical network unit (ONU) to provide GPON access services.
MA5800 series frame products include three sizes: MA5800-X17, MA5800-X7 and MA5800-X2, supporting various networking applications such as FTTB/FTTC/FTTD/FTTH/D-CCAP. The 1U box OLT product MA5801 supports all-optical access coverage in low-density areas.
The MA5800 can help operators cope with the development of “broader, faster, smarter” Gigabit ultra-wide networks, satisfying users’ extreme business experience for 4K/8K/VR video; supporting future smart homes and all-optical campuses. At the same time, the MA5800 can implement multi-service unified bearer for home users, enterprise users, mobile bearers, and the Internet of Things to simplify the network architecture, reduce the number of CO equipment rooms, and reduce operation and maintenance costs.
MA5800 series frame products include three sizes: MA5800-X17, MA5800-X7 and MA5800-X2, supporting various networking applications such as FTTB/FTTC/FTTD/FTTH/D-CCAP. The 1U box OLT product MA5801 supports all-optical access coverage in low-density areas.
The MA5800 can help operators cope with the development of “broader, faster, smarter” Gigabit ultra-wide networks, satisfying users’ extreme business experience for 4K/8K/VR video; supporting future smart homes and all-optical campuses. At the same time, the MA5800 can implement multi-service unified bearer for home users, enterprise users, mobile bearers, and the Internet of Things to simplify the network architecture, reduce the number of CO equipment rooms, and reduce operation and maintenance costs.
Product Features
1, High density and energy saving
High density, low power consumption, support 2048 access users.
Idle PON port manual shutdown, to avoid power waste.
2, Intelligent management channel
Level 4 HQoS to improve the user experience.
9216 Jumbo frame, greatly improving the transmission efficiency.
3, Easy to operate and maintain
Real-time rogue ONU detection and isolation, to ensure stable operation of the business
1:64 eOTDR, accurate fault sharing and quick fault location.
High density, low power consumption, support 2048 access users.
Idle PON port manual shutdown, to avoid power waste.
2, Intelligent management channel
Level 4 HQoS to improve the user experience.
9216 Jumbo frame, greatly improving the transmission efficiency.
3, Easy to operate and maintain
Real-time rogue ONU detection and isolation, to ensure stable operation of the business
1:64 eOTDR, accurate fault sharing and quick fault location.
