- Model Number:GPFD
- Type:OLT, 8port olt pon card
- Place of Origin:Zhejiang, China
- Brand Name:HUAWEI
- Use:FTTH Network
- Warranty Time:FTTH Network
- Network:wifi, 4g
- Product name:High quality GPFD 16 gpon ports service board with 16pcs SFP C+ C++
- Specification:GPBD
- module:C+,C++
- Encapsulation Type:SFP
- Single package size:49X32.5X7.5 cm
- Package Type:1 piece/carton
-
- Supply Ability
- 10000 Piece/Pieces per Day
-
- Packaging Details
Carton
-
- Port
NING BO/ SHANG HAI
- Picture Example:
- Lead time:Quantity(pieces)1 – 5>5Lead time (days)7To be negotiated
High quality GPFD 16 gpon ports service board with 16pcs SFP C+ C++ class
Product Description

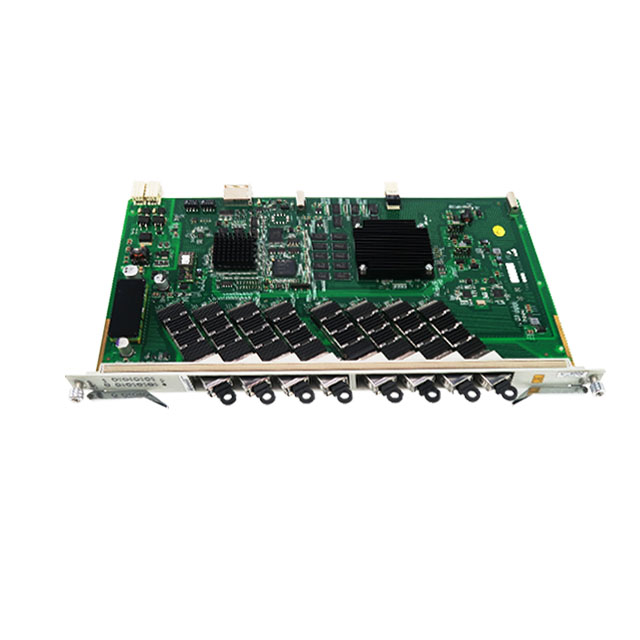

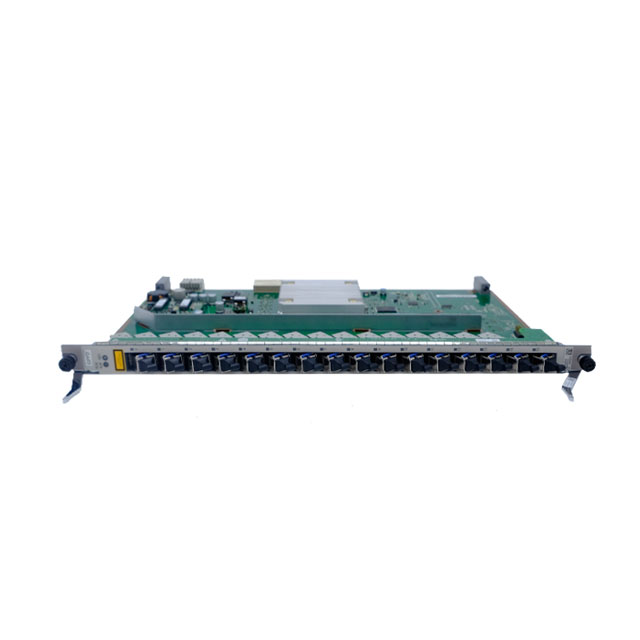

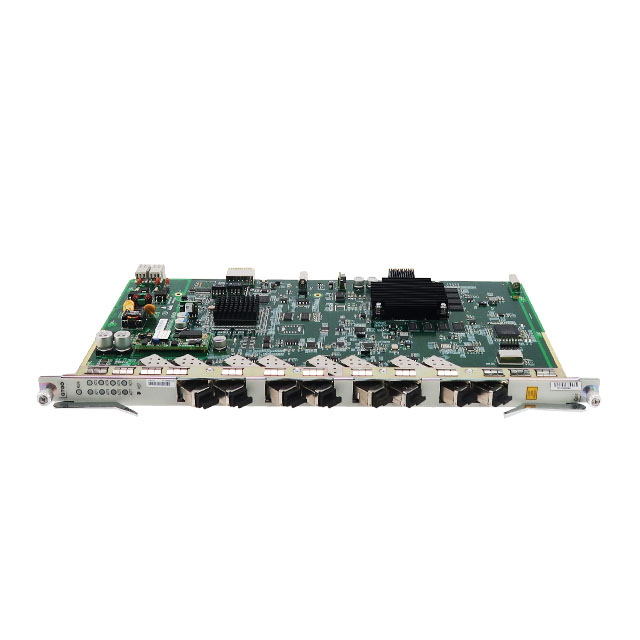

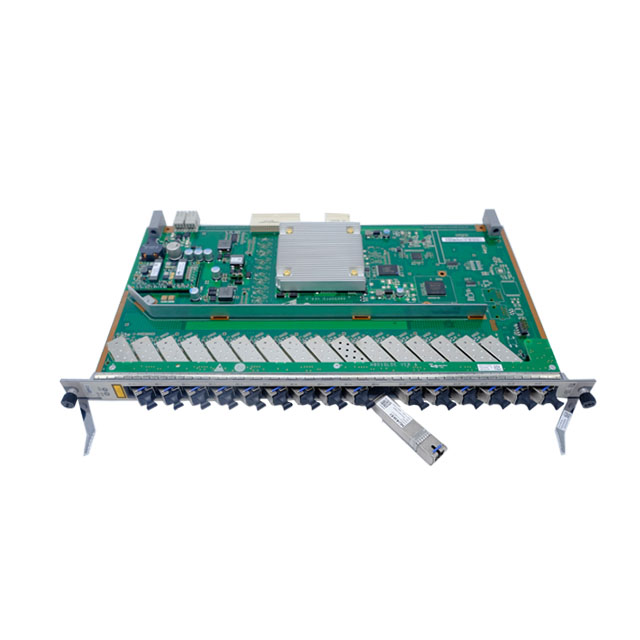

GPON card GPBD / GPFD GPON board for HUAWEI OLT MA5680T MA5683T MA5608T
GPBD is a GPON interface card of Huawei OLT.8-port GPON OLT Interface Board GPFD works with the optical network terminal (ONT) to provide GPON access services, each GPBD can maximumly connect 8*128 GPON subscribers. GPBD has different version like H80D00GPBD01, H80D00GPBD02 etc, but basically they are H802GPBD, H803GPBD, H805GPBD with B+ or C+ SFP module.
Specification
GPON Service board
|
4ports: H801GPBC
8ports: H802GPBD, H805GPBD, H806GPBD, H807GPBD, H806GPBH, H807GPBH 16ports: H801GPFD , H802GPFD , H803GPFD, H805GPFD |
Module of GPON Service board
|
B+
Class c+ Class c++ |
10GE Uplink board
|
H801X1CA
H801X2CA H801X2CS |
10GE EPON Service board
|
8ports: H802 XEBD, H801XEBD
|
10GE GPON Service board
|
8ports: H801 XGBD
|
Port Rate
|
Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
|
Optical Connector Type
|
SC/PC
|
Optical Fiber Type
|
Single-mode
|
Reach
|
20.00 km
|
Weight
|
1kg
|
Dimensions (W x D x H)
|
22.86 mm x 237.00 mm x 395.40 mm
|
