SKU 1600453086720 Categories ,
  • Model Number:GTXO
  • Type:OLT
  • Place of Origin:Zhejiang, China
  • Brand Name:ZTE
  • Use:FTTH
  • Warranty Time:1 year
  • Network:Wireless Lan, wifi, 4g
  • model:GTXO
  • brand name:ZTE
  • service ports:8-port XG-PON1
  • Optical Connector Type:SC
  • Port Rate:Tx: 10 Gbit/s; Rx: 2.488 Gbit/s
  • Operating Wavelength:Tx: 1577 nm, Rx: 1270 nm
  • Optical Fiber Type:Single-mode
  • Reach:20km
  • Weight:1.185 kg
  • Dimensions:22.5 mm x 225 mm x 395.5 mm
  • Supply Ability
    100 Piece/Pieces per Month
  • Packaging Details


  • Port


  • Picture Example:
  • Lead time:Quantity(pieces)1 – 1>1Lead time (days)7To be negotiated
Product Description

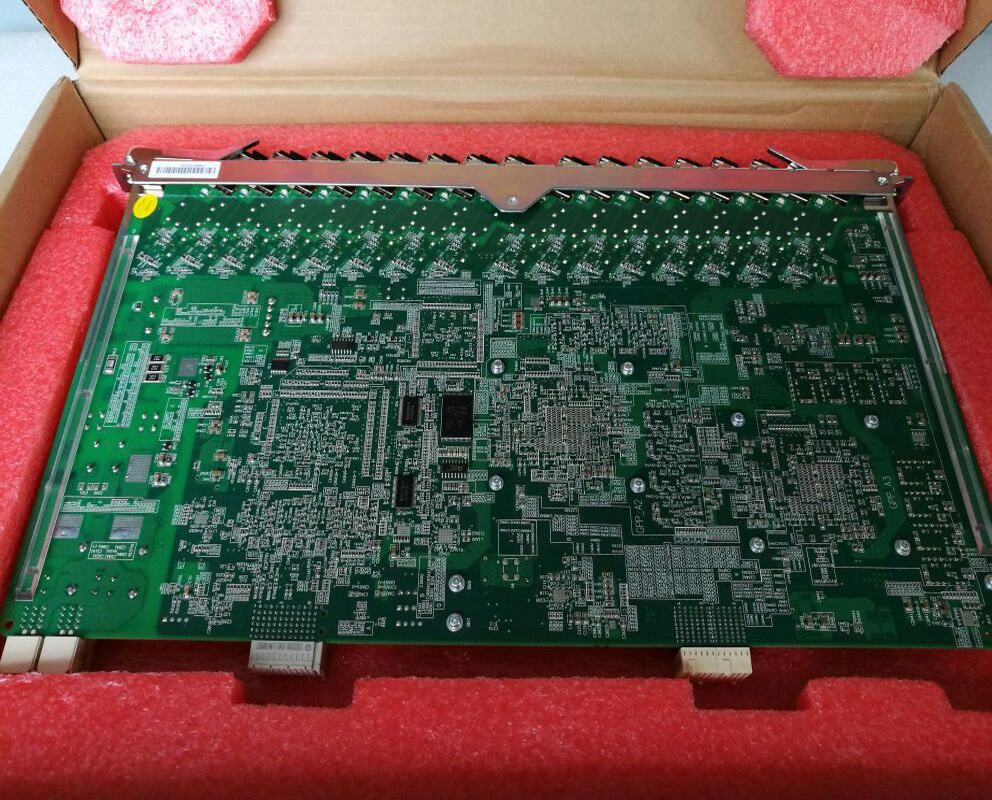

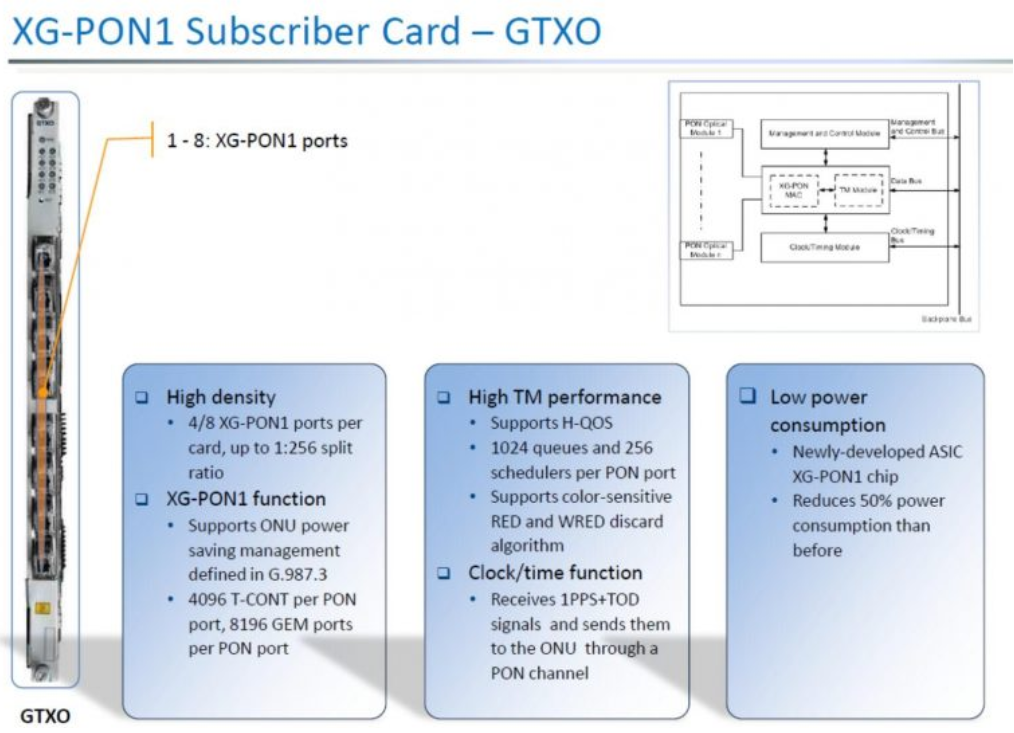

ZTE 8-port XG-PON1 interface board with N2a XGPON module

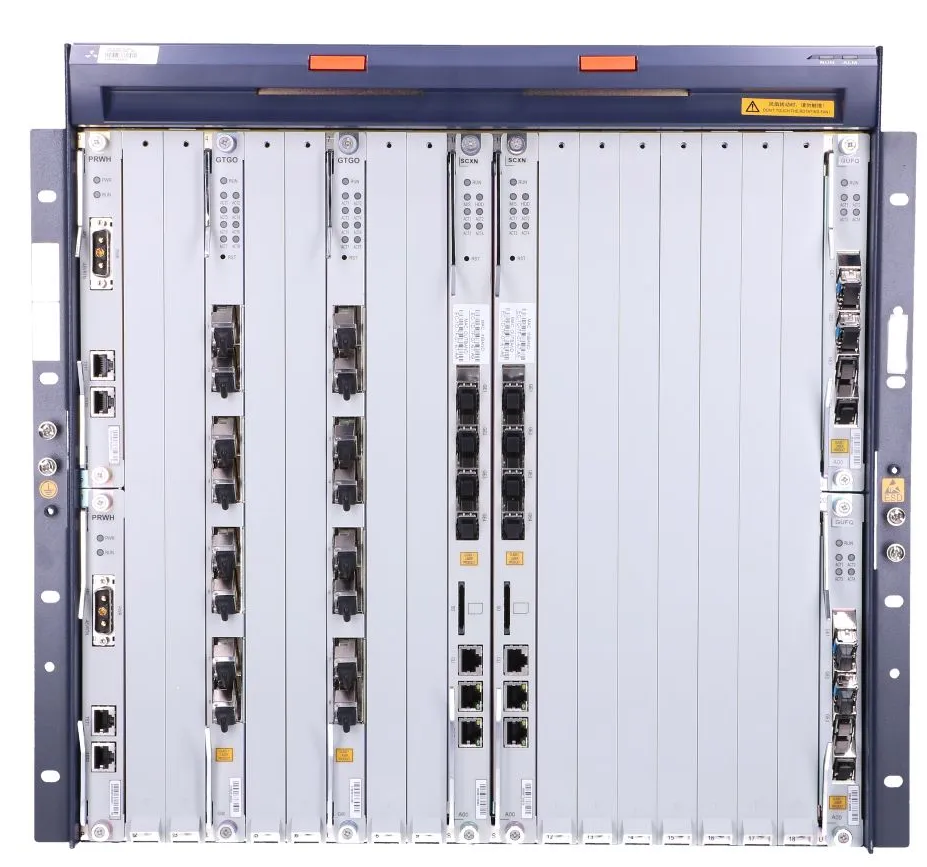

Apply to ZTE ZXA10 C300/C360/C320

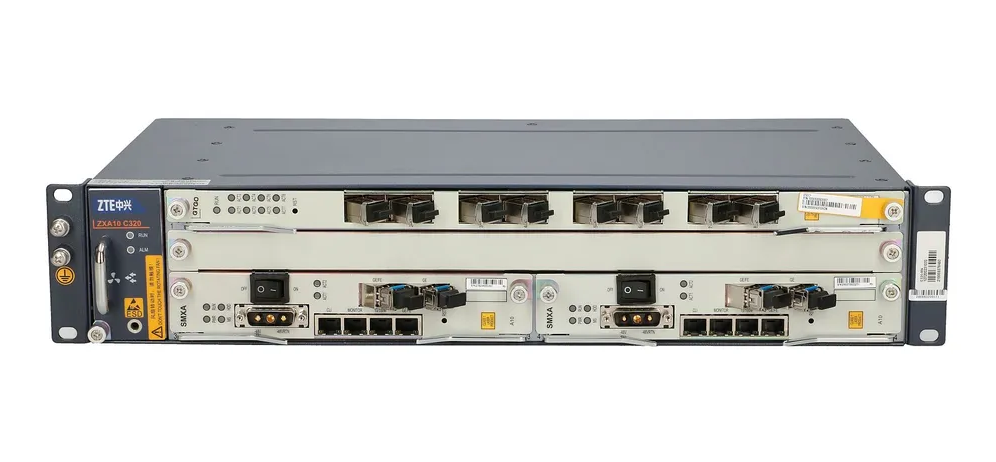

ZTE GTXO Service Board is an 8-port 10G GPON OLT interface board, which cooperates with ONU to realize GPON access service.ZXA10 C320 is new-generation compact OLT, only 2U high, saving installation space; high line card density: industry-leading 16-port GPON/EPON and 48-channel P2P board capability, single-frame can provide 32 G/EPON ports and 96 channels P2P GE port; ZTE C320 supports GPON/EPON/P2P/10G EPON/XG-PON1 with the same platform access, and will also support TWDM-PON technology; unified bearer voice, high-speed Internet access, IPTV, traditional TDM and mobile backhaul services. Integrated access; adopts large-scale OLT hardware and software architecture, supports architecture evolution, is compatible with ZXA10 C300 service boards, and saves board costs.
Product Paramenters
MAX Split ratio
Operating Wavelength
Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type
Maximum differential fibre distance (km)
22.5 mm x 225 mm x 395.5 mm
Port Rate
Send:9.95Gbit/s  Receive:2.49Gbit/s
Optical Fiber Type

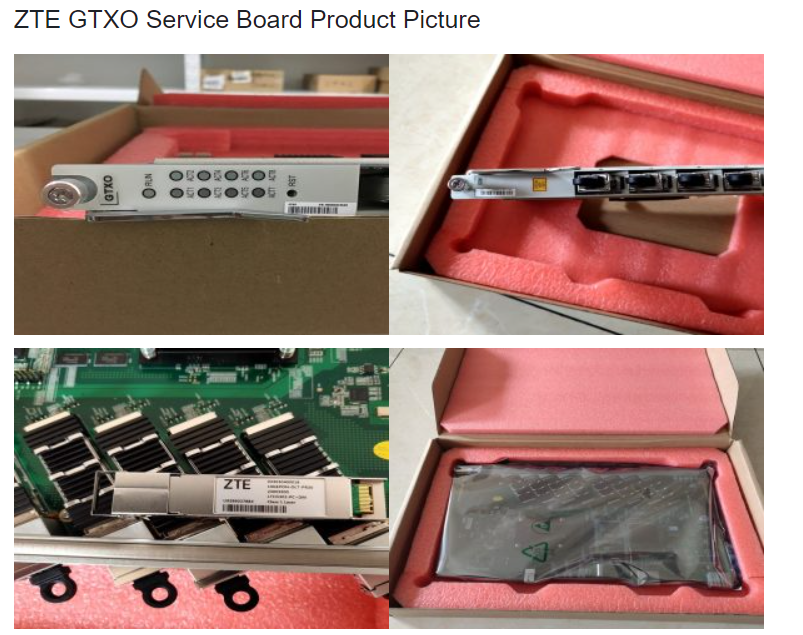

Details Images


22.86 mm * 237.00 mm *395.40 mm
