Huawei OptiX OSN 9800 Description:

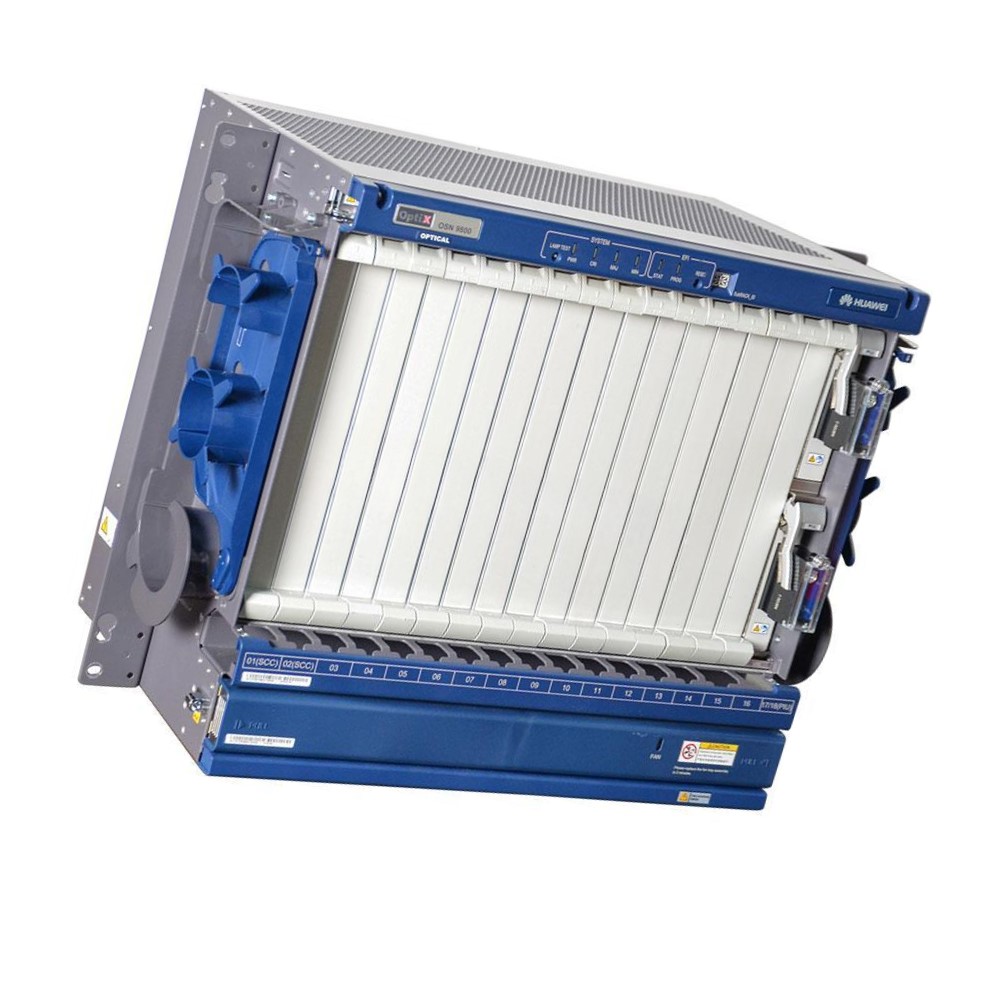

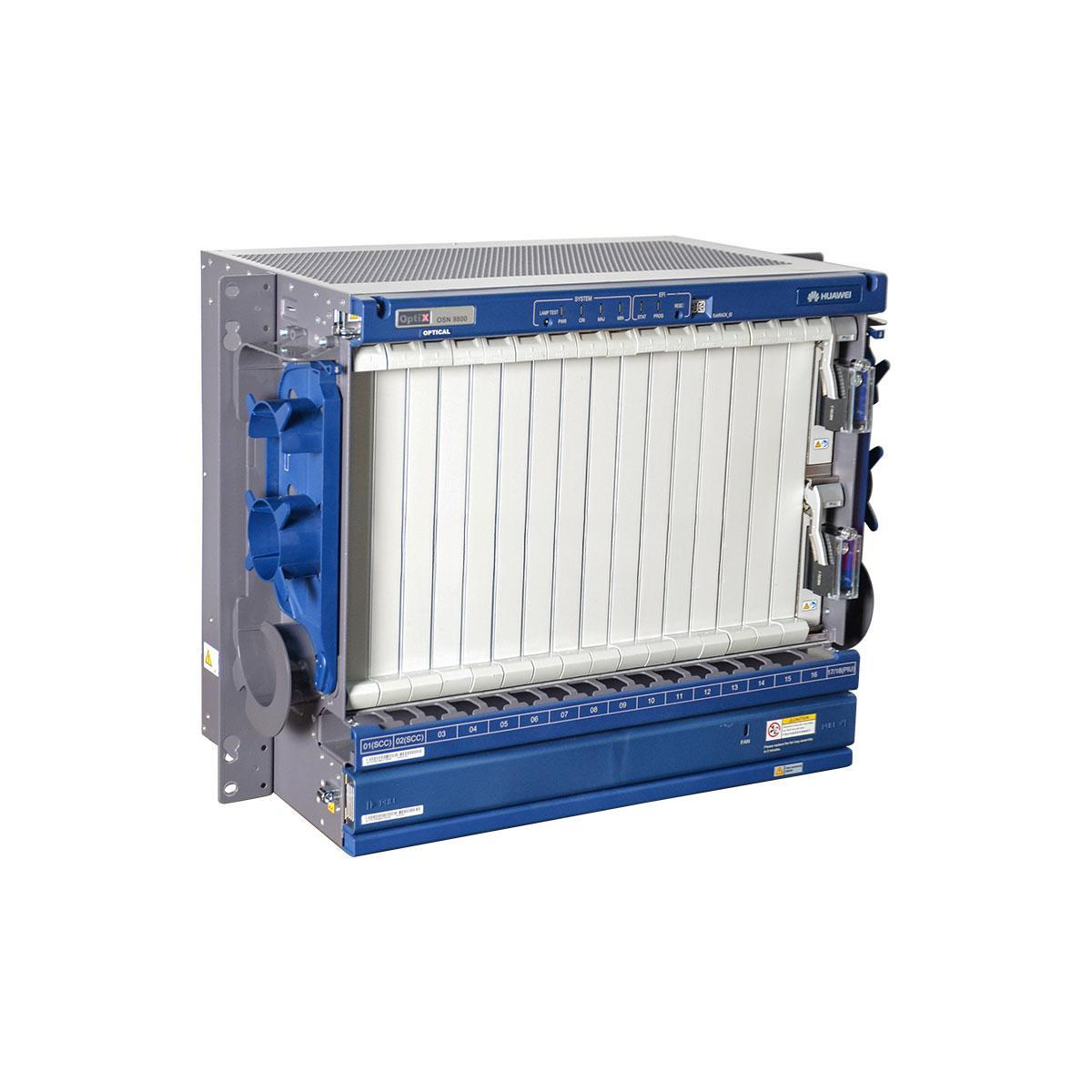

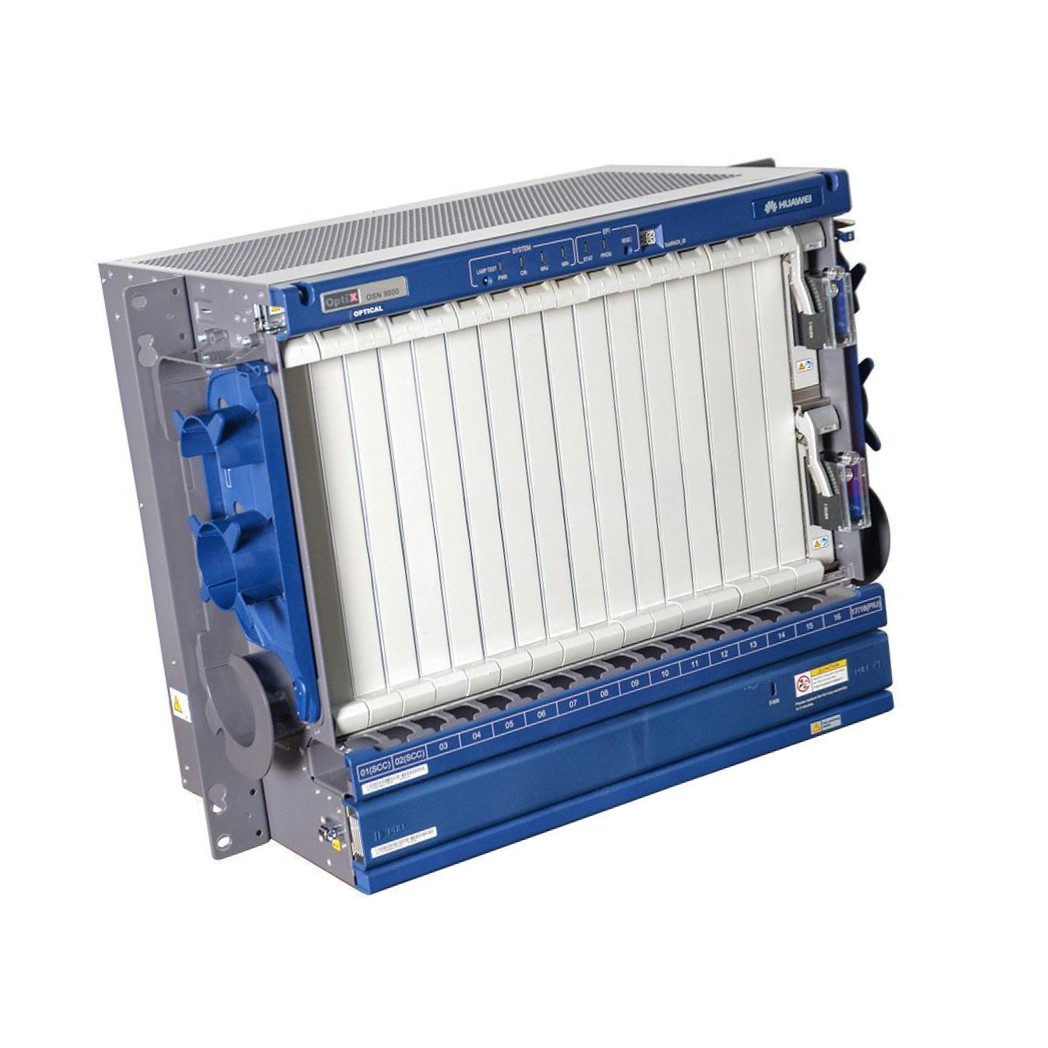

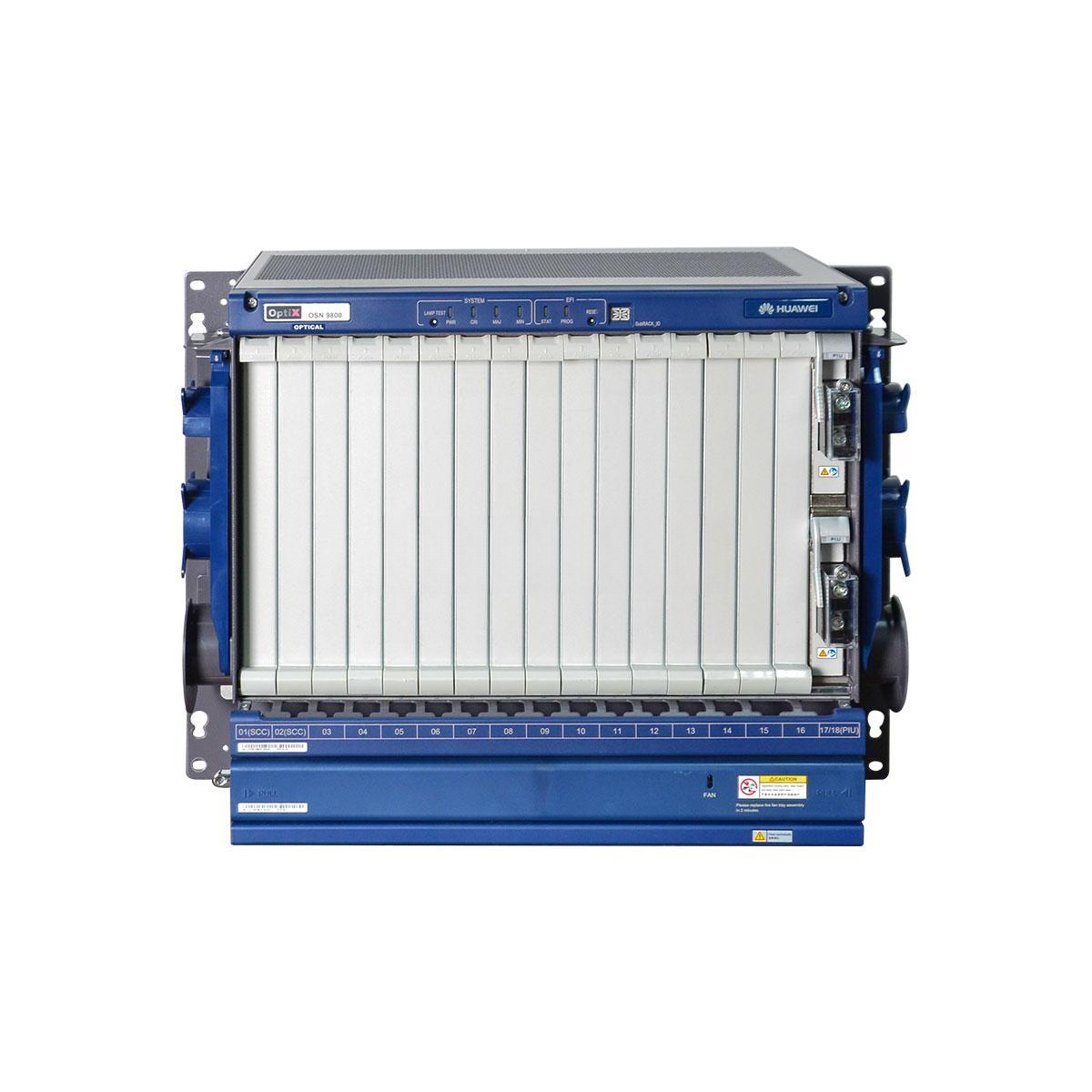

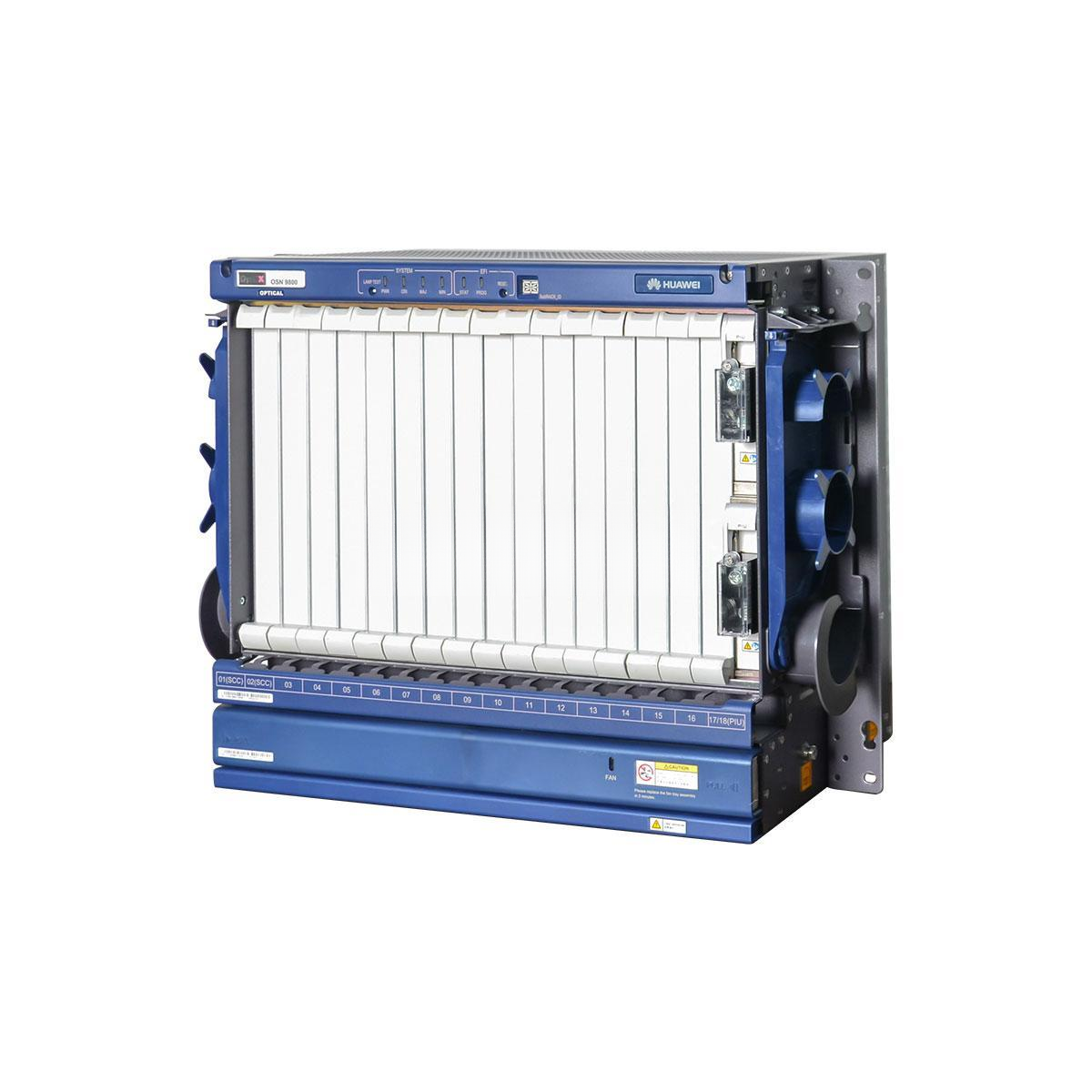

The Huawei OptiX OSN 9800 UPS Subrack with 2xPIU DC is a brand new, original Huawei subrack designed for use in the Huawei OptiX OSN 9800 series optical transport platforms. It comes pre-equipped with two Power Interface Units (PIU DC) for reliable and stable DC power supply, ensuring secure operation of all installed service, cross-connect, and control boards.
This subrack serves as the physical foundation for high-capacity OTN/SDH transport networks, providing flexible slots for various service and interface boards. Its robust design supports high-density transmission, efficient space utilization, and convenient expansion to meet growing bandwidth demands.
Built to Huawei’s stringent carrier-grade standards, the OptiX OSN 9800 UPS Subrack with 2xPIU DC ensures stable, redundant power supply and high availability for mission-critical applications in core and metro networks.
Key Features:
-
Model: OptiX OSN 9800 UPS Subrack with 2xPIU DC
-
Condition: 100% Brand New, Original Huawei
-
Type: Optical Transport Network (OTN) Subrack
-
Configuration: Includes 2 x DC Power Interface Units (PIU DC) for redundant power input
-
Function: Houses and powers service, cross-connect, control, and monitoring boards
-
Capacity: Supports high-density board configuration for flexible service access and transmission
-
Reliability: Dual PIU DC units ensure continuous, stable DC power supply with protection switching
-
Compatibility: Fully compatible with Huawei OptiX OSN 9800 series network elements
Tech Specs:
Specification
| Item | Details |
|---|---|
| Number of Service Slots | 16 |
| Cross-connect Type | N/A |
| Cross-connect Capability | N/A |
| Channel Spacing | – 100 GHz fixed grid for 40/48 wavelengths – 50 GHz fixed grid for 80/96 wavelengths – 37.5 GHz to 400 GHz flex grid |
| Rate per Channel (Maximum) | 100G / 200G / 400G |
| Services | SDH/SONET, Ethernet, SAN, OTN, Video |
| Wavelength Range | DWDM: 1529.16 nm to 1560.61 nm (C band, ITU-T G.694.1) |
| Power Supply | –48 V DC / –60 V DC |
| Cabinet | ETSI 300-/600-mm deep cabinets (e.g., N63B and N66B), 19-inch cabinet |
| Number of Slots for Service Boards | DC-powered chassis: 16 AC-powered chassis: 15 |
| Optical Switching Capability | 1-degree to 20-degree ROADM |
| Service Type | SDH/SONET, Ethernet, SAN, OTN, Video |
| Line Rate | 2.5G / 10G / 40G / 100G / 200G / 400G |
| Supported Pluggable Optical Modules | eSFP, SFP+, XFP, CFP, CFP2, QSFP28, QSFP+ |
| Equipment-level Protection | Power supply redundancy, fan redundancy, system control and communication board redundancy |
| Network-level Protection (OTN) | Optical line protection, client 1+1 protection, SW SNCP, intra-board 1+1 protection, LPT |
| Synchronization | Synchronous Ethernet clock, IEEE 1588v2, ITU-T G.8275.1 |
| ASON | Optical-layer ASON |
| TSDN | Supported |
| Submarine Features | Supports application of extended C band in submarine scenarios |
| Nominal Working Voltage | -48V / -60V DC, 110V / 220V AC |
| Dimensions (W x D x H) (mm) | 442 × 295 × 397 |
| Weight (kg) | 8 |
Huawei OptiX OSN 9800 Applications:
The Huawei OptiX OSN 9800 UPS Subrack with 2xPIU DC is ideal for:
-
Core and metro OTN/SDH transport networks
-
Backbone transmission for telecom carriers and ISPs
-
High-capacity data, voice, and video traffic aggregation
-
Large enterprise, government, or utility transport infrastructure
-
Network expansions, upgrades, and system integration projects
Customization & OEM Services:
We provide customization and OEM solutions to fit your project needs, including:
-
Custom pre-configuration and subrack assembly
-
OEM branding and private labeling for resellers and integrators
-
Burn-in testing and extended quality assurance for mission-critical deployments
-
Custom packaging to optimize logistics and handling for bulk shipments
-
Technical support for installation, testing, and commissioning
Huawei OptiX OSN 9800 Wholesale & Bulk Orders:
We fully support wholesale supply and bulk procurement, offering:
-
Factory-direct pricing and competitive volume discounts
-
Stable inventory for large-scale network rollouts
-
Export-compliant protective packaging for secure global shipping
-
Dedicated account managers for end-to-end order management
-
Full warranty coverage and responsive post-sales support
Why Choose Us:
-
100% original Huawei hardware, tested and certified
-
Flexible solutions tailored to your unique network architecture
-
Competitive pricing for bulk orders and reseller partnerships
-
Secure, timely worldwide delivery
-
Expert technical assistance from planning to deployment
Contact Us for a Quote:
Upgrade your optical transport infrastructure with the Huawei OptiX OSN 9800 UPS Brand New Subrack with 2xPIU DC. Contact us today for detailed technical specs, compatibility advice, and competitive bulk pricing.
Our team is ready to help you build a future-ready network with genuine Huawei solutions.
