SKU 1600617491865 Categories ,
  • Model Number:H801SCUH
  • Type:OLT
  • Place of Origin:Guangzhou
  • Brand Name:Huawei
  • Use:FTTx
  • Warranty Time:1 year
  • Network:None
  • Supply Ability
    500 Piece/Pieces per Week
  • Packaging Details

    cartons

  • Port

    Shenzhen

  • Picture Example:
  • Lead time:Quantity(pieces)1 – 1000>1000Lead time (days)15To be negotiated

Overview

Huawei SCUH Control Board can be used as the management and control core of unified network management. SCUH board delivers key management control information through the master-slave serial interface, the in-band 10GE/20GE channel, and the service board to complete the configuration, management, and control of the entire product, and implements simple routing protocols.



Specifications

Brand Huawei
Board H801SCUH
Panel ports 4 GE/10GE ports, Supporting automatic switching for remote software commissioning using GE upstream transmission.
Channel to the service board 16 10GE/20GE channels
Channel to the GIU board Providing two 10GE channels for each upstream boards
Channel to the standby control board Providing two 20GE channels for load sharing with the standby H801SCUH board
Access Service Optical and copper
Daughter Board No
Load sharing Yes
Ethernet synchronization Yes
Temperature querying and high temperature alarming Yes
Built-in 2GB CF card Yes
Centric Management for GE Remote Extended Subracks No
D-CMTS No

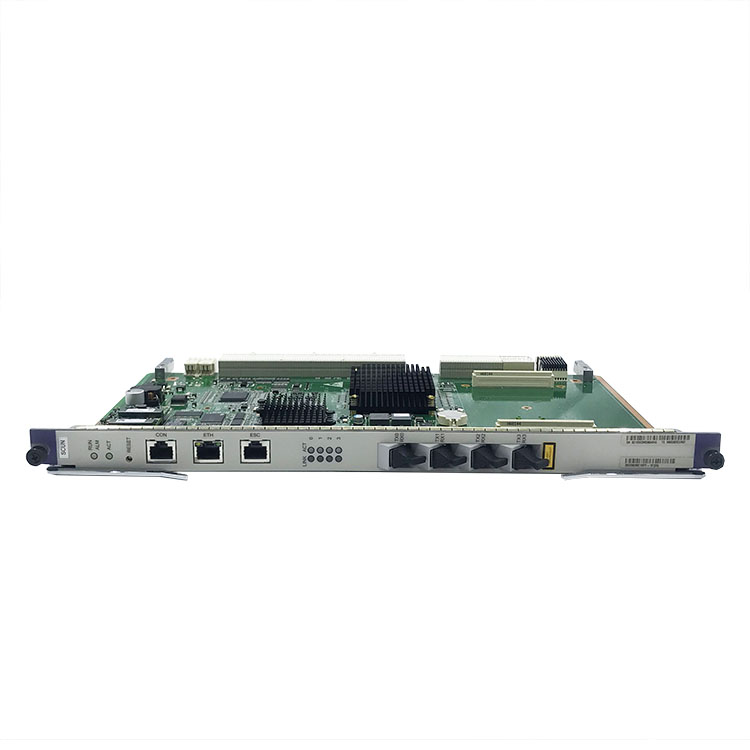

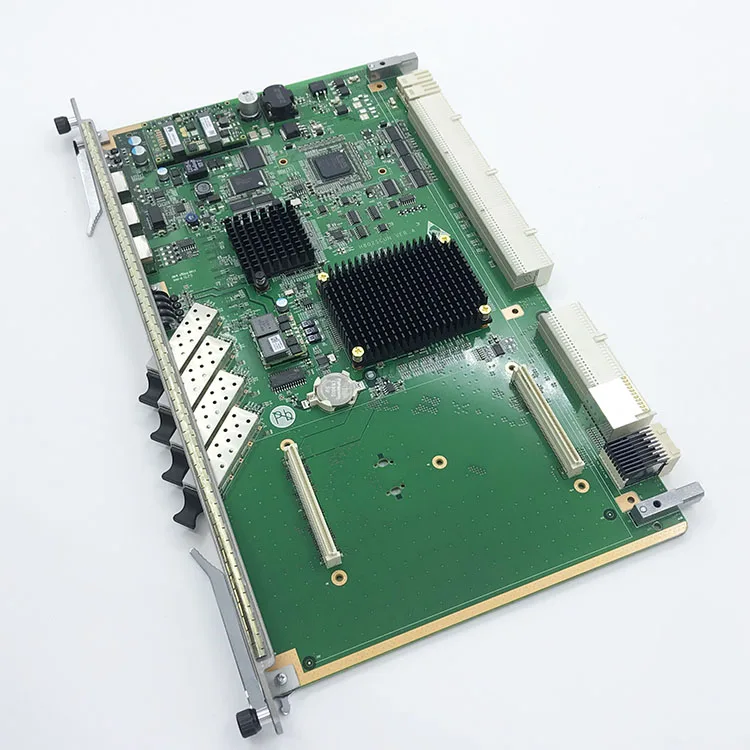

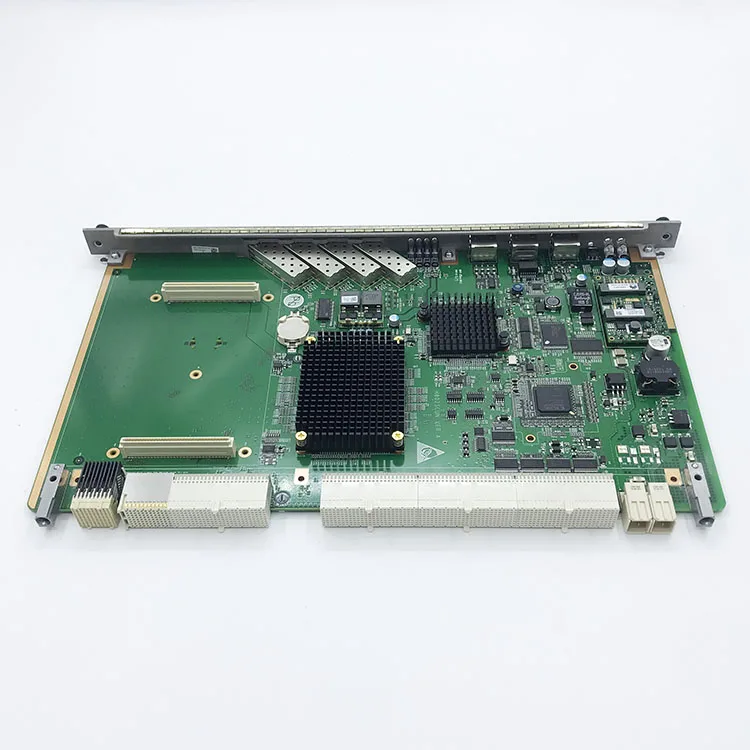

Product Pictures



Huawei SCUH SCUN 023JCH H80D00SCUH01 for MA5600T MA5603T Control board H801SCUH OLTHuawei SCUH SCUN 023JCH H80D00SCUH01 for MA5600T MA5603T Control board H801SCUH OLTHuawei SCUH SCUN 023JCH H80D00SCUH01 for MA5600T MA5603T Control board H801SCUH OLTHuawei SCUH SCUN 023JCH H80D00SCUH01 for MA5600T MA5603T Control board H801SCUH OLTHuawei SCUH SCUN 023JCH H80D00SCUH01 for MA5600T MA5603T Control board H801SCUH OLTHuawei SCUH SCUN 023JCH H80D00SCUH01 for MA5600T MA5603T Control board H801SCUH OLT
