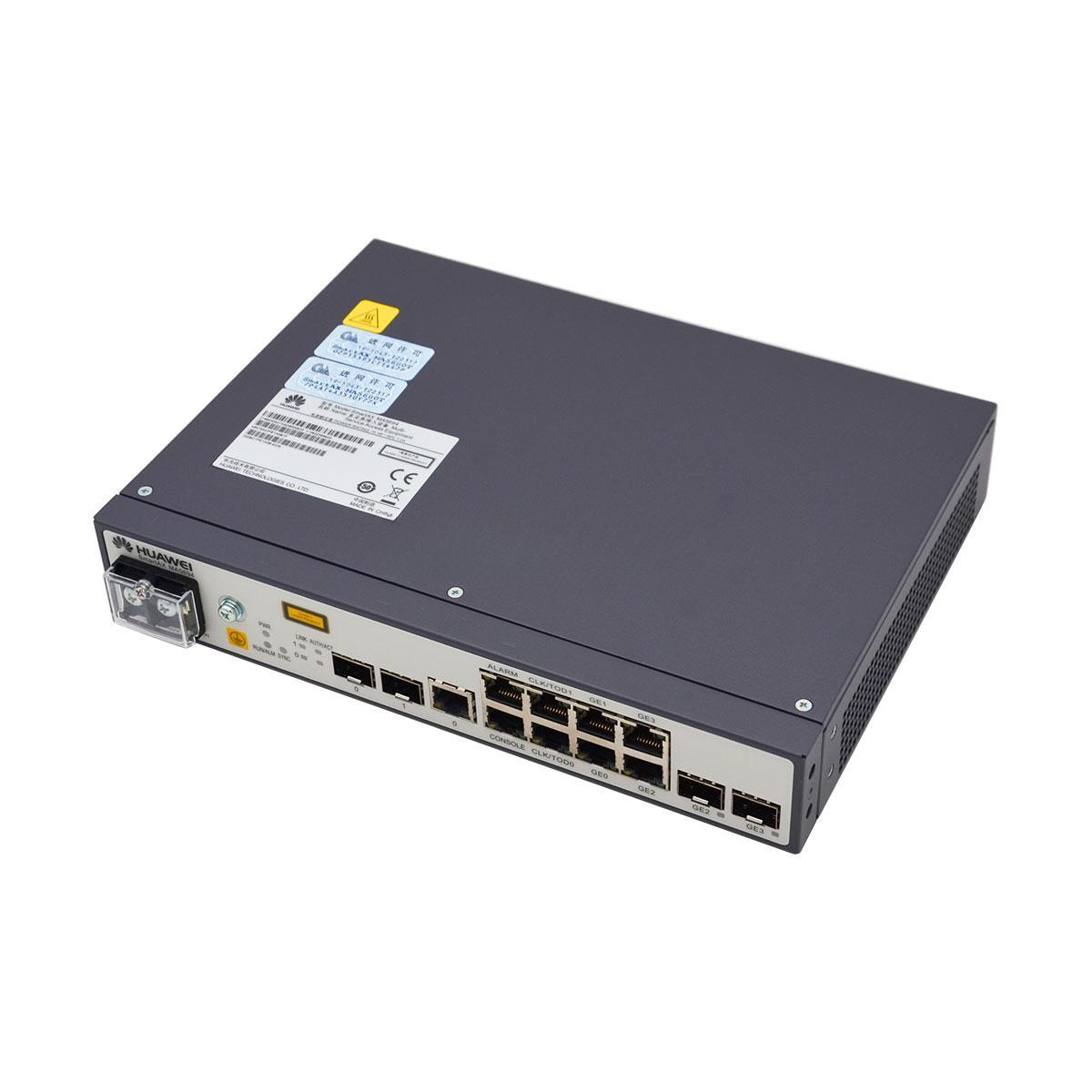

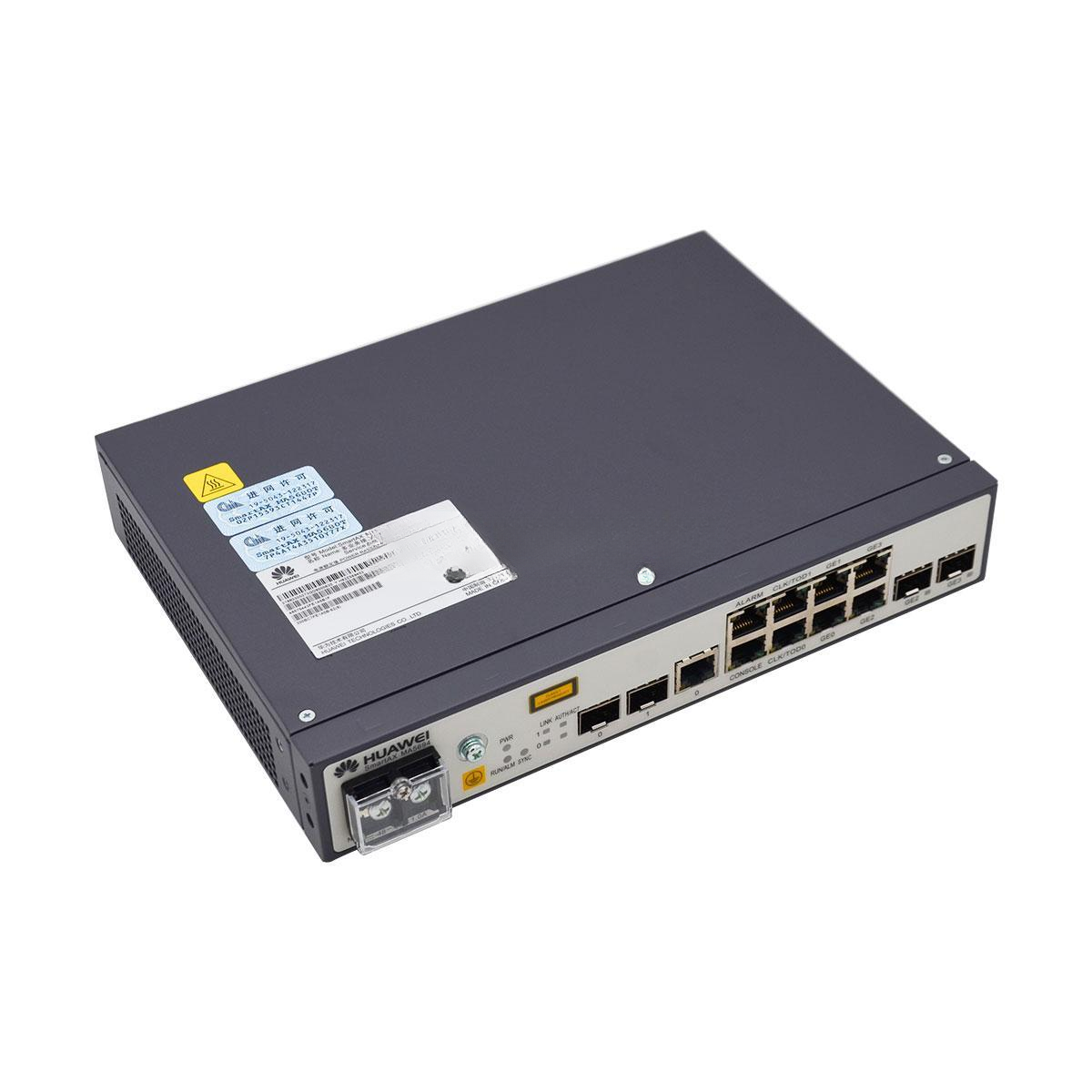

Huawei SmartAX MA5694 Description:
The Huawei SmartAX MA5694 is a brand new, original Huawei Optical Network Unit (ONU) designed for high-performance FTTH and FTTB deployments. This compact ONU provides flexible and reliable last-mile connectivity with its 2*GPON/GE ports, ensuring stable high-speed broadband access for residential, enterprise, and small business users.
Built on Huawei’s proven SmartAX series platform, the MA5694 delivers carrier-grade performance with excellent interoperability, efficient bandwidth management, and easy integration with Huawei OLT equipment. Its robust hardware design and intelligent service management features make it a versatile choice for ISPs and telecom operators rolling out next-generation fiber networks.
Key Features:
-
Model: SmartAX MA5694
-
Condition: 100% Brand New, Original Huawei
-
Type: Optical Network Unit (ONU)
-
Ports: 2*GPON/GE Combo Ports for flexible uplink/downlink connections
-
High Performance: Supports high-bandwidth triple-play services including voice, video, and data
-
Reliable Access: Designed for 24/7 stable operation in diverse network environments
-
Interoperability: Fully compatible with Huawei GPON OLT platforms
-
Flexible Deployment: Compact, space-saving design for FTTH, FTTB, or small enterprise applications
-
Easy Management: Supports remote provisioning, monitoring, and troubleshooting via standard management systems
Tech Specs:
Specifications

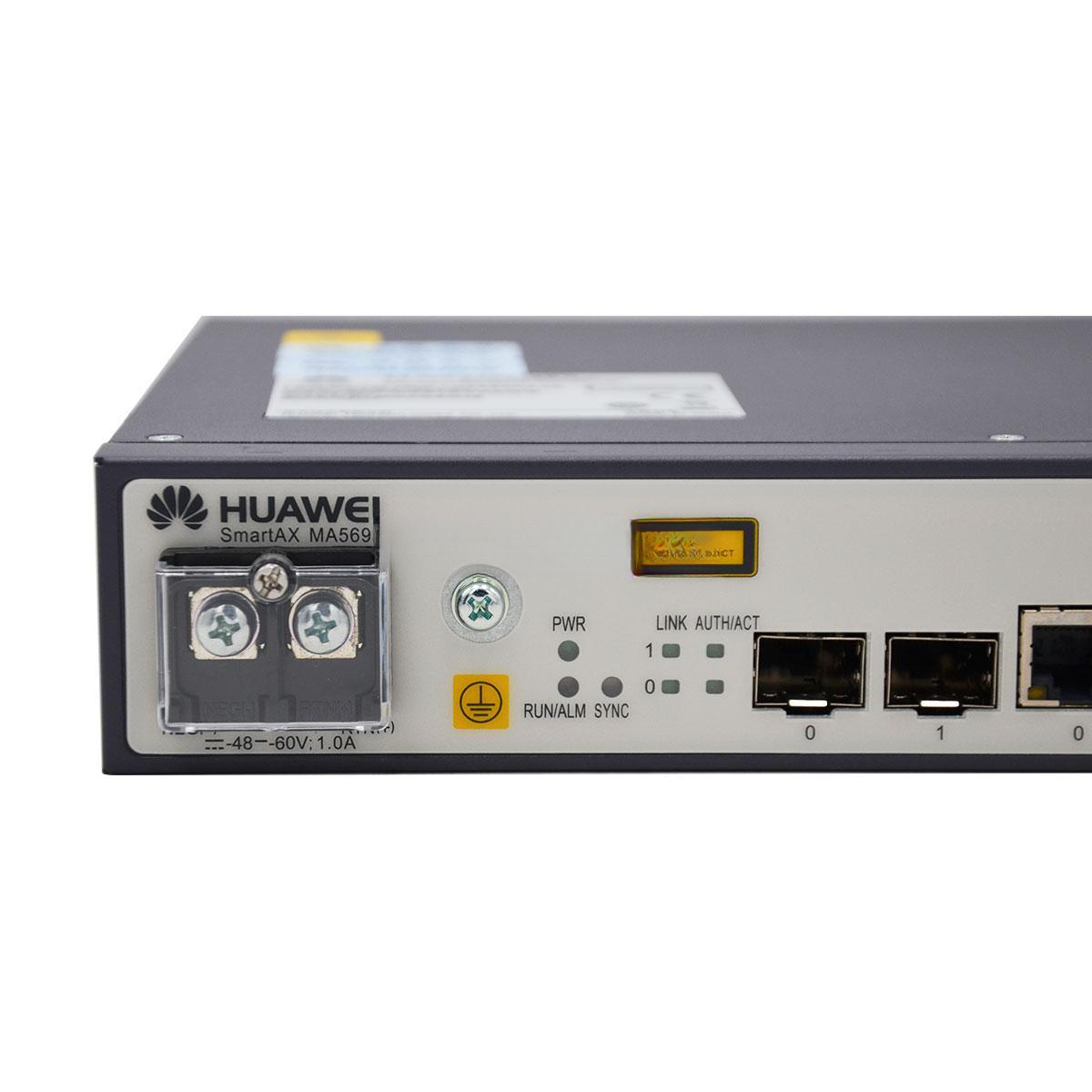

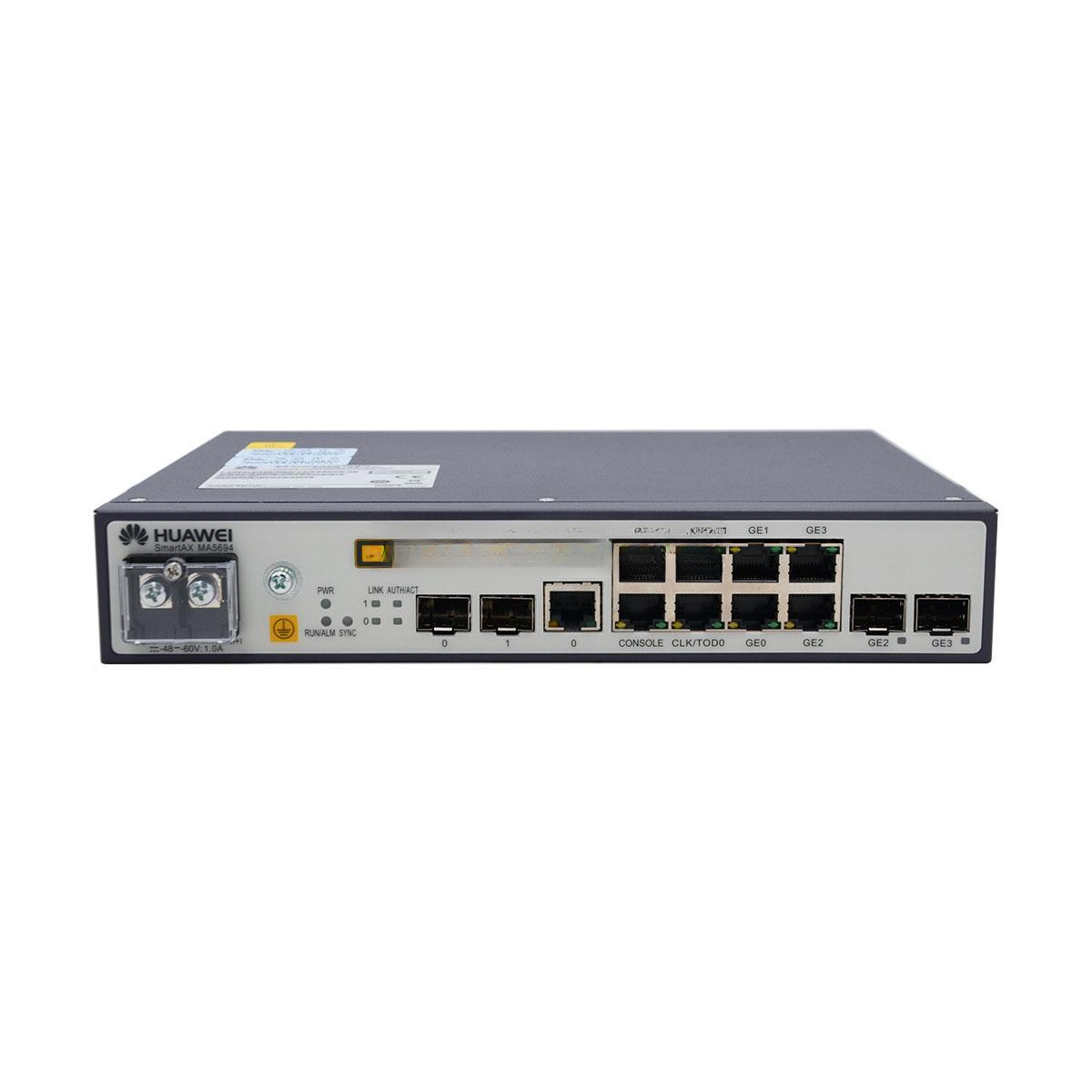

| Port Name | Silkscreen | Description |
|---|---|---|
| AC/DC Power Port | — | Accepts 220 V AC or 48 V DC power input. |
| Uplink Optical Port | 0 and 1 | Supports GPON and GE upstream transmission. |
| GE Cascading or Uplink Electrical Port | 0 | Supports GE cascading and upstream transmission. Can serve as an alternative to uplink optical port 0. |
| Environment Monitoring Parameter Port | ALARM | Connects up to four digital sensors for monitoring door status, surge protection, main distribution frame (MDF), and smoke detection. Supports user-defined monitoring parameters. |
| Commissioning Serial Port | CONSOLE | Used exclusively for maintenance and local commissioning. |
| Clock or Time Output Ports | CLK/TOD0 and CLK/TOD1 | Inputs and outputs clock or time signals. – CLK/TOD0: 2.048 MHz clock input/output and 1 PPS+TOD time input/output. – CLK/TOD1: 2.048 MHz clock input/output and 1 PPS+TOD time output. |
| GE Electrical Ports | GE0, GE1, GE2, GE3 | Provides user access services. Ports GE2 and GE3 can be used as alternatives to optical ports GE2 and GE3 (only one type can be used at a time). The MA5694 can be locally managed via GE0. |
| GE Optical Ports | GE2 and GE3 | Provides user access services. These ports can be used instead of electrical ports GE2 and GE3. |
Physical Specifications
| Parameter | Value |
|---|---|
| Dimensions (W × D × H) | – Without mounting brackets: 442 mm × 220 mm × 43.6 mm – With 19-inch mounting brackets: 482.6 mm × 220 mm × 43.6 mm |
| Weight | 2.5 kg |
| Power Supply Mode | |
| – Operating Voltage (AC) | 90 V AC to 300 V AC |
| – Maximum Input Current (AC) | 0.5 A |
| – Operating Voltage (DC) | –38.4 V DC to –72 V DC |
| – Maximum Input Current (DC) | 1.0 A |
Huawei SmartAX MA5694 Applications:
The SmartAX MA5694 ONU is ideally suited for:
-
FTTH (Fiber-to-the-Home) residential broadband networks
-
FTTB (Fiber-to-the-Building) small business deployments
-
Enterprise private line services
-
Campus and multi-dwelling unit (MDU) broadband access
-
Community broadband rollouts
Customization & OEM Services:
To meet diverse project needs, we offer customization and OEM options for the SmartAX MA5694 ONU:
-
Custom firmware configuration and VLAN settings based on your network requirements
-
OEM branding and private labeling for system integrators and ISPs
-
Custom packaging for bulk deployments or regional logistics
-
Extended burn-in testing for projects with high reliability demands
Huawei SmartAX MA5694 Wholesale & Bulk Orders:
Work with us for wholesale and large-volume supply of Huawei ONUs:
-
Factory-direct competitive pricing for bulk purchases
-
Fast global shipping with export-compliant secure packaging
-
Dedicated account managers to support your project end-to-end
-
Reliable stock availability for smooth rollouts
-
Full technical support and after-sales warranty service
Why Choose Us:
-
100% original Huawei SmartAX series ONU, tested and certified
-
Tailored solutions for ISPs, telecom operators, and integrators
-
Attractive pricing for bulk and repeat orders
-
Flexible logistics and project packaging
-
Professional technical support before and after deployment
Contact Us for a Quote:
Enhance your fiber network with the Huawei SmartAX MA5694 Brand New ONU with 2*GPON/GE Ports.
Contact us today for detailed specifications, tailored configuration options, and competitive wholesale pricing. Our team is ready to help you deliver high-quality, high-speed broadband services with trusted Huawei equipment.
