CR8DE2KB00F0 Huawei Description:

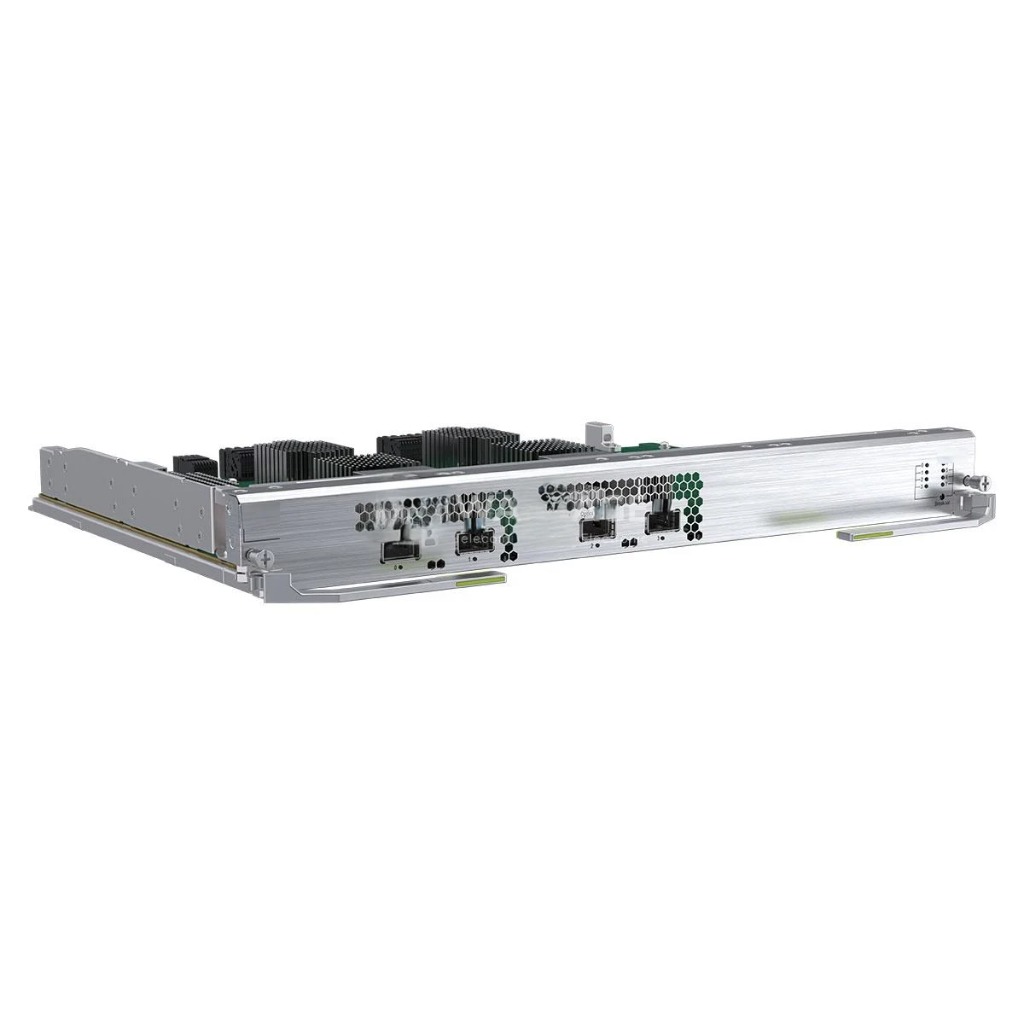

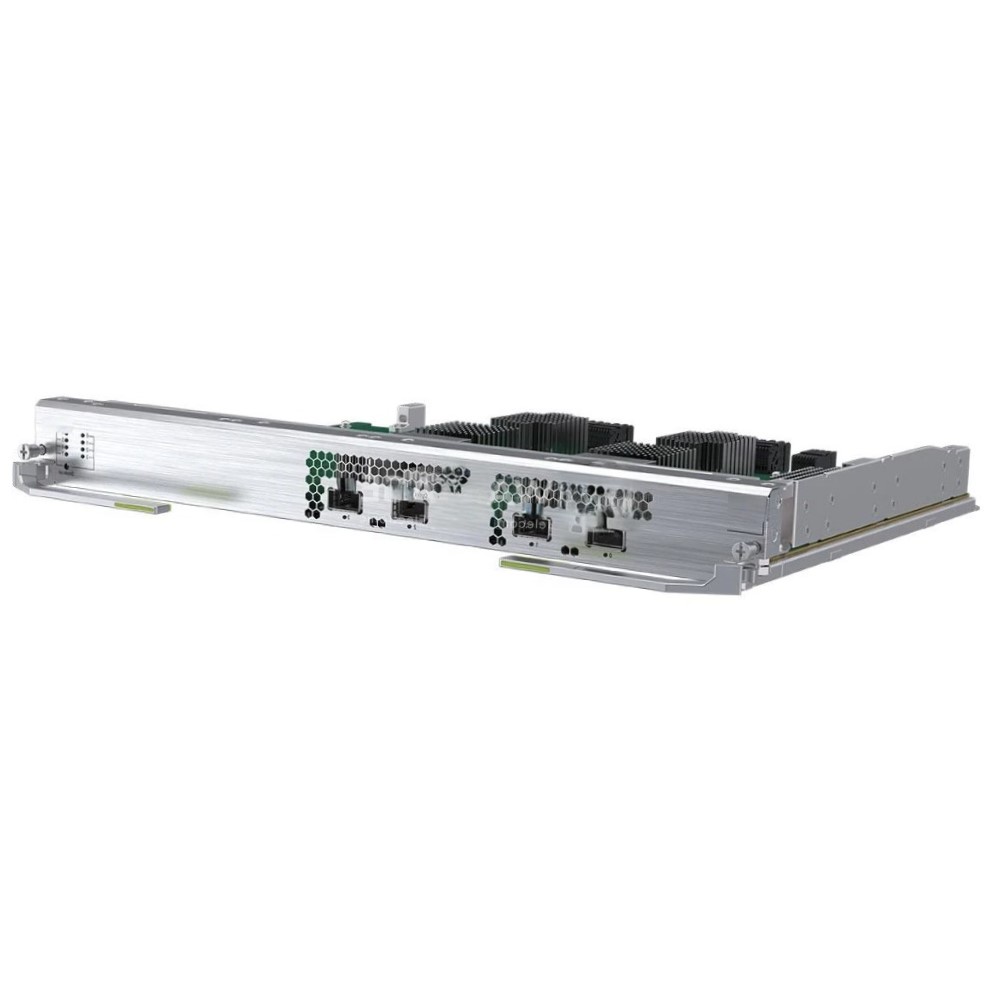

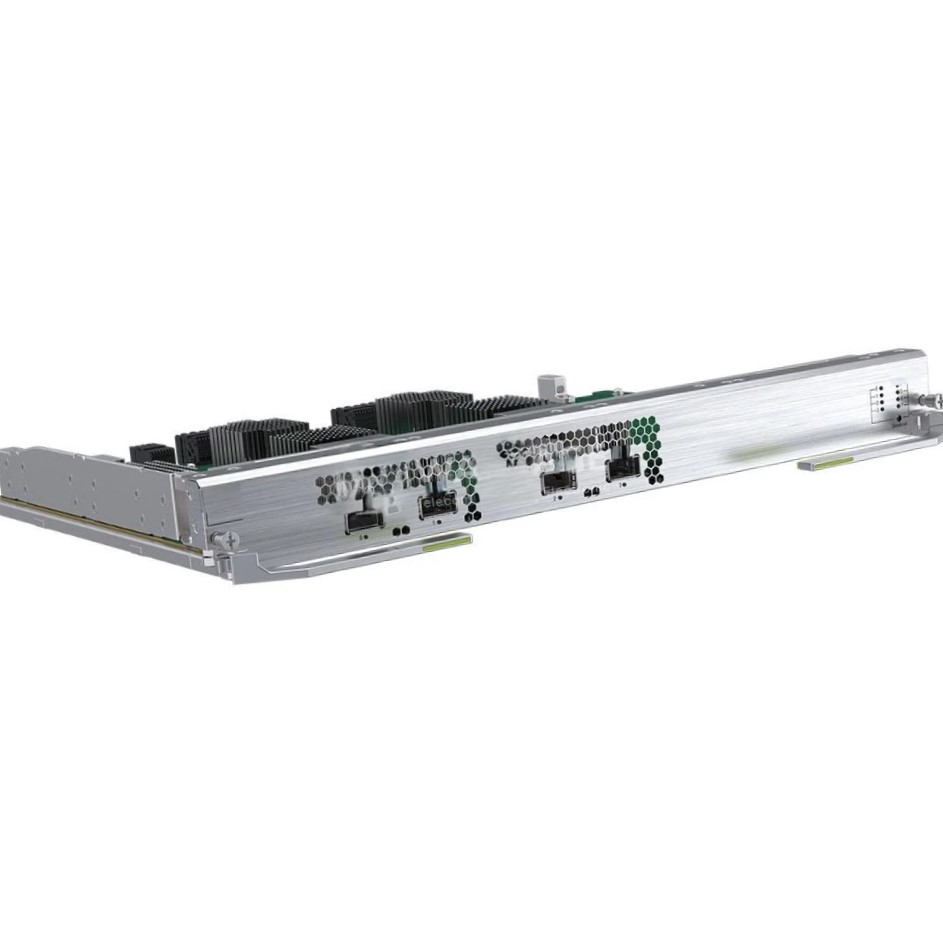

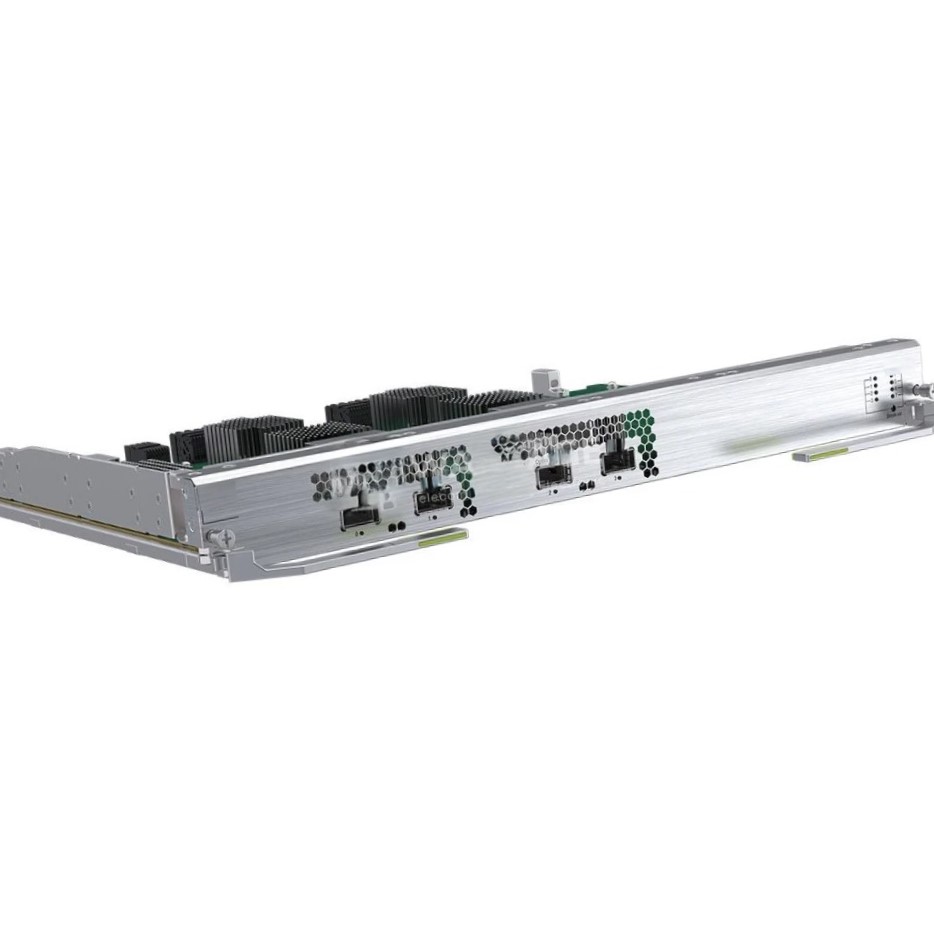

The CR8DE2KB00F0 Huawei is a brand new, original Huawei NetEngine 8000 F8 series 400GBase Line Processing Unit, engineered for next-generation IP backbone and metro networks. This high-capacity module is designed to deliver ultra-broadband, low-latency forwarding, and intelligent traffic management for data-intensive applications in large-scale network infrastructures.
As part of Huawei’s flagship NetEngine 8000 F8 router series, the CR8DE2KB00F0 unit supports 400G high-speed interfaces and leverages advanced hardware acceleration, innovative SRv6 capabilities, and intelligent O&M for carrier-grade service delivery. It meets the growing demand for massive bandwidth, cloud connectivity, and 5G transport in core and aggregation layers.
Key Features:
-
Model: CR8DE2KB00F0
-
Condition: 100% Brand New, Original Huawei
-
Type: 400GBase Line Processing Unit for NetEngine 8000 F8
-
High Capacity: Supports 400G high-speed interfaces for ultra-broadband backbone and metro networks
-
Performance: Delivers industry-leading throughput with low latency and high reliability
-
Intelligent Transport: Supports advanced features like SRv6, segment routing, and hierarchical QoS
-
Energy Efficient: Designed with power-saving hardware architecture for green networks
-
Carrier-Grade Reliability: Supports redundant design and hot-swappable features for non-stop service
-
Future-Proof: Enables smooth evolution for cloud, data center interconnect (DCI), and 5G transport
Tech Specs:
Specifications
| Item | Details |
|---|---|
| Basic Function | – Provides two 400GE QSFP-DD interfaces and two QSFP28 optical amplifier interfaces. – QSFP-DD interface rate: 400 Gbit/s. – QSFP28 interfaces support fiber amplifier modules. |
| Compatibility | – With CR8D0SFUT6D0 (03050LDA): FlexE supported in slots 3–6; common Ethernet in other slots. – With CR8D0SFUT6D1 (03050MND) and CR8D0SFUT6D2 (03050MNH): FlexE supported in all slots. |
| Reliability & Availability | Hot-swappable |
| Restrictions & Remarks | – When using ZR optical modules, reduce short-term operating limit to 50°C. – When using ZR+ optical modules, reduce long-term and short-term operating limits to 40°C. |
| Breakout Support | Supported. Use the port split command to enable. |
| Interface Rate Auto-sensing | Not supported |
| FlexE Support | Supported. – CR8D0SFUT6D0 SRU (slots 3 or 6): 1 physical port per group; port ID: 1000–3000; max 56 FlexE clients. – CR8D0SFUT6D0 SRU (slots 4 or 5): 1 or 3 physical ports per group; port ID: 1000–3000; max 56 FlexE clients. – CR8D0SFUT6D1 (03050MND) & CR8D0SFUT6D2 (03050MNH): 1 and 3 physical ports can be added to the same group; port ID: 1000–3000; max 80 FlexE clients. |
Physical Specifications
| Parameter | Value |
|---|---|
| Dimensions (H × W × D) | 190 mm × 590 mm × 470 mm |
| Weight (with packaging) | 4.8 kg |
| Typical Power Consumption | 123 W |
| Typical Heat Dissipation | 243.3 BTU/hour |
| Long-term Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Short-term Operating Temperature | –5°C to +55°C (23°F to 131°F) |
CR8DE2KB00F0 Huawei Applications:
The CR8DE2KB00F0 NetEngine 8000 F8 400GBase is ideally suited for:
-
National and regional IP backbone networks
-
Metro aggregation and core routing
-
Cloud interconnect and data center backbone
-
5G transport and ultra-broadband service delivery
-
Carrier and ISP large-scale network expansions
CR8DE2KB00F0 Huawei Customization & OEM Services:
We provide flexible customization and OEM solutions for your project:
-
Pre-configuration of line cards for your specific network needs
-
OEM branding for resellers and system integrators
-
Custom logistics packaging for large project rollouts
-
Extended burn-in and quality testing for mission-critical environments
Wholesale & Bulk Orders:
Partner with us for wholesale supply and bulk purchasing:
-
Factory-direct pricing with competitive volume discounts
-
Reliable global inventory and export-compliant packaging
-
Fast worldwide shipping and dedicated logistics support
-
Full warranty coverage and professional after-sales service
-
Dedicated account managers for smooth, large-scale deployments
Why Choose Us:
-
100% genuine Huawei hardware, fully tested and certified
-
Tailored solutions for complex transport and backbone network demands
-
Competitive pricing for telecom carriers, ISPs, and integrators
-
Expert support for project planning, implementation, and ongoing operation
-
Professional, secure packaging and reliable global delivery
Contact Us for a Quote:
Upgrade your IP transport backbone with the CR8DE2KB00F0 Huawei Brand New NetEngine 8000 F8 400GBase line card.
Contact us today for detailed technical specifications, customization options, and competitive wholesale pricing. We’re ready to help you build scalable, intelligent, and future-proof network solutions with trusted Huawei infrastructure.
