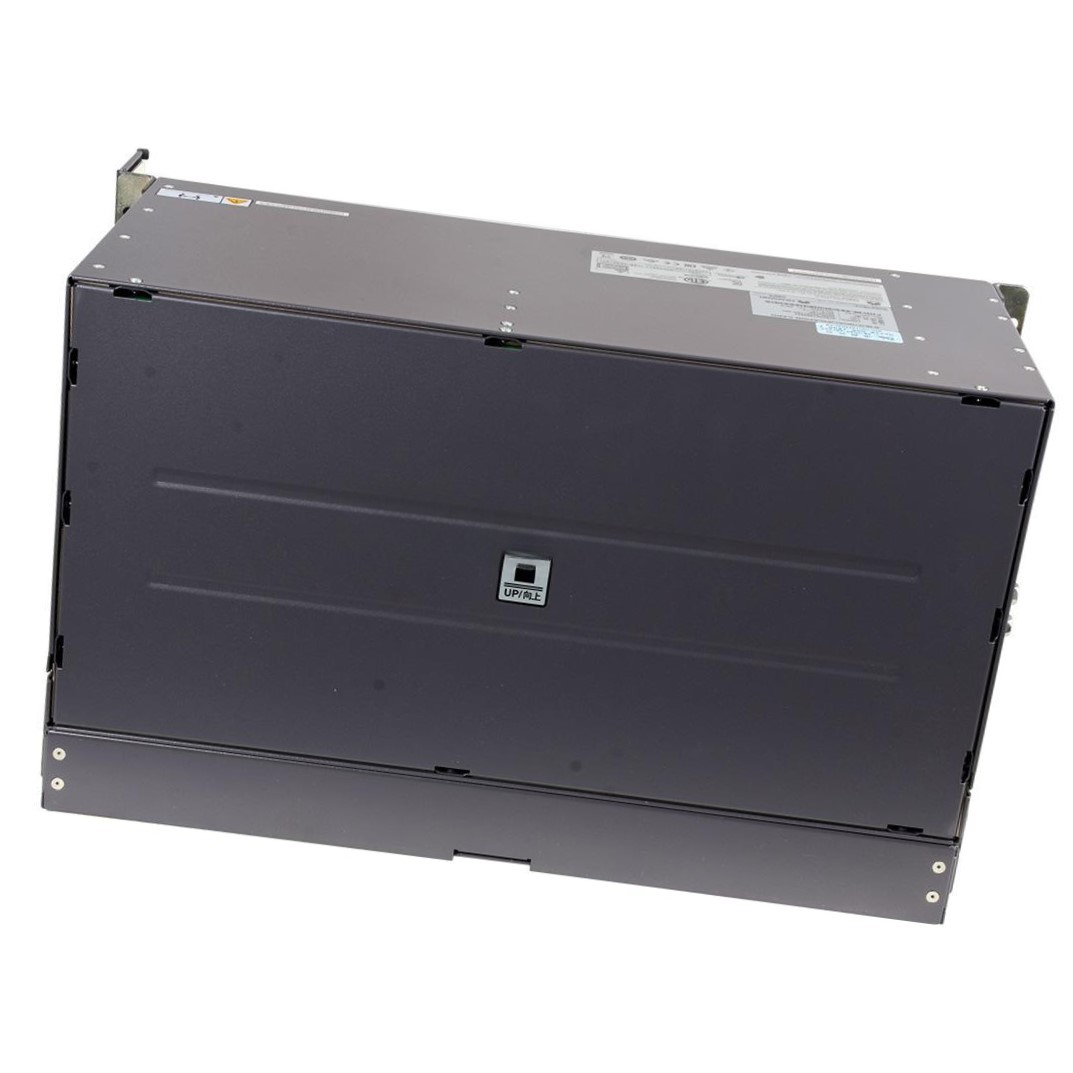

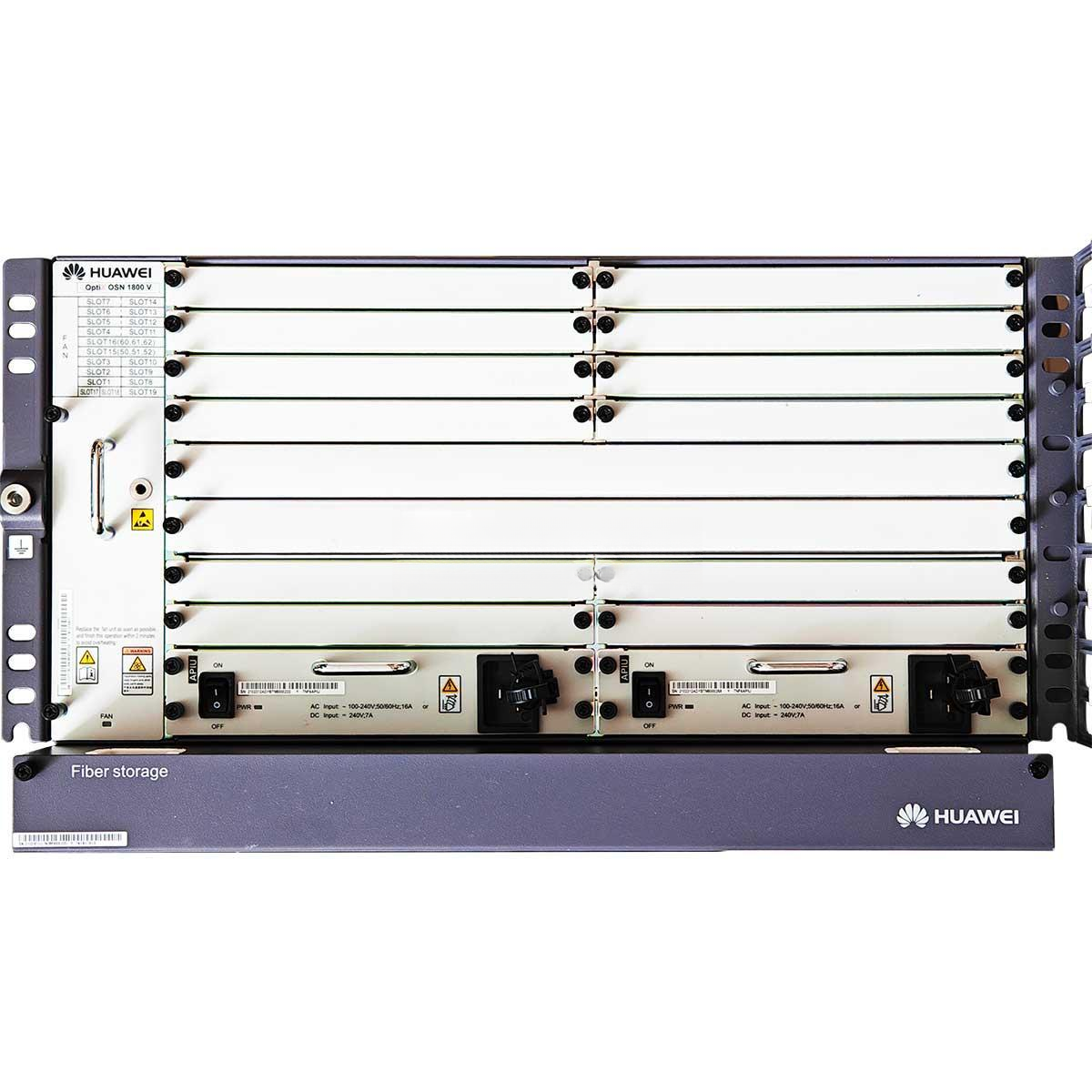

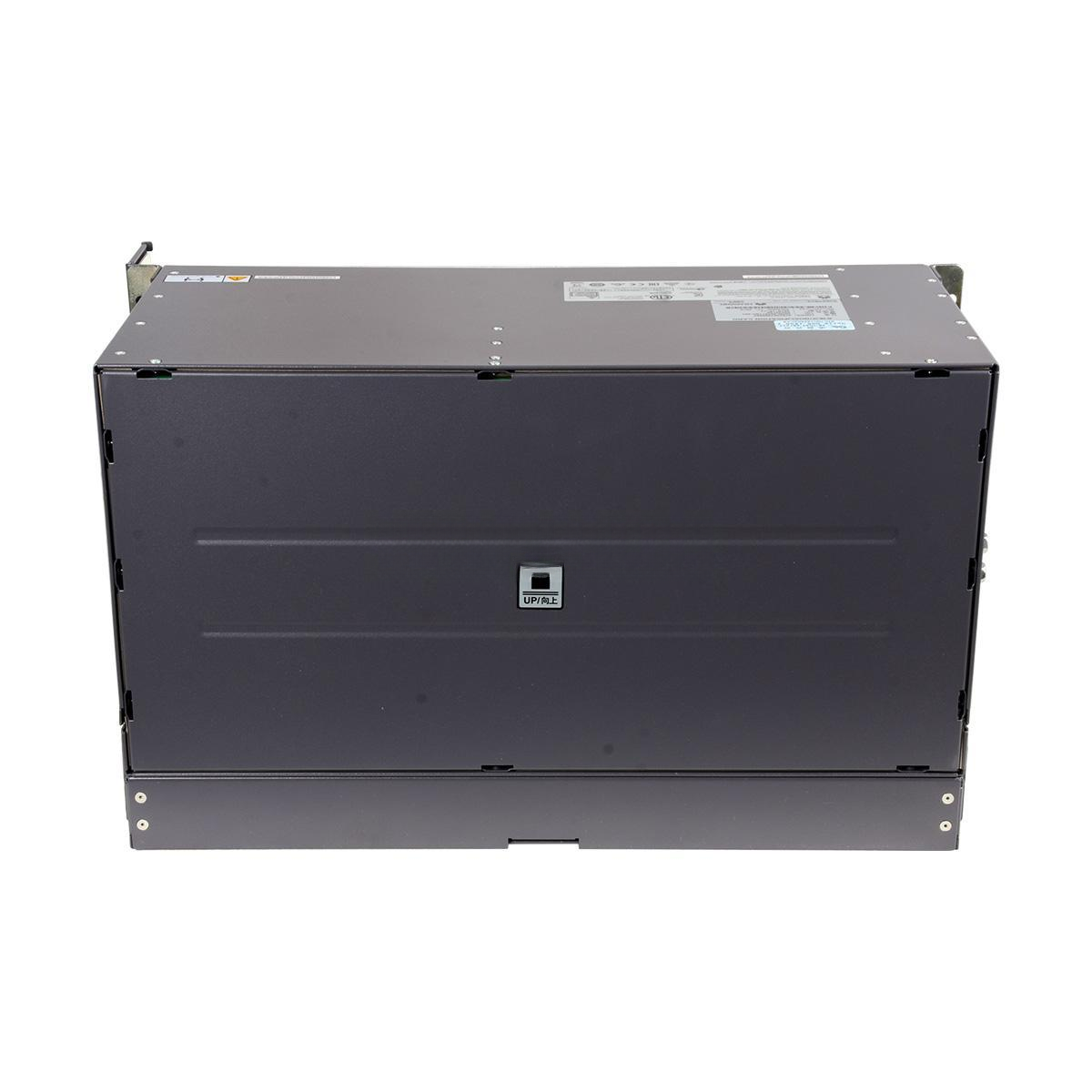

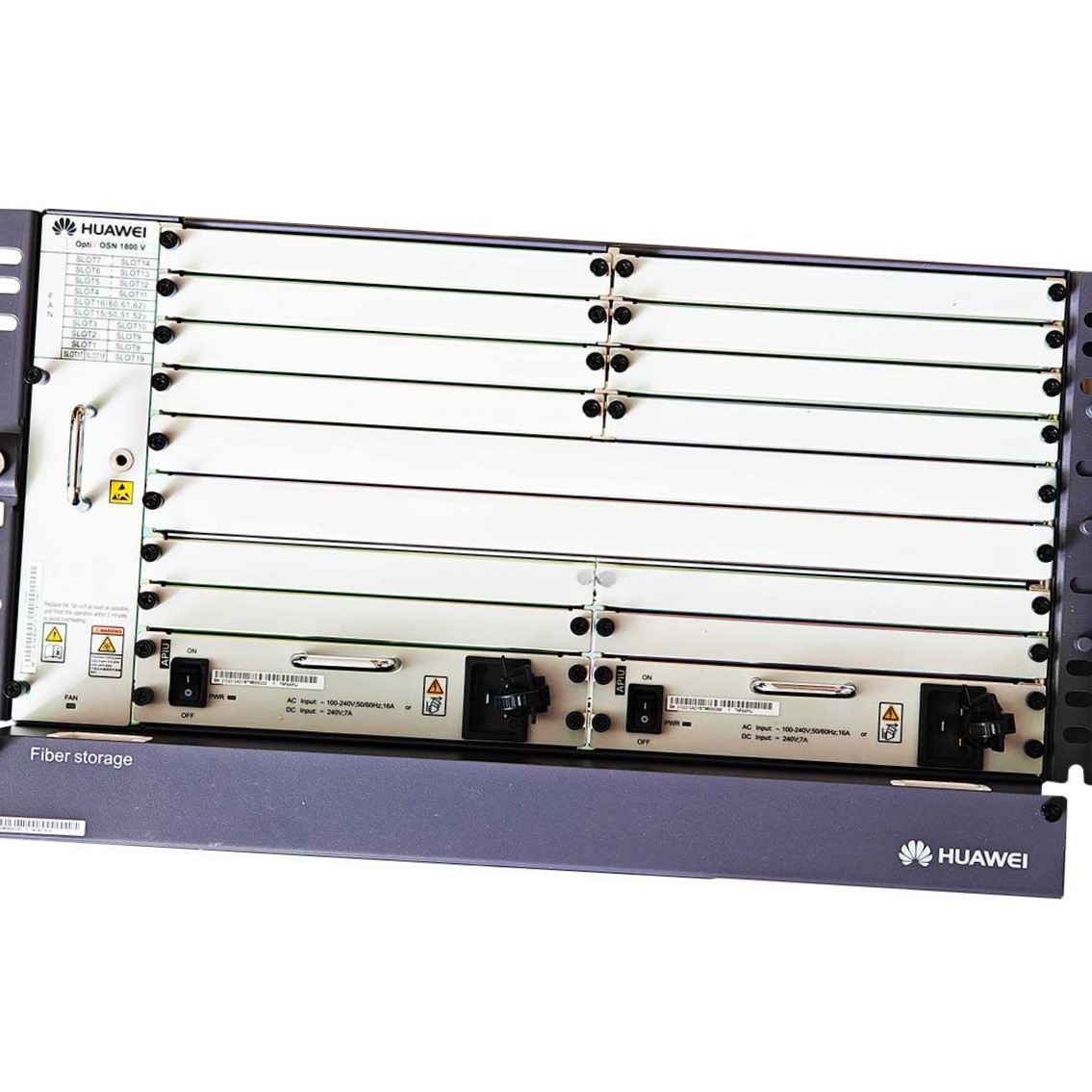

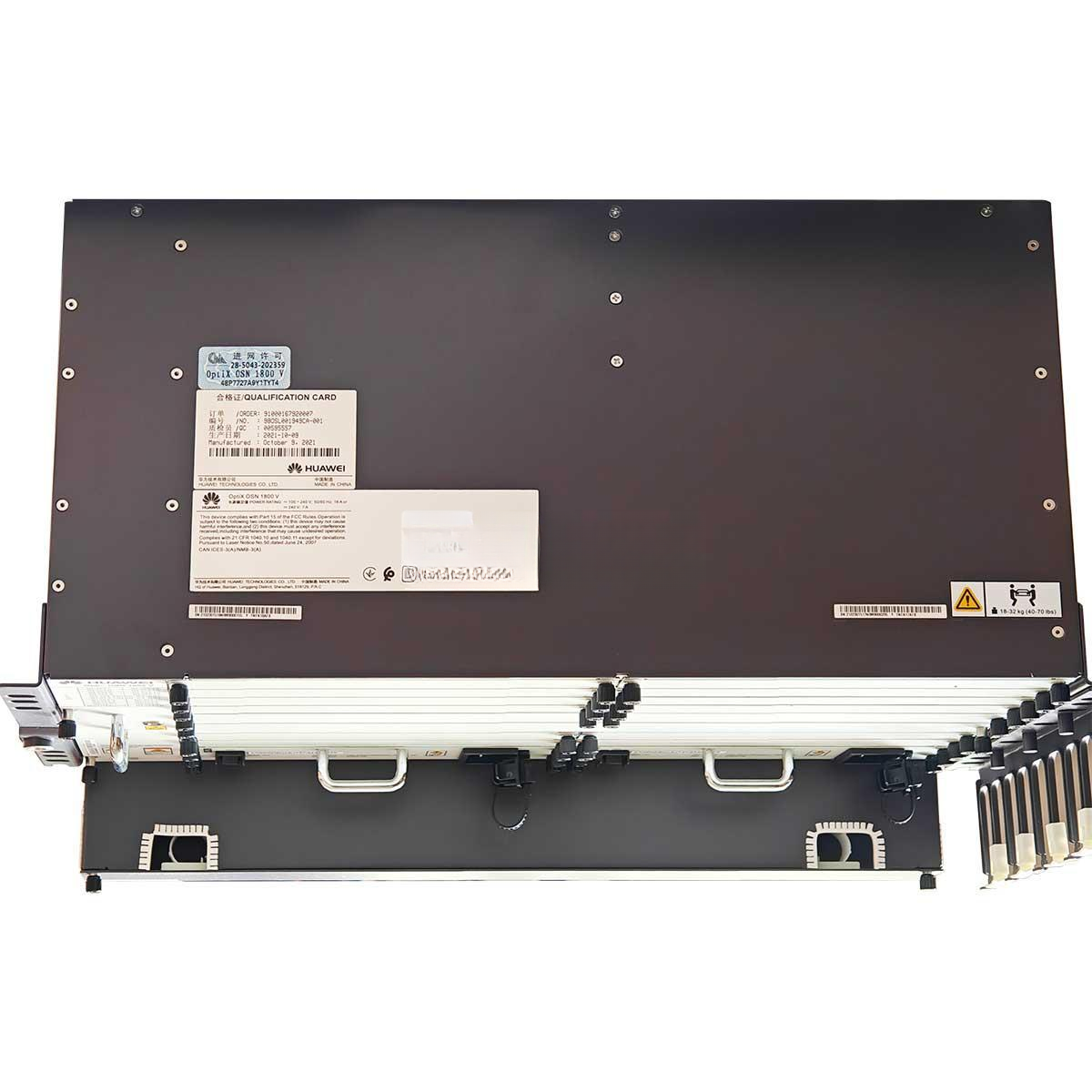

Huawei OptiX OSN 1800V AC Description:
The Huawei OptiX OSN 1800V AC is a brand new, original compact MSTP (Multi-Service Transport Platform) designed to provide flexible and cost-effective optical transmission solutions for metro and access networks. This unit comes equipped with an integrated AC power module, delivering stable and reliable operation for diverse network environments.
The OSN 1800V series supports SDH, packet transport, and OTN technologies, making it ideal for converged transport of voice, video, and data services. With its small footprint, high integration, and modular design, the OSN 1800V AC is well-suited for edge transmission nodes, enterprise private lines, or small-scale metro aggregation layers where high performance and carrier-class reliability are critical.
Key Features:
-
Model: OptiX OSN 1800V AC
-
Condition: 100% Brand New, Original Huawei
-
Type: Compact MSTP / OTN transmission platform
-
Power Supply: Integrated AC power module for flexible deployment
-
Transport Technologies: Supports SDH, packet transport, and OTN
-
Compact & Modular: Flexible slot design for multiple service boards
-
High Reliability: Carrier-grade design with redundant power support
-
Easy Management: Supports centralized network management via NMS
-
Versatile Applications: Ideal for metro aggregation, private line, and access network scenarios
Tech Specs:
Specification
| Item | Details |
|---|---|
| Number of slots for service board | DC-powered chassis: 15 slots AC-powered chassis: 12 slots |
| Optical switching capability | 1 to 9-degree ROADM |
| Electrical switching capacity | OTN: 700 Gbit/s Packet service: 700 Gbit/s TDM: Higher order: 280 Gbit/s; Lower order: 40 Gbit/s |
| Maximum number of wavelengths | DWDM: 80 wavelengths CWDM: 8 wavelengths |
| Center wavelength range | DWDM: 1529.16 nm to 1560.61 nm (C Band, ITU-T G.694.1) CWDM: 1471 nm to 1611 nm (S+C+L Band, ITU-T G.694.2) |
| Service types supported | SDH/SONET, PDH, OTN, Ethernet, PCM, CPRI, OBSAI, SAN, video services and more |
| Max rate per channel | 200 Gbit/s |
| Supported line rates | 2.5 Gbit/s, 10 Gbit/s, 50 Gbit/s, 100 Gbit/s, 200 Gbit/s |
| Max total OSN 810 & OSN 850 devices managed per OSN 1800 NE | 50 (depends on board types and interconnections) |
| Pluggable optical/electrical modules | Optical: SFP/eSFP, XFP, SFP+, QSFP+, TXFP, CFP, CFP2, QSFP28 Electrical: GE SFP, FE SFP, STM-1 SFP |
| Supported topologies | Point-to-point, chain, star, ring, ring-with-chain, intersecting rings, tangent rings, mesh networking |
| Network-level protection (OTN) | Client 1+1, intra-board 1+1, ODUk SNCP, optical line protection, tributary SNCP, LPT |
| Network-level protection (Packet) | Tunnel APS, PW APS/FPS, MC-PW APS, MC-LAG, LPT, LAG, ERPS, MRPS, LMSP, packet SNCP |
| Network-level protection (TDM) | SDH: SNCP, linear MSP, ring MSP, TPS, SNCTP EoS: LAG, DLAG, LCAS, LPT, BPS, STP/RSTP PCM: E1 SNCP, 64K SNCP, Hitless switching |
| Equipment-level protection | Control, cross-connect and clock board redundancy, power supply redundancy, fan redundancy |
| Optical power management | ALS, AGC, OPA, IPA |
| Maintenance features | MPLS-TP OAM, ETH OAM, port mirroring, traffic mirroring (packet), loopback, PRBS, LLDP |
| Easy O&M | Optical Doctor System, Fiber Doctor System |
| Synchronization | Physical clocks (OTN, Packet, SDH), IEEE 1588v2 (OTN, Packet), ITU-T G.8275.1/G.8273.2 (OTN, Packet) |
| ASON support | OTN network: Electrical-layer ASON, Optical-layer ASON (Z-series cross-connections) OCS network: SDH ASON (Z5UXCMS, Z5XCS) OCS network: 2M ASON (Z5UXCM, Z5XCS) |
| Power supply | DC input: Standard –48V to –60V; Range –40V to –72V AC input: Standard 100–120V AC and 200–240V AC |
| Mechanical dimensions (H × D × W) | 221 mm × 220 mm × 442 mm (excluding the handle) |
Huawei OptiX OSN 1800V AC Applications:
The Huawei OptiX OSN 1800V AC is widely used for:
-
Metro and access layer optical transport networks
-
Enterprise and campus private line services
-
Multi-service transmission in telecom backbone and edge networks
-
Video surveillance and broadcasting transmission
-
Small-scale aggregation and backhaul scenarios
Customization & OEM Services:
We provide flexible customization and OEM solutions to match your network needs:
-
Service board configuration based on your specific application
-
Private labeling for integrators and system partners
-
Custom packaging for project rollouts
-
Extended burn-in testing for mission-critical network environments
Huawei OptiX OSN 1800V AC Wholesale & Bulk Orders:
Work with us for wholesale and large-volume projects:
-
Factory-direct pricing with competitive discounts for bulk orders
-
Reliable stock availability and fast global shipping
-
Export-compliant secure packaging
-
Dedicated account managers for smooth project coordination
-
Full technical support and after-sales warranty
Huawei OptiX OSN 1800V AC Why Choose Us:
-
100% genuine Huawei hardware with full testing and certification
-
Tailored solutions for unique transport network demands
-
Competitive pricing for carriers, ISPs, and system integrators
-
Professional logistics and export packaging
-
Technical expertise from planning to post-deployment support
