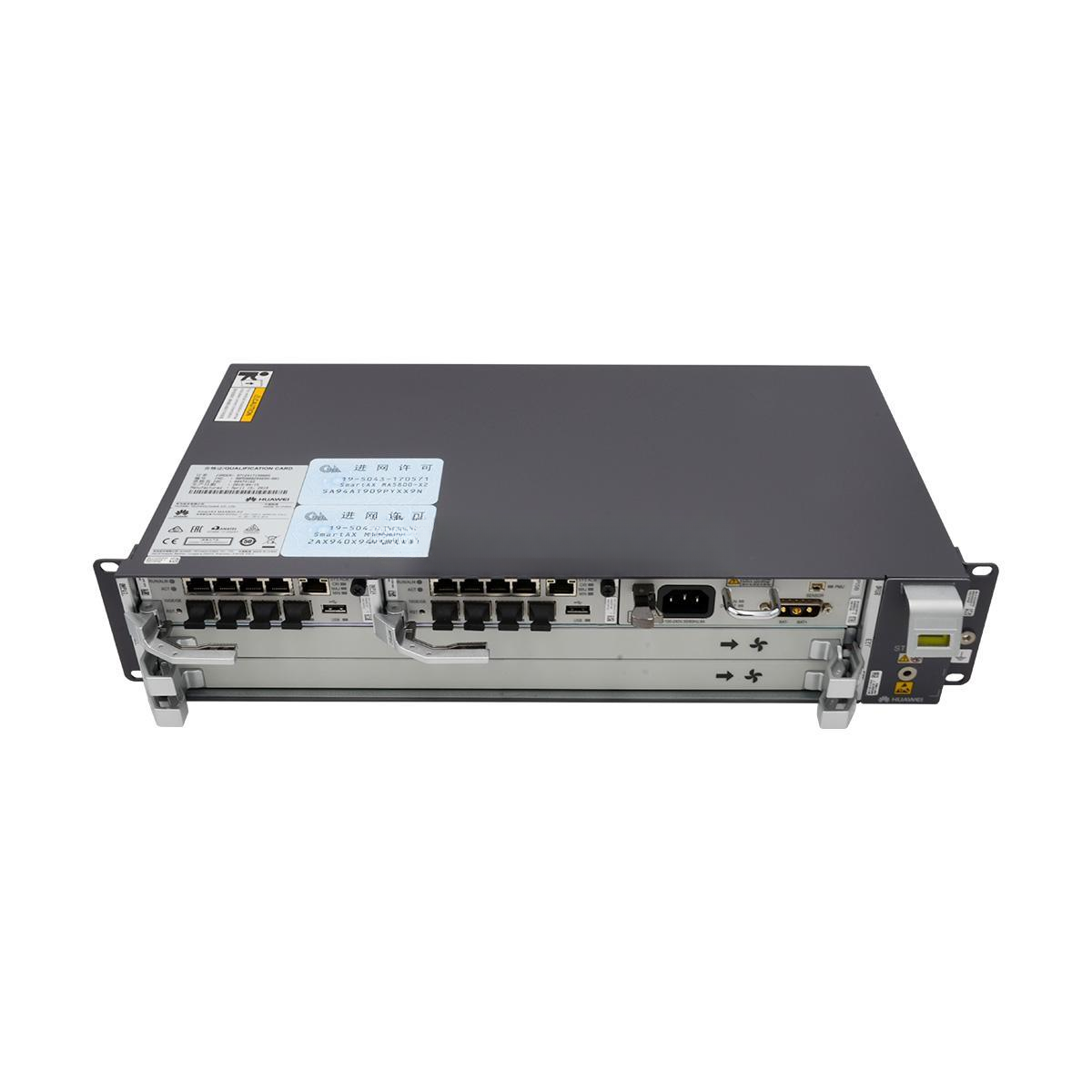

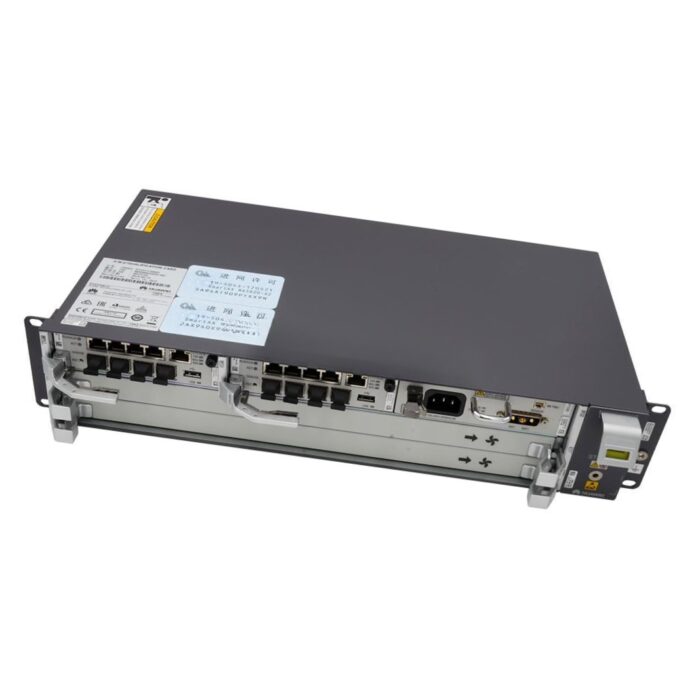

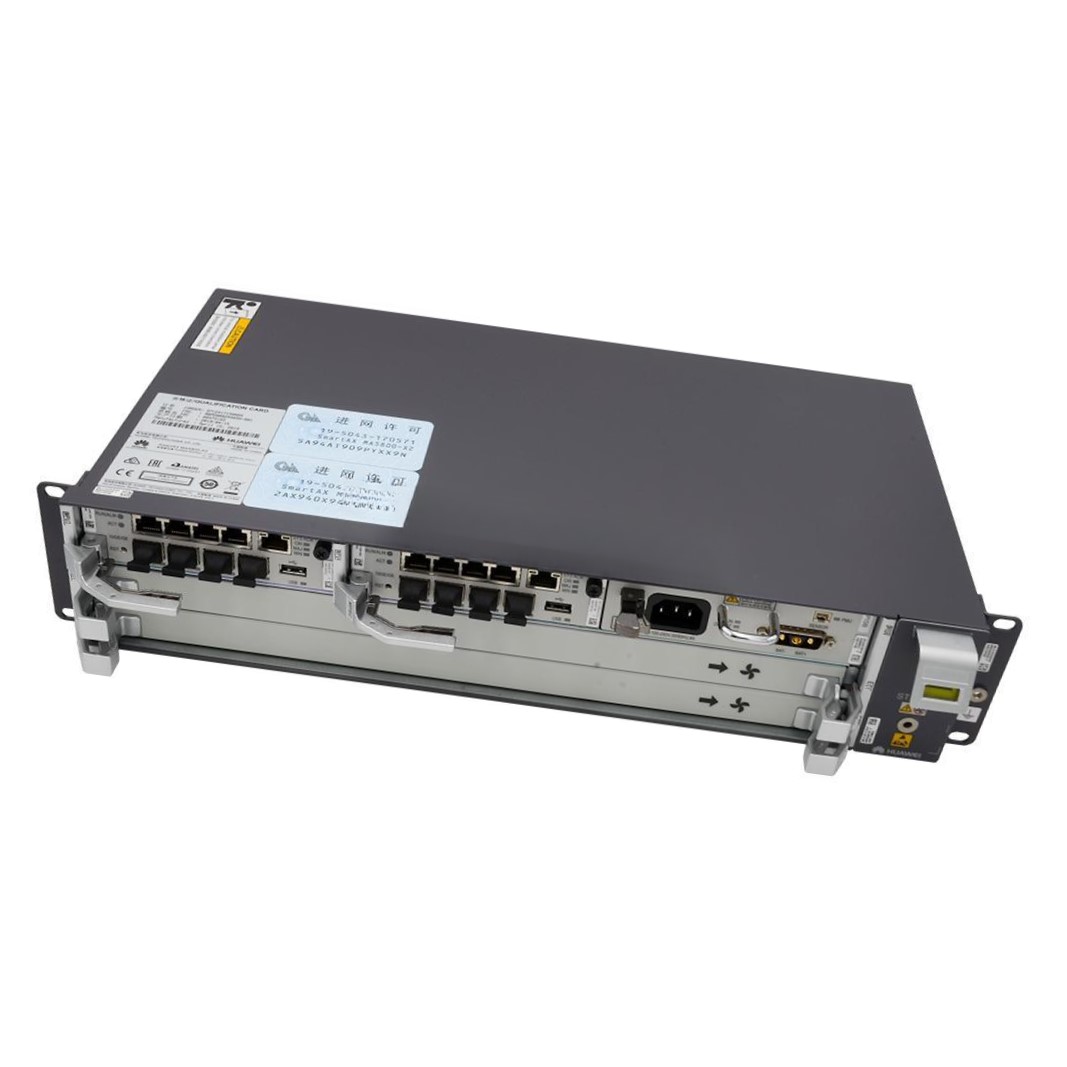

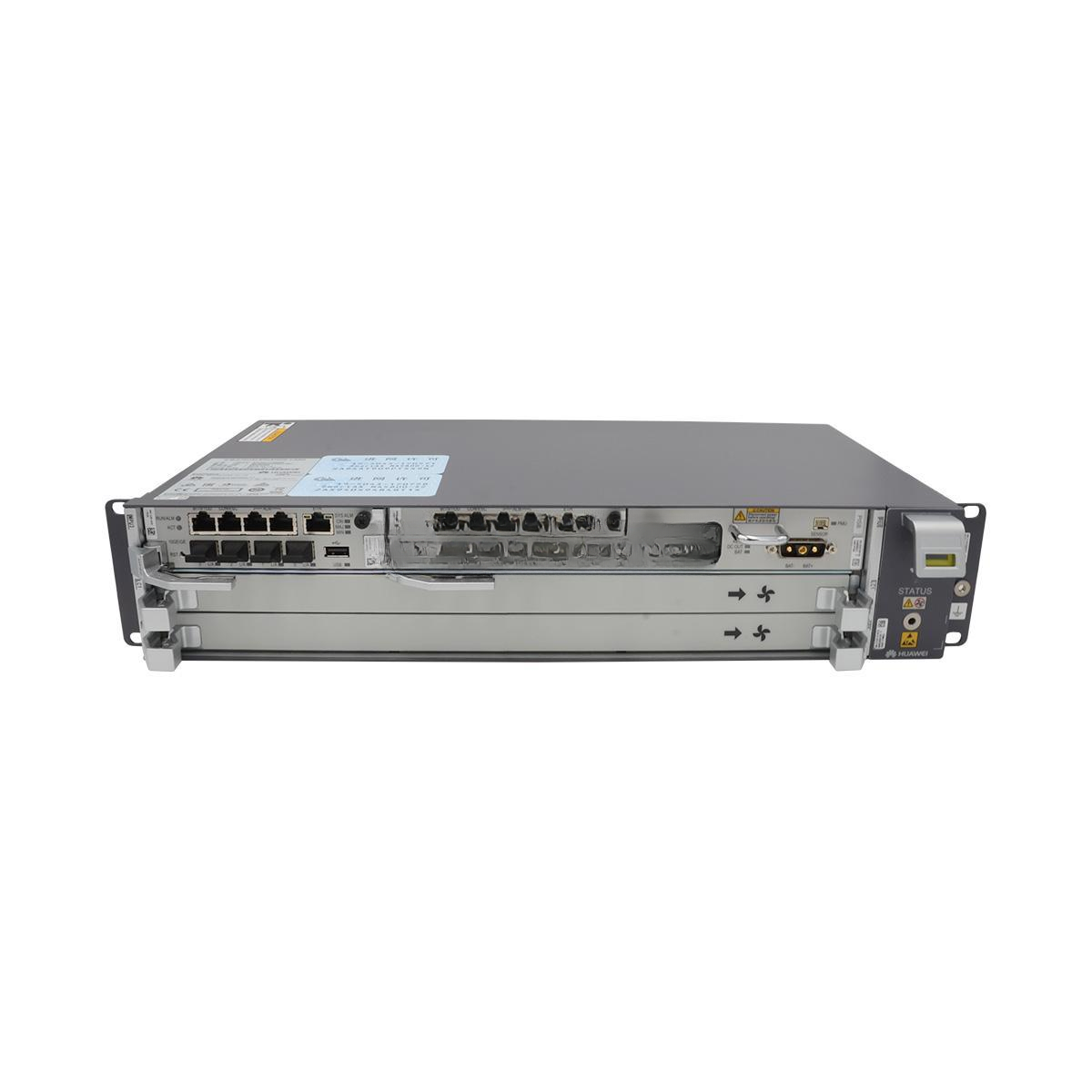

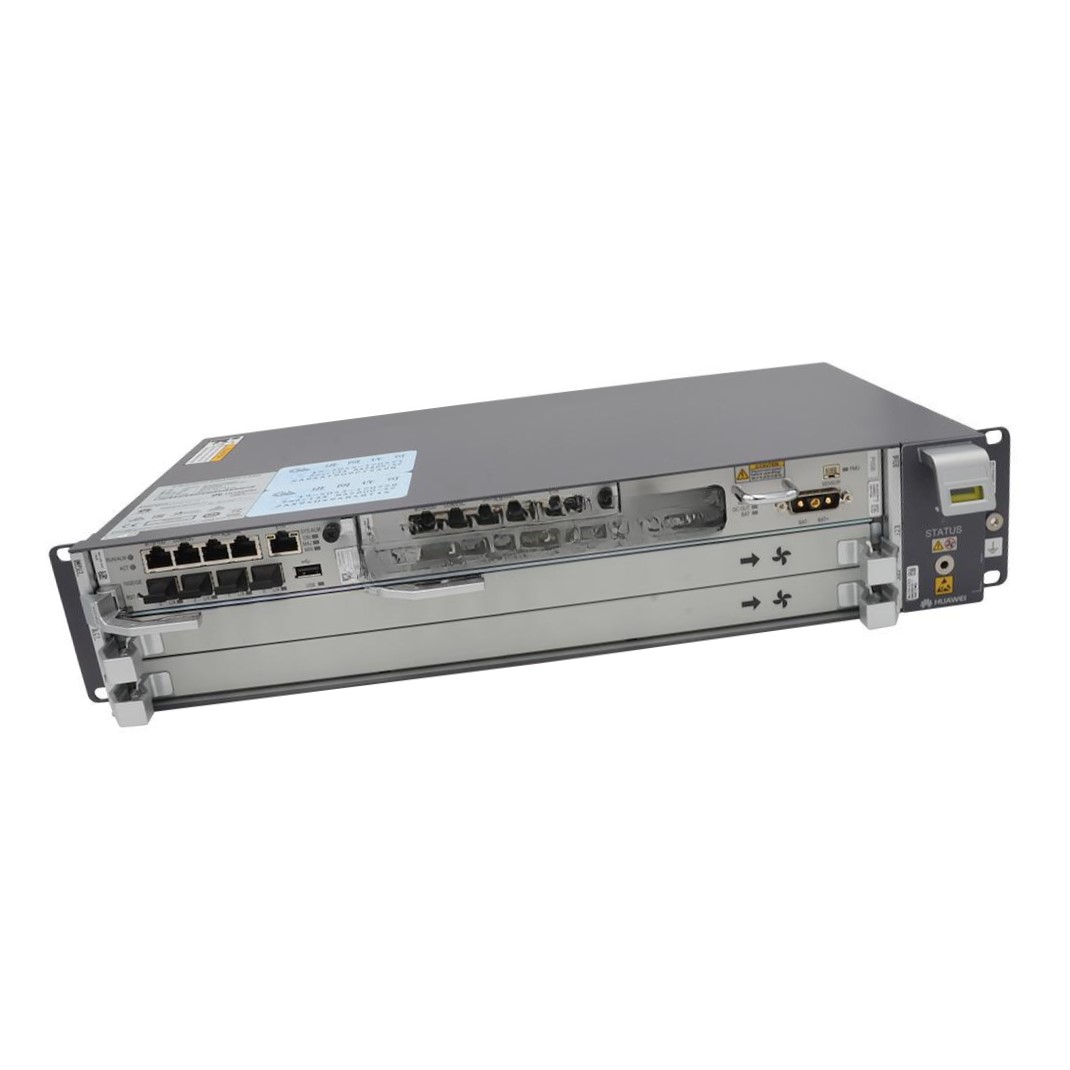

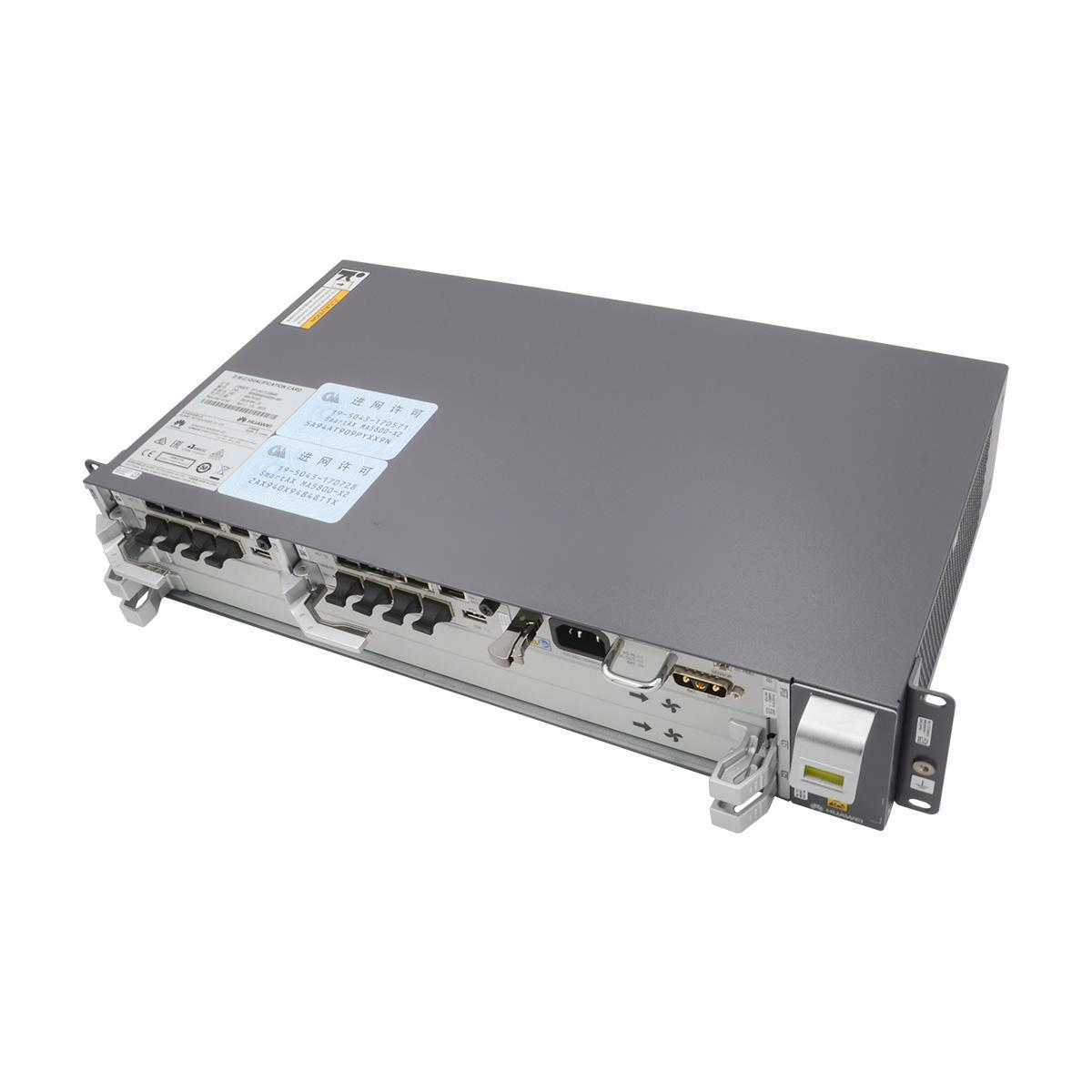

MA5800 X2 AC Huawei Description:
The MA5800 X2 AC Huawei is a brand new, original Huawei next-generation optical line terminal (NG-OLT) subrack, purpose-built for high-capacity, flexible, and future-ready FTTx networks. Designed with advanced distributed architecture, the MA5800 X2 AC delivers ultra-broadband access with support for multiple PON technologies including GPON, XG-PON, and XGS-PON, enabling smooth migration to 10G services.
Equipped with an AC power supply and modular slots, the MA5800 X2 is the smallest subrack in the MA5800 series, making it ideal for deployment in space-constrained scenarios while still delivering carrier-grade reliability, high port density, and powerful service aggregation capabilities. It supports multiple service cards and uplink modules, ensuring seamless scalability for growing bandwidth demands in residential, enterprise, and campus networks.
Key Features:
-
Model: MA5800 X2 AC
-
Condition: 100% Brand New, Original Huawei
-
Type: Next-Generation Optical Line Terminal (NG-OLT) Subrack
-
Power Supply: Integrated AC power input for flexible deployment
-
Capacity: Supports GPON, XG-PON, and XGS-PON service boards
-
Distributed Architecture: Improves backplane bandwidth and system performance
-
Flexible Slots: Modular design allows hot-swappable service cards and uplink modules
-
Carrier-Grade Reliability: Supports redundant power, control boards, and uplinks
-
Compact Footprint: Ideal for small to medium-scale fiber network deployments
-
Management: Supports remote O&M, smart provisioning, and easy integration
Tech Specs:
Product Specifications
| Item | Details |
|---|---|
| System switching capacity | 480 Gbit/s |
| Maximum bandwidth per slot | H901MPSC: 80 Gbit/s |
| Maximum number of MAC addresses | 262,144 |
| Maximum number of ARP/routing entries | 65,536 |
| Maximum number of concurrent 4K video users | 2,000 |
| GPON ports | 32 |
| XG-PON ports | 32 |
| XGS-GPON ports | 16 |
| GE/FE ports | 96 |
| 10GE ports | 16 |
| Cabinet supported | N63E-22 |
Board Supported
Control Board
-
MPSC
Provides 4 GE/10GE upstream transmission ports and supports load sharing. By default, the MA5800 connects to the upstream network through the control board.
Upstream Interface Board
-
NXED
Enhanced 8-port 10GE upstream interface board, supporting 10GE/GE Ethernet upstream transmission. NXED is used when the upstream ports currently provided in the MA5800 are insufficient.
Service Boards
-
GPHF — 16 GPON ports for access services
-
GPSF — 16 GPON ports for home access services
-
XGHD — 8 asymmetric 10G GPON ports for access services
-
TWED — 8 symmetric 10G GPON ports for access services
-
EDSH — 32-channel E1 upstream board, supporting native TDM mode
-
OGHK — 48-port aggregated GE/FE optical interface board, supporting up to 48 GE/FE channels
-
OXHD — 8-port aggregated 10GE optical interface board, supporting GE/10GE Ethernet aggregation
Power Boards
-
PISA — Provides -48V DC input
-
PISB — Provides one AC power input and supports battery backup
Fan Monitoring Board
-
FMSA — Supplies power to fans; controls and monitors the fans
Physical Specifications
| Item | Details |
|---|---|
| Dimensions (W × D × H) | 442 mm × 268.7 mm × 88.1 mm (2U, 19-inch wide) |
| Including IEC mounting brackets | 482.6 mm × 268.7 mm × 88.1 mm |
| Including ETSI mounting brackets | 535 mm × 268.7 mm × 88.1 mm |
| Maximum weight | 9.4 kg (including mounting brackets) |
| Maximum input current | 8 A |
| Power supply | Working voltage range: 100 V to 240 V AC, Rated voltage: 110 V / 220 V AC |
| Ambient temperature | –40°C to +65°C (Startup minimum temperature: –25°C) |
| Ambient humidity | 5% RH to 95% RH |
Note: The 65°C limit refers to the maximum temperature measured at the air intake vent of the service subrack.
MA5800 X2 AC Huawei Applications:
The MA5800 X2 AC is ideal for:
-
Fiber-to-the-Home (FTTH) and Fiber-to-the-Building (FTTB) networks
-
Triple-play services (voice, data, video)
-
Residential broadband and campus network deployments
-
Small-scale centralized OLT applications in urban or rural areas
-
Smooth migration from GPON to 10G PON technologies
MA5800 X2 AC Huawei Customization & OEM Services:
We offer customization and OEM support for your project needs:
-
Pre-configuration of subrack and service cards to match your network design
-
Private labeling and branding for ISPs and integrators
-
Custom packaging solutions for project rollouts and distribution
-
Extended burn-in and quality assurance testing for mission-critical environments
MA5800 X2 AC Huawei Wholesale & Bulk Orders:
Partner with us for wholesale supply and large-scale deployments:
-
Factory-direct pricing and volume discounts for bulk orders
-
Reliable inventory with fast global shipping and export-compliant packaging
-
Dedicated account managers for smooth order processing
-
Full warranty coverage and professional after-sales technical support
Why Choose Us:
-
100% genuine Huawei hardware, tested and certified
-
Tailored solutions for unique network requirements
-
Competitive pricing for ISPs, telecom operators, and integrators
-
Global shipping with secure, professional packaging
-
Expert technical support from planning to post-installation
Contact Us for a Quote:
Upgrade your access network with the MA5800 X2 AC Huawei Brand New NG OLT Subrack Equipped. Contact us now for detailed specifications, customization options, and competitive bulk pricing.
We’re ready to help you deliver future-ready, ultra-broadband access with trusted Huawei solutions.
