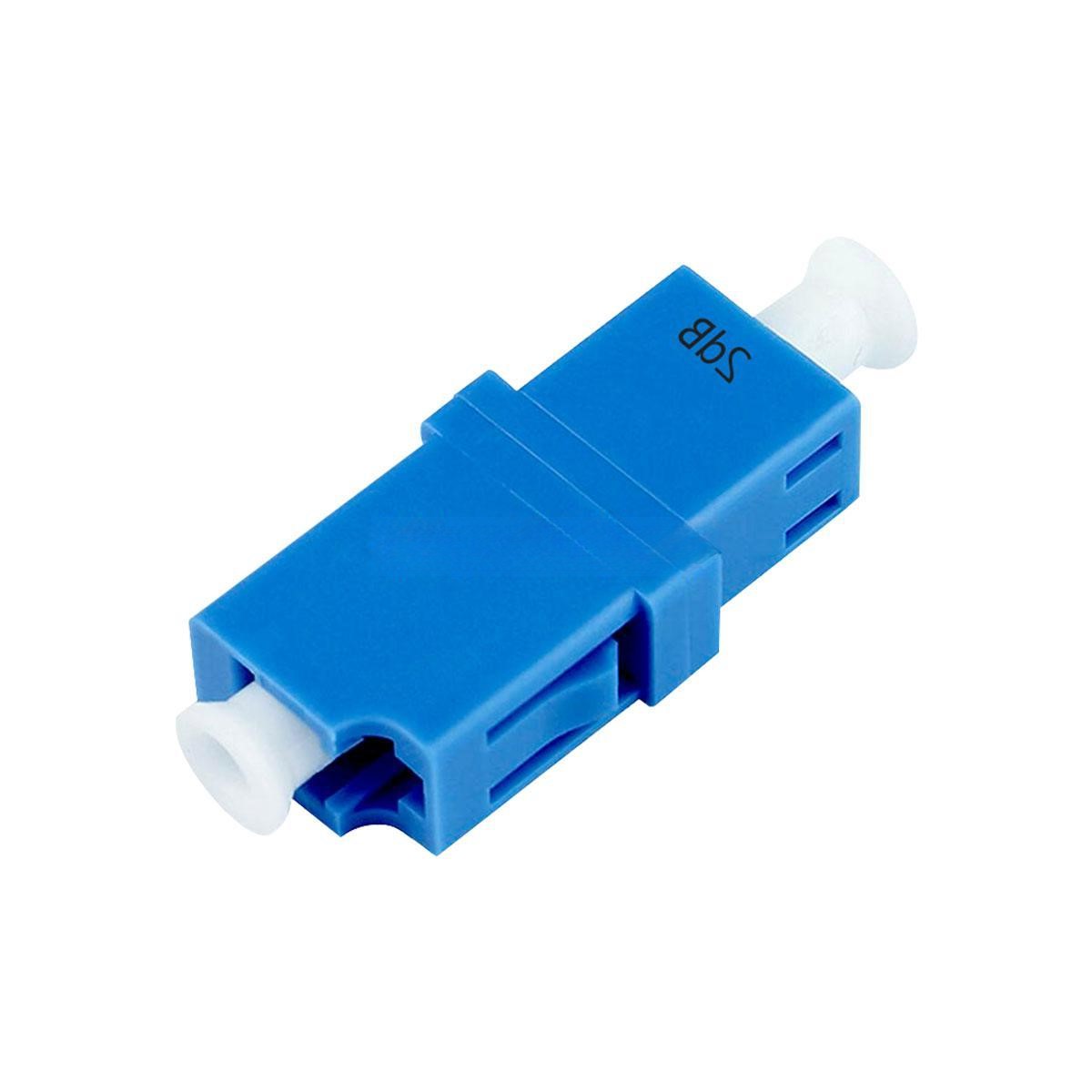

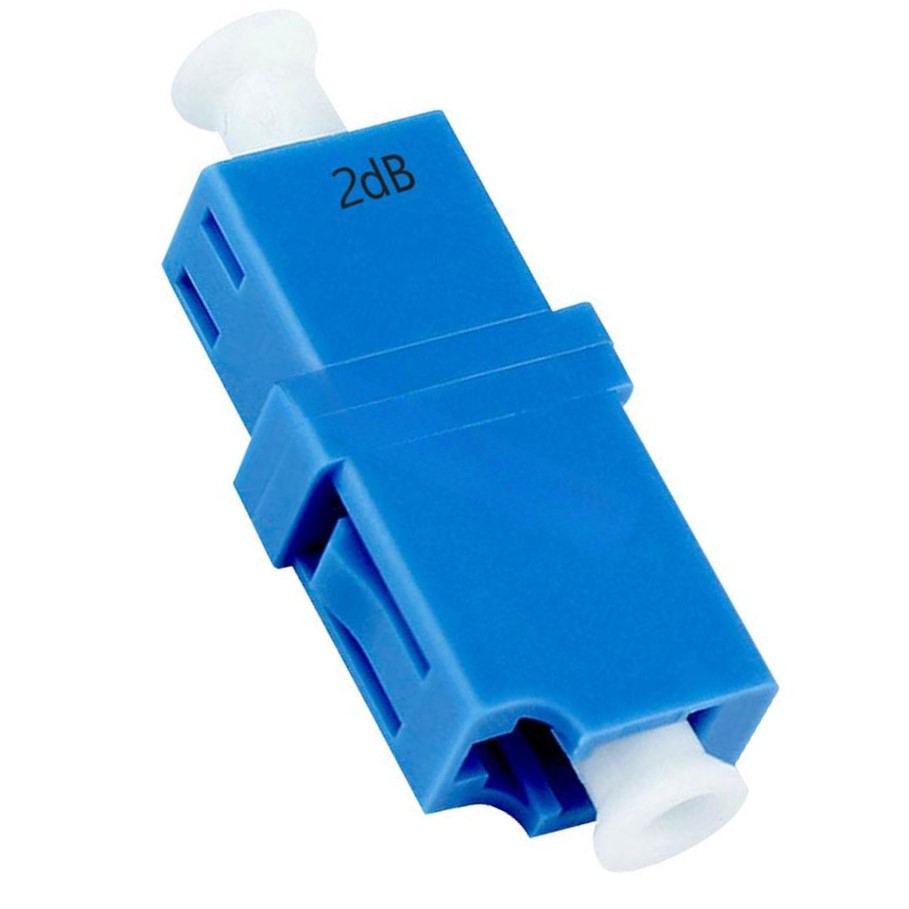

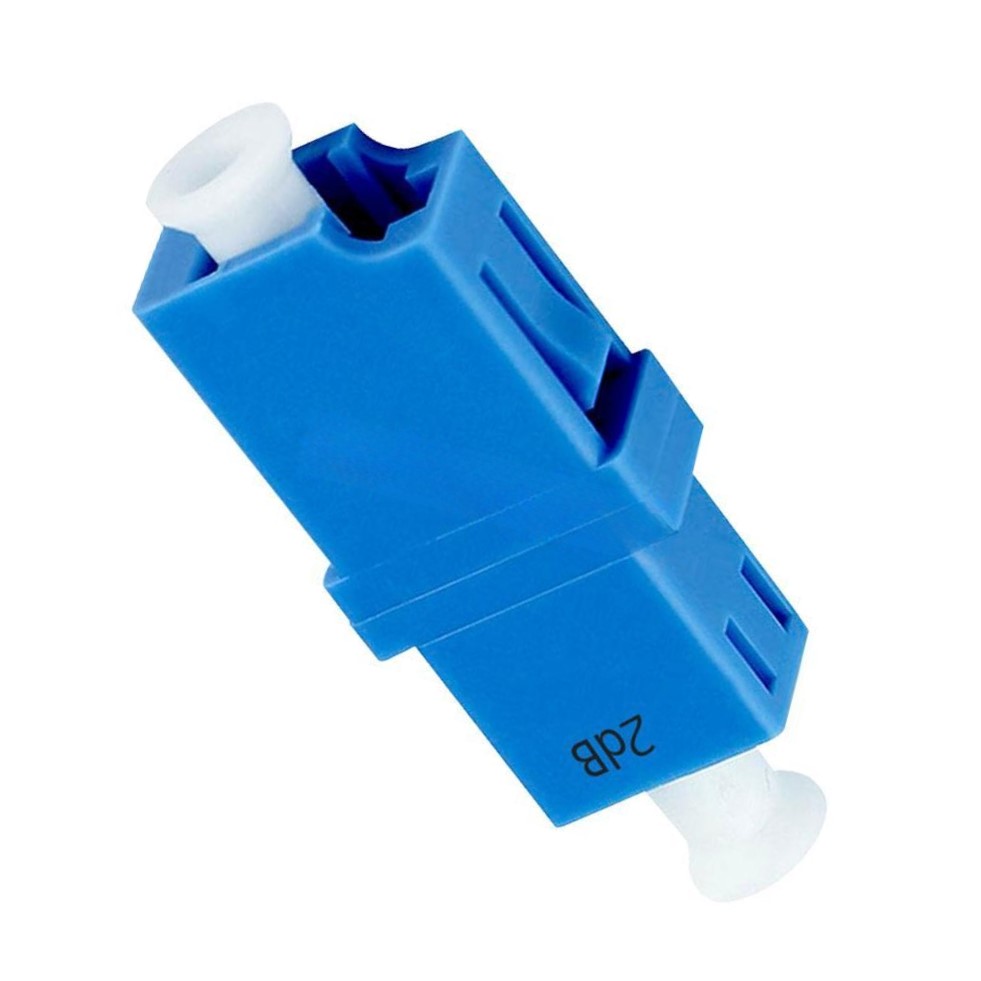

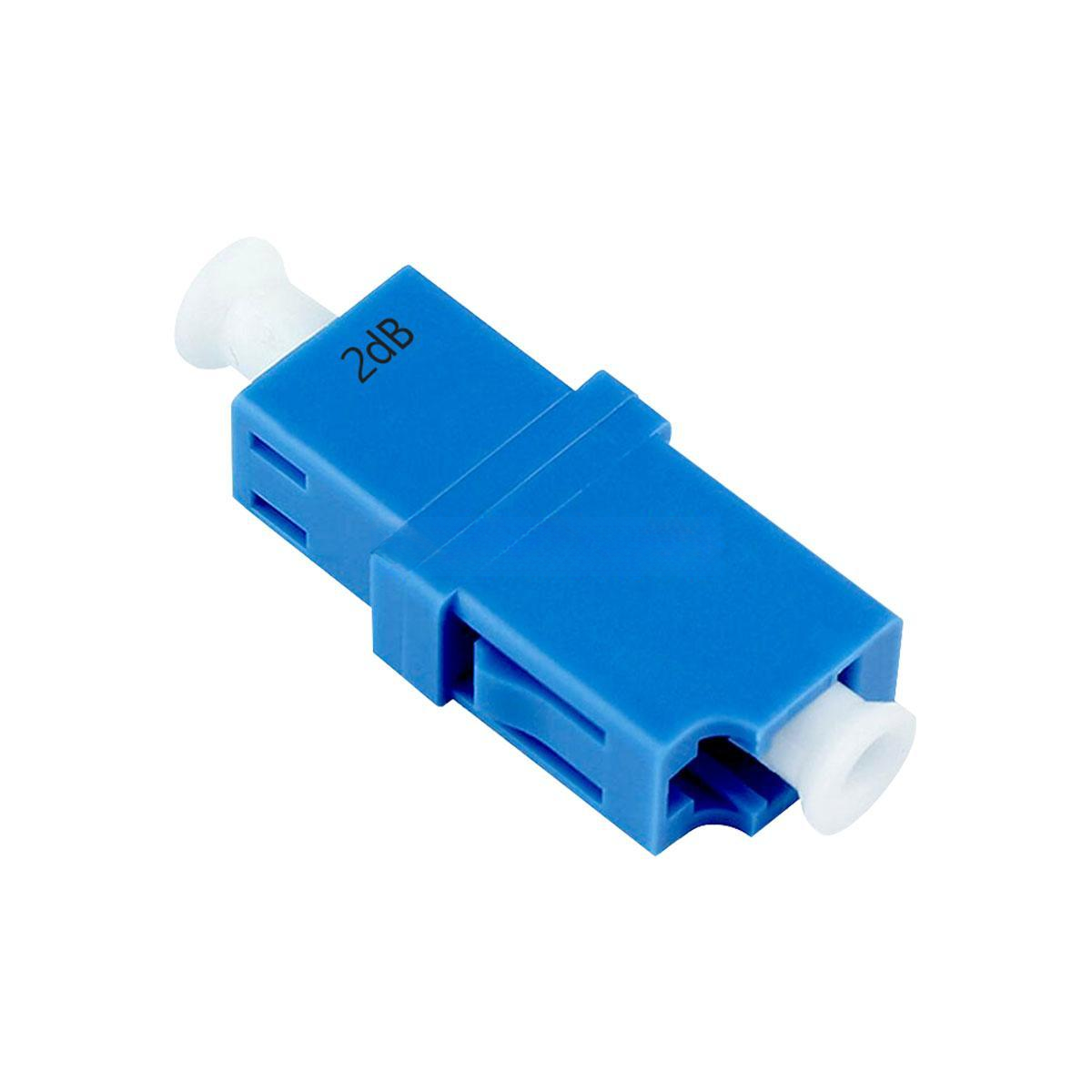

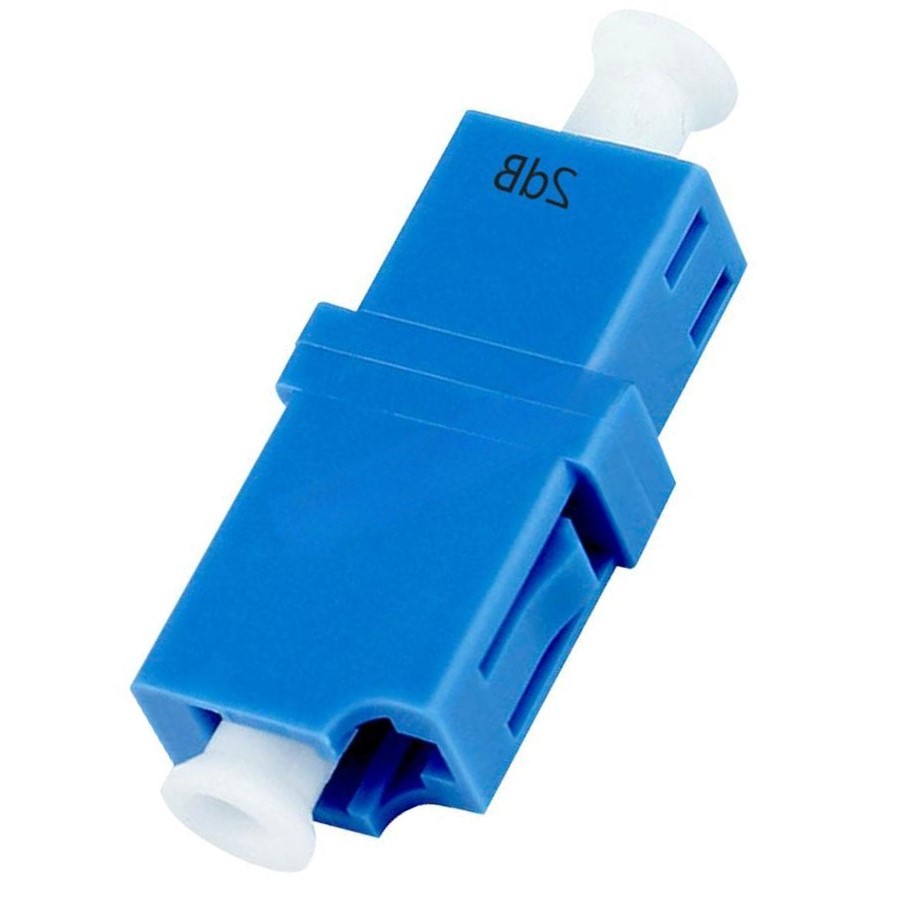

LC/UPC 2dB Fixed Fiber Optical Attenuator – Female-to-Female | Branded New
Product Overview
The LC/UPC 2dB Female Fixed Fiber Optical Attenuator is a high-precision passive optical component used to reduce the signal power level by a fixed 2 decibels (dB) in singlemode fiber networks. Designed with LC/UPC female-to-female connectors, this compact and durable attenuator provides accurate attenuation for preventing signal overload and achieving balanced optical performance in FTTH, telecom, data center, and test environments.
Engineered for consistent attenuation, low insertion loss, and high return loss, it’s an ideal choice for optical engineers and network professionals demanding precise signal tuning in sensitive fiber infrastructures.
Key Features of LC/UPC 2dB Female Fiber
-
🔧 Attenuation Level: 2dB ± 0.5dB
-
🔧 Connector Interface: LC/UPC Female-to-Female
-
🔧 Fiber Type: Singlemode (9/125µm)
-
🔧 Polish Type: UPC (Ultra Physical Contact)
-
🔧 Operating Wavelength: 1260nm – 1650nm
-
🔧 Low Insertion Loss: ≤ 0.3dB
-
🔧 High Return Loss: ≥ 50dB
-
🔧 Housing: Durable metal alloy with anti-corrosion finish
-
🔧 Condition: Brand New with Branded Packaging
LC/UPC 2dB Female Fiber Technical Specifications
| Specification | Details |
|---|---|
| Attenuation Value | 2dB ± 0.5dB |
| Connector Type | LC/UPC Female-Female |
| Fiber Compatibility | Singlemode 9/125μm |
| Operating Wavelength | 1260nm – 1650nm |
| Return Loss | ≥ 50dB (UPC Polish) |
| Insertion Loss | ≤ 0.3dB |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Mating Durability | ≥ 1000 cycles |
| Certifications | CE, RoHS, ISO9001 Certified |
LC/UPC 2dB Female Fiber Applications
-
🌐 Optical signal power balancing in FTTH networks
-
📡 Signal tuning in DWDM, CWDM, and broadband systems
-
🧪 Lab calibration and fiber testing setups
-
🏢 Data center backbone and enterprise optical networks
-
📶 Preventing receiver saturation in short-haul or amplified links
Customization Options
We support full OEM and private-label services for brands and project integrators:
-
Attenuation Range: Available from 1dB to 30dB
-
Connector Types: LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC
-
Logo Branding: Laser engraving or printed custom logos
-
Color Coding: Sleeve options by dB level or project series
-
Packaging: Bulk trays, single pouches, or installer kits
-
Kits: Pre-assembled field kits with multiple dB values
Let us know your exact needs — we provide tailored configurations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | LC/UPC 2dB Female-Female Fixed Fiber Optical Attenuator |
| Fiber Connector | LC/UPC |
| Connector Gender | Female-Female |
| Transfer Mode | Singlemode |
| Material | Ceramic |
| Operating Wavelength | 1200 nm – 1600 nm |
| Attenuation | 2 dB |
| Attenuation Accuracy | ±10% dB |
| Return Loss | > 20 dB |
| Interchangeability | ≤ 0.20 dB |
| Repeatability | ≤ 0.10 dB |
| Reliability | > 1000 plug cycles |
| Operating Temperature Range | -40°C to +80°C |
| Storage Temperature Range | -40°C to +85°C |
| Vibration | Amplitude: 1.52 mm Frequency: 10 Hz – 55 Hz |
Additional Information
| Attribute | Value |
|---|---|
| Weight | 0.0 kg (placeholder) |
| Dimensions | 0.0 × 0.0 × 0.0 cm (placeholder) |
| Connector Type | LC |
| Attenuation | 2 dB |
Wholesale & Bulk Supply Benefits
Ideal for telecom operators, system integrators, and distributors:
-
📦 Factory-Direct Pricing for Large Orders
-
📦 Flexible MOQ and Quick Delivery
-
📦 Custom Barcoding, OEM Labeling & Export Docs
-
📦 Global Shipping Support
-
📦 Dedicated B2B Sales Team for RFQs & Tenders
Why Choose Our LC/UPC 2dB Female Attenuator?
-
✔️ Precision Attenuation with Long-Term Reliability
-
✔️ Compatible with all LC/UPC interfaces
-
✔️ Certified for telecom-grade applications
-
✔️ Durable metal body for field and rack deployments
-
✔️ Tested and verified for consistent performance
Order Now
Choose the LC/UPC 2dB Fixed Fiber Optical Attenuator to optimize your optical infrastructure with accurate power control, consistent quality, and full compatibility. Available now with OEM branding, field kits, and wholesale supply support.
