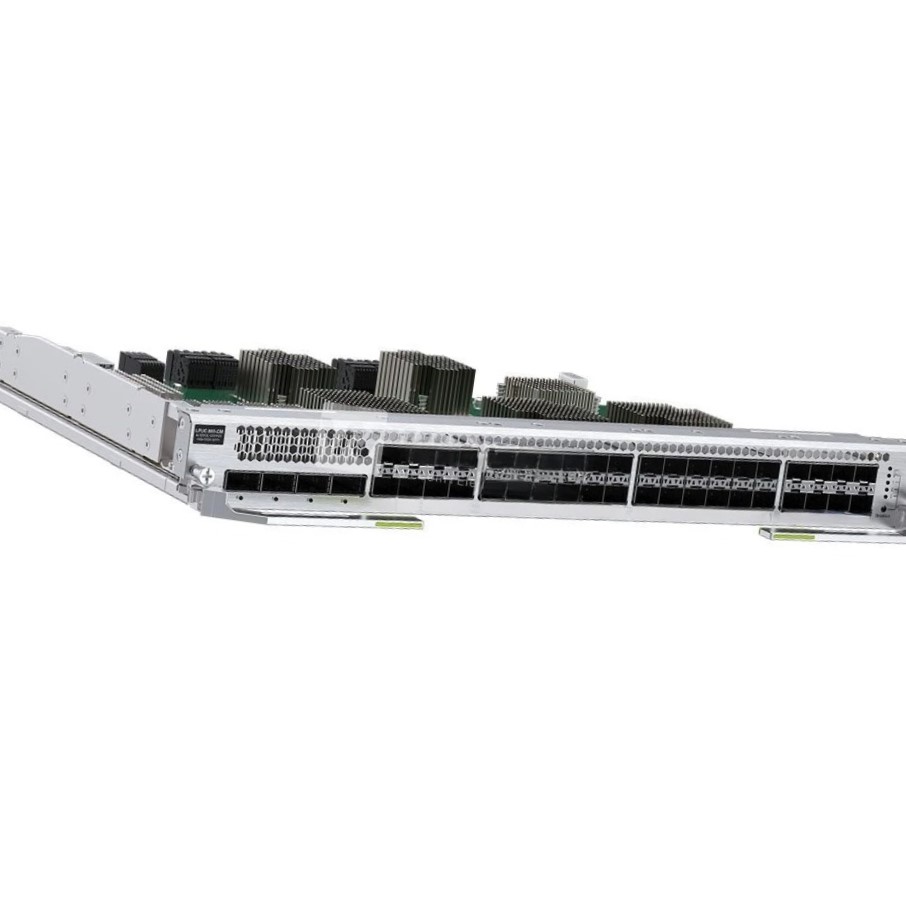

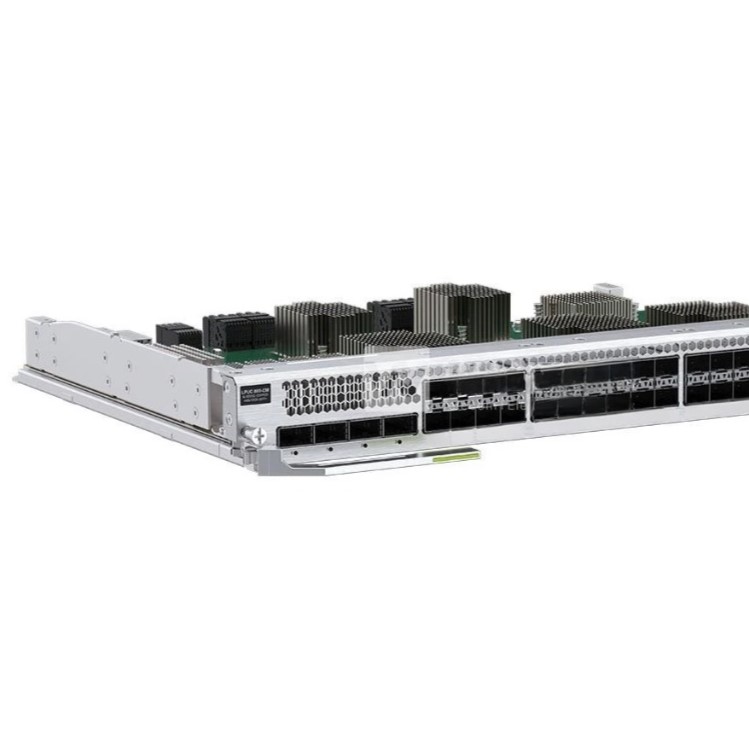

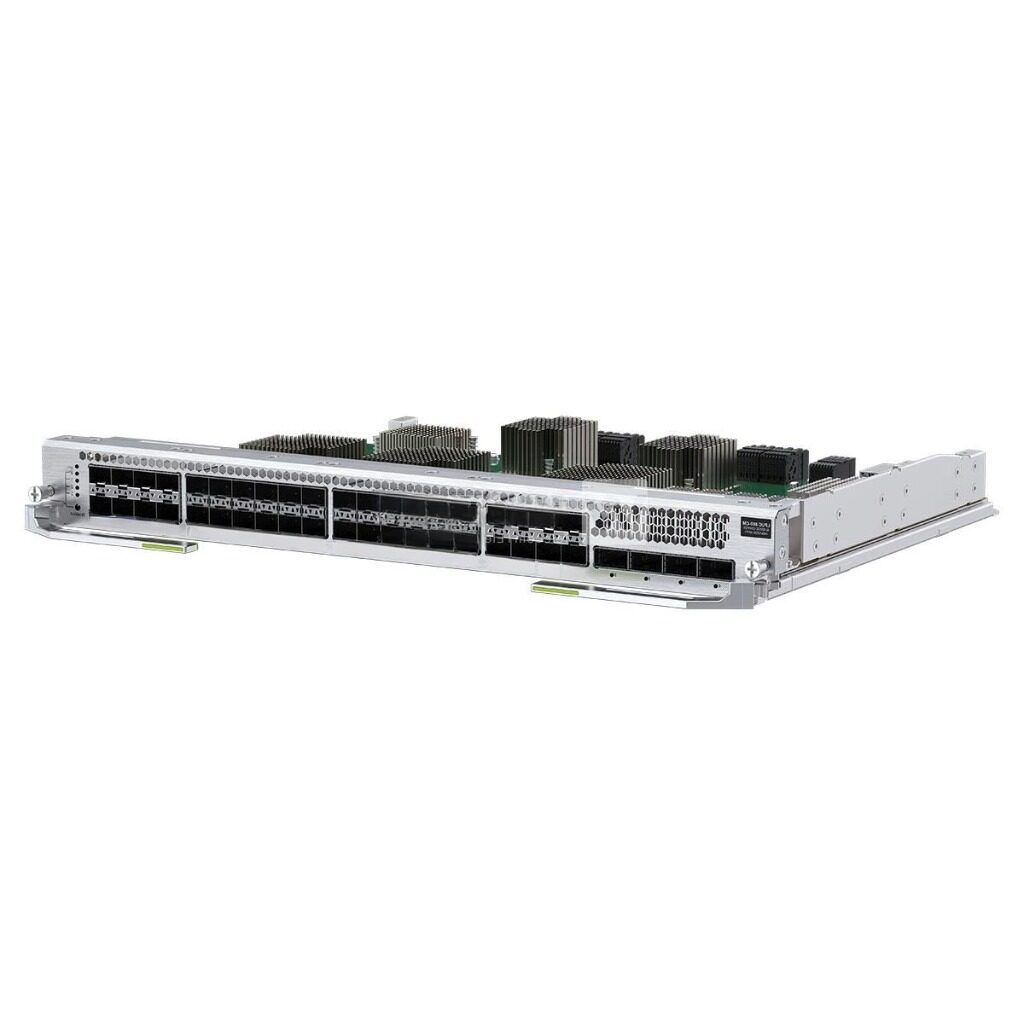

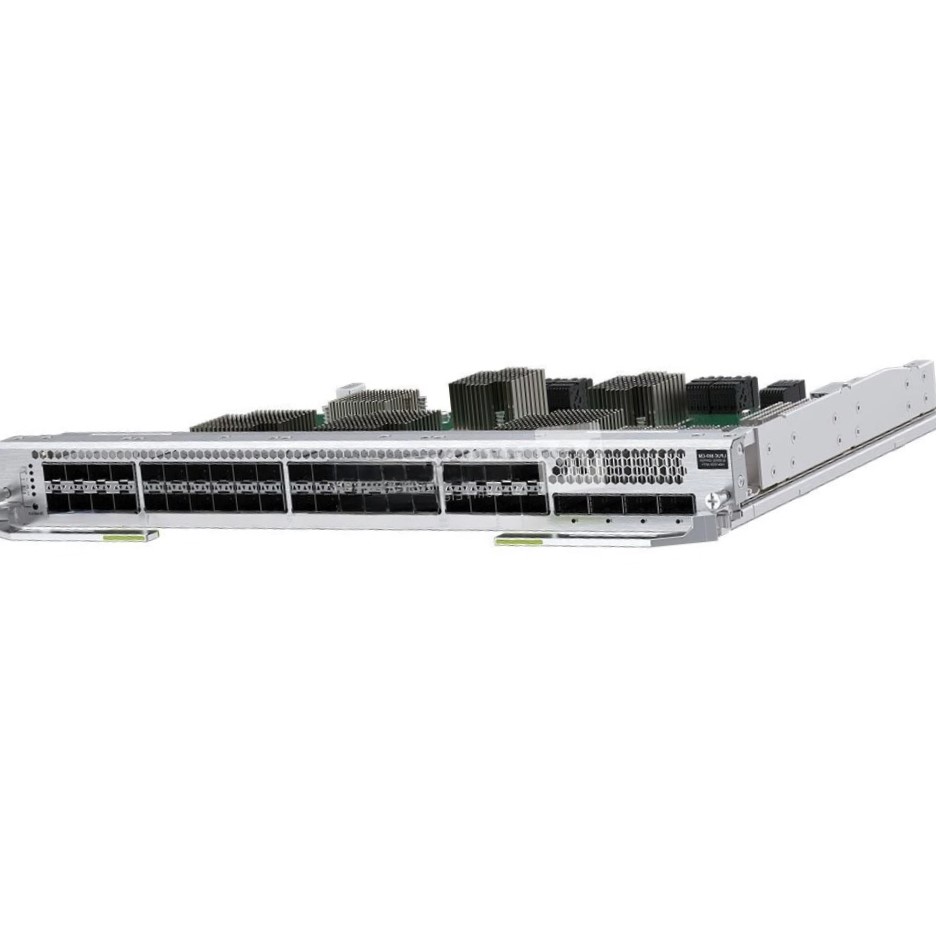

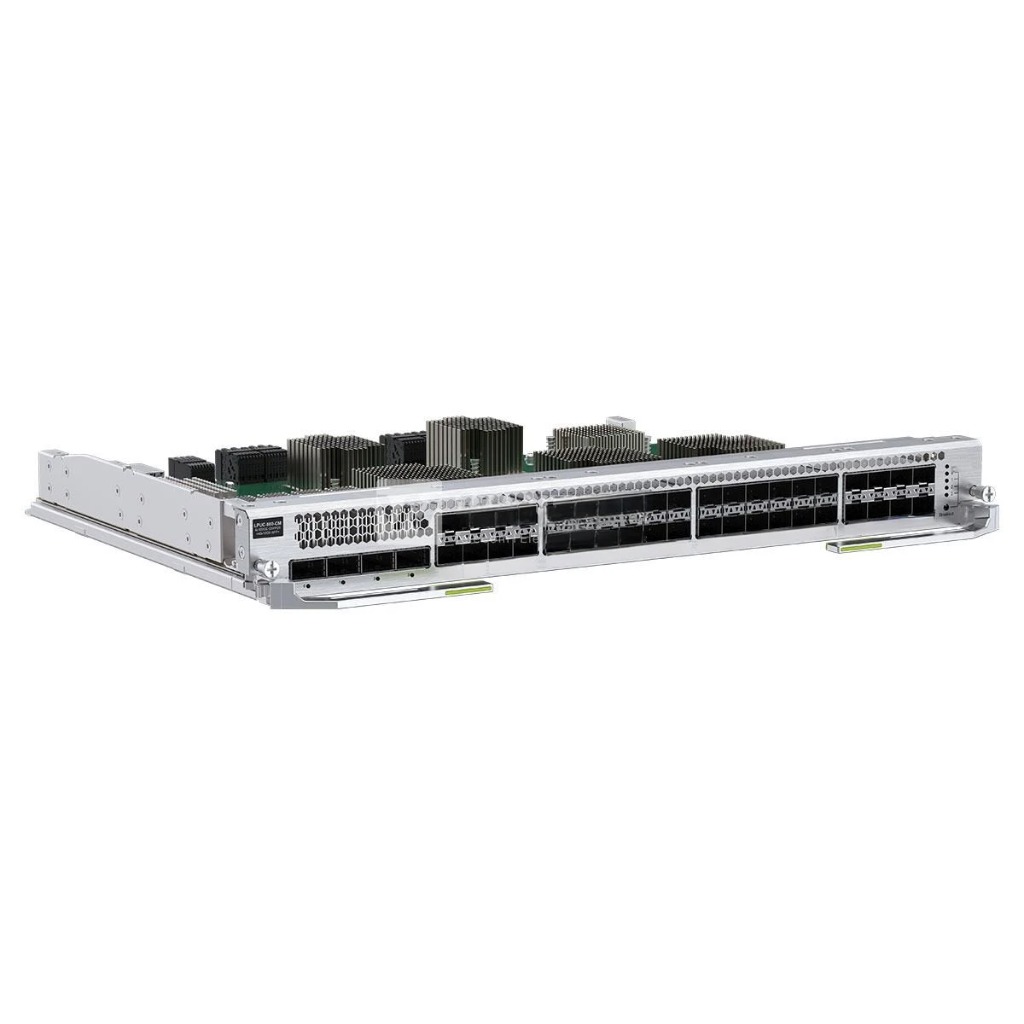

CR8DEKNBXFF0 Huawei Description:
The CR8DEKNBXFF0 Huawei is a brand new, original Huawei Combined Line Processing Unit designed for high-end routers and data center network platforms. It integrates advanced packet forwarding and line processing functions, allowing telecom operators and large enterprises to handle massive data flows with outstanding speed and reliability.
Built to meet carrier-grade standards, this unit delivers powerful processing capabilities, large-capacity routing, and intelligent traffic management. It helps you expand and upgrade your network backbone while ensuring stable, low-latency services for applications like cloud connectivity, 5G transport, and next-generation enterprise networks.
Key Features:
-
Model: CR8DEKNBXFF0
-
Condition: 100% Brand New, Original Huawei
-
Type: Combined Line Processing Unit
-
Functions: Integrated line processing and switching for efficient traffic management
-
Performance: Supports high-capacity routing tables and full line-rate forwarding
-
Reliability: Carrier-class design with redundancy and failover support
-
Hot Swappable: Easy to replace or upgrade with minimal service disruption
-
Compatibility: Fully compatible with Huawei’s supported backbone routers and core switches
Tech Specs:
| Item | Details |
|---|---|
| Basic function | On the line side, the board provides four 100GE/50GE/40GE interfaces for line-rate forwarding, and supports QSFP28 optical modules. The board also provides forty 10GE/GE interfaces for line-rate forwarding, supports SFP+/SFP optical modules, and supports MACsec. |
| Reliability and availability | Hot swappable |
| Restrictions and remarks | 10G ports from port 4 to port 43 are divided into 11 groups in sequence (4, 4, 2, 4, 4, 4, 3, 3, 4, 4, 4 ports). The ports in each group must switch between LAN and WAN modes simultaneously. |
| Breakout supported | In V800R023C10SPC500, the 6T4-B SRU supports interface splitting. |
| Interface rate auto-sensing | SFP+ ports support GE/10GE auto-sensing; QSFP28 ports support 40GE/50GE/100GE auto-sensing. |
| FlexE supported | Yes. • With CR8D0SFUT6D0 SRU in slots 3–6: Ports 0–3 can be grouped, port-id 1000–3000, max. 56 FlexE clients. • With 6T4-B SRU in slots 1–8: Ports 0–3 can be grouped, port-id 1000–3000, max. 80 FlexE clients. |
Physical Specifications
| Item | Details |
|---|---|
| Dimensions (mm) | 190 (H) × 590 (W) × 470 (D) |
| Weight with packaging [kg] | 6.2 kg |
| Typical power consumption [W] | 169 W |
| Typical heat dissipation [BTU/h] | 548.3 BTU/hour |
| Long-term operating temperature | 0°C to 45°C (32°F to 113°F) |
| Short-term operating temperature | –5°C to +55°C (23°F to 131°F) |
CR8DEKNBXFF0 Huawei Applications:
The CR8DEKNBXFF0 is suitable for:
-
National carrier backbone and core networks
-
High-capacity data center interconnections
-
Service provider edge and aggregation networks
-
ISP and telecom network expansions and modernizations
-
Large-scale enterprise network core and distribution layers
Customization & OEM Services:
We offer customization and OEM services to match your project needs:
-
Pre-configuration to fit your network architecture
-
Private labeling and branding for resellers or system integrators
-
Custom packaging and delivery to suit project logistics
-
Additional burn-in testing for mission-critical applications
-
Full technical consultation for smooth deployment and integration
CR8DEKNBXFF0 Huawei Wholesale & Bulk Orders:
Benefit from our wholesale partnerships and volume supply:
-
Factory-direct pricing and discounts on bulk orders
-
Reliable inventory and timely global shipping
-
Export-compliant and secure packaging
-
Dedicated account managers for smooth order handling
-
Full after-sales technical support and warranty services
Why Choose Us:
-
100% genuine, fully tested Huawei hardware
-
Flexible, customized solutions for any scale project
-
Competitive pricing for resellers, ISPs, and telecom operators
-
Safe and secure packaging for high-value components
-
Technical support from pre-sales to post-deployment
Contact Us for a Quote:
Upgrade your network infrastructure with the CR8DEKNBXFF0 Huawei Brand New Combined Line Processing Unit. Contact us today for detailed specifications, customization options, and competitive bulk pricing.
We’re ready to help you build a powerful, reliable network with trusted Huawei solutions.
