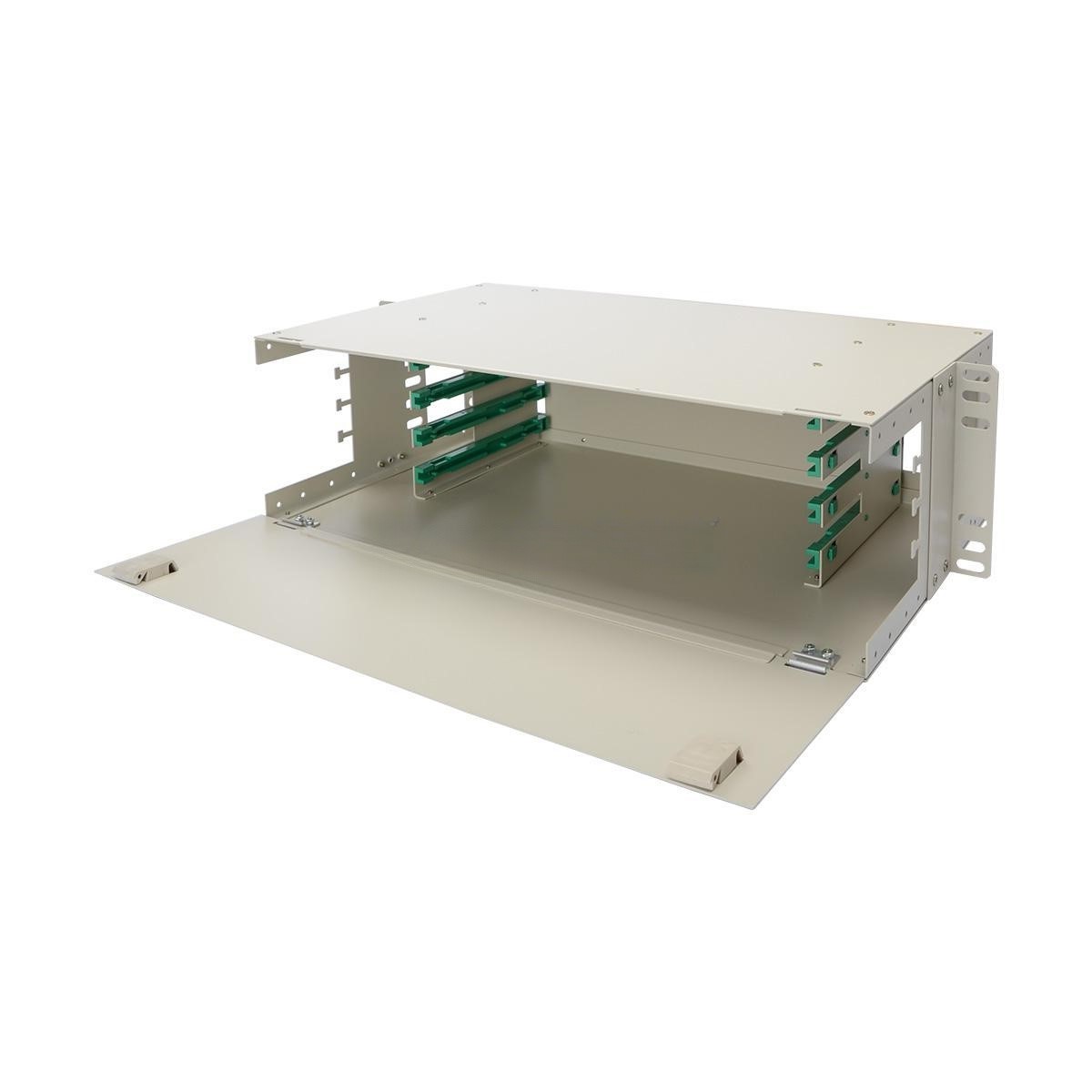

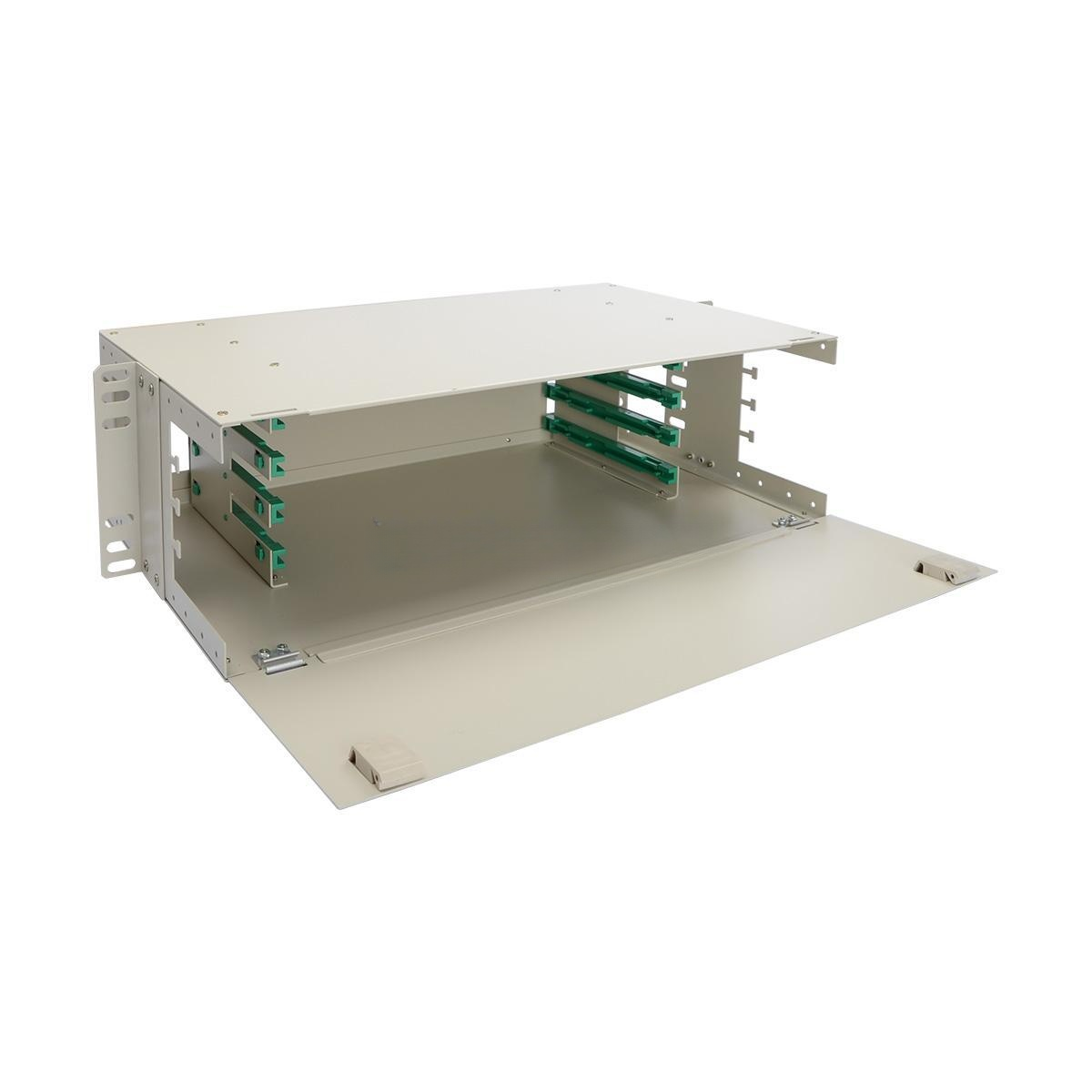

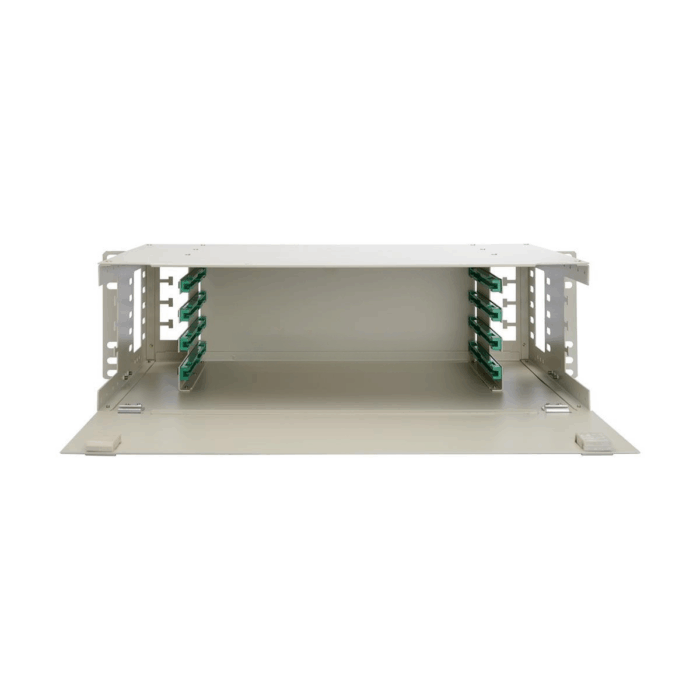

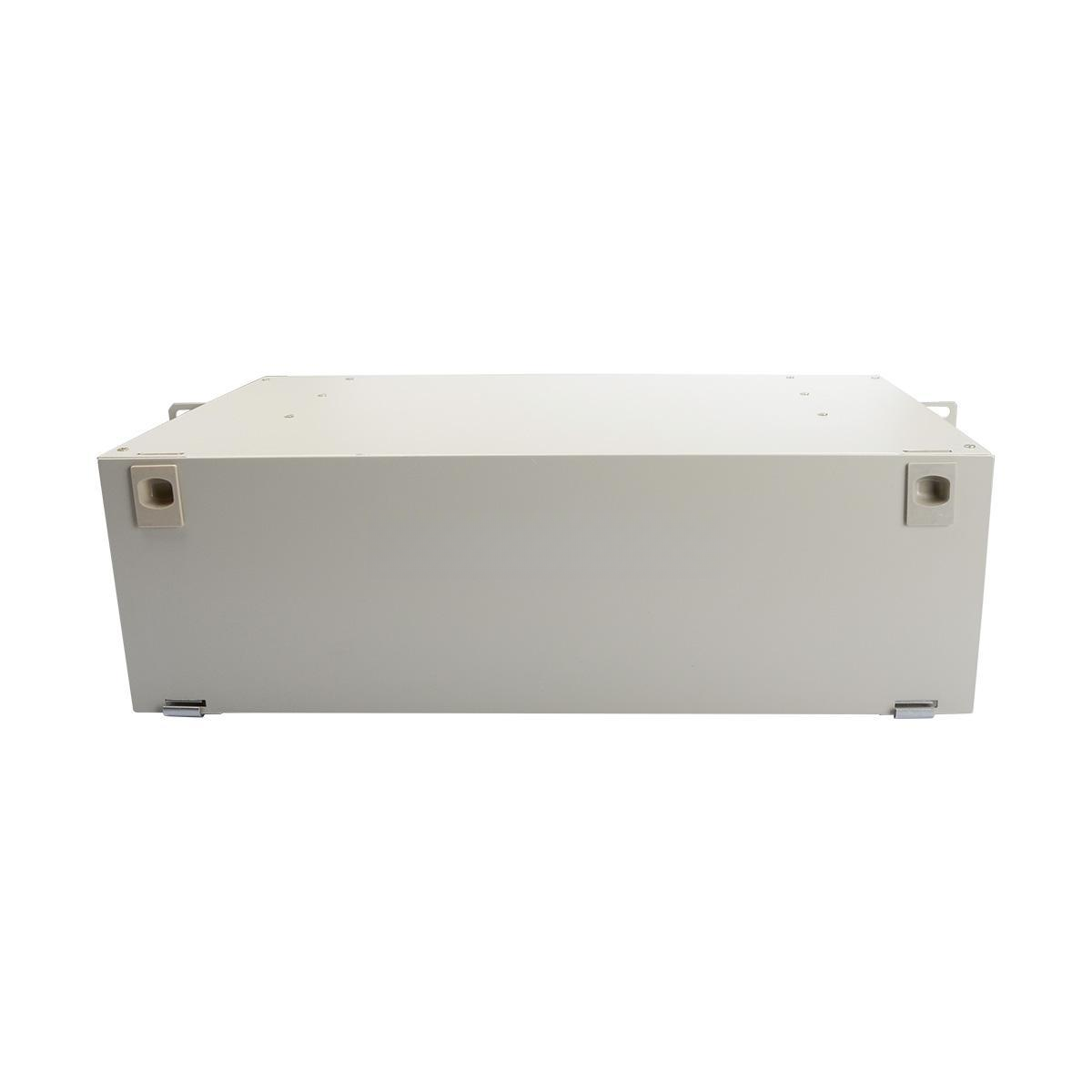

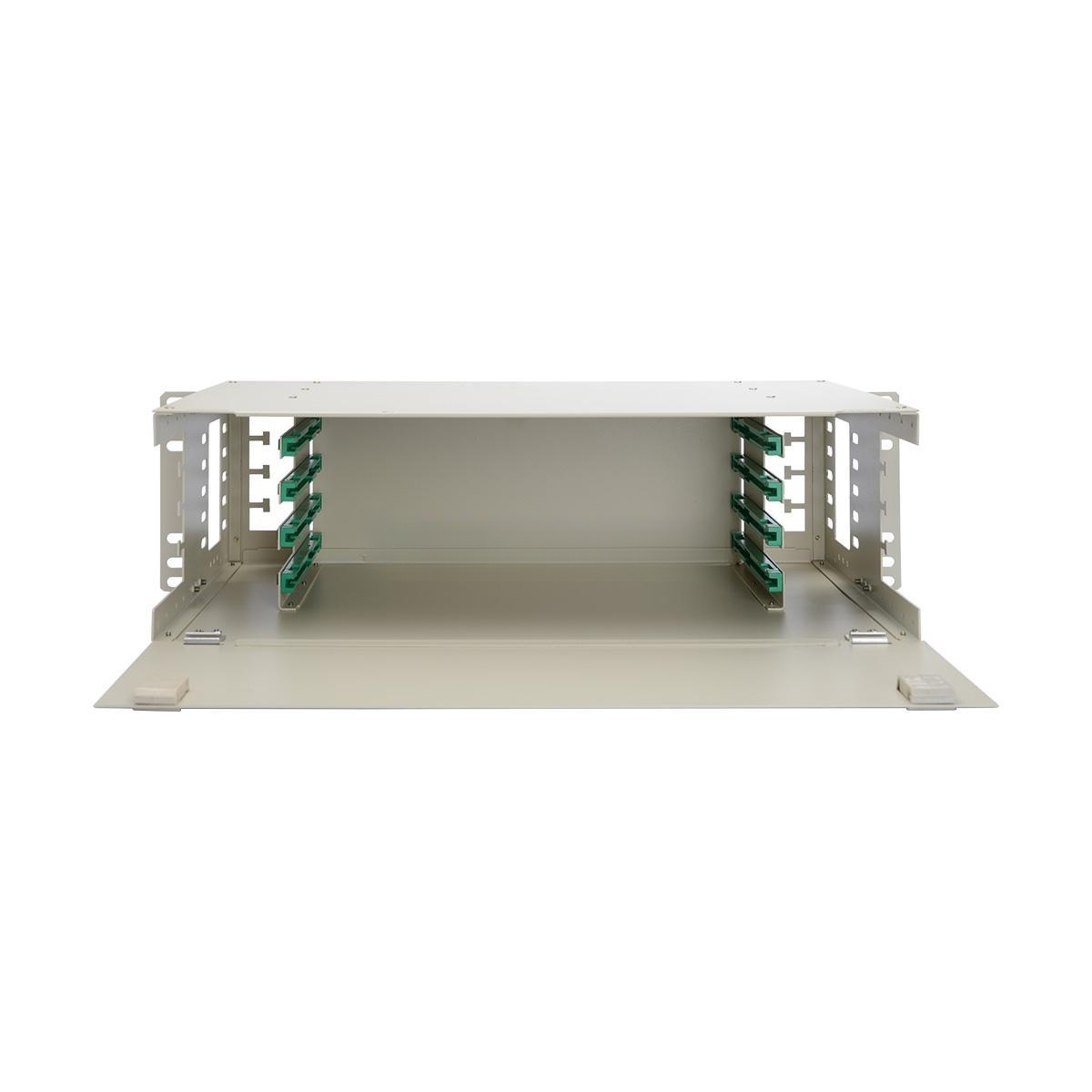

48-Fiber ODF Rack Mount Distribution Box – Branded Empty Enclosure
Product Overview
The 48-Fiber ODF Rack Mount Distribution Box is a durable, space-efficient optical distribution frame (ODF) designed to organize, terminate, and protect fiber optic cables in structured cabling systems. Built to fit standard 19-inch telecom racks, this branded, empty distribution box supports up to 48 fibers and is compatible with a variety of adapter types including SC, LC, FC, and ST.
Ideal for use in FTTH, FTTx, telecom rooms, enterprise networks, and data centers, the unit features high-strength steel construction, flexible cable entry ports, and excellent internal routing space for efficient fiber management and future expansion.
Key Features of 48-Fiber ODF Rack
-
✅ Model: 48-Core Fiber ODF – Empty Rack Mount Box
-
✅ Rack Size: Standard 19-inch mountable, 1U–2U height
-
✅ Capacity: Supports up to 48 fibers (24 SC duplex or 48 LC simplex adapters)
-
✅ Material: Cold-rolled steel with powder-coated finish
-
✅ Color: Light gray (default) or black (custom available)
-
✅ Mounting Style: Fixed tray or sliding drawer (optional)
-
✅ Cable Entry: Rear and side access with protective glands or grommets
-
✅ Panel Type: Removable front panel with screw or clip fastening
-
✅ Condition: Brand New – Branded or OEM Available
48-Fiber ODF Rack Technical Specifications
| Specification | Detail |
|---|---|
| Maximum Capacity | 48 Fibers (LC, SC, FC, ST compatible) |
| Adapter Slots | 24 SC duplex / 48 LC simplex |
| Enclosure Type | Rack Mount (19”) |
| Material | Cold-Rolled Steel |
| Surface Finish | Electrostatic Powder Coating |
| Dimensions (Typical) | 430mm × 300mm × 44mm (1U) |
| Cable Entry | Rear & Side with cable clamps |
| Splice Tray Capacity | Up to 2 trays (optional, 24 fibers each) |
| Operating Temperature | -40°C to +60°C |
| Standards Compliance | RoHS, CE, ISO9001 |
48-Fiber ODF Rack Applications
-
🌐 Fiber Termination & Cross-Connection
-
📡 FTTH / FTTx Optical Distribution Networks
-
🏢 Enterprise LAN and Campus Networks
-
☁️ Data Centers and Server Rooms
-
🔧 Telecom Central Office or MDF/IDF Racks
Customization Options
Fully customizable to match project or branding needs:
-
🔧 Adapter Panels: SC/LC/FC/ST, simplex or duplex
-
🔧 Logo & Branding: OEM/ODM logo printing or laser engraving
-
🔧 Color Matching: Black, white, or custom RAL codes
-
🔧 Front Panel Design: Lockable, transparent, or quick-open types
-
🔧 Tray Options: Sliding drawer or fixed mount
-
🔧 Pre-loaded Units: Adapters, pigtails, and splice trays available
-
🔧 Cable Management Kits: Available for bundled offers
Let us configure the product for your exact deployment plan.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 48 Fiber ODF |
| Dimension (L × W × H) | 483 × 255 × 133 mm |
| Weight | 6.8 kg |
| Air Pressure | 70 KPa ~ 106 KPa |
| Relative Humidity | ≤ 95% (at +40°C) |
| Operating Temperature | -40°C ~ +60°C |
| Included | 1 unit 48 Fiber Distribution Box |
| Port Capacity | 48 Ports |
Additional Information
| Attribute | Value |
|---|---|
| Weight | 0.0 kg (placeholder) |
| Dimensions | 0.0 × 0.0 × 0.0 cm (placeholder) |
| Port Count | 48 |
Wholesale & Bulk Supply Benefits
Designed for telecom rollouts, integrator packages, and international distribution:
-
📦 Factory-Direct Pricing & Tiered Discounts
-
📦 MOQ Flexibility for Large & Small Orders
-
📦 Custom Labeling & Packaging Options
-
📦 Fast Production & Global Shipping Support
-
📦 B2B Support for Projects, RFQs & Tender Bidding
Why Choose Our 48-Fiber Rack Mount ODF?
-
✔️ Compact and Scalable Design
-
✔️ Professional Cable Management & Easy Access
-
✔️ Robust Construction with Anti-Corrosion Finish
-
✔️ Fully Compatible with Global Fiber Systems
-
✔️ Available with OEM Branding & Custom Builds
Order Now
Optimize your fiber network infrastructure with the 48-Fiber ODF Rack Mount Distribution Box — a durable, branded, and scalable solution for organized fiber termination. Now available with custom options, accessories, and wholesale support for global deployments.
