48-SC Fiber ODF Rack Mount Distribution Box – Brand New | High-Capacity Optical Termination Solution
Product Overview

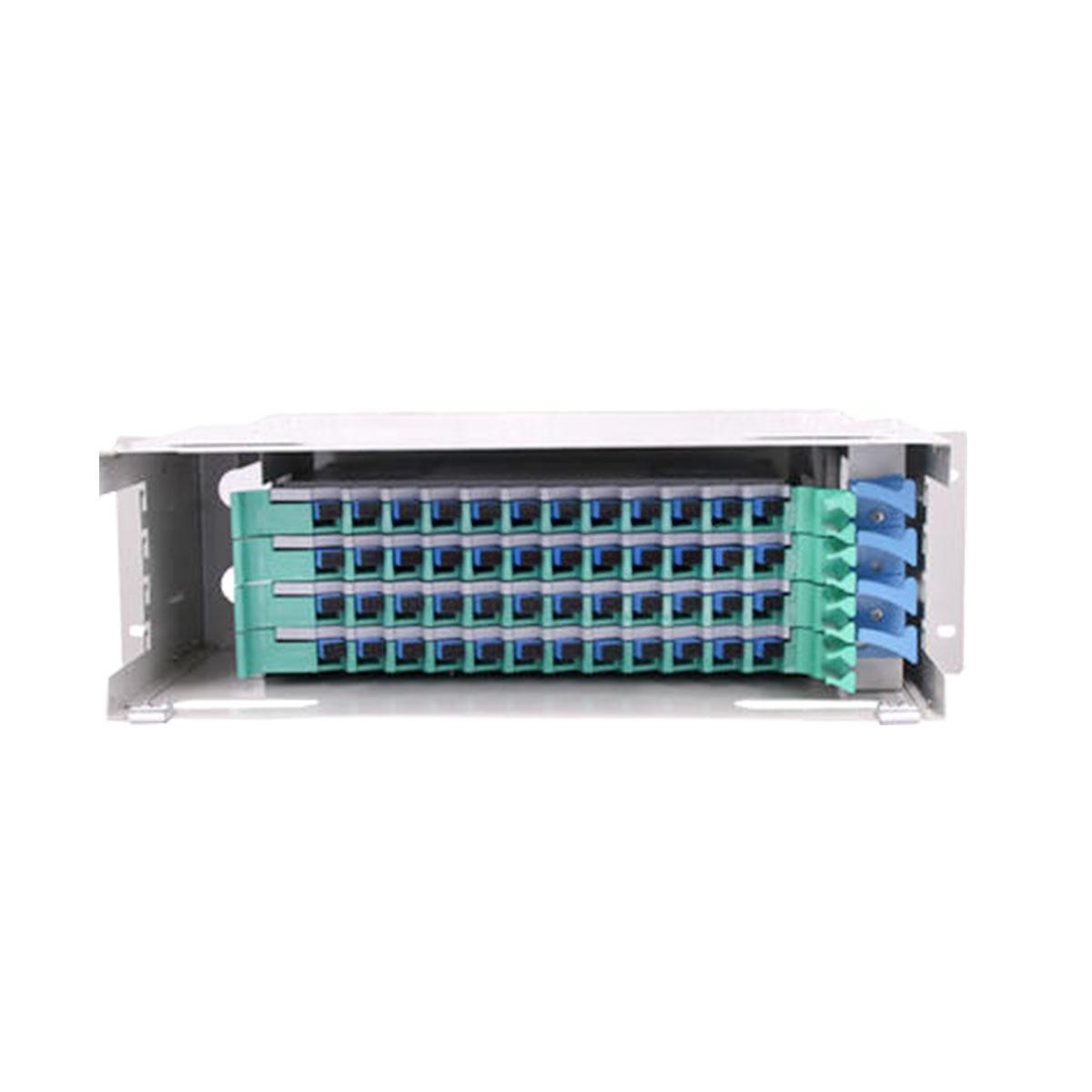

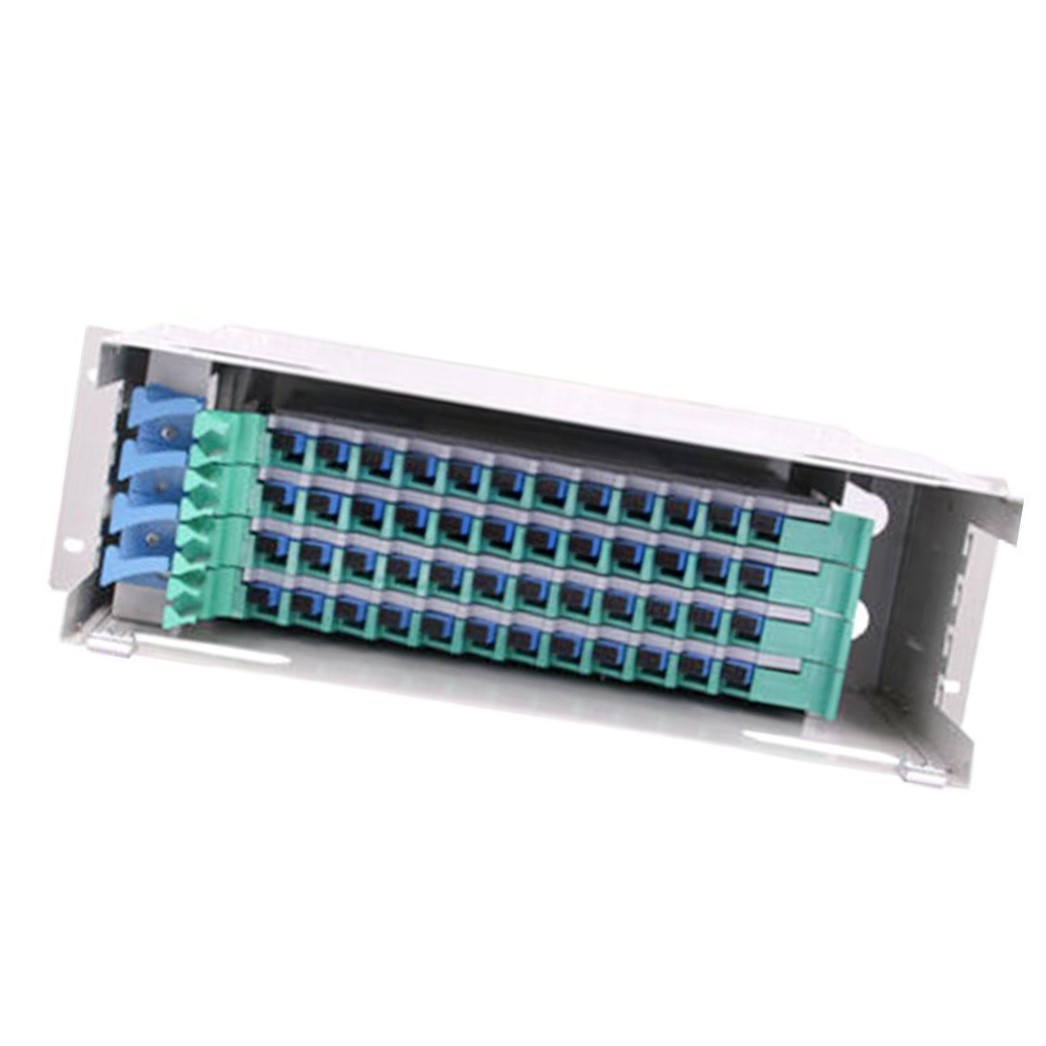

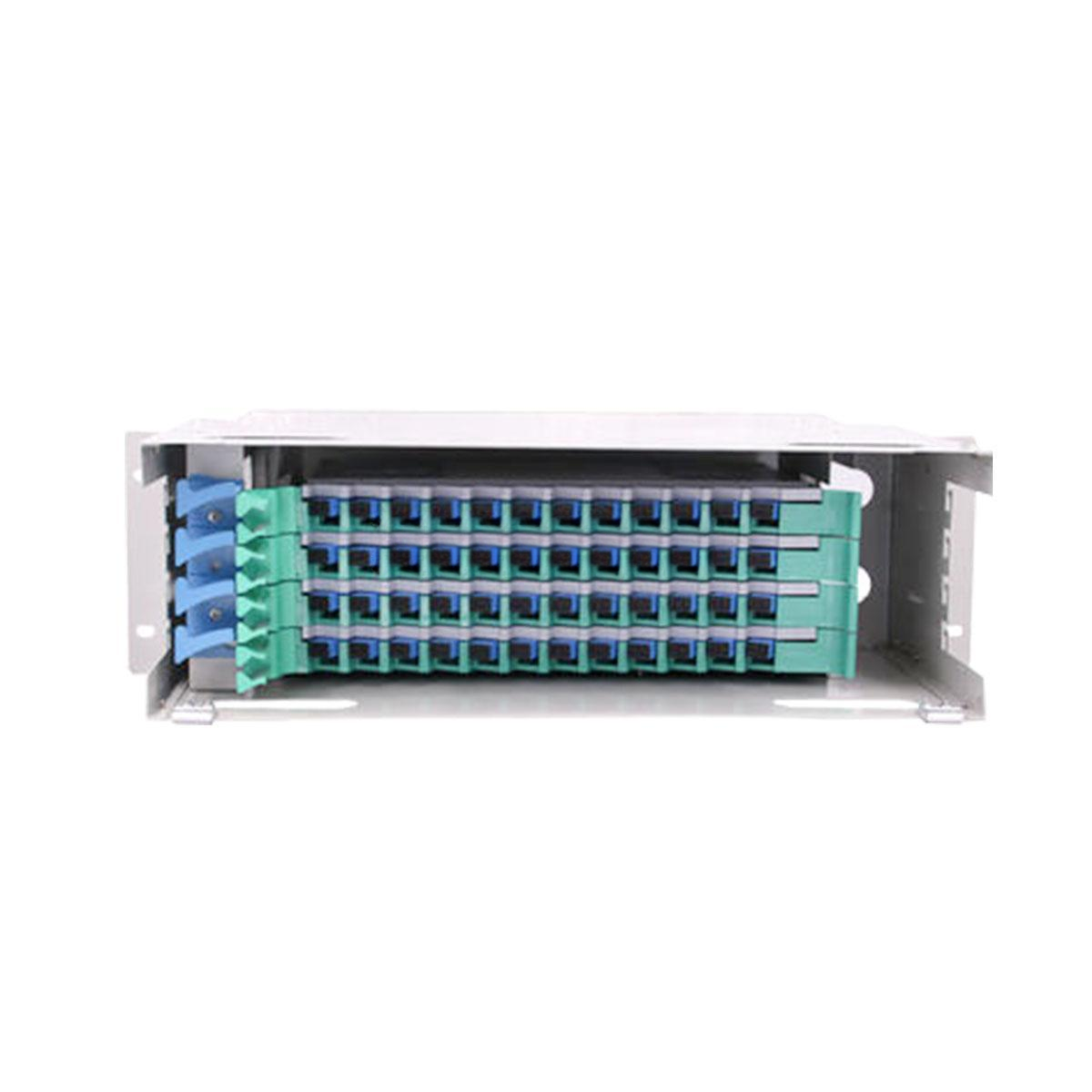

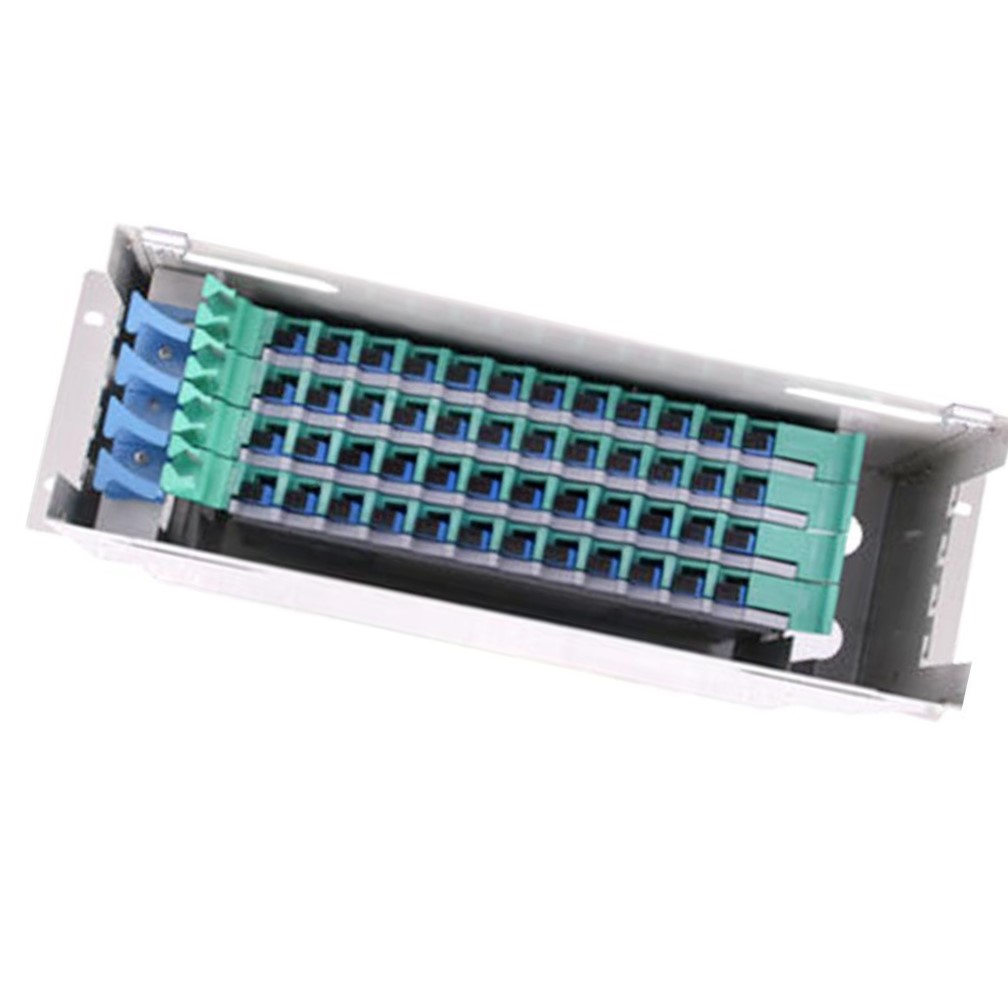

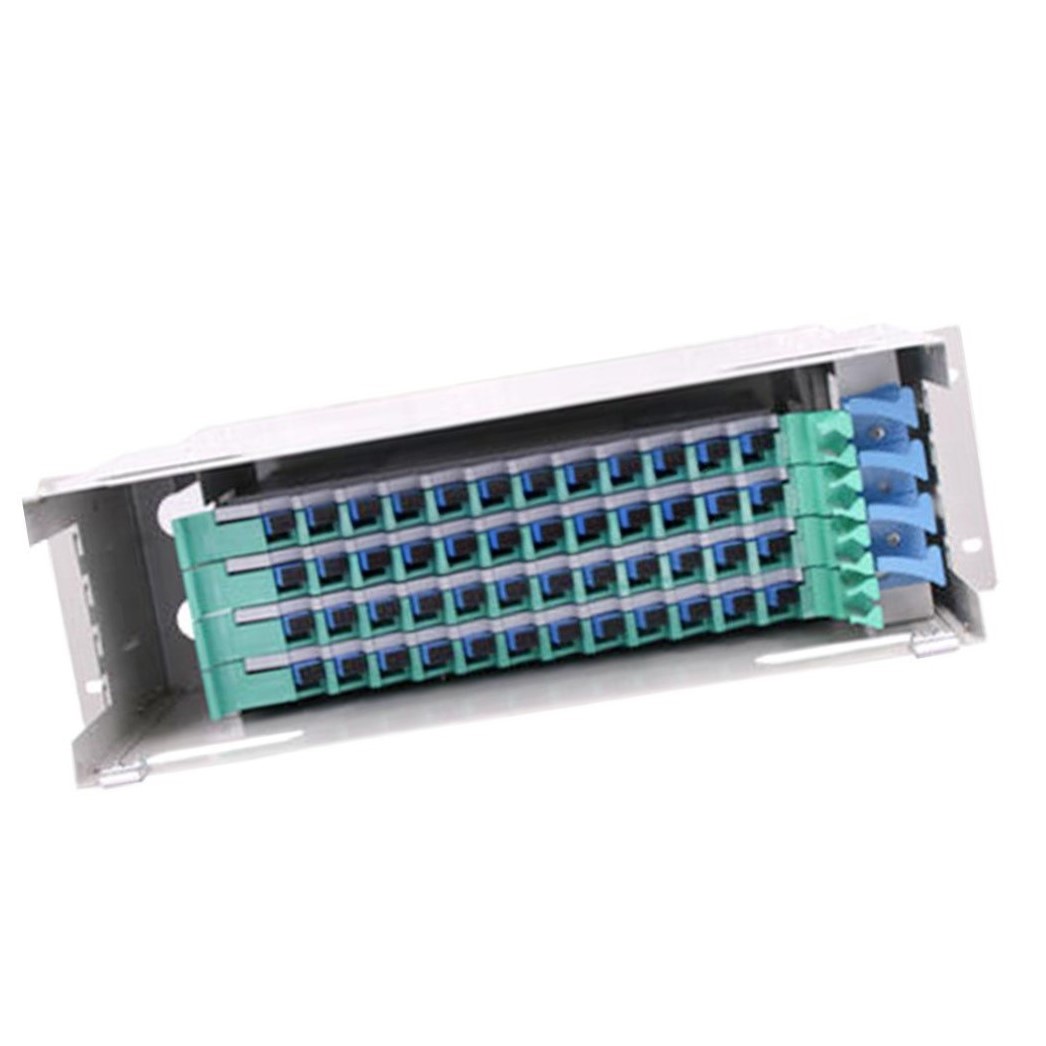

The 48-SC Fiber ODF Rack Mount Distribution Box is a robust and compact fiber optic distribution unit designed to accommodate up to 48 SC simplex adapters in a standard 19-inch rack. This brand-new unit is ideal for structured cabling environments requiring secure, organized, and scalable optical fiber termination and management.
Commonly used in FTTH networks, telecom closets, enterprise LANs, and data centers, the box offers excellent cable routing, protection for spliced or connected fibers, and compatibility with SC adapters and pigtails.
Key Features of 48-SC Fiber ODF Rack
-
✅ Capacity: 48 cores (supports 48 SC simplex or 24 SC duplex adapters)
-
✅ Mounting Type: Standard 19” Rack Mount – 1U or 2U (based on configuration)
-
✅ Adapter Panel Included: SC simplex cutouts (48-port front panel)
-
✅ Material: Cold-rolled steel with powder-coated finish
-
✅ Color: Light gray (RAL 7035) or black (customizable)
-
✅ Cable Entry: Rear and side cable access with rubber grommets
-
✅ Condition: 100% Brand New – Sealed and Unused
-
✅ Compliance: RoHS, CE, ISO9001
48-SC Fiber ODF Rack Technical Specifications
| Specification | Detail |
|---|---|
| Fiber Capacity | 48 cores (48 SC simplex ports) |
| Adapter Compatibility | SC/UPC or SC/APC (customizable) |
| Enclosure Type | Rack Mount (19-inch standard) |
| Material | Cold-rolled steel |
| Surface Finish | Electrostatic powder coating |
| Dimensions (Typical) | 430mm × 300mm × 44mm (1U) |
| Splice Tray Support | Optional – up to 2 trays (24 fibers each) |
| Operating Temperature | -40°C to +60°C |
| Storage Temperature | -45°C to +85°C |
| Protection Level | IP20 (rack-mounted indoor use) |
48-SC Fiber ODF Rack Applications
-
🌐 FTTH & FTTx Networks – Distribution and termination of subscriber fibers
-
🏢 Enterprise LAN/WAN – Backbone and horizontal optical cabling
-
☁️ Data Centers – High-density fiber patching and routing
-
📡 Telecom Operators & Service Providers – Central office and edge distribution
-
🧪 Testing Labs – Organized fiber connectivity setups
Customization Options
We offer extensive customization for OEMs, integrators, and project-specific needs:
-
🔧 Adapter Types: SC/APC, SC/UPC, or mixed loaded
-
🔧 Pigtail Options: Pre-installed pigtails (singlemode or multimode)
-
🔧 Branding: Custom logo printing, labeling, or engraved panels
-
🔧 Color Customization: Black, white, blue, or per RAL code
-
🔧 Tray Configuration: With or without splice trays
-
🔧 Packaging Options: Bulk, retail box, or protective flight case
Let us tailor the product for your installation or branding requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 48-SC Fiber ODF |
| Dimension (L × W × H) | 483 × 255 × 133 mm |
| Weight | 6.8 kg |
| Air Pressure | 70 KPa ~ 106 KPa |
| Relative Humidity | ≤ 95% (at +40°C) |
| Operating Temperature | -40°C ~ +60°C |
| Included | 1 unit 48 Fiber Distribution Box 4 units of 12-Fiber Integration Tray Fully equipped SC adapters |
| Port Capacity | 48 Ports |
Additional Information
| Attribute | Value |
|---|---|
| Weight | 0.0 kg (placeholder) |
| Dimensions | 0.0 × 0.0 × 0.0 cm (placeholder) |
| Connector Type | SC/UPC |
| Port Count | 48 |
Wholesale & Bulk Supply Services
Ideal for telecom rollouts, distributors, system integrators, and export resellers:
-
📦 Factory-Direct Pricing & Scalable Discounts
-
📦 Flexible MOQs for B2B and long-term procurement
-
📦 Fast Production and Global Logistics Support
-
📦 Professional Packing & Export Compliance Docs (CE, RoHS, COO)
-
📦 Technical Support for Pre-Sales and Deployment Planning
Why Choose Our 48-SC Rack Mount ODF?
-
✔️ Brand New & Quality Inspected for Reliability
-
✔️ Easy Integration into 19” Network Cabinets or Server Racks
-
✔️ Supports High-Density Termination in Compact Form Factor
-
✔️ Durable Construction for Long-Term Infrastructure Use
-
✔️ OEM-Ready for Global Market Deployment
Order Now
Choose the 48-SC Fiber ODF Rack Mount Distribution Box for your next fiber network project — a brand-new, scalable, and installation-ready solution for managing optical connections efficiently. Available now with OEM branding, adapter kits, and wholesale pricing options.
