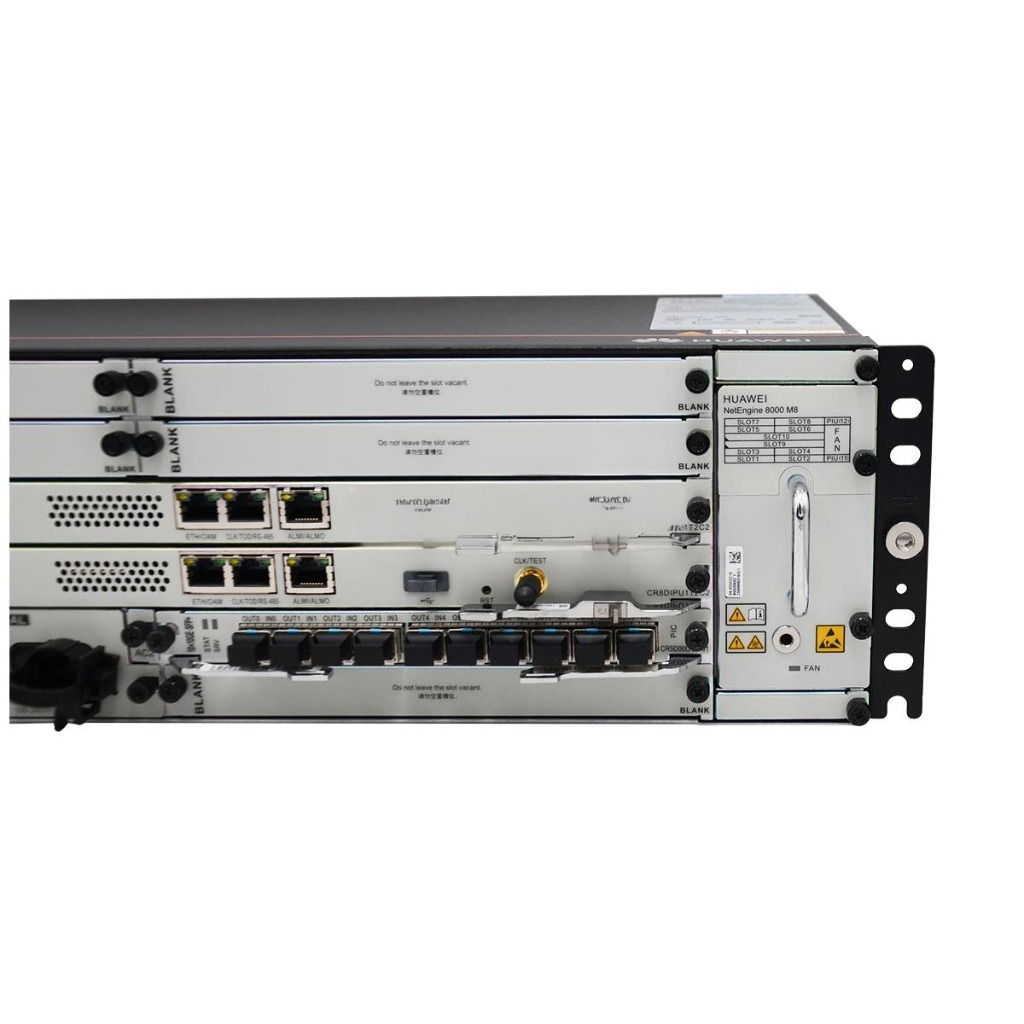

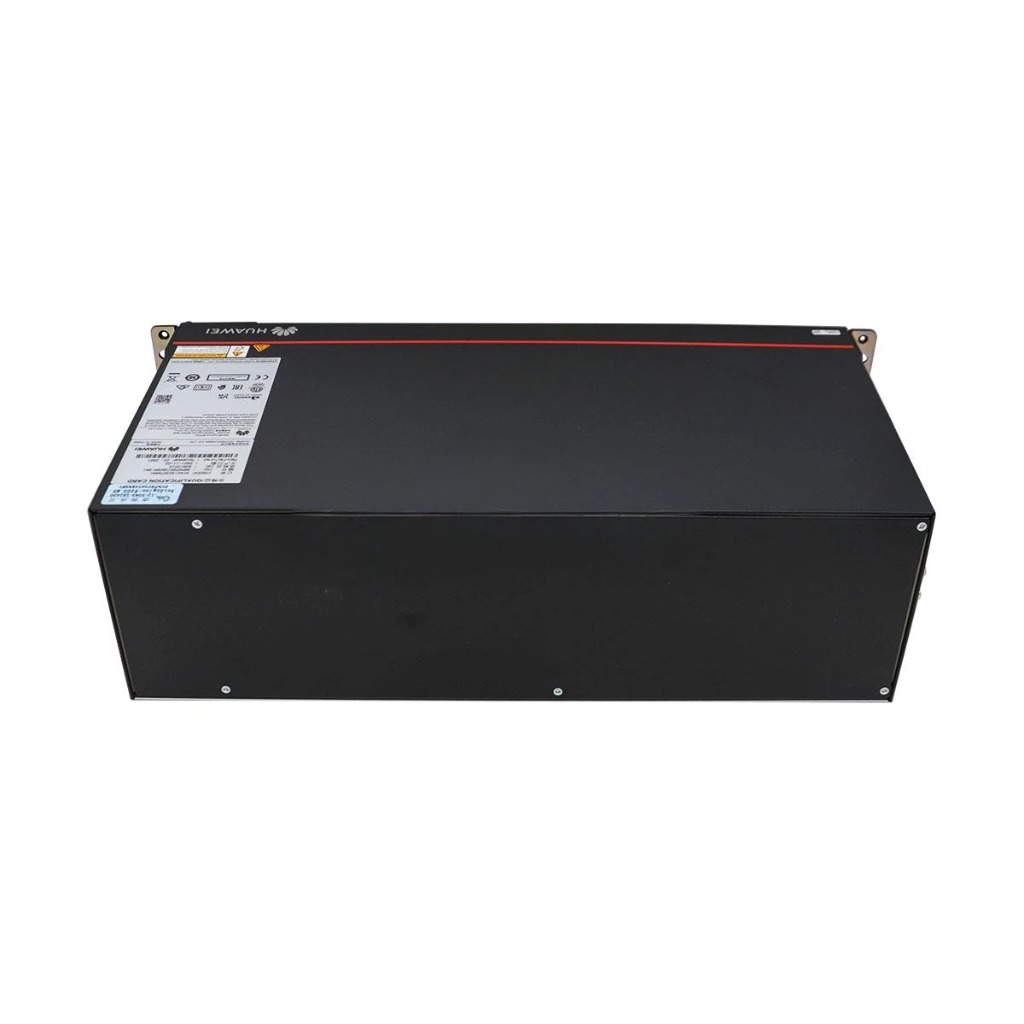

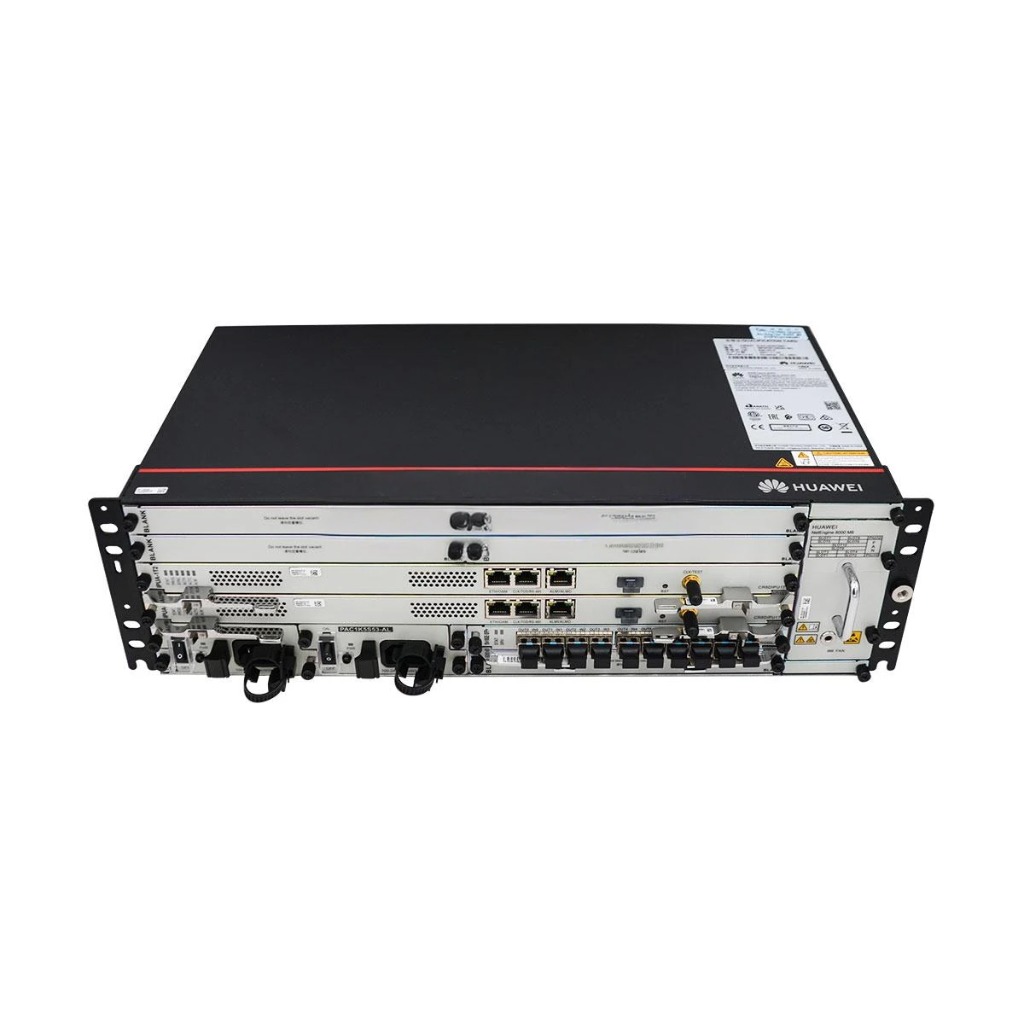

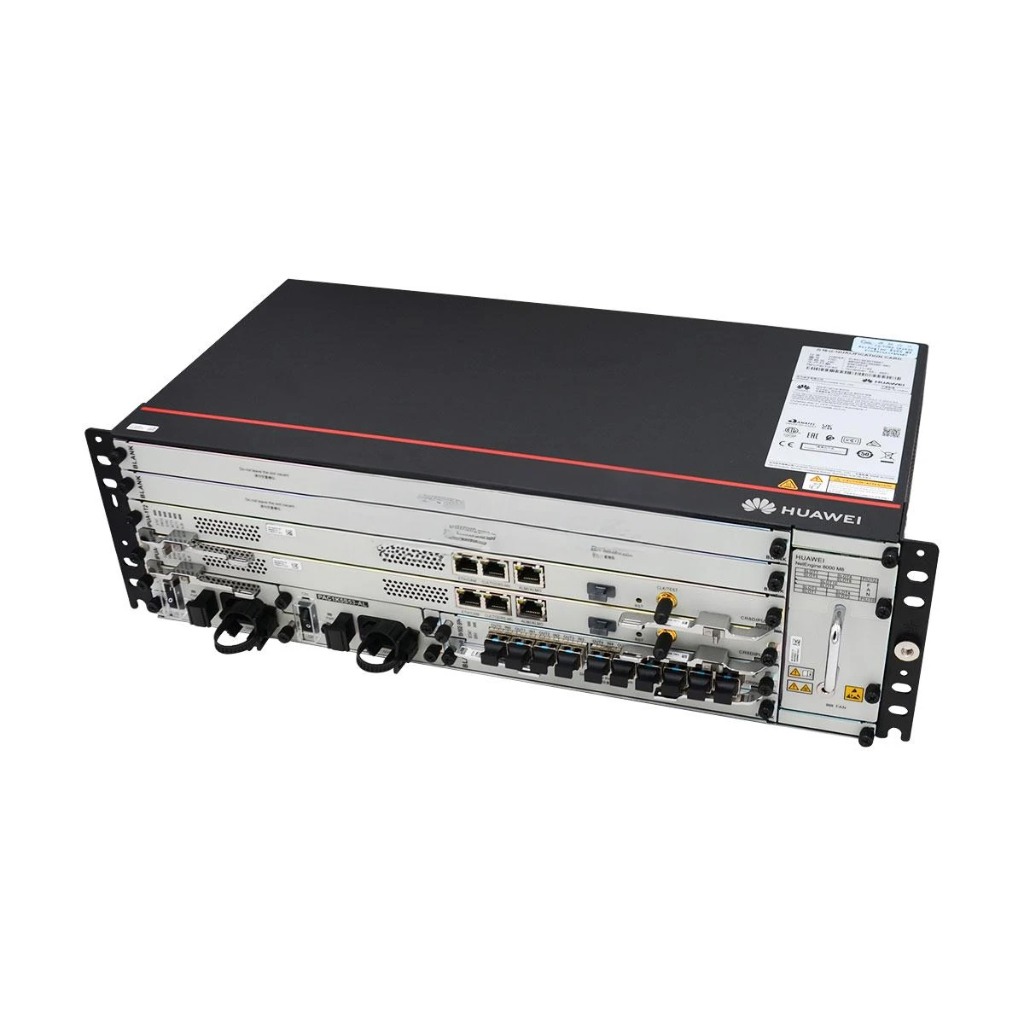

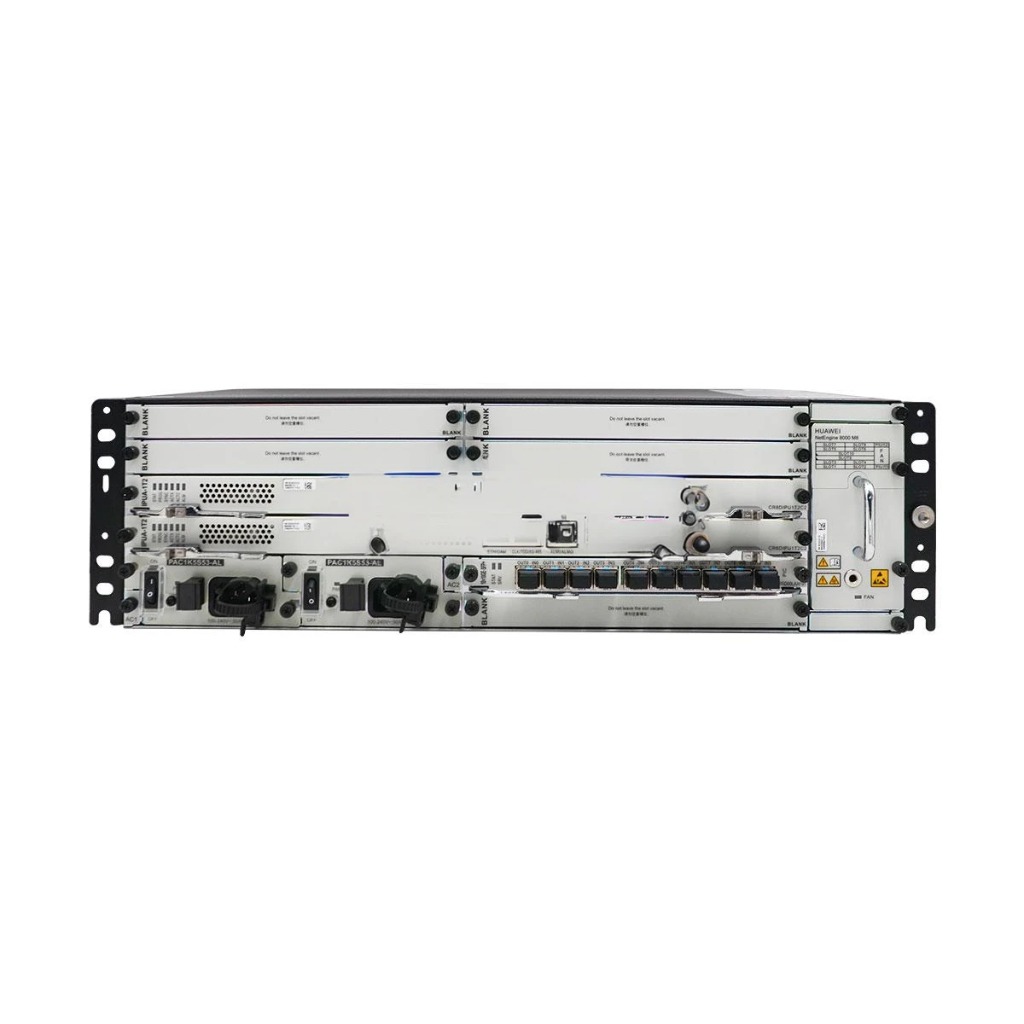

NE8000 HUAWEI Description:
The NE8000 HUAWEI is a brand new, original Huawei high-performance router, purpose-built for next-generation IP backbone networks, large-scale enterprise networks, and data center interconnect applications.
Equipped with 6 processing board/subcard slots, the NE8000 M8 AC provides exceptional scalability, flexible port configurations, and high-density 100G/400G forwarding capabilities — meeting the rapidly evolving demands of ultra-broadband services, cloud computing, and 5G backhaul.
With carrier-grade reliability, intelligent O&M, and industry-leading energy efficiency, this router is the ideal choice for operators and enterprises seeking future-ready infrastructure to support high-volume, low-latency traffic with unmatched security and availability.
Key Features:
-
Model: NE8000 M8 AC
-
Condition: 100% Brand New, Original Huawei
-
Type: Next-Generation Core Router
-
Slots: 6 slots for processing boards or subcards, enabling flexible expansion
-
Performance: High-density 100GE/400GE line card support with massive forwarding capacity
-
Power Module: AC power supply version for stable, reliable operation
-
Reliability: Carrier-grade redundancy design with hot-swappable modules
-
Network Features: Advanced routing protocols, intelligent traffic engineering, robust security
-
O&M: Intelligent management, streamlined maintenance, and automated fault recovery
-
Compatibility: Fully interoperable with Huawei NetEngine and SDN/NFV solutions
Tech Specs:
| Item | Description |
|---|---|
| Switching Capacity | 960Gbit/s |
| Forwarding Performance | 405 Mpps |
| Number of Slots | 6 slots |
| Interface Types | 100GE/50E/40GE/25GE/10GE/GE/FE/E1/Channelized STM-1c/OC3c/STM-1c |
| Layer 2 Ethernet protocols | G.8032, STP/RSTP, MSTP, BPDU, and LACP Transparent transmission of Layer 2 protocols |
| Ethernet service | VLAN, Bridge domain |
| Routing | RIP, RIPng, OSPF, OSPFV3, IS-IS, IS-ISV6, BGP, BGPv6, Static routing, IPv4 Multicast, IPv6 Multicast, Multicast static, etc |
| IPv4 | TCP/IP, for example, ICMP, IP, TCP, UDP, Socket (TCP/UDP/RAW IP), ARP Static DNS DNS Client FTP Server FTP Client TFTP Client DHCP Relay 和 DHCP Server Ping Tracert NQA IP policy-based routing Forwarding next hop based on traffic IP policy-based route load balancing The QinQ interface (QinQ termination and dot1q termination) supports IPv4 load balancing. Enabling and disabling the rapid ping reply function based on interface boards Forcible fragmentation for packets with length greater than MTU and DF enabled MPLS-in-UDP tunnel egress |
| IPv6 | IPv6(ND) Path MTU (PMTU) TCP6 Ping IPv6 Tracert IPv6 Socket IPv6 DHCPv6 Relay Static IPv6 DNS TFTP IPv6 Client IP policy-based routing IPv6 ND fast reply |
| L2VPN | PWE3/VLL、VPLS、EVPN、EVPN L3VPN、VxLAN |
| L3VPN | CE routers can access the L3VPN through L3 interfaces. Support static routes between CE and PE, BGP, RIP, OSPF and ISIS Inter-AS VPN, including RFC2547bis option A Inter-AS VPN, including RFC2547bis option B Inter-AS VPN, including RFC2547bis option C NG-MVPN IPv6 VPN HoVPN Seamless MPLS BGP LSP entropy label Redirect to VPN L3VPN PIPE/Uniform mode L3VPN Statistics |
| SRv6 | SRv6-BE、SRv6-TE Policy、SRv6 egress protection |
| Clock | Physical layer synchronization and 1588v2 |
| OAM | iFIT IPFPM NQA TWAMP BFD MPLS OAM MPLS-TP OAM VRRP Ethernet OAM 802.3ah Y1731 Ethernet LPT Bit-error-triggered protection switching |
| QoS | QPPB，Differ-Serv，HQoS，Redirection |
| Typical power consumption(W) | 457.79 |
| Typical heat dissipation | 1443.77 BTU/hour |
| AC input voltage | Input voltage range: 90 V to 290 V Input rated voltage: 200 V to 240 V/100 V to 127 V dual live wires, 240 V HVDC supported |
| MTBF | 101.78 years |
| MTTR | 0.5 hours |
| Availability | 0.999999439 |
| Redundant IPUs | 1:1 |
| Redundant fans | 1+1. The device can work properly for a short time at 40ºC (104°F) if a single fan fails (one fan module contains two fans). |
| Redundant power supply | 1+1 |
| Operating temperature | Long-term: AC: –20°C to +55°C (–4°F to +131°F) Temperature change rate limit: 30°C/hour |
| Relative operating humidity | Long term: 5% to 85% RH, non-condensing Short term: 5% to 95% RH, non-condensing |
| Relative storage humidity | 5% to 95% RH, non-condensing |
| Dimensions(mm) | 132.6 (H) x 442 (W) x 220(D) |
| Base Configuration Weight (Kg) | 4.3 |
| Full Configuration Weight(kg) | 17.1 |
NE8000 HUAWEI Applications:
The NE8000 M8 AC is designed for:
-
ISP and carrier IP backbone and aggregation networks
-
5G transport networks with ultra-high bandwidth requirements
-
Large-scale enterprise WAN and data center interconnect
-
High-performance cloud networking and multi-cloud access
-
Telecom infrastructure upgrades and network modernization
Customization & OEM Services:
We provide tailored services for partners and large projects:
-
Pre-configuration to your network specifications
-
OEM branding and private labeling for system integrators
-
Custom packaging for bulk shipments or special deployments
-
Extended testing and burn-in for mission-critical use cases
NE8000 HUAWEI Wholesale & Bulk Orders:
Take advantage of our wholesale supply chain for volume procurement:
-
Factory-direct pricing with attractive discounts for large orders
-
Consistent stock availability and on-time delivery
-
Professional export packaging and global shipping support
-
Dedicated account management for smooth processing
-
Comprehensive after-sales technical support and warranty services
Why Choose Us:
-
100% authentic Huawei hardware, tested and certified
-
Flexible solutions for telecom operators and integrators
-
Competitive pricing for wholesale and project-based requirements
-
Reliable global logistics and secure packaging
-
Expert support team from pre-sales planning to post-deployment service
Contact Us for a Quote:
Upgrade your network backbone with the NE8000 M8 AC Huawei Router — the smart choice for high-capacity, future-ready infrastructure. Contact us today for technical details, OEM options, or bulk pricing. Let our team help you deploy Huawei’s trusted networking solutions for tomorrow’s demands.
