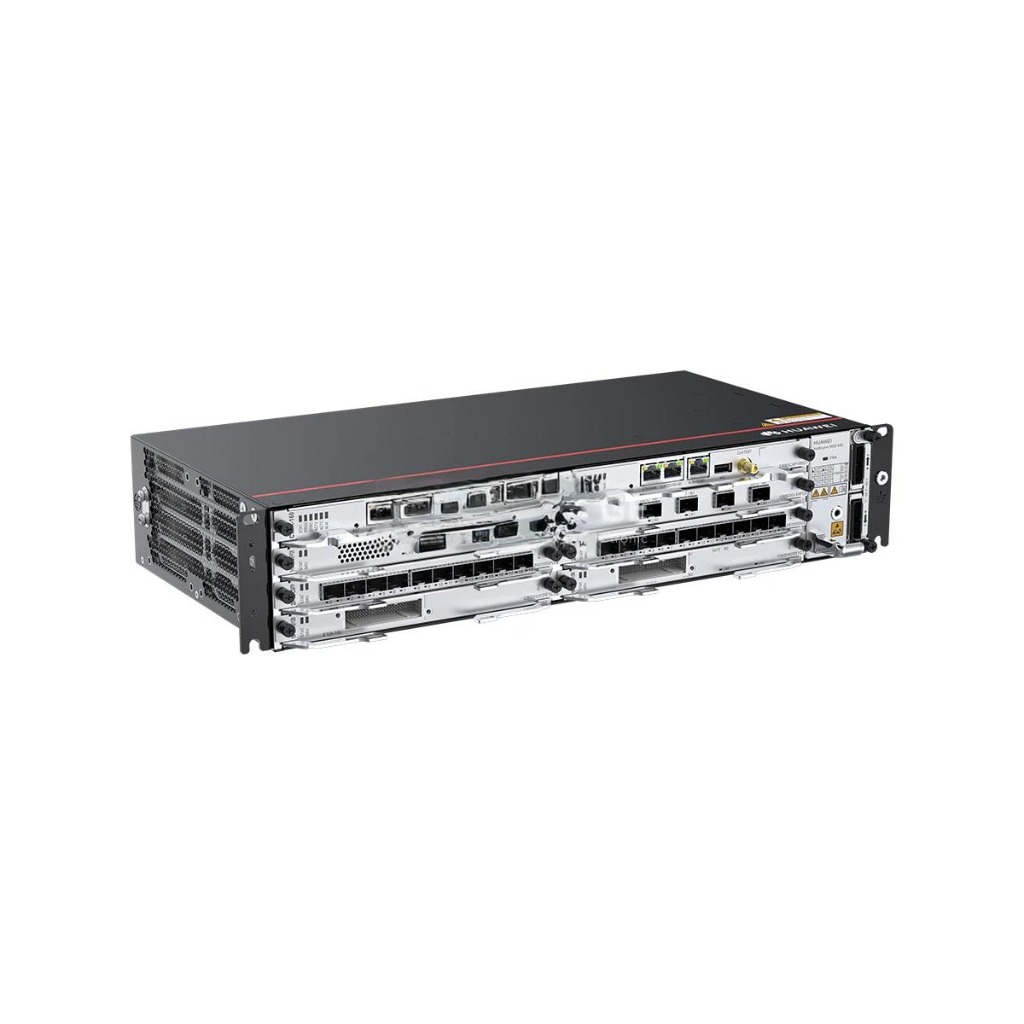

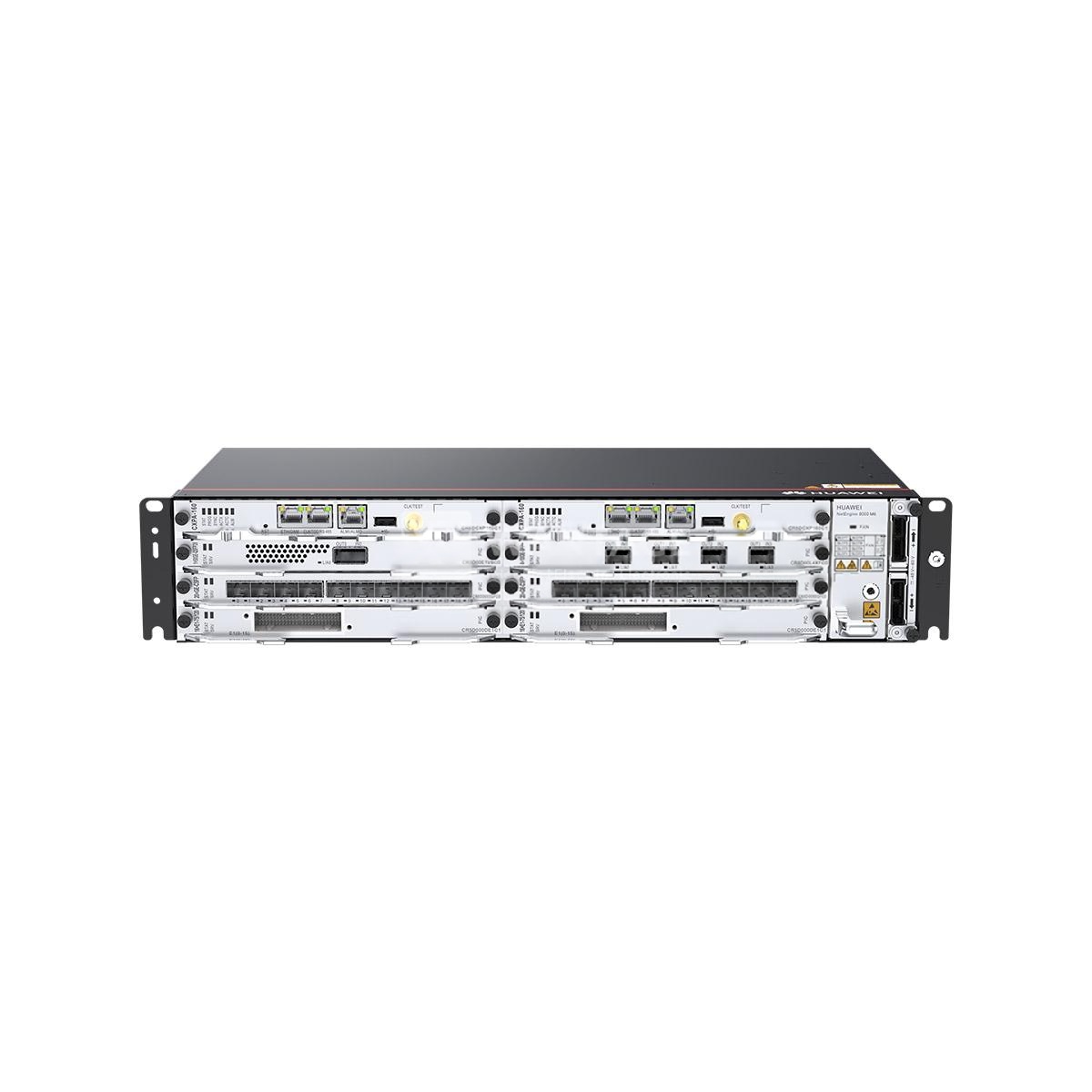

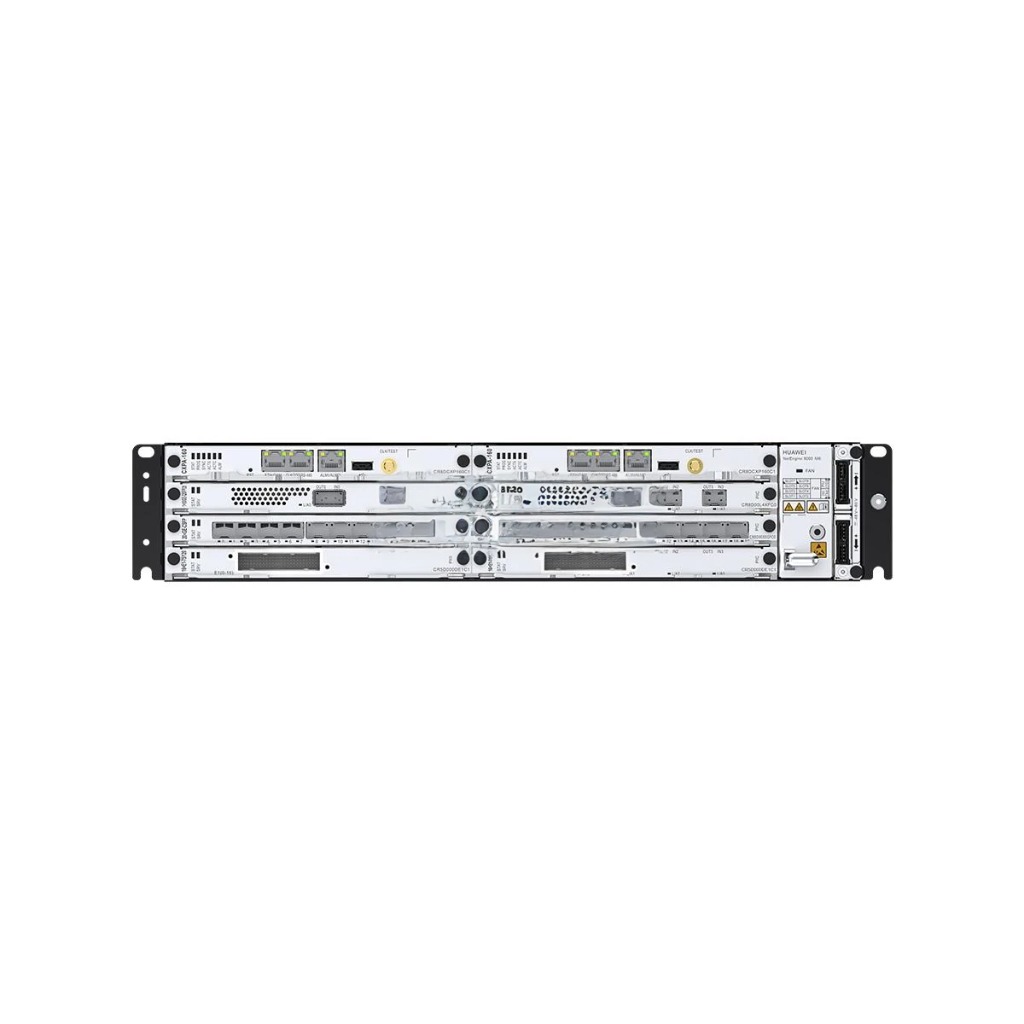

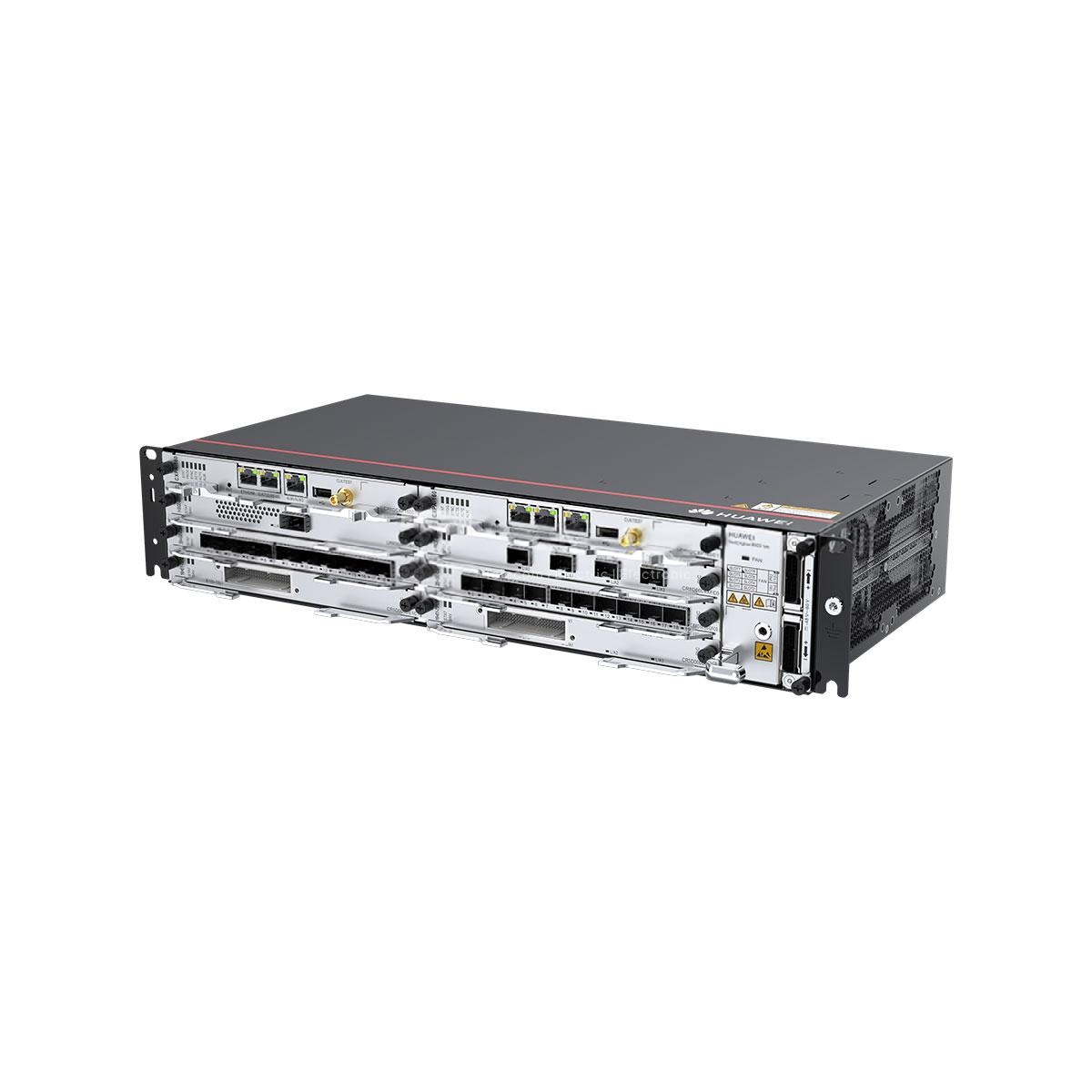

NE8000 M8 HUAWEI Description:
The NE8000 M8 HUAWEI is a brand new, original Huawei high-end core router, designed for next-generation IP backbone, metro, and large enterprise networks. With 8 flexible processing board/subcard slots, this router delivers industry-leading scalability, ultra-broadband capacity, and unmatched routing performance to meet the needs of cloud services, 5G transport, and massive data traffic growth.
Engineered for carrier-class reliability, the NE8000 M8 combines intelligent O&M, advanced traffic engineering, and robust security features to ensure smooth, stable, and secure network operations. Its flexible modular design makes it ideal for evolving network architectures and diverse deployment scenarios.
Key Features:
-
Model: NE8000 M8
-
Condition: 100% Brand New, Original Huawei
-
Slots: 8 slots for processing boards and subcards, supporting versatile expansion
-
Performance: Supports high-density 100GE/400GE interfaces for massive data throughput
-
Reliability: Carrier-grade redundant architecture with hot-swappable modules
-
Power Supply: Compatible with AC or DC power modules (depending on configuration)
-
Network Capabilities: Advanced routing protocols, SRv6, EVPN, segment routing, and strong security
-
O&M: Intelligent network management, easy integration with SDN/NFV solutions, and automated maintenance
-
Compatibility: Works seamlessly with Huawei’s NetEngine backbone and cloud network systems
Tech Specs:
| Item | Description |
|---|---|
| Switching Capacity | 960Gbit/s |
| Forwarding Performance | 405 Mpp |
| Number of Slots | 8 slots |
| Interface Types | 100GE/50E/40GE/25GE/10GE/GE/FE/E1/Channelized STM-1c/OC3c/STM-1c |
| Layer 2 Ethernet protocols | G.8032, STP/RSTP, MSTP, BPDU, and LACP Transparent transmission of Layer 2 protocols |
| Ethernet service | VLAN, Bridge domain |
| Routing | RIP, RIPng, OSPF, OSPFV3, IS-IS, IS-ISV6, BGP, BGPv6, Static routing, IPv4 Multicast, IPv6 Multicast, Multicast static, etc |
| IPv4 | TCP/IP, for example, ICMP, IP, TCP, UDP, Socket (TCP/UDP/RAW IP), ARP Static DNS DNS Client FTP Server FTP Client TFTP Client DHCP Relay 和 DHCP Server Ping Tracert NQA IP policy-based routing Forwarding next hop based on traffic IP policy-based route load balancing The QinQ interface (QinQ termination and dot1q termination) supports IPv4 load balancing. Enabling and disabling the rapid ping reply function based on interface boards Forcible fragmentation for packets with length greater than MTU and DF enabled MPLS-in-UDP tunnel egress |
| IPv6 | IPv6(ND) Path MTU (PMTU) TCP6 Ping IPv6 Tracert IPv6 Socket IPv6 DHCPv6 Relay Static IPv6 DNS TFTP IPv6 Client IP policy-based routing IPv6 ND fast reply |
| L2VPN | PWE3/VLL、VPLS、EVPN、EVPN L3VPN、VxLAN |
| L3VPN | CE routers can access the L3VPN through L3 interfaces. Support static routes between CE and PE, BGP, RIP, OSPF and ISIS Inter-AS VPN, including RFC2547bis option A Inter-AS VPN, including RFC2547bis option B Inter-AS VPN, including RFC2547bis option C NG-MVPN IPv6 VPN HoVPN Seamless MPLS BGP LSP entropy label Redirect to VPN L3VPN PIPE/Uniform mode L3VPN Statistics |
| SRv6 | SRv6-BE、SRv6-TE Policy、SRv6 egress protection |
| Clock | Physical layer synchronization and 1588v2 |
| OAM | iFIT IPFPM NQA TWAMP BFD MPLS OAM MPLS-TP OAM VRRP Ethernet OAM 802.3ah Y1731 Ethernet LPT Bit-error-triggered protection switching |
| QoS | QPPB，Differ-Serv，HQoS，Redirection |
| Typical power consumption(W) | 482.11 |
| Typical heat dissipation | 1350.19 BTU/hour |
| DC input voltage | Input voltage range: –40 V to –72 V Input rated voltage: –48 V/–60 V |
| MTBF | 101.78 years |
| MTTR | 0.5 hours |
| Availability | 0.999999439 |
| Redundant IPUs | 1:1 |
| Redundant fans | 1+1. The device can work properly for a short time at 40ºC (104°F) if a single fan fails (one fan module contains two fans). |
| Redundant power supply | 1+1 |
| Operating temperature | Long-term: DC: –40°C to +65°C (–40°F to +149°F) Lowest temperature for startup: –20°C(68°F) Temperature change rate limit: 30°C/hour |
| Relative operating humidity | Long term: 5% to 85% RH, non-condensing Short term: 5% to 95% RH, non-condensing |
| Relative storage humidity | 5% to 95% RH, non-condensing |
| Dimensions(mm) | 132.6 (H) x 442 (W) x 220(D) |
| Weight (Kg) | 4.3 |
| Full Configuration Weight(kg) | 16.5 |
NE8000 M8 HUAWEI Applications:
The NE8000 M8 is widely deployed in:
-
National and regional IP backbone networks
-
Metro core and aggregation layers
-
5G transport and converged metro networks
-
Large enterprise WAN and data center interconnect
-
Cloud-based services requiring ultra-high capacity and low latency
Customization & OEM Services:
We support network operators, integrators, and partners with tailored solutions, including:
-
Pre-configuration of hardware/software to meet your unique requirements
-
OEM branding and private labeling for large projects or resellers
-
Custom export packaging and logistics coordination
-
Extended burn-in tests for mission-critical network environments
NE8000 M8 HUAWEI Wholesale & Bulk Orders:
Benefit from our wholesale supply chain and volume discounts:
-
Factory-direct pricing with competitive discounts for bulk procurement
-
Reliable stock availability and prompt global delivery
-
Professional packing and export-compliant documentation
-
Dedicated account manager for large or repeat orders
-
Full after-sales support and genuine Huawei warranty
Why Choose Us:
-
100% original Huawei hardware, tested and certified
-
Flexible supply options for telecom operators, ISPs, and data centers
-
Excellent pricing for wholesale and large project requirements
-
Secure global shipping with professional logistics support
-
Technical expertise from pre-sales consultation to post-installation support
Contact Us for a Quote:
Ready to expand your backbone network with the NE8000 M8 Huawei Router? Reach out today for technical specs, customized solutions, or bulk pricing. Our team will help you deploy a reliable, high-capacity network that’s ready for the future.
