- Model Number:HK668
- Type:ONU
- Place of Origin:Guangdong, China
- Brand Name:OEM ODM
- Use:FTTH
- Warranty Time:2years
- Network:Wireless Lan, Wired LAN, wifi
- Specification:4GE 2usb 1POT + 2.4g /5g AC wifi
- PON Type:GPON
- WiFi:2.4g / 5g AC 1200mb wifi
- Optical Connector:SC UPC / SC APC optional
- Color:White/ Black optional
- OLT compatible:compatible with HUAWEI ZTE Fiberhome Nokia OLT
- Power Supply:12V 1.5A
- Certification:RoHS
-
- Supply Ability
- 5000000 Piece/Pieces per Week
-
- Packaging Details
20pcs in 1 carton;
-
- Port
shenzhen/guangzhou/hongkong
- Lead time:Quantity(pieces)1 – 2000>2000Lead time (days)10To be negotiated
668

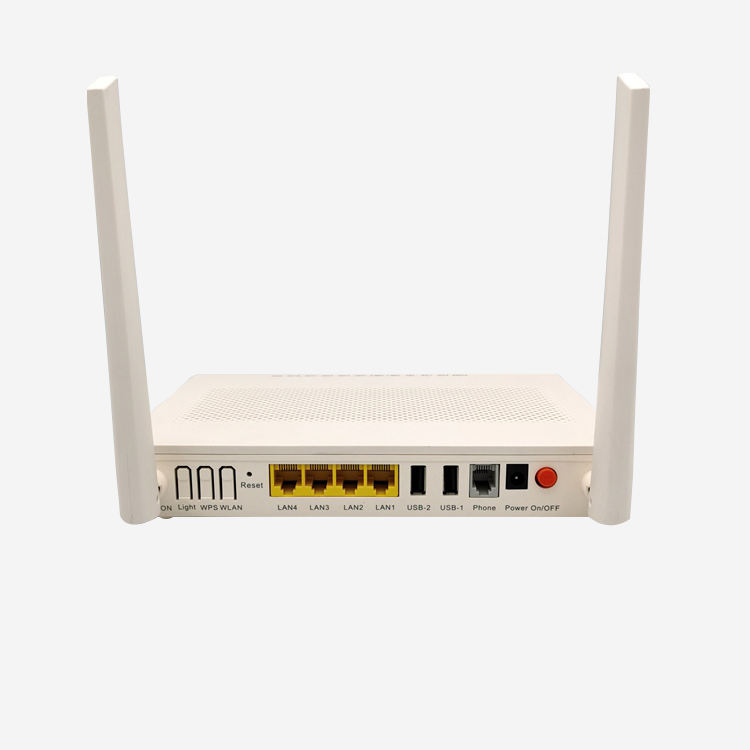

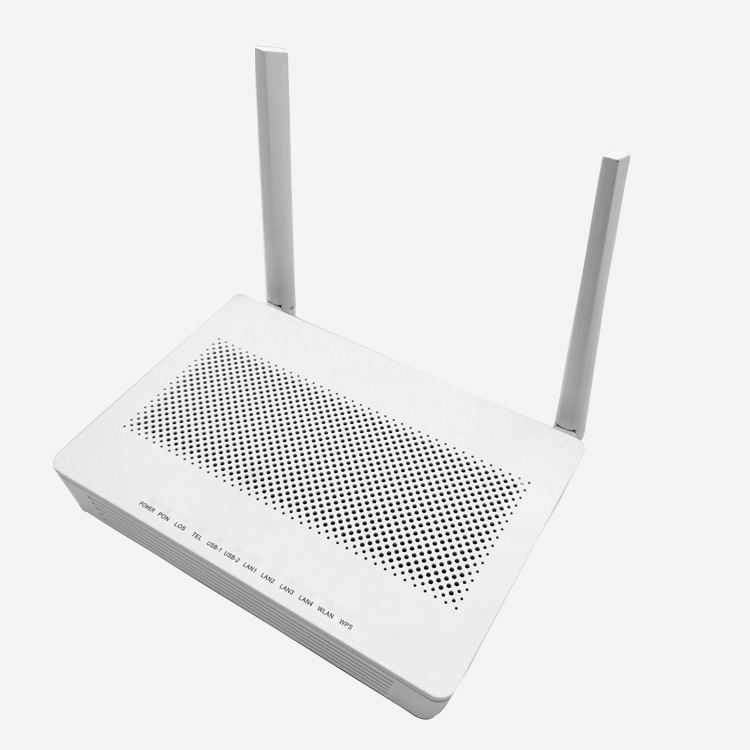

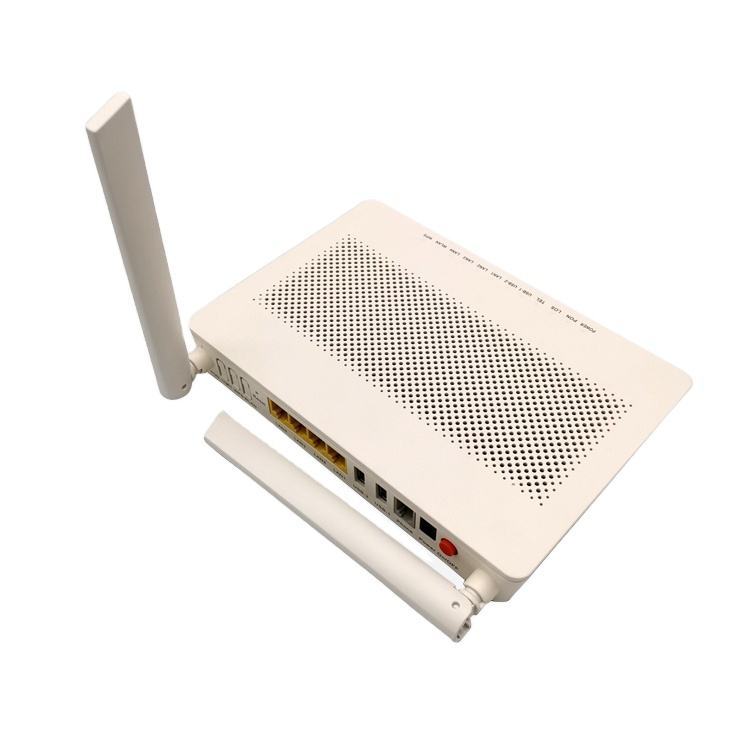

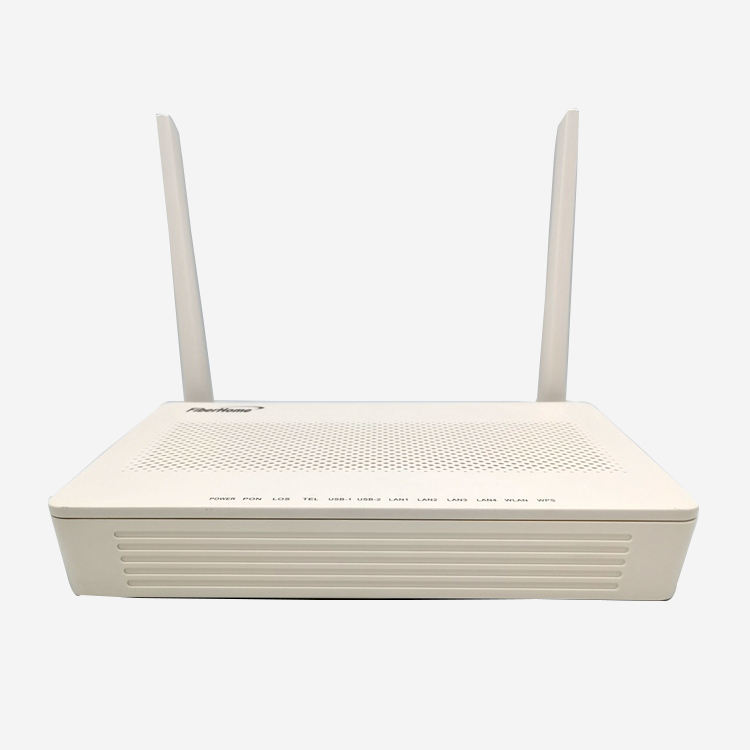

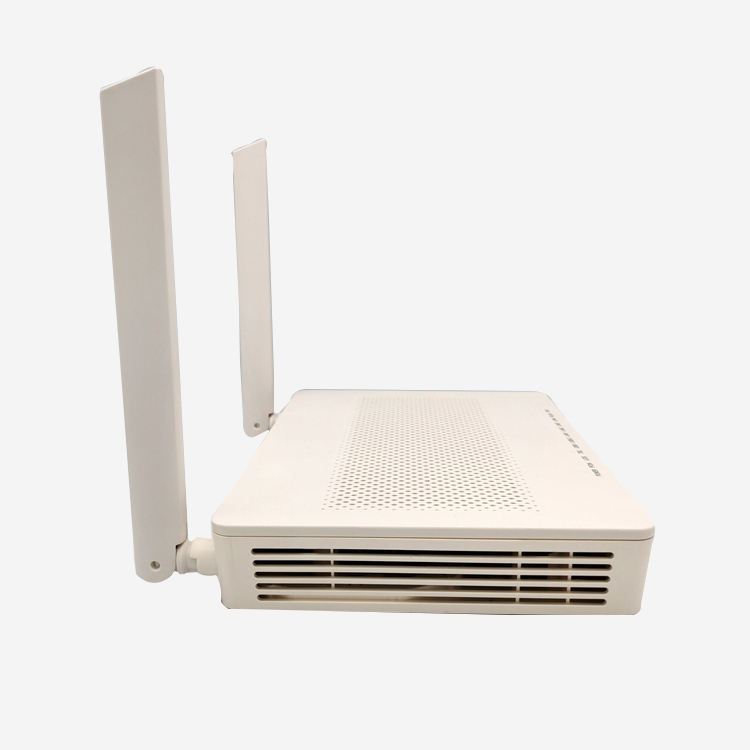

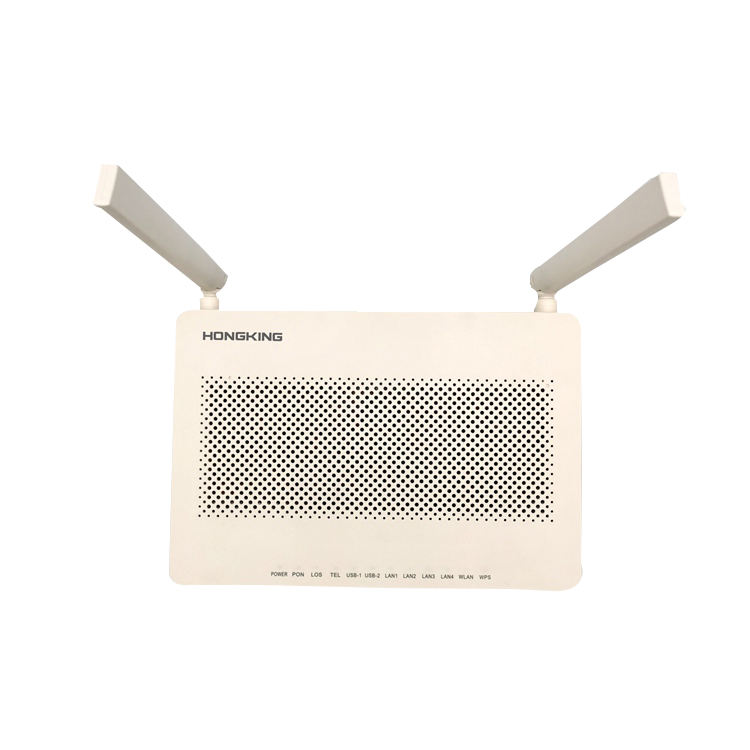

HK668 is an FTTH GPON optical network unit. It provides communication and entertainment ervice in multiple modes such as data, voice and video, to meet integrated access requirement of smilies or small enterprises.
Product Paramenters
|
Datasheet
|
||
|
Tech parameters
|
Description
|
|
|
Up-link interface
|
EPON Mode
|
1 EPON interface，SC single mode single fiber
|
|
1 Gbits/s rate which uplink and downlink are symmetrical
|
||
|
Fiber type：SC/PC
|
||
|
TX Optical power：-1 士 4 dBm
|
||
|
RX Sensitivity：-26 dBm
|
||
|
safety: ONU authentication mechanism
|
||
|
GPON Mode
|
1 GPON interface，SC single mode single fiber
|
|
|
RX 2.488 Gbits/s rate and TX 1.244 Gbits/s rate
|
||
|
Fiber type：SC/PC
|
||
|
TX Optical power：0~4 dBm
|
||
|
RX Sensitivity：-28 dBm
|
||
|
safety: ONU authentication mechanism
|
||
|
Wavelength(nm)
|
TX 1310nm，RX 1490nm
|
|
|
Fiber connector
|
SC/PC,SC/UPC,SC/APC
|
|
|
Down-link data interface
|
1*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface
|
|
|
DC supply interface
|
input＋12V 1A，footprint：DC0005 ø2.1MM
|
|
|
Power
|
≤5W
|
|
|
Operating temperature
|
-5～+55℃
|
|
|
Humidity
|
10～85%（non-condensation)
|
|
|
Storage temperature
|
-30～+70℃
|
|
|
Dimension（MM）
|
185*125*32mm（mainframe）
|
|
|
Weight
|
0.5Kg（mainframe）
|
|
WiFi Characteristics
|
|
|
WIFI
|
2.4G
|
|
Standard
|
IEEE802.11b/g/n
|
|
Frequency
|
2.4~2.4835GHz
|
|
Transmission speed
|
IEEE 802.11b :max11Mbps
IEEE 802.11g: max54Mbps IEEE 802.11n:max 300Mbps |
|
Channel number
|
2.4GHz :13
|
|
Data Modulation
|
DSSS,BPSK,CCK QPSK, and 16-QAM/64-QAM
|
|
Multiple encryption methods
|
WFA,WPA,WPA2,WAPI
|
|
Antenna
|
2T2R Mode, external antennas
5DBI Gain per pcs MIMO: 2*2 |
Application
Typical Solution：FTTH(Fiber To The Home)Typical Business：INTERNET、IPTV、WIFI 、VOIP etc
