- Use:ftth
- Warranty Time:3 years

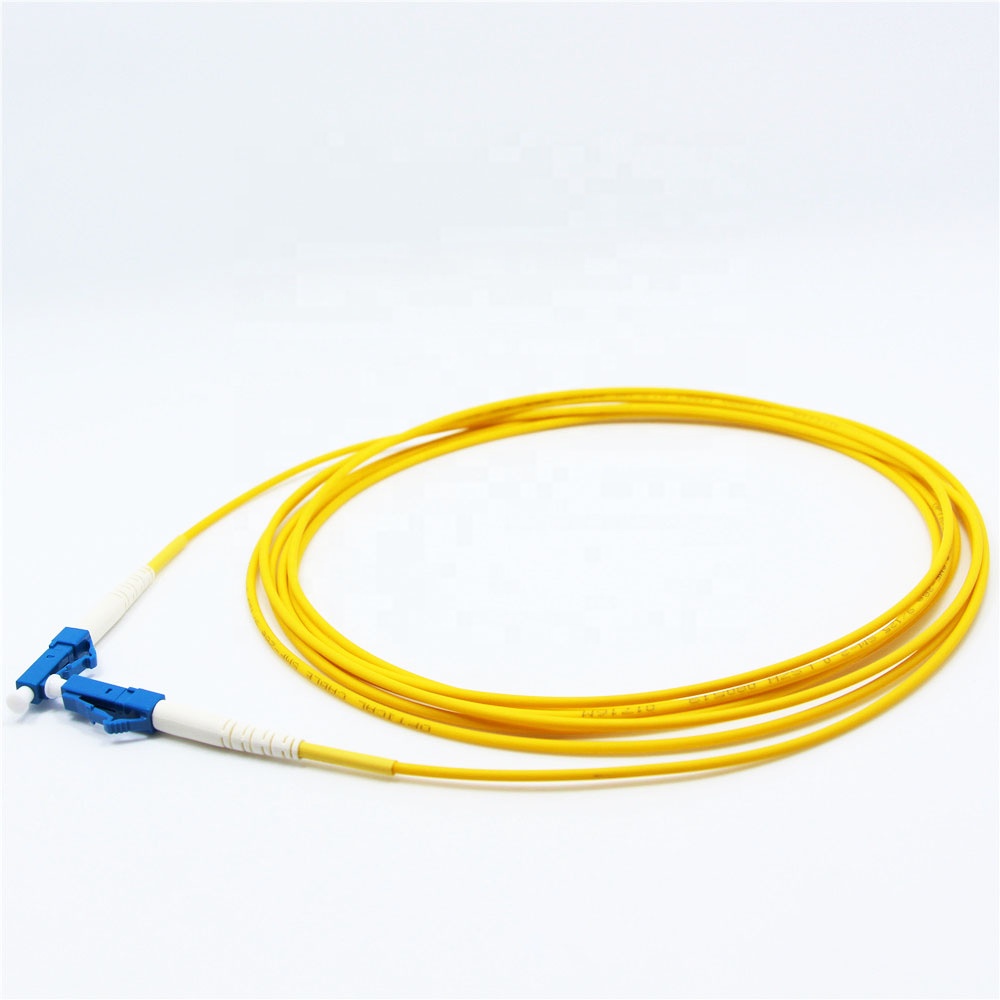

- Product name:LC-LC Simplex Single Mode 9/125 fiber optic patch cord-PVC/LSZH
- Fiber Type:SM
- Material:PVC LSZH
- Wavelength:1260-1650nm
- Connector:LC UPC
- Diameter:0.9mm/2.0mm/3.0mm
- Material Shape:Round
- Length:Customized Lengths(1m/2m/3m…+1
- No. of Fiber:1.
-
- Supply Ability
- 200000 Piece/Pieces per Month
-
- Packaging Details
Plastic/ Carton/Customized
-
- Port
Wuhan/Guangzhou
- Lead time:Quantity(pieces)1 – 10000>10000Lead time (days)3To be negotiated
Product Description
Factory Price OEM Fiber Jumper Single Mode LC/APC Fiber Optic Patch Cord
Optical patch Cord and pigtail is the basic parts for optical transmission. They are consist of fiber optic cable and terminated connector. Wolon has strong capacity and experience to support any large demand.
Feature
1).Low Insertion loss
2).High return loss
3).Good Repeatability
4).Good Interchange
5).Excellent Environmental Adaptability
Application
1).Communication rooms
2).FTTH (Fiber to The Home)
3).LAN (Local Area Network)
4).FOS (fiber optic sensor)
5).Fiber Optic Communication System
6).Optical fiber connected and transmitted equipment
7).Defense combat readiness

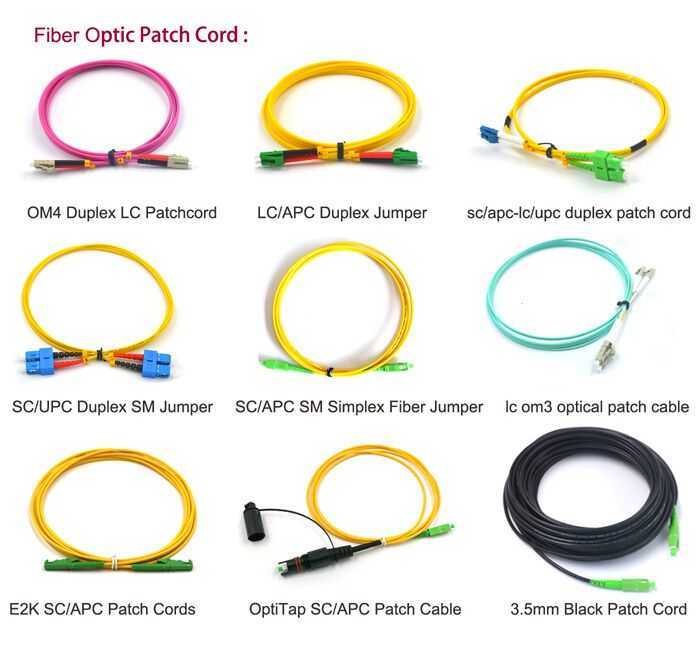

Details Images
|
Parameter
|
Unit
|
Value
|
|||
|
Connector Type
|
|
FC/UPC,FC/APC,SC/UPC,SC/APC,LC/UPC,LC/APC,ST/PC,MPO
|
|||
|
Fiber Type
|
|
Multi-Mode
|
Single Mode
|
||
|
Insertion Loss
|
dB
|
Typ.≤0.1 Max.≤0.2
|
Typ.≤0.1 Max.≤0.3
|
||
|
Return Loss (Typ.)
|
dB
|
≥36 (no APC connector)
|
/PC
|
/UPC
|
/APC
|
|
|
|
|
≥45
|
≥50
|
≥55
|
|
Repeatability
|
dB
|
≤0.1
|
|||
|
Interchangeability
|
dB
|
≤0.2
|
|||
|
Connection Durability
|
times
|
≥1000
|
|||
|
Operating/Storage Temperature
|
°C
|
-40~+80
|
