SKU 1600650065643 Categories ,
  • Model Number:GPHF
  • Type:Other
  • Place of Origin:Guangdong, China
  • Brand Name:Huawei
  • Warranty Time:1 YEAR
  • Network:wifi
  • Product name:Huawei 16 port gpon card GPHF
  • Supply Ability
    300 Piece/Pieces per Month
  • Packaging Details

    Retail package for Huawei GPHF

  • Port


  • Lead time:Quantity(pieces)1 – 2000>2000Lead time (days)15To be negotiated
Product Description

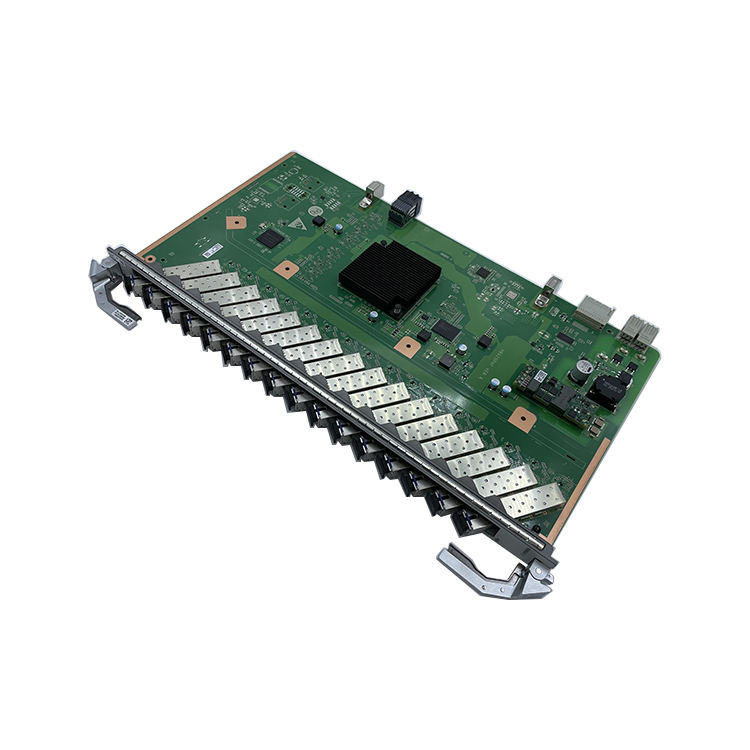

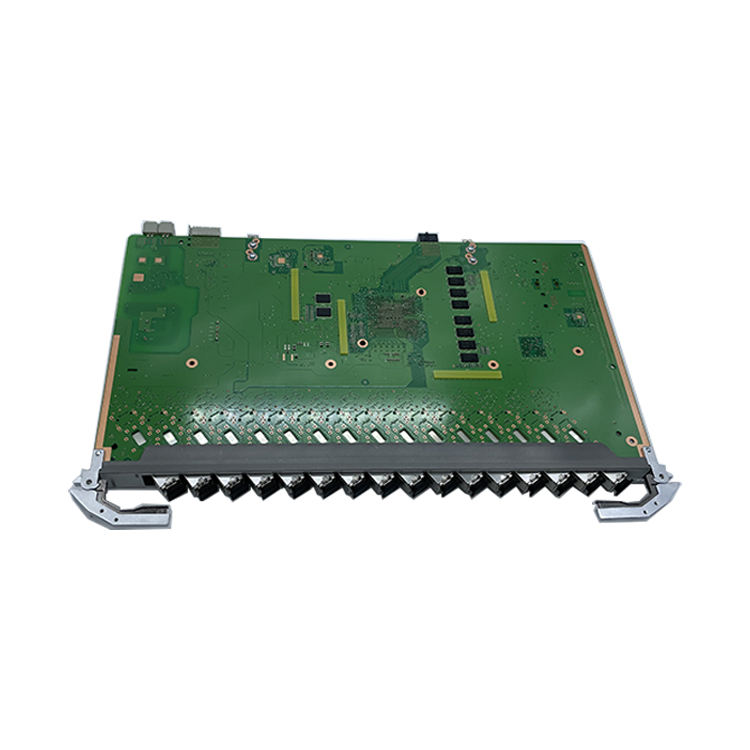

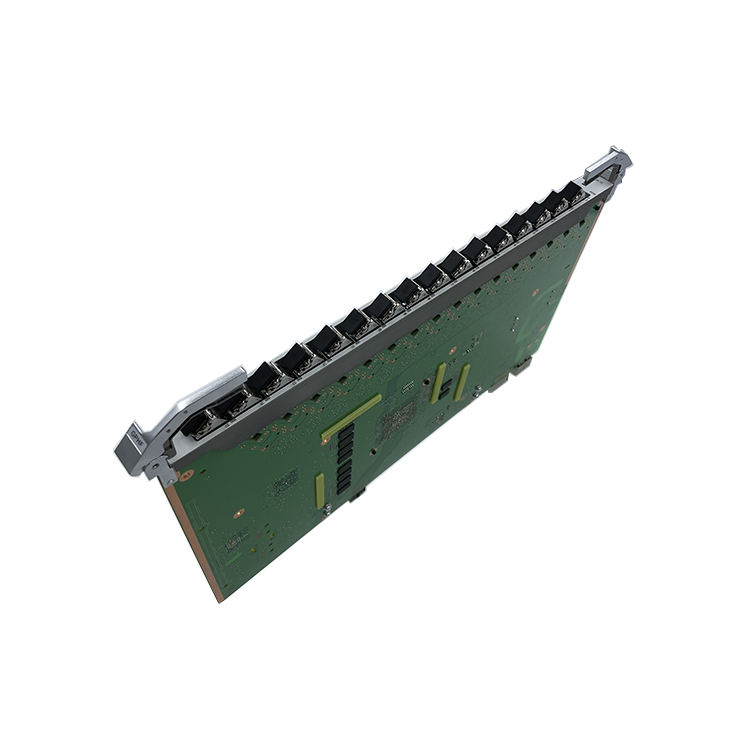

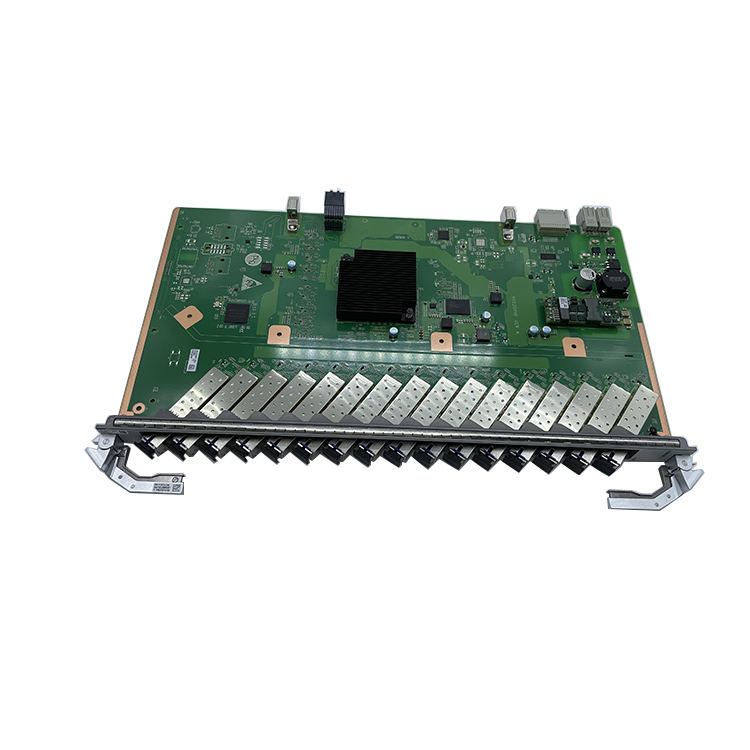

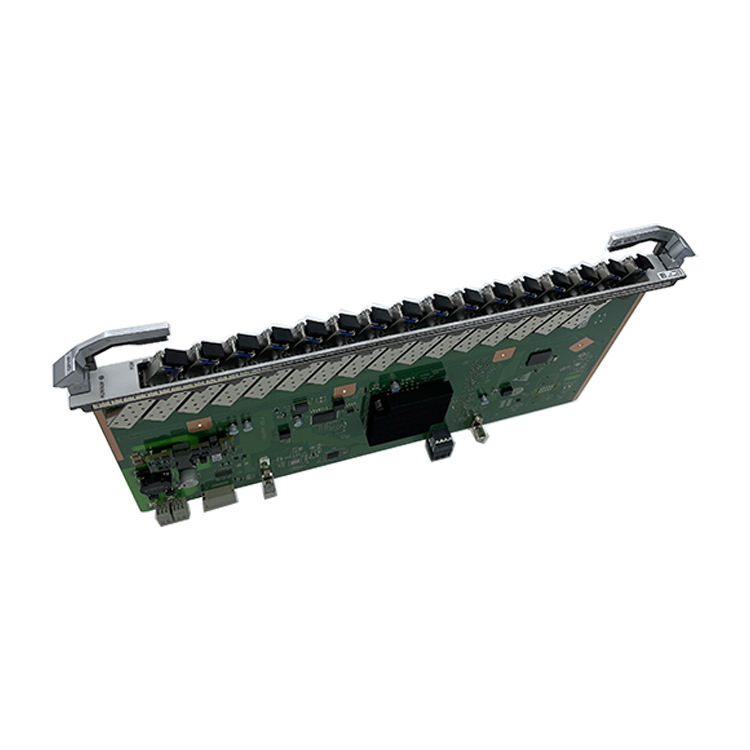

GPHF is a 16 port GPON interface card of Huawei NG OLT, provides GPON service access from ONT. GPHF can maximum access 16*128 GPON subscribers.

The MA5800 multi-service access device is a 4K/8K/VR Ready OLT in the Gigabit Ultra-wide era. It adopts a distributed architecture and supports PON/10G PON/GE/10GE common platform. The MA5800 supports multi-media Gigabit aggregation, optimal 4K/8K/VR video experience, multi-service virtualization common platform, and smooth evolution of 50G PON. MA5800 series frame products include 4 sizes: MA5800-X17, MA5800-X15, MA5800-X7 and MA5800-X2, supporting various networking applications such as FTTB/FTTC/FTTD/FTTH/D-CCAP. The 1U box OLT product MA5801 supports all-optical access coverage in low-density areas.

Brand Huawei
Model GHPF
GPON Port 16-GPON Port
Type C+ Module : One-fiber bi-directional optical module, class C+
Operating Wavelength Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type SFP
Port Rate Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s
Minimun Output Optical Power C+ Module : 3.00 dBm
Maximum Output Optical Power C+ Module : 7.00 dBm
Maximum Receiver Sensitivity C+ Module : -32.00 dBm
Optical Connector Type SC/PC
Optical Fiber Type Single-mode
Reach 20.00 km
Overload Optical Power C+ Module : -12.0 dBm
Extinction Ratio 8.2 dB
Dimensions (W x D x H) 23.30 mm * 257.90 mm * 399.20 mm
Power Consumption and Maximum Frame Size
Power Consumption Static: 25W; Maximum:50W
Maximum Frame Size 2004 bytes
  9216 bytes (jumbo frame enabled)
Operating temperature -40°C to +65°C
