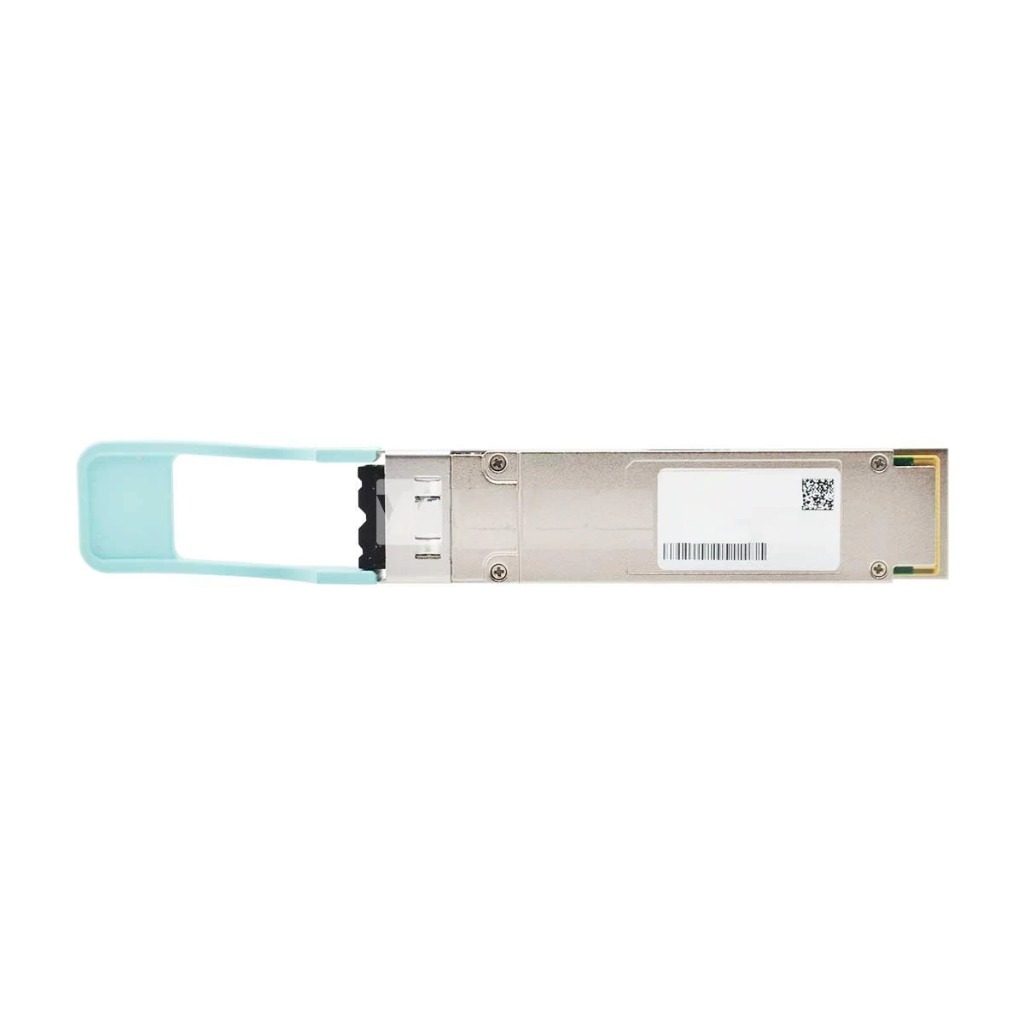

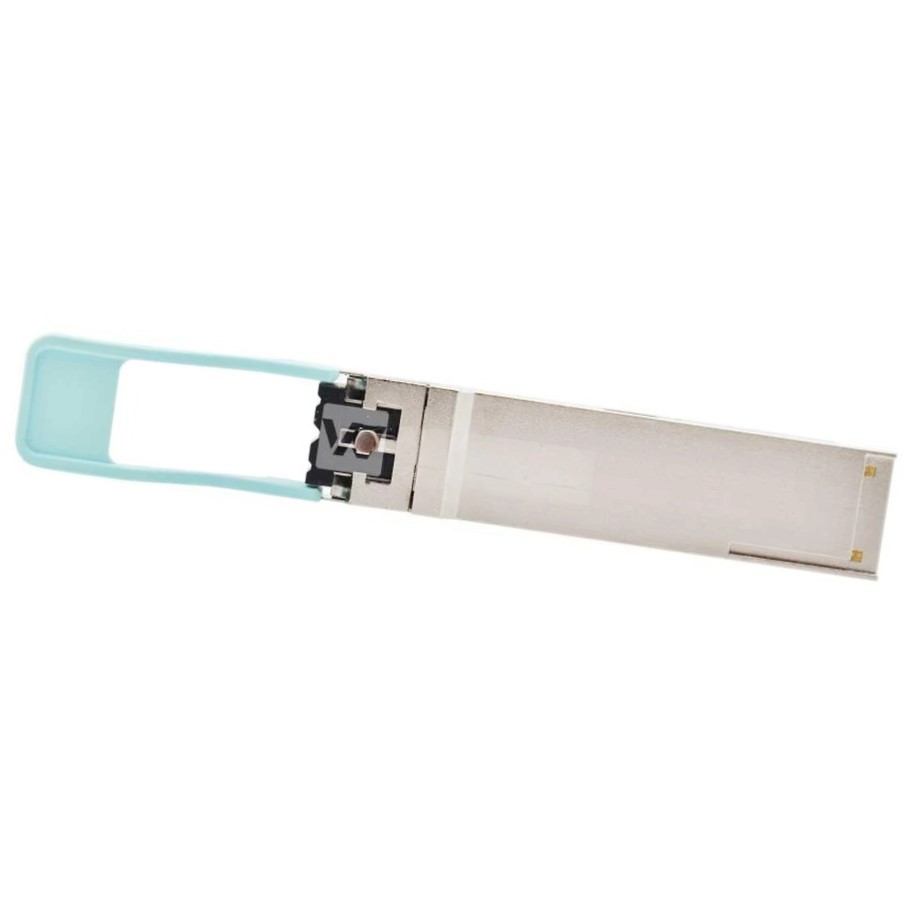

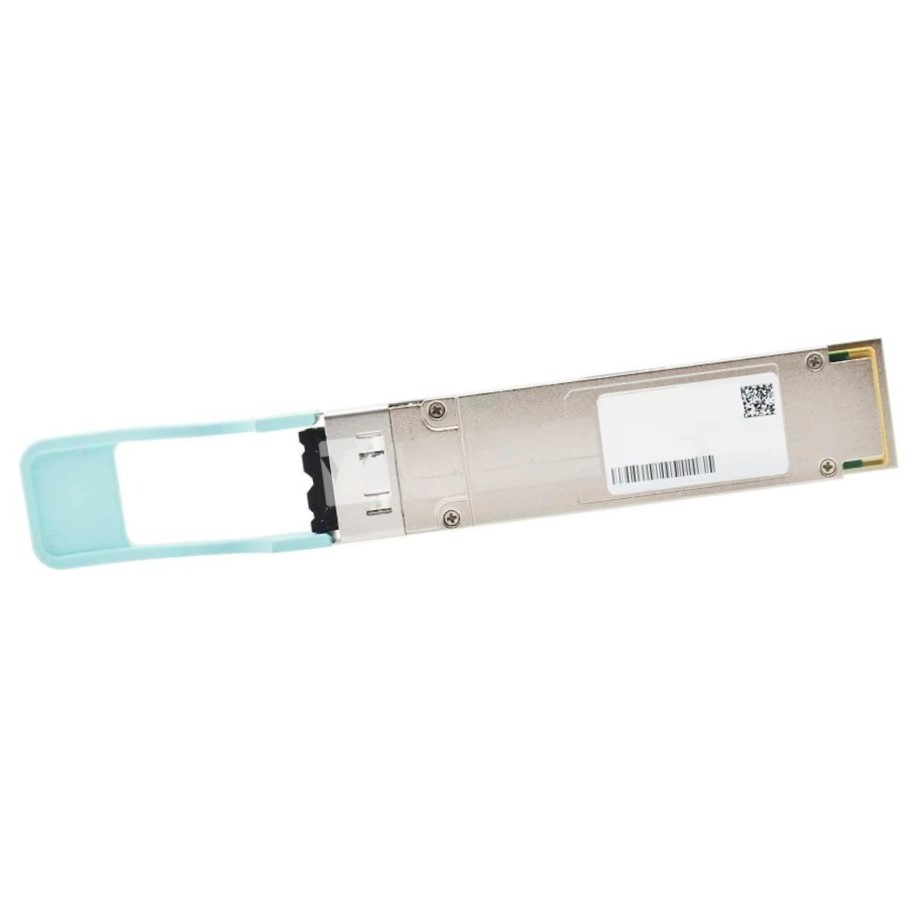

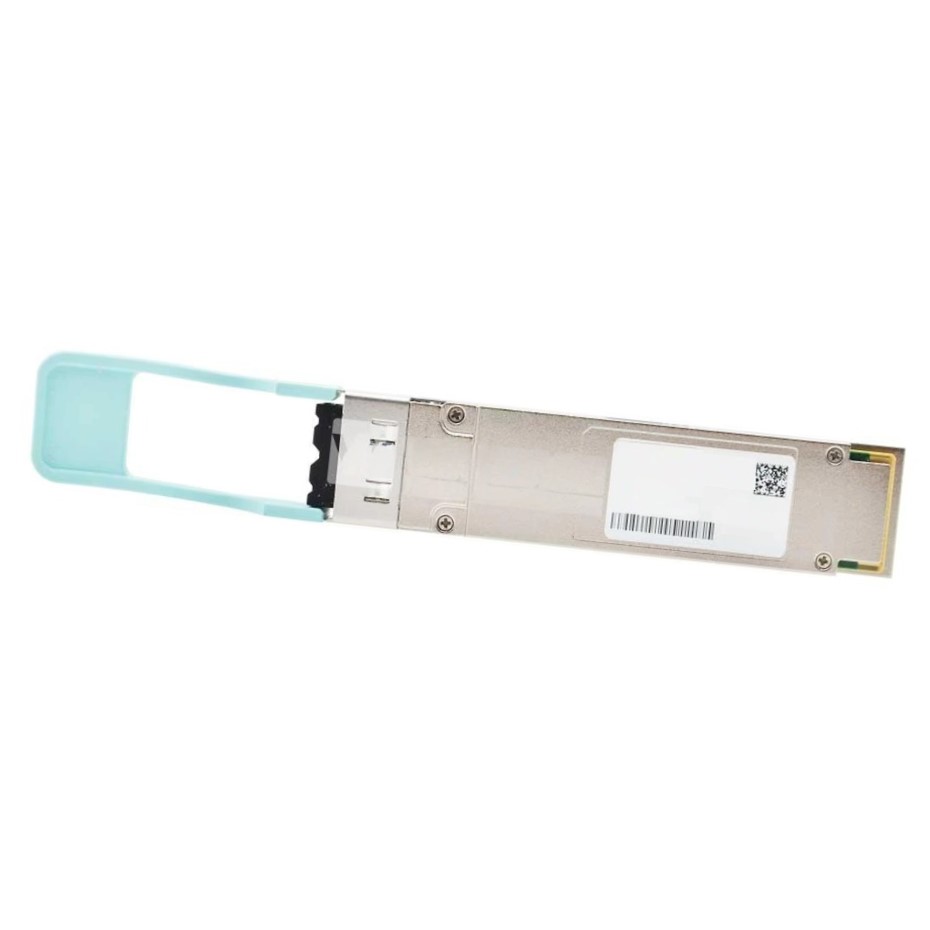

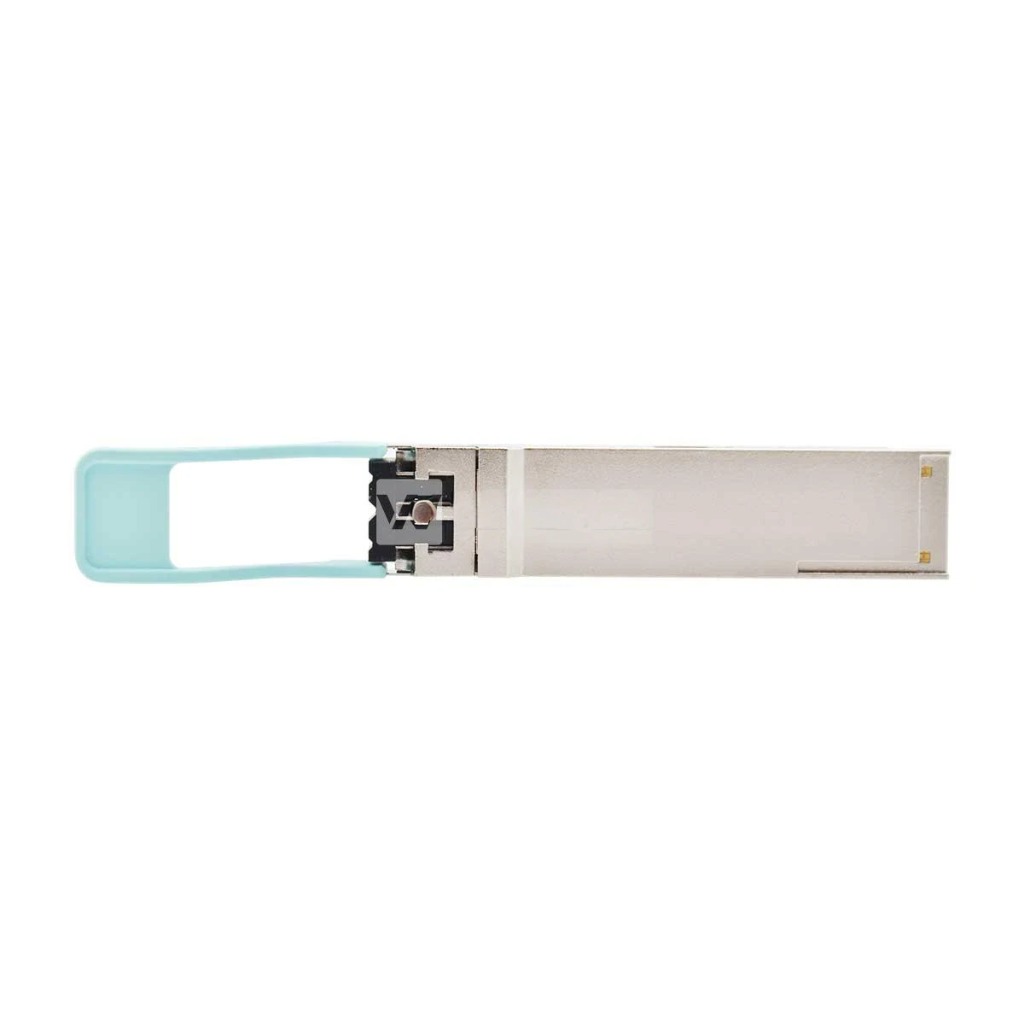

QSFP-40G-LX4-MM Huawei Description:
The QSFP-40G-LX4-MM Huawei is a brand new, original Huawei QSFP+ optical transceiver module designed for flexible 40G Ethernet connectivity over multi-mode fiber (MMF). This high-performance module uses innovative LX4 technology to deliver four independent 10G channels over a single MMF link, supporting distances up to 150 meters, which helps reduce cabling complexity and costs in data centers and enterprise networks.
Built to Huawei’s stringent quality standards, the QSFP-40G-LX4-MM ensures high reliability, low power consumption, and plug-and-play installation. It is fully compatible with Huawei switches, routers, and other network equipment supporting QSFP+ interfaces, making it an excellent choice for network upgrades and high-bandwidth applications.
Key Features:
-
Model: QSFP-40G-LX4-MM
-
Condition: 100% Brand New, Original Huawei
-
Type: 40G QSFP+ Optical Transceiver Module
-
Data Rate: 40 Gbps (4x10G channels)
-
Reach: Up to 150 meters over OM3/OM4 multi-mode fiber
-
Connector: LC duplex
-
Wavelength: 4×1270~1330 nm CWDM wavelengths
-
Form Factor: Hot-pluggable QSFP+ footprint
-
Compatibility: Fully compatible with Huawei QSFP+ interfaces on switches and routers
QSFP-40G-LX4-MM Huawei Tech Specs:
Basic Information
| Item | Details |
|---|---|
| Module name | QSFP-40G-LX4-MM |
| Part Number | 02313NUG |
| Model | QSFP-40G-LX4-MM |
| Form factor | QSFP+ |
| Application standard | 40GBASE-LX4 |
| Connector type | LC |
| Optical fiber type | MMF (Multimode Fiber) |
| Working case temperature [°C(°F)] | 0°C to 70°C (32°F to 158°F) |
| Digital diagnostic monitoring (DDM) | Supported |
| Transmission rate | 40 Gbit/s |
| Target transmission distance | – MMF (OM3, 50 μm): 150 m – MMF (OM4, 50 μm): 150 m |
Transmitter Optical Characteristics
| Parameter | Value |
|---|---|
| Center wavelength [nm] | 1271 nm, 1291 nm, 1311 nm, 1331 nm |
| Maximum Tx optical power | 2.3 dBm |
| Minimum Tx optical power | -7.0 dBm |
| Minimum extinction ratio | 3.5 dB |
Receiver Optical Characteristics
| Parameter | Value |
|---|---|
| Rx sensitivity | -10.5 dBm |
| Overload power | 3.5 dBm |
QSFP-40G-LX4-MM Huawei Applications:
The QSFP-40G-LX4-MM is ideal for:
-
High-speed interconnections in large data centers
-
Short-to-medium reach 40G Ethernet uplinks
-
Campus and enterprise core switch uplinks
-
Cloud and virtualization environments
-
Aggregation and distribution layers requiring 40G bandwidth
Customization & OEM Services:
We provide customization and OEM support to meet your specific project needs:
-
Custom labeling and serial number for private branding
-
Pre-configuration and batch testing to match your deployment requirements
-
Customized packaging for project logistics or resale
-
Extended burn-in testing for mission-critical applications
QSFP-40G-LX4-MM Huawei Wholesale & Bulk Orders:
Benefit from our wholesale and bulk order capabilities:
-
Factory-direct pricing with volume discounts
-
Fast, reliable global shipping and secure packaging
-
Consistent stock availability for project rollouts
-
Dedicated account managers to handle large orders smoothly
-
Full warranty and responsive technical support
Why Choose Us:
-
100% genuine Huawei hardware, tested and certified
-
Flexible solutions for networks of any size
-
Competitive pricing for resellers, integrators, and ISPs
-
Professional logistics with export-compliant packaging
-
Expert technical support from planning to post-deployment
Contact Us for a Quote:
Upgrade your network with the QSFP-40G-LX4-MM Huawei Brand New 0.15 MM QSFP Transceiver. Contact us today for detailed specs, customization options, and competitive bulk pricing.
We’re ready to help you deliver reliable, high-bandwidth connectivity with trusted Huawei solutions.
