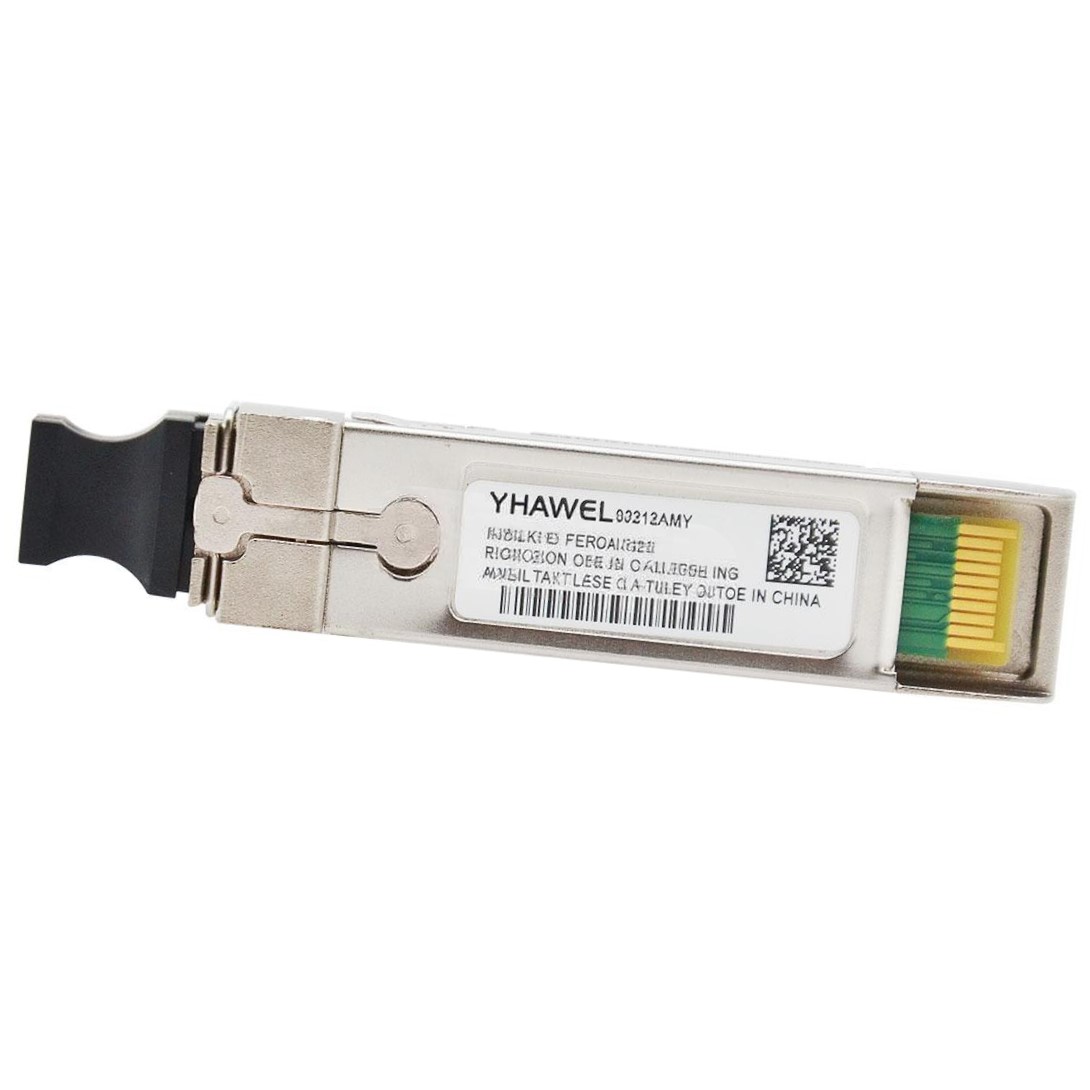

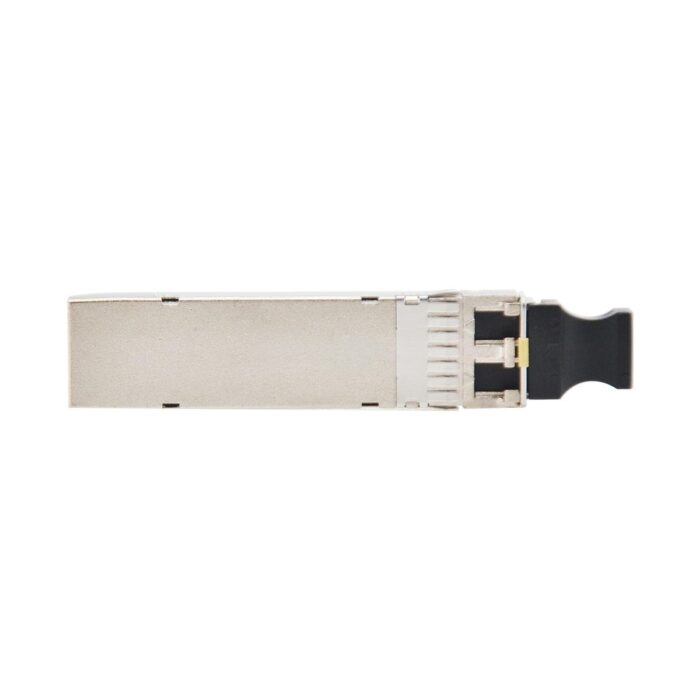

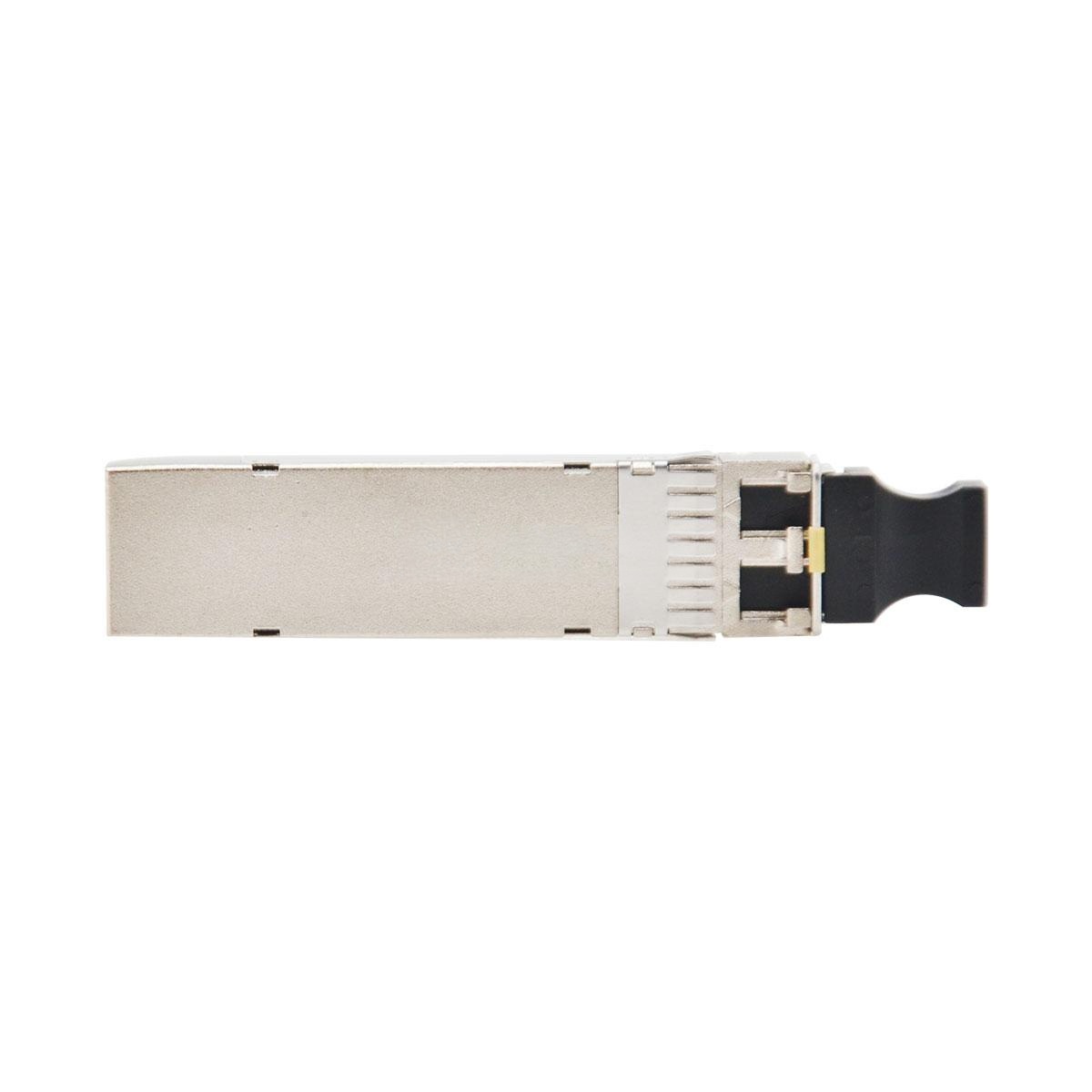

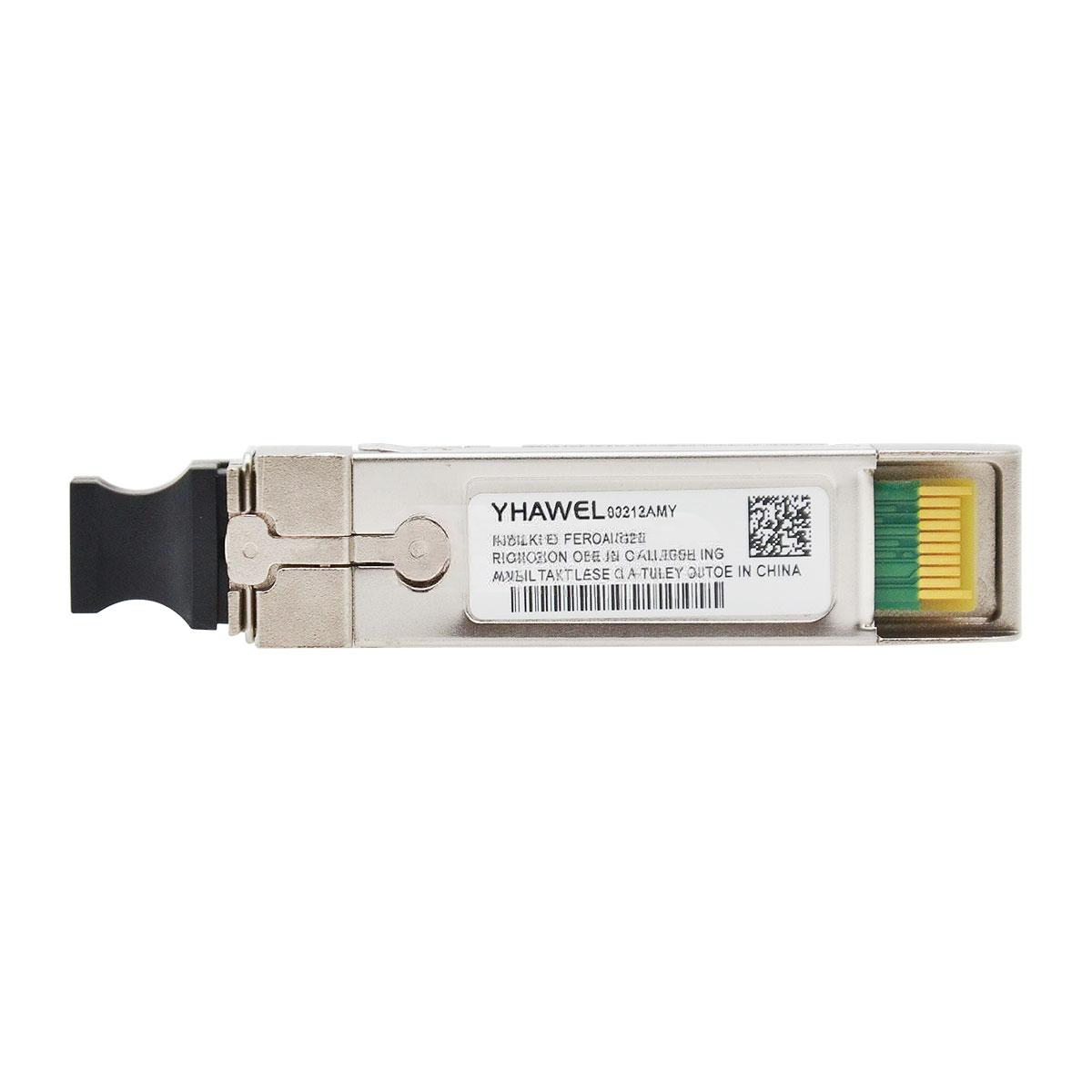

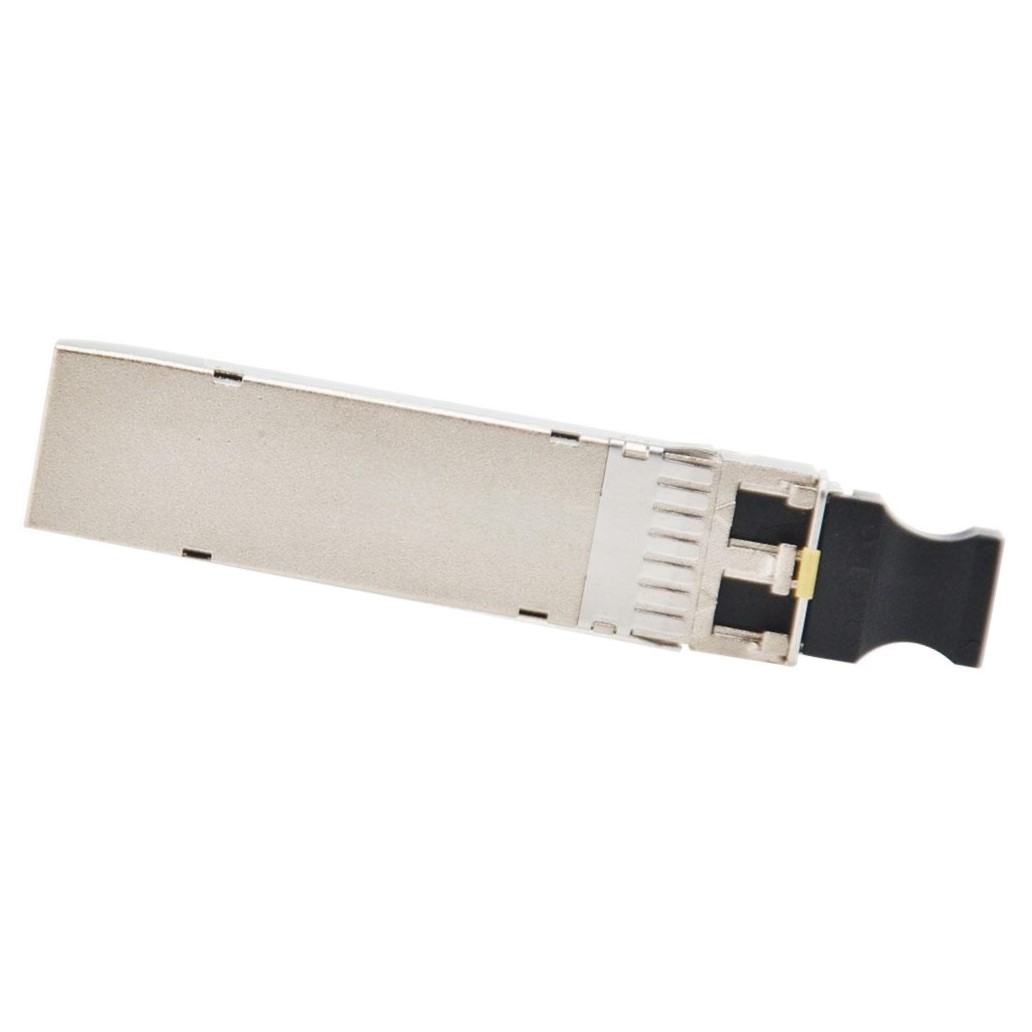

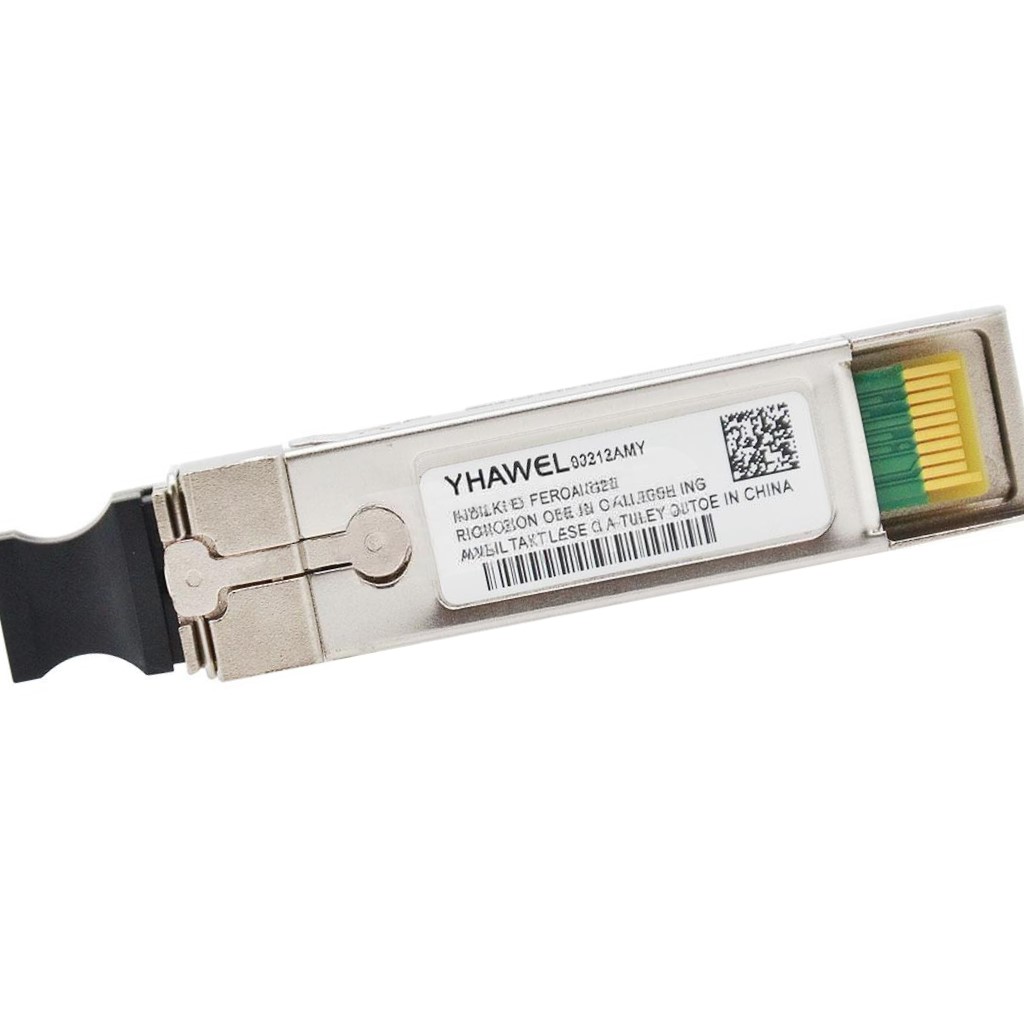

SFP-10G-SR-MP Huawei Description:
The SFP-10G-SR-MP Huawei is a brand new, original Huawei optical transceiver connector designed for high-speed, short-range 10 Gigabit Ethernet and Fibre Channel applications. With multi-mode fiber (MMF) support, this module provides excellent performance and stable connectivity for data center networks, enterprise switching, and storage area networks (SANs).
Built to Huawei’s strict standards, the SFP-10G-SR-MP offers low power consumption, hot-swappable functionality, and reliable operation, ensuring consistent, high-bandwidth data transmission with minimal latency. It is fully compatible with Huawei switches, routers, and other networking equipment that supports SFP+ interfaces.
Key Features:
-
Model: SFP-10G-SR-MP
-
Condition: 100% Brand New, Original Huawei
-
Type: SFP+ 10G Optical Transceiver Connector
-
Data Rate: 10 Gbps
-
Transmission Distance: Up to 300m over OM3 multi-mode fiber
-
Wavelength: 850nm
-
Interface: LC duplex connector
-
Hot Swappable: Plug-and-play design for easy replacement with no downtime
-
Compatibility: Fully compatible with Huawei switches, routers, and supported SFP+ slots
SFP-10G-SR-MP Huawei Tech Specs:
Basic Information
| Item | Details |
|---|---|
| Module name | SFP-10G-SR-MP |
| Part Number | 02313AMY |
| Model | SFP-10G-SR-MP |
| Form factor | SFP+ |
| Application standard / Type | 10GBASE-SR |
| Connector type | LC/DLC |
| Optical fiber type | MMF (Multimode Fiber) |
| Working case temperature | 0°C to 70°C (32°F to 158°F) |
| Fiber ceramic ferrule end face | PC or UPC |
| DDM options | Supported |
| Transmission rate | 10 Gbit/s |
| Target transmission distance | – MMF (62.5 μm): 26 m – MMF (OM1, 62.5 μm): 33 m – MMF (50 μm): 66 m – MMF (OM2, 50 μm): 82 m – MMF (OM3, 50 μm): 300 m – MMF (OM4, 50 μm): 400 m |
| Modal bandwidth [MHz·km] | – MMF: 160 MHz·km – MMF (OM1): 200 MHz·km – MMF: 400 MHz·km – MMF (OM2): 500 MHz·km – MMF (OM3): 2000 MHz·km – MMF (OM4): 4700 MHz·km |
Transmitter Optical Characteristics
| Parameter | Value |
|---|---|
| Center wavelength [nm] | 850 nm |
| Max Tx optical power | -1.0 dBm |
| Min Tx optical power | -7.3 dBm |
| Min extinction ratio [dB] | 3.0 dB |
Receiver Optical Characteristics
| Parameter | Value |
|---|---|
| Rx sensitivity (OMA) | -11.1 dBm |
| Overload power (AVG) | -1.0 dBm |
SFP-10G-SR-MP Huawei Applications:
The SFP-10G-SR-MP is ideal for:
-
Data center high-speed interconnections
-
Enterprise campus network uplinks
-
Storage area networks (SANs)
-
Cloud computing environments
-
Short-range 10G Ethernet links in aggregation and access layers
Customization & OEM Services:
We offer customization and OEM services to suit your project requirements:
-
Label and serial customization for private branding
-
Pre-testing and certification according to your deployment standards
-
Custom packaging for logistics and resale
-
Batch configuration and testing for large-scale rollouts
SFP-10G-SR-MP Huawei Wholesale & Bulk Orders:
We support wholesale supply and bulk purchasing for resellers, ISPs, and system integrators:
-
Competitive factory-direct pricing for volume orders
-
Reliable inventory and on-time global delivery
-
Export-compliant, secure packaging for safe transport
-
Dedicated account manager for order tracking and coordination
-
Full warranty and responsive after-sales support
SFP-10G-SR-MP Huawei Why Choose Us:
-
100% original Huawei components, fully tested and certified
-
Flexible solutions for large and small networks
-
Competitive pricing for projects of all sizes
-
Professional packaging and global shipping
-
Technical support from pre-sales to deployment and maintenance
Contact Us for a Quote:
Upgrade your network with the SFP-10G-SR-MP Huawei Brand New Optical Transceiver Connector. Contact us today for detailed specifications, customization options, and competitive bulk pricing.
We’re here to help you deliver high-speed, reliable connectivity with trusted Huawei solutions.
